Lets See your E85 EvoX Timing Maps

Reply



Thread Tools Search this Thread
Old May 21, 2010, 01:24 PM   #1
EvoM Super Moderator
Thread Starter
iTrader: (15)

fostytou's Avatar

Join Date: Sep 2006
Location: Aurora, IL
Posts: 3,133
Thanked 1 Time in 1 Post

Drives: '08 EBP Evo X, '04 FZ1, Former: '06 GG IX SE (88590715),35R Powered Eclipse GST, 6/4 TSi AWD, Bandit 600s

Lets See your E85 EvoX Timing Maps

I'm interested to see some people's E85 timing maps. Mine is nothing special for the X... just a gradual ~3-4* bump near redline.

I need some more time to tune but I figured I would get this thread going since it helped people out on the CT9A so much.

So, whip em out!
Offline

Reply With Quote
Old May 21, 2010, 02:27 PM   #2
EvoM Guru
iTrader: (1)

Golden's Avatar

Join Date: Nov 2009
Location: Omaha, NE
Posts: 1,456
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: 2010 Evo GSR Black

Me too. I still haven't tuned my timing yet. Still wanting to get my AFR a bit more inline.
Offline

Reply With Quote
Old Aug 26, 2010, 09:44 PM   #3
EvoM Super Moderator
Thread Starter
iTrader: (15)

fostytou's Avatar

Join Date: Sep 2006
Location: Aurora, IL
Posts: 3,133
Thanked 1 Time in 1 Post

Drives: '08 EBP Evo X, '04 FZ1, Former: '06 GG IX SE (88590715),35R Powered Eclipse GST, 6/4 TSi AWD, Bandit 600s

Bumping this with a link to the other thread so people can get an idea of what worked on the CT9A: http://forums.evolutionm.net/ecuflas...ming-maps.html

I'd like to keep this to fully tuned maps if possible, and though being specific to e85 is ideal... I wouldn't mind the pump maps for a comparison.
Offline

Reply With Quote
Old Sep 5, 2010, 10:58 AM   #4
Evolving Member
iTrader: (3)

EVOheaven's Avatar

Join Date: Oct 2005
Location: Los Angeles
Posts: 214
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: E92 M3

I'd like to see some timing maps. Anyone know the MBT for Evo X's running E85? Hopefully Bryan can come in this thread!
Offline

Reply With Quote
Old Feb 4, 2012, 05:14 PM   #5
Evolving Member
iTrader: (2)

Octane Blue's Avatar

Join Date: Feb 2009
Location: Provo, UT
Posts: 131
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9

Bumping this ol' thread!
Offline

Reply With Quote
Old Feb 6, 2015, 12:51 PM   #6
Evolved Member
iTrader: (23)

honki24's Avatar

Join Date: Apr 2003
Location: Houston, TX
Posts: 1,551
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: the friggin' wheels off.

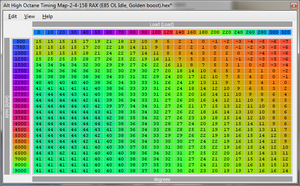

Stock turbo, 28psi, GSC S1 cams, E85 (and boltons).
Attached Thumbnails
Lets See your E85 EvoX Timing Maps-timing.png
Offline

Reply With Quote
Old Feb 8, 2015, 08:08 AM   #7
Evolved Member
iTrader: (7)

chetrickerman's Avatar

Join Date: Dec 2008
Location: Colorado Springs
Posts: 549
Thanked 0 Times in 0 Posts

Drives: White Evo 10

That is a lot of timing advance......
Offline

Reply With Quote
Old Feb 9, 2015, 01:59 PM   #8
Evolved Member
iTrader: (23)

honki24's Avatar

Join Date: Apr 2003
Location: Houston, TX
Posts: 1,551
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: the friggin' wheels off.

Quote:
Originally Posted by chetrickerman View Post
That is a lot of timing advance......
I kept ticking it up and stopped here. I can still get good pulls with only 1-2 counts so I stopped. Might be able to go higher. shooting for 12:1 (gasoline AFR) on E85 at 28psi on the stock turbo.

didn't see anyone else post theirs. I know this is very high compared to my 8 but I'm not aware of what the "norm" is for the X.
Offline

Reply With Quote
Old Feb 10, 2015, 06:53 AM   #9
Newbie

Join Date: Oct 2011
Location: Brazil
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Lancer Evo X MR SST

Quote:
Originally Posted by chetrickerman View Post
That is a lot of timing advance......
My timing map is quite similar to his and I use top quality E25 fuel (95oct gas mixed with 25% ethanol). Over 10,000 miles and a few tracks with no problems.
Offline

Reply With Quote
Old Feb 10, 2015, 07:39 AM   #10
Evolved Member
iTrader: (7)

chetrickerman's Avatar

Join Date: Dec 2008
Location: Colorado Springs
Posts: 549
Thanked 0 Times in 0 Posts

Drives: White Evo 10

Quote:
Originally Posted by honki24 View Post
I kept ticking it up and stopped here. I can still get good pulls with only 1-2 counts so I stopped. Might be able to go higher. shooting for 12:1 (gasoline AFR) on E85 at 28psi on the stock turbo.

didn't see anyone else post theirs. I know this is very high compared to my 8 but I'm not aware of what the "norm" is for the X.
You can keep going to 50 degrees of advance and not knock on E85, doesnt mean that you should.
Offline

Reply With Quote
Old Feb 10, 2015, 02:09 PM   #11
Evolved Member
iTrader: (1)

momostallion's Avatar

Join Date: Jan 2012
Location: Dallas, TX
Posts: 611
Thanked 1 Time in 1 Post

Drives: '12 MG GSR

with 28 psi i would assume you are hitting the 280-300 load column?

id say your timing is a bit high during spool up and peak boost but then you just went flat above 5000. personally i'd reduce some timing down low and actually add a bit up top.

i wouldn't really go over 8 or 9 degrees at 4000-4500 but i would ramp up after that. too much timing at peak torque is the stuff that can bend rods.

as far as peak timing, i ran 16 degrees on 93 octane. 19 on e85 up top isnt really anything crazy.
Offline

Reply With Quote
Old Mar 12, 2015, 10:45 PM   #12
Newbie

Join Date: Nov 2014
Location: Auburn
Posts: 24
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: 2015 EVO GSR

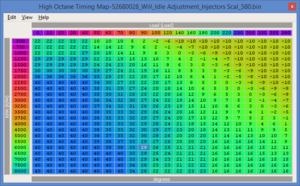

580 whp e85

Lets See your E85 EvoX Timing Maps-timimg.png
Offline

Reply With Quote
Old Apr 23, 2015, 12:48 PM   #13
Evolved Member
iTrader: (23)

honki24's Avatar

Join Date: Apr 2003
Location: Houston, TX
Posts: 1,551
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: the friggin' wheels off.

Quote:
Originally Posted by chetrickerman View Post
You can keep going to 50 degrees of advance and not knock on E85, doesnt mean that you should.
You're right. I haven't done DD or dyno tuning to verify it's making power. I'm re-evaluating now. Anyone else have stabs at it they're willing to share? I don't have the time to tune that I used to.
Offline

Reply With Quote
Old Mar 30, 2016, 05:08 AM   #14
Newbie

Join Date: Nov 2014
Location: Indianapolis
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
First time tuning E85, how does this map look, still have a few more degrees up top I'm thinking
Offline

Reply With Quote
Old May 15, 2016, 12:05 AM   #15
Evolved Member
iTrader: (9)

Hiboost's Avatar

Join Date: Apr 2005
Location: Rochester, NY
Posts: 3,186
Thanked 1 Time in 1 Post

Drives: 2011 Evolution X MR, 2011 Outlander Sport SE

Basic E85 tuning guide

I'll reinforce the warnings about relying on the knock sensor when tuning on E85, since it doesn't consistently knock when you go too lean or add too much timing you can quickly melt an engine before realizing you went too far. It's definitely best to be on a dyno to verify your changes are yielding consistent horsepower gains at each step. Road tuning with Virtual Dyno might be workable if you have a consistent testing location but you are well advised to stay on the conservative side of things in that case as it's just not as accurate as a dyno when comparing runs.

Generally aiming for 12.0 AFR on a wideband with gasoline calibration works well but every car will vary. Probably no leaner than 12.5 is wise or richer than 11.5 since going too rich on E85 can actually trigger some knock. With the effective 105 octane rating and additional cooling properties of E85 you can run elevated boost levels and increased timing within reason. Usually dialing in AFR with conservative boost/timing is a good first step, then set your boost level using conservative timing, then finally adjust timing upwards ensuring that each increase is still yielding consistent power. Generally I would avoid adding any extra timing over pump gas at 4000 or lower, then feed in as much as 3-4* once you reach peak RPM's but only if you see increases in power. Hopefully MIVEC settings will be good enough from your pump gas maps but keep in mind that boost may come on several hundred rpm's sooner so keep those WGDC and boost targets at reasonable levels.

As a baseline here are some timing values at various loads to give an idea of what the factory has as a starting point:

Stock Timing Tables (Pump Gas with 24 psi tapering to 16 psi)
3000 = 4 (240 load)
4000 = 8 (240 load)
5000 = 12 (240 load)
6000 = 16 (220 load)
7000 = 22 (200 load)
8000 = 26 (180 load)
Comments: It's been a while since I dynoed or datalogged a completely stock car but this should be close for comparison sake. When looking at the stock maps, the timing advance drops off quickly as loads rise along with increases in fuel delivery to the point where any increased boost is just fighting you as far as making power. This is one reason why adding parts alone often barely makes any difference until the tune is dialed in properly to match them.

Stock Timing Tables (Pump Gas with 28 psi tapering to 20 psi)
3000 = -2 (280 load)
4000 = 3 (280 load)
5000 = 6 (280 load)
6000 = 10 (260 load)
7000 = 16 (240 load)
8000 = 21 (220 load)
Comments: With elevated boost levels the stock timing tables cut timing back aggressively as boost/load rises, so much so that typically raising boost 4 psi might be completely countered by reducing timing by 5-6* and adding fuel when it comes to making power.

Based on what I've tuned I would say this chart is a reasonable starting point but by no means absolute. This assumes a modest 28 psi on E85 with typical load, smaller turbos will taper boost as RPM's rise which will place you in lower load cells with higher timing. Larger turbos will likely want lower timing because the higher boost levels will push you into much higher load values. Load values can vary quite a bit from car to car as well as how the tuner calibrates everything but this gives us a working timing range based on RPM & load that I'm willing to share. Higher load/boost means you will be forced to run lower timing, always start from the conservative side and work your way up. (As always use at your own risk!)

Target E85 Timing Tables (E85 with 28 psi tapering to lower boost for smaller turbos)
3000 = 4-6 (280 load)
4000 = 8-10 (280 load)
5000 = 12-14 (280 load)
6000 = 16-18 (260-280 load)
7000 = 20-22 (240-280 load)
8000 = 24-26 (220-260 load)

Last edited by Hiboost; May 15, 2016 at 12:22 AM.
