How to: Front bumper removal

Reply



Thread Tools Search this Thread
Old Jul 14, 2003, 04:59 AM   #1
Evolved Member
Thread Starter
iTrader: (20)

livelyjay's Avatar

Join Date: Aug 2002
Location: Reston, VA
Posts: 1,262
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: '03 Mazdaspeed Protege

You'll need the following tools:
1. Ratchet with 10mm socket
2. Phillips head screwdriver
3. Flathead screwdriver
4. Needle nose pliers

Here are the steps:
1. Turn the steering wheel all the way to the left
2. Remove metal screw and plastic retainers from passenger side

* Use either screwdriver or ratchet to remove the one metal screw holding top side of bumper to fender (top arrow in picture)
* Use phillips screw driver to remove plastic screws from fender lining (be careful because the threads are easy to strip) (lower two arrows in picture)
* Use flathead to pop out plastic retainers
3. Turn steering wheel all the way to the right, repeat step 2 for the driver side
4. Pop hood
5. Remove all five bolts you see between the headlights

6. Remove all plastic retainers using the flathead screwdriver

7. There are four plastic retainers that are left holding the bumper on (picture shows approximate locations).

Look under the car and you will see two flaps going from the bumper to the bottom of the car.

Use the needle-nose pliers to remove the retainers.
8. Now for the two fun and very hidden retainers. They are located on the top side of the large opening in the bumper. The problem getting to them is the stock plastic grill insert has a flap at the bottom, so you have to get to them from the top.
* Look through the plastic grill insert to located them visually
* Using the needle-nose pliers reach from the area in front of the radiator down towards the bumper.
* Remove the two retainers.
9. Peel back the fender lining in both wheel wells.
10. The bumper should slide right off.

I wish I would have known someone needed this because I could have taken pictures this weekend to help with the process. If you need pictures let me know (through pm) and I'll take some when I get home tonight.

Questions? Comments? Discuss this how to here.

Last edited by livelyjay; Oct 10, 2005 at 11:41 AM.
Offline

Reply With Quote
Old Oct 10, 2005, 12:03 PM   #2
EvoM Staff Alumni
iTrader: (88)

Blacksheepdj's Avatar

Join Date: Aug 2003
Location: Concord Township, Ohio
Posts: 8,733
Thanks: 0
Thanked 1 Time in 1 Post

Drives: 2004 Ford Explorer

Bump for new pictures. And discussion and all that...
Offline

Reply With Quote
Old Oct 11, 2005, 10:33 AM   #3
Evolved Member
iTrader: (16)

comatose721's Avatar

Join Date: May 2004
Location: Toms River, NJ
Posts: 1,425
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: '10 Subaru Impreza Outback Sport

i'll work on posting shop pic's when i get around to finishing my philosophy papers.
Offline

Reply With Quote
Old Oct 11, 2005, 10:36 AM   #4
Evolved Member
iTrader: (23)

grubiaco's Avatar

Join Date: Sep 2004
Location: central cali
Posts: 945
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Modified 2003 OZ Lancer (RRM tuned t28 turbo)

couldn't have come at a better time. I will be removing my bumper to put an extended radiator, ha!
Offline

Reply With Quote
Old Oct 15, 2005, 08:04 AM   #5
Evolved Member
iTrader: (16)

comatose721's Avatar

Join Date: May 2004
Location: Toms River, NJ
Posts: 1,425
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: '10 Subaru Impreza Outback Sport

Shop Pics

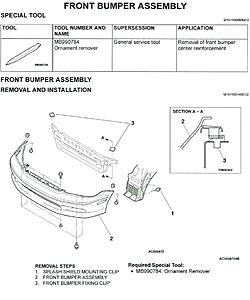

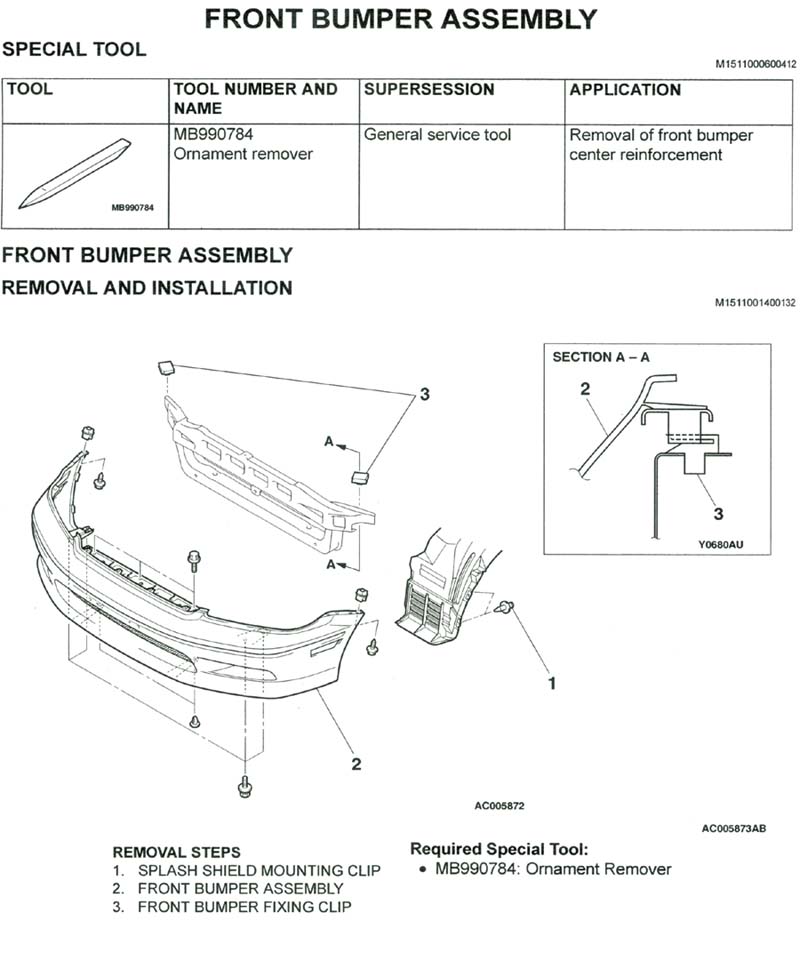

i hope these help out in addition to the original photos.
Attached Thumbnails
How to: Front bumper removal-front-bumper001.jpg   How to: Front bumper removal-front-bumper002.jpg
Offline

Reply With Quote
Old Oct 27, 2005, 05:12 PM   #6
Evolving Member
iTrader: (9)

Zippo41189's Avatar

Join Date: May 2005
Location: Florida (near Jacksonville)
Posts: 434
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: 03 Lancer ES

so how did you get your mesh/grille installed? do you have any pics on hopw you attached it to the bumper? great write up!
Offline

Reply With Quote
Old Oct 30, 2005, 07:59 AM   #7
Evolved Member
iTrader: (16)

comatose721's Avatar

Join Date: May 2004
Location: Toms River, NJ
Posts: 1,425
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: '10 Subaru Impreza Outback Sport

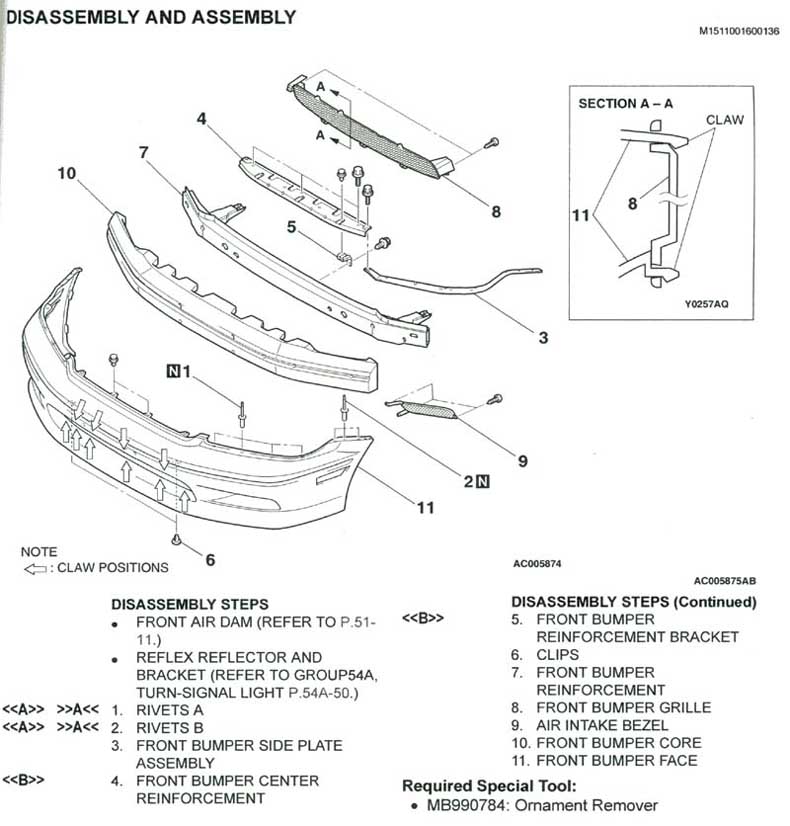

check out diagram 2 in the shop pics i posted. look for the arrows and #6, thats where your clips go back in. #8 is the rest of the lower grill. you just use the same clips that were used before you took it off. it's pretty simple.
