scosche slc4 install
Hey i got the scosche slc4 to hook up my amp and subs in my gts, does anyone have any advice on what to tap into, and how to tap into the speaker wires, and which colors mean what in the lancer speaker wiring?
Last edited by kmc8302; Oct 14, 2009 at 07:57 PM. Reason: Pics
#2
Account Disabled
Thread Starter
iTrader: (4)
Join Date: Sep 2009
Location: Long Island
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
haha I found my own answer, but ill post it just incase anyone else would like to do the same:
Battery
RED/WHITE
Accessory
YELLOW
Ground
BLACK
Dimmer
GREEN/WHITE
Power Antenna
PINK
LF Speaker (+)
WHITE/BLUE
LF Speaker (-)
BLACK/YELLOW
RF Speaker (+)
WHITE/RED
RF Speaker (-)
BLACK/RED
LR Speaker (+)
YELLOW/BLUE
LR Speaker (-)
GRAY/BLUE
RR Speaker (+)
YELLOW/RED
RR Speaker (-)
GRAY/RED

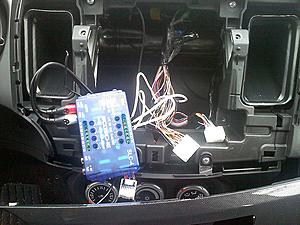

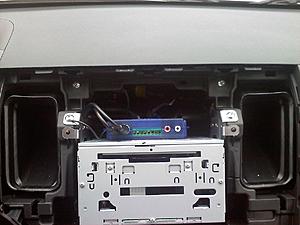

What I did is took off the dash panel got to the wiring harness, took a razor blade and kind of ran it parallel with the wires at a small angle to stripped away the wire coat, then took speaker wire wrapped it around the spliced harness wire then electrical taped it together and connected it all to the SLC4 which has its own wiring diagram (i only did the front speakers so 4 wires) the slc4 fits perfectly mounted on top of the factory receiver, then i ran the line output rca connectors to the trunk and BAM ready to be hooked up to an amp
