This how to will show you how to change the stock radio LCD to red without using any of that film stuff that everyone has been using. Everyone knows that the light output of the screen is greatly lessened when using the film. This method will allow for a brighter screen both during the day and at night.
Tools
- soldiering iron
- tweezers or small pliers
- Delta Air-Dry PermEnamel paint Clear and Red(See pictures below)
- Brush
- Something to mix the paint on
- First follow majestic lancer's how to untill step 7
https://www.evolutionm.net/forums/sh...ad.php?t=73978
- Now you should be left with what you see here in the attached pictures
- Notice where the arrows are pointing. These are the bulbs for the LCD display.
Tools
- soldiering iron
- tweezers or small pliers
- Delta Air-Dry PermEnamel paint Clear and Red(See pictures below)
- Brush
- Something to mix the paint on
- First follow majestic lancer's how to untill step 7
https://www.evolutionm.net/forums/sh...ad.php?t=73978
- Now you should be left with what you see here in the attached pictures
- Notice where the arrows are pointing. These are the bulbs for the LCD display.
Last edited by sykou; Nov 20, 2005 at 08:17 PM.
#2
Continued
- Now what you want to do is, using your tweezers or pliers, gently pull up on one side of the piece while applying heat via the soldiering to the metal contact points on the same side.
- Then do the same to the other side. You will notice that each time the soldier melts, the housing for the bulb will move away from the board slightly. Keep repeating this untill the housing comes off.
- The drawing is what the led looks like when it comes off.
- Then do the same to the other side. You will notice that each time the soldier melts, the housing for the bulb will move away from the board slightly. Keep repeating this untill the housing comes off.
- The drawing is what the led looks like when it comes off.
#3
continued
- Pull the Blue gel cover off of the LED either with your hands or if it doesn't come off, you can use the tweezers but DO NOT use the pliers because you could crack the LED.
- One the gel cover is removed, mix your paint.
- THREE drops of the CLEAR and ONE drop of the RED
- Clean the bulb with rubbing alcohol and let it dry before painting it
- Mix paint thoroughly and apply onto the bulb.
- Some of the paint may go onto the LED holder which is okay. DO NOT let the paint go onto the metal contact points.
- Let the paint dry at least 15 minutes, the longer the better.
- Brush another coat onto the LED and let dry.
- Two coats are required for the RED color. Using one coat will give you a weird orange color which isn't what we want.
- One the gel cover is removed, mix your paint.
- THREE drops of the CLEAR and ONE drop of the RED
- Clean the bulb with rubbing alcohol and let it dry before painting it
- Mix paint thoroughly and apply onto the bulb.
- Some of the paint may go onto the LED holder which is okay. DO NOT let the paint go onto the metal contact points.
- Let the paint dry at least 15 minutes, the longer the better.
- Brush another coat onto the LED and let dry.
- Two coats are required for the RED color. Using one coat will give you a weird orange color which isn't what we want.
#4
continued
Now for the reinstallation of the LED.
- Make absolutely sure that the paint is dry before attempting to reinstall the LED.

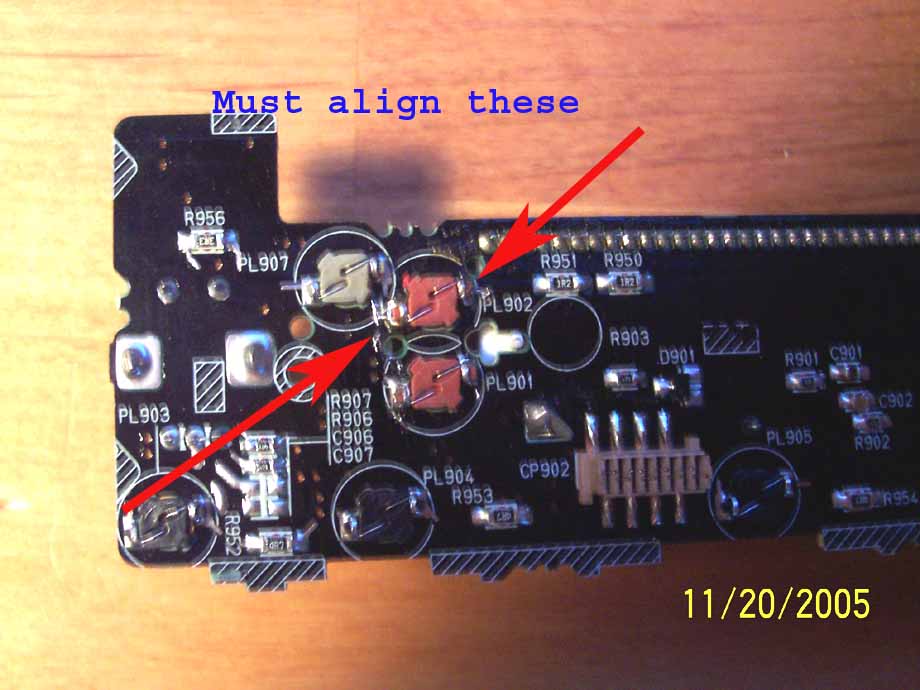

- Carefully replace the LED holder making sure that the metal contact points are aligned properly. (see picture below).
