How to: Evo 8 front conversion swap
#1
How to: Evo 8 front conversion swap
I finally finished the conversion on my 02 lancer es to an evo 8 swap, and I am happy with the results just need to fix up a few things and the car will be officially done
here is my list of stuff I bought to get the car ready for driving as well as body work
hood - 125 evo dynamics
hood latch - $38.00 BOUGHT here
radiator - $57.98 here
radiator support - 900.00
ac condenser - 114.00
Hood vent - 55.00
fenders - $257.00
Front Bumper - $330.00
headlights - $375.00

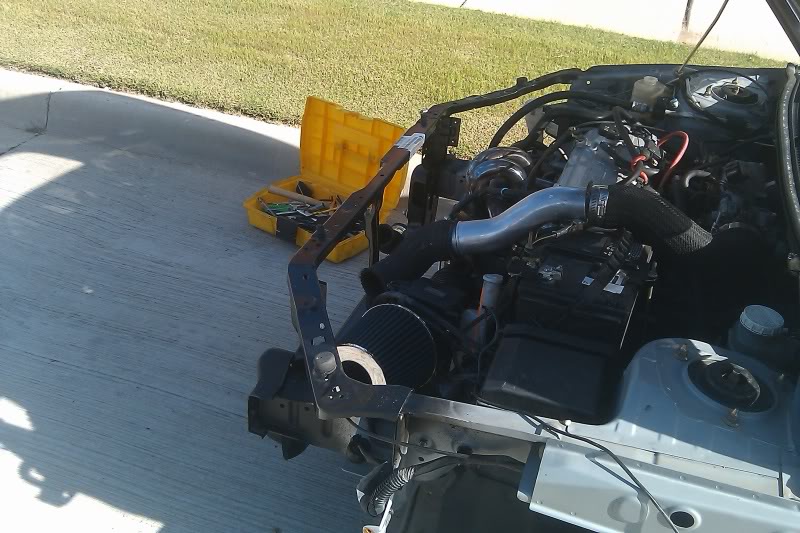

First you need to get an evo 8 core support, this is a direct swap to the lancer but you MUST USE THE EVO 8 BODY DIMENSIONS PROVIDED BELOW!!! Or give your local body shop a evo 8 vin number so they can have something to work off with.
If you use the OEM lancer dimensions it will not work right and it will be a disaster plus cost!!!

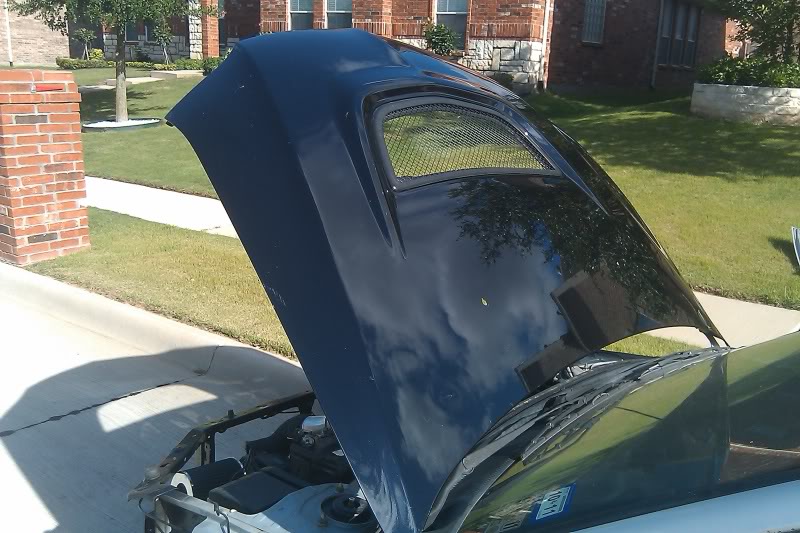

next I attached the hood from an evo 8 and it was a direct swap!!! And it looks so much better. The hood attaches with 4 bolts 2 on each side. Loosen those and swap on your evo 8/9 hood

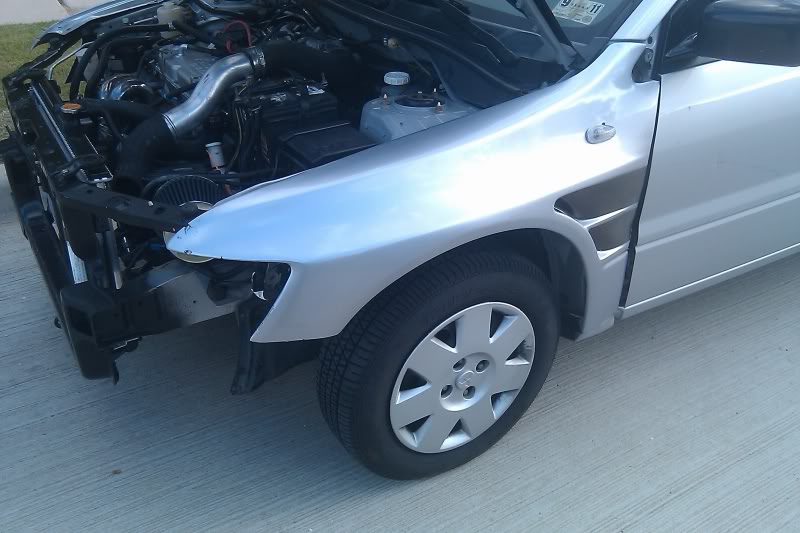

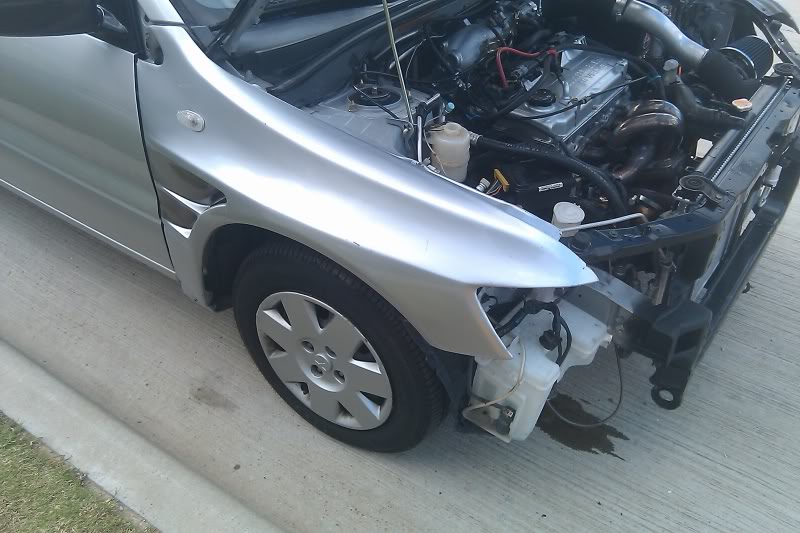

next I did the fenders, If I were you I would use OEM evo fenders because the ones I got are not working so well and Im getting frustrated. But these are a direct bolt on and is easy as pie. Just attaches with a few bolts.

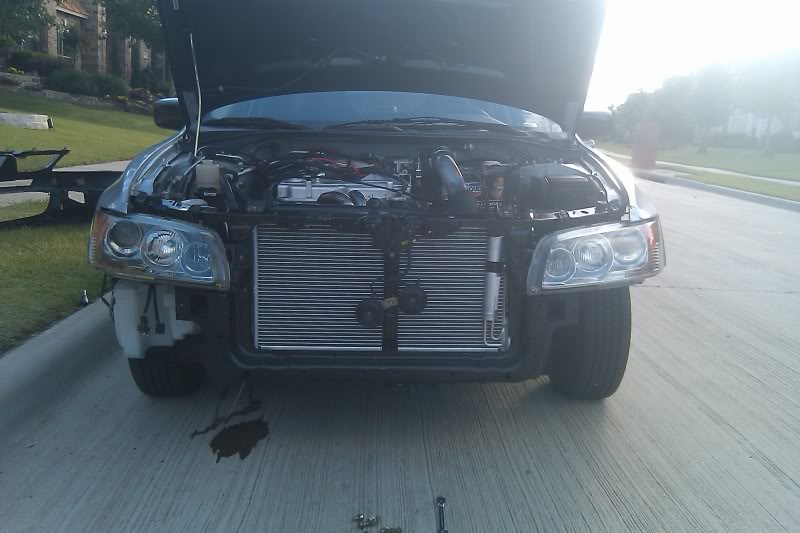

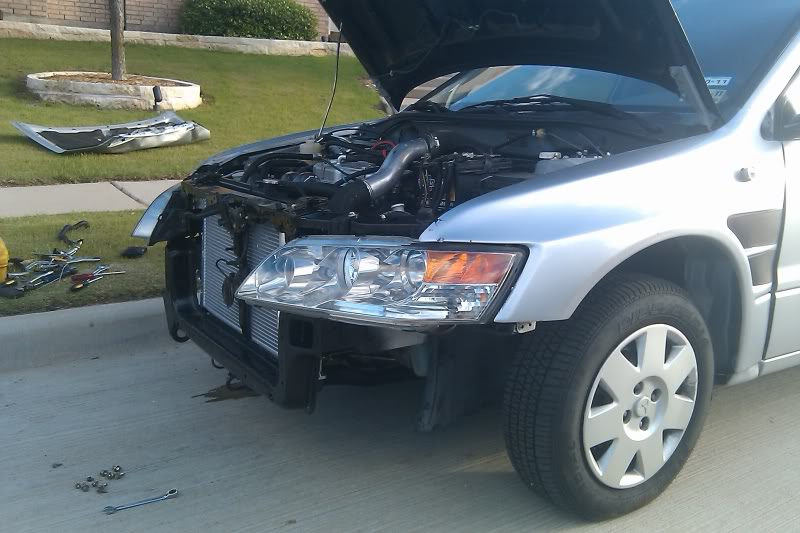

After that I attached the headlights and these were a direct swap with the radiator support. The only issue I ran into was the ending bracket near the fenders didnt have a screw hole for the bolt to attach the head light to, so im wondering if I got an evo 9 support by mistake due to holes. Just remember what I said above.
The wiring will come next after I get some plugs for it, im taking to an evo shop down the street from to get these looked at so I can drive at night.

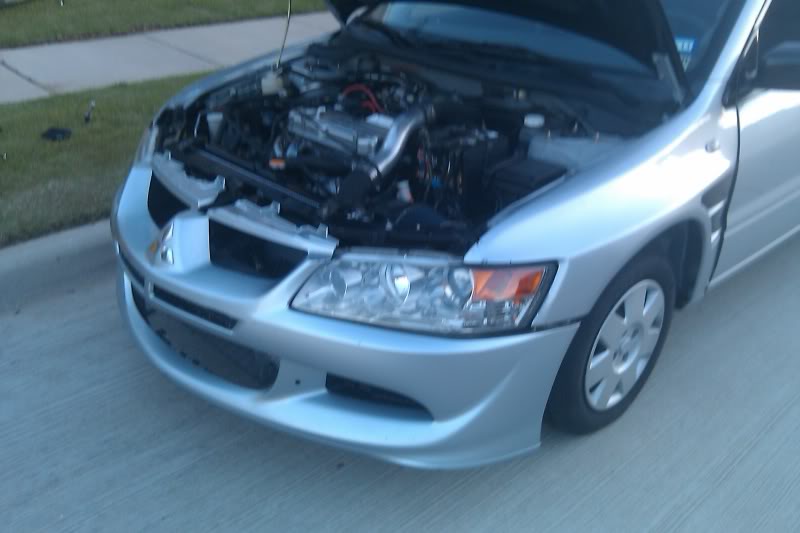

After that the last thing I needed to attach was the front bumper, this was held on by 2, 10 mm bolts im not sure why I thought it was four but either way it held up just fine. This is also a direct swap with everything else and it fits snug with with the frame, thin only thing you can tell is the fenders will be a tad wider and your wheels will be tucked under just get some wheel spacers and some wider tires and it will look just fine.
KEY notes
you do not need the subframe, control arms and end links for the lancer, the wheels are not that far in the back as you can see in the picture. I plan on running 17 inch rims with this setup and no bigger, wheel spacers will also help bring out the wheels a bit.
if you have any questions just pm me
Thanks for looking
LOOK BELOW
