HOW TO: Easy Cluster Swap
This is a how to for a very easy itsall of a new gauge cluster.
Tools:
Screwdriver
Steps
1.) Unscrew the 2 screws holding on the plastic retainer for the cluster. (Located above the steeringwheel)
2.) Pull retainer out by grabbing on the top part of it and easing the bottom out of it you have to unsnap the botton has 2 grooves that it slips into.
3.) After you have it off start to unscrew the three screws along the outside of the cluster
4.) After you have the screws out you have to turn the cluster at almost a 45% angle to get the cluster out. It takes a few tries.
5.) After you have the Cluster out you can unhook the 2 connecters in the back by pressing down on the tabs.
6.) Hook up new cluster.
7.) Assemble. Good thing about this is that it only takes 10-15 mins.
Discuss thread here
Tools:
Screwdriver
Steps
1.) Unscrew the 2 screws holding on the plastic retainer for the cluster. (Located above the steeringwheel)
2.) Pull retainer out by grabbing on the top part of it and easing the bottom out of it you have to unsnap the botton has 2 grooves that it slips into.
3.) After you have it off start to unscrew the three screws along the outside of the cluster
4.) After you have the screws out you have to turn the cluster at almost a 45% angle to get the cluster out. It takes a few tries.
5.) After you have the Cluster out you can unhook the 2 connecters in the back by pressing down on the tabs.
6.) Hook up new cluster.
7.) Assemble. Good thing about this is that it only takes 10-15 mins.
Discuss thread here
Last edited by LancerEvoMR; Feb 25, 2004 at 12:05 PM.
#2
Evolved Member
iTrader: (4)
Join Date: Oct 2006
Location: Long Beach
Posts: 662
Likes: 0
Received 0 Likes
on
0 Posts

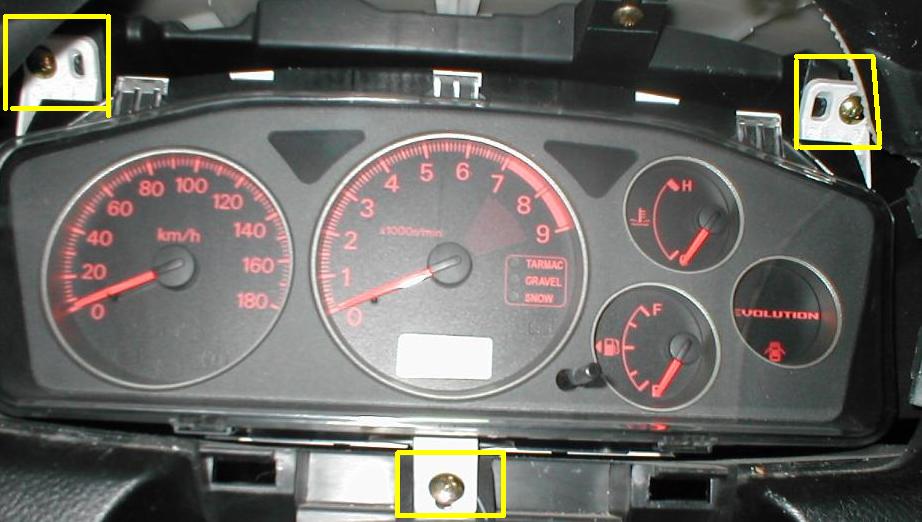

here are some pics going off his instructions.. once you see the 3 screws.. unscrew them and pull the bottom of the cluster towards you and up.. it will pop upwards.. remove the power side mirror controls by popping that section out too.. then force the left side of the cluster out first.. DONE..
