HELP: AEM failsafe
#1
Evolving Member
Thread Starter
Join Date: Oct 2009
Location: Australia
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
HELP: AEM failsafe
Hi Guys,
I am from australia and tried to order the jack of the trades harnes, I then found out shipping was $95 bucks so I was not impressed.
I then went to Wiki and found the wirin diagram for the alt map harness, I made this and it works perfectley in theory, I am currently trying to find a wiring diagram showing How I integrate the AEM failsafe wire into the harness to swap back to safe maps if it detects a problem.
If anyone knows how to wire it in it would be much appreciated.
Thanks
Dale
I am from australia and tried to order the jack of the trades harnes, I then found out shipping was $95 bucks so I was not impressed.
I then went to Wiki and found the wirin diagram for the alt map harness, I made this and it works perfectley in theory, I am currently trying to find a wiring diagram showing How I integrate the AEM failsafe wire into the harness to swap back to safe maps if it detects a problem.
If anyone knows how to wire it in it would be much appreciated.
Thanks
Dale
#4
Evolving Member
Thread Starter
Join Date: Oct 2009
Location: Australia
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Hi tephra it has a green wire that grounds when failsafe is active.
I was thinking of using a car relay and if grounded it would stop all power to the harness. What do you think?
I was thinking of using a car relay and if grounded it would stop all power to the harness. What do you think?
#6
Evolving Member
Thread Starter
Join Date: Oct 2009
Location: Australia
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Um no I think it just grounds itself. It's actually a boost control release valve line that you can use to vent all boost if system has failure.
I read a forum that used the at relay to switch on or off. But I thought I would ask here as jot ha created a harness for this injection kit and I already have the harness I just need to know how to wire the aem to the harness and if it uses a relay ect.
I read a forum that used the at relay to switch on or off. But I thought I would ask here as jot ha created a harness for this injection kit and I already have the harness I just need to know how to wire the aem to the harness and if it uses a relay ect.
Trending Topics
#9
Evolving Member
Thread Starter
Join Date: Oct 2009
Location: Australia
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Thanks NS,
So if I use the harness with 12+ power routed through a standard relay and when the aem failsafe kicks in it will cut out the 12v power therfore switching the maps?
Is there a way I can implement the relay to also toggle a failsafe switch that will not let power run back through the harness until I let it?
So if I use the harness with 12+ power routed through a standard relay and when the aem failsafe kicks in it will cut out the 12v power therfore switching the maps?
Is there a way I can implement the relay to also toggle a failsafe switch that will not let power run back through the harness until I let it?
#12
Evolved Member
iTrader: (71)

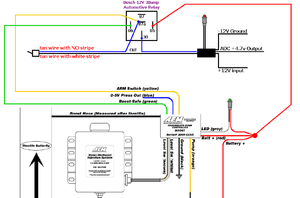

^^that post was made in 2010. I've been looking for this info for about 16 months now for using the stock ECU, DevilsOwn stage 2 methanol kit, and the AEM failsafe gauge. and looking at the diagram, it makes sense and I will be testing it soon to see if it works for my needs.
