Old May 15, 2017, 03:45 AM   #2686
Evolving Member

darwin_evo's Avatar

Join Date: Nov 2005
Location: Belgium
Posts: 286
Thanks: 0
Thanked 1 Time in 1 Post
bump
Offline

Reply With Quote
Old May 15, 2017, 03:02 PM   #2687
Evolving Member

darwin_evo's Avatar

Join Date: Nov 2005
Location: Belgium
Posts: 286
Thanks: 0
Thanked 1 Time in 1 Post
so we tuned the car on the dyno, on e100, but it seemed to stop making power at the following timing/rpm:
6500rpm 12*
7000rpm 13*
7500rpm 14*
8000rpm 15*
8500rpm 15*

boost: 42psi
turbo fp super 94
engine 2.2L

I don't trust the dyno as it's not properly ventilated. Timing seems a bit low to have reached MBT

any opinions?
Offline

Reply With Quote
Old May 16, 2017, 07:39 AM   #2688
Evolved Member
iTrader: (102)

detroit pistins's Avatar

Join Date: Aug 2007
Location: Detroit
Posts: 2,137
Thanked 8 Times in 8 Posts

Drives: tb 8 gsr (current), tb 9 ssl (sold), tb 9 gsr (sold)

^ Are you on a stock ecu or aftermarket?
Offline

Reply With Quote
Old May 16, 2017, 08:57 AM   #2689
Evolved Member

2winscroll's Avatar

Join Date: Mar 2014
Location: wisconsin
Posts: 545
Thanked 23 Times in 21 Posts

Drives: 2003 evo 8, S369 turbo, 2.0LR +800hp

Quote:
Originally Posted by darwin_evo View Post
so we tuned the car on the dyno, on e100, but it seemed to stop making power at the following timing/rpm:
6500rpm 12*
7000rpm 13*
7500rpm 14*
8000rpm 15*
8500rpm 15*

boost: 42psi
turbo fp super 94
engine 2.2L

I don't trust the dyno as it's not properly ventilated. Timing seems a bit low to have reached MBT

any opinions?
When it stops making power your at MBT. Make sure your base timing is correct, many times it's not. Another is flat top pistons give more quench area which speeds up the burn. E100 burns slightly faster than E85 also.
Offline

Reply With Quote
Old May 16, 2017, 10:05 AM   #2690
Evolving Member

darwin_evo's Avatar

Join Date: Nov 2005
Location: Belgium
Posts: 286
Thanks: 0
Thanked 1 Time in 1 Post
Thank you for the inputs.

We are on stock ECU.

The thing is I'm not sure about the dyno consistency, that's why i'm looking for input from people with similar setups or that have experience with tuning at such boost/power levels

Tks
Offline

Reply With Quote
Old May 16, 2017, 01:55 PM   #2691
Newbie

Join Date: Oct 2013
Location: Phoenix, AZ
Posts: 93
Thanked 3 Times in 3 Posts

Drives: 2006 Evo 9 MR

Quote:
Originally Posted by 2winscroll View Post
Make sure your base timing is correct, many times it's not.
Just curious, what's meant by 'base' timing as opposed to the timing he's seeing in his logs?
Offline

Reply With Quote
Old May 16, 2017, 02:56 PM   #2692
Evolved Member
iTrader: (2)

ronaldo9's Avatar

Join Date: Oct 2008
Location: New Jersey
Posts: 642
Thanked 12 Times in 12 Posts

Drives: 2005 Evo VIII MR

Quote:
Originally Posted by butte View Post
Just curious, what's meant by 'base' timing as opposed to the timing he's seeing in his logs?
If the cam timing is off it will show some funky ignition timing values in the log.
Offline

Reply With Quote
Old May 16, 2017, 04:43 PM   #2693
Evolving Member

darwin_evo's Avatar

Join Date: Nov 2005
Location: Belgium
Posts: 286
Thanks: 0
Thanked 1 Time in 1 Post
any more opinions guys?
Offline

Reply With Quote
Old May 16, 2017, 06:44 PM   #2694
Evolved Member

2winscroll's Avatar

Join Date: Mar 2014
Location: wisconsin
Posts: 545
Thanked 23 Times in 21 Posts

Drives: 2003 evo 8, S369 turbo, 2.0LR +800hp

Quote:
Originally Posted by ronaldo9 View Post
If the cam timing is off it will show some funky ignition timing values in the log.
Things that will throw off your base timing; cut cylinder head, different head gasket thickness, some aftermarket cams, changing your exhaust cam timing. It's usually never perfect. Doesn't seem to far off, why were you expecting to get more timing out of it? If your worried about the repeatability of the dyno, do several pulls but let the engine cool down in between pulls. Not necessarily funky just may seem low or high from the norm.
Offline

Reply With Quote
Old May 17, 2017, 11:47 AM   #2695
Evolved Member
iTrader: (102)

detroit pistins's Avatar

Join Date: Aug 2007
Location: Detroit
Posts: 2,137
Thanked 8 Times in 8 Posts

Drives: tb 8 gsr (current), tb 9 ssl (sold), tb 9 gsr (sold)

Quote:
Originally Posted by 2winscroll View Post
When it stops making power your at MBT. Make sure your base timing is correct, many times it's not. Another is flat top pistons give more quench area which speeds up the burn. E100 burns slightly faster than E85 also.
Sounds like someone did thier combustion hw
Offline

Reply With Quote
Old Jun 15, 2017, 09:54 PM   #2696
Evolving Member
iTrader: (4)

Join Date: Oct 2008
Location: Massachusetts
Posts: 139
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: 97 Talon TSi AWD

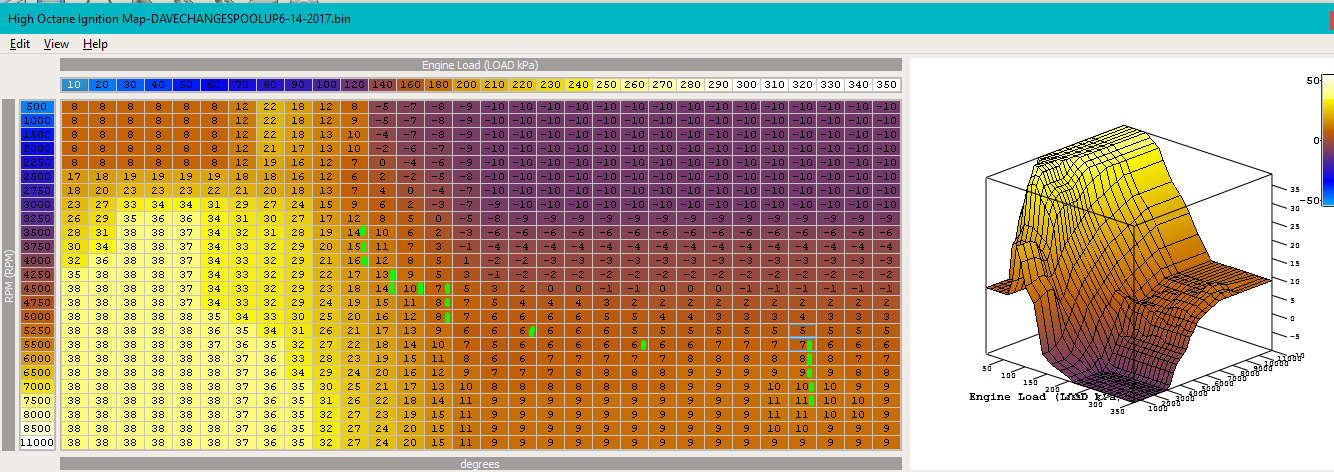

A friend gave me this map to use as a starting point from another car he tuned with similar setup. I have not done too much of anything to it yet. I am seeing 8* peak at 7000rpm.
Evo 8 with Borg warner s363, HKS 280's, stock bottom end. 31 psi (Thinking about turning it down to 29-30)
No knock at all.
VD DJ numbers are 498/390.
If anyone spots something I should change in the map and can point me in the right direction that would be helpful.


Last edited by EvilDSM97; Jun 16, 2017 at 10:03 PM.
Offline

Reply With Quote
Old Jun 16, 2017, 09:34 PM   #2697
Newbie

Join Date: May 2016
Location: MN
Posts: 27
Thanks: 0
Thanked 1 Time in 1 Post

Drives: 2006 evo 8

Quote:
Originally Posted by EvilDSM97 View Post
A friend gave me this map to use as a starting point from another car he tuned with similar setup. I have not done too much of anything to it yet. I am seeing 8* peak at 7000rpm.
Evo 8 with Borg warner s363, HKS 280's, stock bottom end. 31 psi (Thinking about turning it down to 29-30)
No knock at all.
VD numbers are 498/390.
If anyone spots something I should change in the map and can point me in the right direction that would be helpful.


what fuel?
Offline

Reply With Quote
Old Jun 16, 2017, 09:50 PM   #2698
Evolving Member
iTrader: (4)

Join Date: Oct 2008
Location: Massachusetts
Posts: 139
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: 97 Talon TSi AWD

Quote:
Originally Posted by matt1937 View Post
what fuel?
This is on 93 pump
Offline

Reply With Quote
Old Jun 19, 2017, 07:45 AM   #2699
EvoM Guru
iTrader: (50)

mrfred's Avatar

Join Date: Mar 2006
Location: Tri-Cities, WA // Portland, OR
Posts: 9,517
Thanked 57 Times in 54 Posts

Drives: Evo IX MR

Quote:
Originally Posted by EvilDSM97 View Post
This is on 93 pump
Depends somewhat on AFR as well, but for 500 whp, 8 deg seems about right. Are you at 31 psi at 7000 rpm?
Offline

Reply With Quote
Old Jun 19, 2017, 09:27 AM   #2700
Evolving Member
iTrader: (4)

Join Date: Oct 2008
Location: Massachusetts
Posts: 139
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: 97 Talon TSi AWD

Quote:
Originally Posted by mrfred View Post
Depends somewhat on AFR as well, but for 500 whp, 8 deg seems about right. Are you at 31 psi at 7000 rpm?
Thanks for replying, I was hoping someone as knowledgeable as you would be able to give me some input!
I've since turned the boost down slightly, right now it is around 30.5psi at 7000. Previously it was around 31.7-31.8 at that same rpm. I know that is Not much of a difference but it does make me feel just a little safer. 😄 My VD numbers are 490whp now, I was hoping I could make up for that in adding a little more timing up top, however I cannot seem to get timing above 9 degrees, regardless of what I try to add. Not that it knocks, it just will not advance anymore at all. Looking closer at my timing map the car seems like it is taking the path of the 340-350 load timing column but I have not verified that yet. Evoscan is showing me 315-320 peak load.
I have a thread in the Evo tuning dyno results section if you care to take a look so that I don't clutter this thread.
Offline

Reply With Quote
