Old Nov 4, 2009, 03:35 PM   #16
Evolved Member

Join Date: Jun 2008
Location: Sydney
Posts: 798
Thanks: 0
Thanked 14 Times in 13 Posts

Drives: AUDM_EVO IX

Daniel, if you are going to get a tail-pipe O2 sensor clamp, then get the INNOVATE unit.
This one works very well, ie you can believe the results.
Offline

Reply With Quote
Old Nov 4, 2009, 11:30 PM   #17
Evolved Member
iTrader: (1)

Danieln's Avatar

Join Date: Apr 2008
Location: EUROPE
Posts: 562
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9 GSR

Thanks mate,

I will order the innovate clamp.
I have some doubts about the cable with analog wires.
Seems that that is going to be permanently install on the car.
Booth analog out wires are 0-5v or there is a difference between them?
I see 4 analog in and RPM .
Those wires must be connected directly to ECU sensor wires right.....whatever sensor I want to log in LM-2 right?
Offline

Reply With Quote
Old Nov 4, 2009, 11:38 PM   #18
Evolved Member
iTrader: (1)

Danieln's Avatar

Join Date: Apr 2008
Location: EUROPE
Posts: 562
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9 GSR

Thanks for the photos Ryan,

Witch grounding option did you use for the analog output wires?
Attached Thumbnails
LM-2 logging with EvoScan?-lm2-wires.jpg
Offline

Reply With Quote
Old Nov 4, 2009, 11:43 PM   #19
Evolved Member
iTrader: (1)

Danieln's Avatar

Join Date: Apr 2008
Location: EUROPE
Posts: 562
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9 GSR

I believe that in order to log RPM into LM-2 same thing must be done with the RPM wires Black/White and Blue right?
Those analog in wires must be connected to pin 45 and 46 for the ground in order to log RPM.
Same thing with the MAP, IAT or other external sensor that I want to log ....
Offline

Reply With Quote
Old Nov 4, 2009, 11:59 PM   #20
Evolved Member
iTrader: (1)

Danieln's Avatar

Join Date: Apr 2008
Location: EUROPE
Posts: 562
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9 GSR

Got the info about the output channels of LM-2

Analog 1 0-5V ( AFR from 7.35 to 22.39) and Analog 2 simulates a typical narrow band oxygen sensor (1.1 V for an AFR of 14 and .1 V for an AFR of 15)
Offline

Reply With Quote
Old Nov 5, 2009, 07:13 AM   #21
Evolved Member
iTrader: (4)

RAbishi's Avatar

Join Date: Mar 2006
Location: South Dakota
Posts: 941
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo IX MR

My ground just goes straight to the car chassis on the ground wire, and the positive wire goes directly into the ecu. I am not doing the logging with the LM2, I am logging with evoscan. I am running the output from the LM2 into the ecu in the car so I can log it in evoscan. I chose to do it this way because evoscan has so many more good logging options.
Offline

Reply With Quote
Old Jan 8, 2010, 02:15 PM   #22
Evolved Member
iTrader: (1)

Danieln's Avatar

Join Date: Apr 2008
Location: EUROPE
Posts: 562
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9 GSR

If I connect LM-2 to Evoscan 2.6 or 2.7 the only way to log AFR via USB to serial cable is only by using LC-1 path?
How accurate are the reading by using this method?
I can do this but I am not sure that what I log is right or not.

So LM-2 connected to PC and Evoscan will give me the correct AFR by using LC-1 as a path?

Since the log reference is "X" in Evoscan how can we have the correct AFR time point with ECU rpm? Since LM-2 is connected to Evoscan only to send AFR signal.....how we synchronize the AFR with the RPM of the ECU?
Offline

Reply With Quote
Old Jan 10, 2010, 05:23 AM   #23
Evolved Member
iTrader: (1)

Danieln's Avatar

Join Date: Apr 2008
Location: EUROPE
Posts: 562
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9 GSR

I manage to wire LM-2 in Evoscan via seria to USB and I try to log AFR
I get some strange values up to 90 procent.
At idle I get 15.2 AFR if I look at LM-2.
Where is the problem?
Attached Thumbnails
LM-2 logging with EvoScan?-lm-2.jpg
Offline

Reply With Quote
Old Jan 10, 2010, 07:06 AM   #24
Evolved Member
iTrader: (10)

todd6027's Avatar

Join Date: Jun 2007
Location: Ireland
Posts: 1,830
Thanks: 0
Thanked 4 Times in 4 Posts

Drives: Evo V Mivec Turbo

Had nothing but problems with lm2 , i went back to my trusty lc1 , supposed upgrade turned out to be a downgrade, seems to be the trend these days.
Offline

Reply With Quote
Old Jan 10, 2010, 08:56 AM   #25
Evolved Member
iTrader: (1)

Danieln's Avatar

Join Date: Apr 2008
Location: EUROPE
Posts: 562
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9 GSR

Offline

Reply With Quote
Old Mar 25, 2010, 02:14 AM   #26
Evolved Member
iTrader: (1)

Danieln's Avatar

Join Date: Apr 2008
Location: EUROPE
Posts: 562
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 9 GSR

Ryan can you please tell me what is your formula correction for LM2 in EvoScan?
I need to loose the funny reading in EvoScan (value like 90 for example)
Maybe I need to set something in EvoScan or in Lm2 settings......
Offline

Reply With Quote
Old May 30, 2013, 04:40 AM   #27
Newbie

Join Date: Jan 2011
Location: london
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
Sorry to raise this from the dead

Trying to connect to the ecu to log afr through evoscan

Yellow wire - goes to rear o2 pin
Lime green - goes to ground

That right??
Offline

Reply With Quote
Old Mar 28, 2017, 06:43 AM   #28
Newbie

Join Date: Mar 2017
Location: davao city
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Y15ZR

Quote:
Originally Posted by RAbishi View Post
I followed the directions in this thread.
https://www.evolutionm.net/forums/ec...ial-cable.html

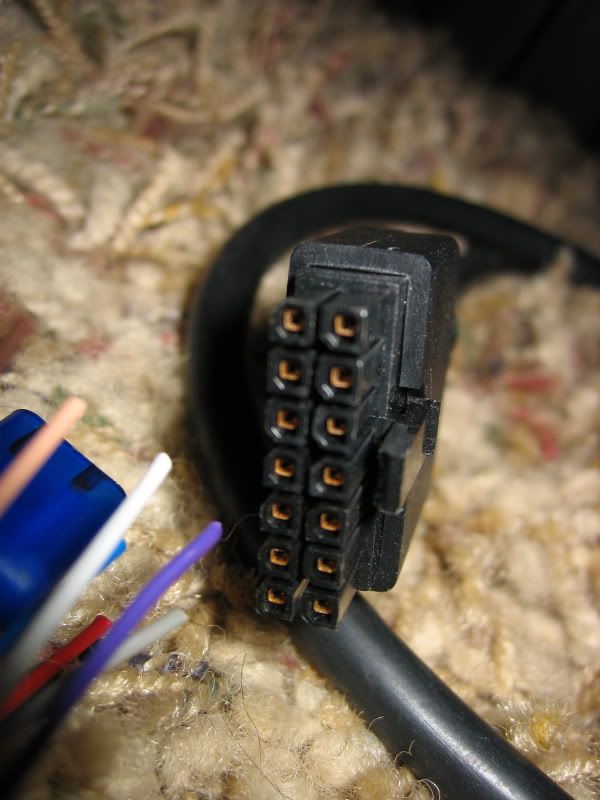

I used the input/output cable that came with my lm-2. This is the connector and these are the two wires that you use. One wire goes to the ecu and the other is grounded.


can u help with this cable.. can you tell me which pins are for each colors?
Offline

Reply With Quote
Old Mar 28, 2017, 07:56 AM   #29
Evolved Member
iTrader: (4)

RAbishi's Avatar

Join Date: Mar 2006
Location: South Dakota
Posts: 941
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo IX MR

markiansaclot - Sorry I do not know the pinout of this cable.

Danieln - It's been so long that I don't remember the exact details. I am pretty sure I was doing all of the datalogging with the LM-2 though. It worked very well for me.
Offline

Reply With Quote
