Speed Density MAT
Oct 15, 2016, 11:57 AM
#32
That depends on what temp sensor you are using. If you are using a GM IAT wired to the fuel temp ADC input on your ECU, then the values that come in the ROM from Phenem are good enough. If you are using the fuel temp sensor input then the values already in the table are OK. If you are using another 0-5V thermistor type sensor, then you will have to enter your own calibration values obtained from the sensor manufacturer.
Oct 16, 2016, 12:24 PM
#35
Evolved Member
Please confirm the address used for scaling.
I tried the explained procedure.
Damn i cant get it right...
Any alternative would be appreciated.
Oct 16, 2016, 12:49 PM
#37
Evolved Member

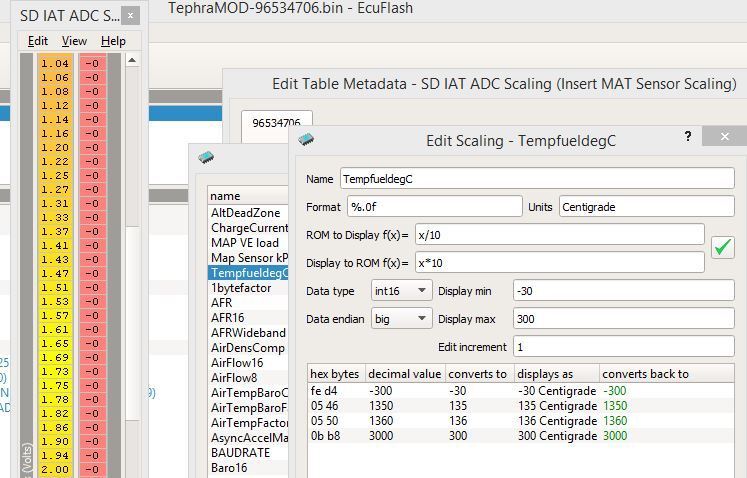

After i created the new scaling it would appear,
i select it from the scalings but the correct numbers dont appear instead i am getting all -0
Using address 2d78
Anything else i can post for you to display any specific details ?
i select it from the scalings but the correct numbers dont appear instead i am getting all -0
Using address 2d78
Anything else i can post for you to display any specific details ?
Oct 16, 2016, 07:45 PM
#38
Two things;

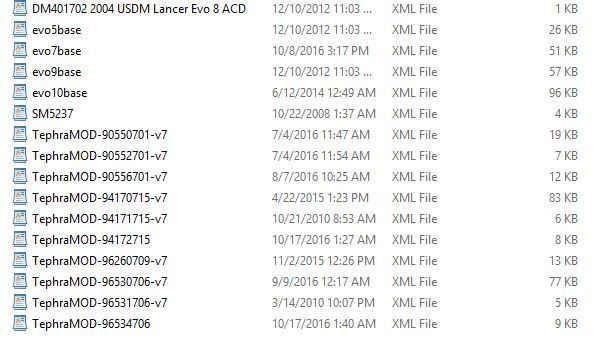

1. You are missing the 96530706.xml from your metadata directory. It is requried or ECUFlash will not display all the tables. Download and add all the files in Tephra v7 xml pack to your metadata directory so you have all you will need for tuning.
2. You have correctly defined the new TempFueldegC scaling, it's just that the table has no voltages or temparatures in it.
Here are the voltages (GM IAT calibration) so you can cut and paste in the first column:
0.1026392961876833
0.1124144672531769
0.1221896383186706
0.1319648093841642
0.1417399804496579
0.1564027370478983
0.1808406647116325
0.2003910068426197
0.2297165200391007
0.2541544477028348
0.2834799608993158
0.3079178885630499
0.332355816226784
0.3616813294232649
0.3910068426197458
0.4252199413489736
0.4643206256109482
0.5083088954056696
0.552297165200391
0.6011730205278593
0.6549364613880743
0.6940371456500489
0.7331378299120235
0.7771260997067448
0.8260019550342131
0.8748778103616813
0.9237536656891495
0.9775171065493646
1.036168132942326
1.094819159335288
1.158357771260997
1.192570869990225
1.226783968719453
1.26099706744868
1.295210166177908
1.334310850439883
1.36852394916911
1.407624633431085
1.44672531769306
1.485826001955034
1.524926686217009
1.564027370478983
1.608015640273705
1.652003910068426
1.695992179863148
1.739980449657869
1.78396871945259
1.832844574780059
1.87683284457478
1.920821114369502
1.96969696969697
2.018572825024438
2.062561094819159
2.116324535679374
2.165200391006842
2.214076246334311
2.262952101661779
2.316715542521994
2.365591397849462
2.419354838709677
2.468230694037146
2.521994134897361
2.575757575757576
2.629521016617791
2.678396871945259
2.732160312805474
2.785923753665689
2.834799608993158
2.888563049853373
2.942326490713588
2.991202346041056
3.044965786901271
3.093841642228739
3.147605083088954
3.196480938416422
3.24535679374389
3.294232649071359
3.343108504398827
3.391984359726295
3.435972629521017
3.484848484848485
3.528836754643206
3.577712609970674
3.621700879765396
3.66080156402737
3.704789833822092
3.748778103616813
3.787878787878788
3.822091886608016
3.86119257086999
3.900293255131965
3.934506353861193
3.973607038123167
4.007820136852395
4.042033235581623
4.071358748778104
4.100684261974584
4.134897360703812
4.164222873900293
4.188660801564027
4.217986314760508
4.242424242424242
4.266862170087976
4.29130009775171
4.315738025415444
4.340175953079179
4.359726295210166
4.379276637341153
4.39882697947214
4.418377321603128
4.437927663734115
4.457478005865102
4.472140762463343
4.501466275659824
4.530791788856305
4.555229716520039
4.579667644183774
4.599217986314761
4.618768328445748
4.633431085043989
4.648093841642229
Here are the corresponding temps in deg F so you can cut and paste them into the second column:
148.8
144.8
140.8
137.8
134.8
130.8
124.8
120.8
115.8
111.8
107.8
104.8
101.8
98.8
95.8
92.8
89.8
86.8
83.8
80.8
77.8
75.8
73.8
71.8
69.8
67.8
65.8
63.8
61.8
59.8
57.8
56.8
55.8
54.8
53.8
52.8
51.8
50.8
49.8
48.8
47.8
46.8
45.8
44.8
43.8
42.8
41.8
40.8
39.8
38.8
37.8
36.8
35.8
34.8
33.8
32.8
31.8
30.8
29.8
28.8
27.8
26.8
25.8
24.8
23.8
22.8
21.8
20.8
19.8
18.8
17.8
16.8
15.8
14.8
13.8
12.8
11.8
10.8
9.800000000000001
8.800000000000001
7.8
6.8
5.8
4.8
3.8
2.8
1.8
0.8
-0.2
-1.2
-2.2
-3.2
-4.2
-5.2
-6.2
-7.2
-8.199999999999999
-9.199999999999999
-10.2
-11.2
-12.2
-13.2
-14.2
-15.2
-16.2
-17.2
-18.2
-19.2
-20.2
-21.2
-22.2
-23.2
-24.2
-26.2
-28.2
-30.2
-32.2
-34.2
-36.2
-38.2
-40.2
1. You are missing the 96530706.xml from your metadata directory. It is requried or ECUFlash will not display all the tables. Download and add all the files in Tephra v7 xml pack to your metadata directory so you have all you will need for tuning.
2. You have correctly defined the new TempFueldegC scaling, it's just that the table has no voltages or temparatures in it.
Here are the voltages (GM IAT calibration) so you can cut and paste in the first column:
0.1026392961876833
0.1124144672531769
0.1221896383186706
0.1319648093841642
0.1417399804496579
0.1564027370478983
0.1808406647116325
0.2003910068426197
0.2297165200391007
0.2541544477028348
0.2834799608993158
0.3079178885630499
0.332355816226784
0.3616813294232649
0.3910068426197458
0.4252199413489736
0.4643206256109482
0.5083088954056696
0.552297165200391
0.6011730205278593
0.6549364613880743
0.6940371456500489
0.7331378299120235
0.7771260997067448
0.8260019550342131
0.8748778103616813
0.9237536656891495
0.9775171065493646
1.036168132942326
1.094819159335288
1.158357771260997
1.192570869990225
1.226783968719453
1.26099706744868
1.295210166177908
1.334310850439883
1.36852394916911
1.407624633431085
1.44672531769306
1.485826001955034
1.524926686217009
1.564027370478983
1.608015640273705
1.652003910068426
1.695992179863148
1.739980449657869
1.78396871945259
1.832844574780059
1.87683284457478
1.920821114369502
1.96969696969697
2.018572825024438
2.062561094819159
2.116324535679374
2.165200391006842
2.214076246334311
2.262952101661779
2.316715542521994
2.365591397849462
2.419354838709677
2.468230694037146
2.521994134897361
2.575757575757576
2.629521016617791
2.678396871945259
2.732160312805474
2.785923753665689
2.834799608993158
2.888563049853373
2.942326490713588
2.991202346041056
3.044965786901271
3.093841642228739
3.147605083088954
3.196480938416422
3.24535679374389
3.294232649071359
3.343108504398827
3.391984359726295
3.435972629521017
3.484848484848485
3.528836754643206
3.577712609970674
3.621700879765396
3.66080156402737
3.704789833822092
3.748778103616813
3.787878787878788
3.822091886608016
3.86119257086999
3.900293255131965
3.934506353861193
3.973607038123167
4.007820136852395
4.042033235581623
4.071358748778104
4.100684261974584
4.134897360703812
4.164222873900293
4.188660801564027
4.217986314760508
4.242424242424242
4.266862170087976
4.29130009775171
4.315738025415444
4.340175953079179
4.359726295210166
4.379276637341153
4.39882697947214
4.418377321603128
4.437927663734115
4.457478005865102
4.472140762463343
4.501466275659824
4.530791788856305
4.555229716520039
4.579667644183774
4.599217986314761
4.618768328445748
4.633431085043989
4.648093841642229
Here are the corresponding temps in deg F so you can cut and paste them into the second column:
148.8
144.8
140.8
137.8
134.8
130.8
124.8
120.8
115.8
111.8
107.8
104.8
101.8
98.8
95.8
92.8
89.8
86.8
83.8
80.8
77.8
75.8
73.8
71.8
69.8
67.8
65.8
63.8
61.8
59.8
57.8
56.8
55.8
54.8
53.8
52.8
51.8
50.8
49.8
48.8
47.8
46.8
45.8
44.8
43.8
42.8
41.8
40.8
39.8
38.8
37.8
36.8
35.8
34.8
33.8
32.8
31.8
30.8
29.8
28.8
27.8
26.8
25.8
24.8
23.8
22.8
21.8
20.8
19.8
18.8
17.8
16.8
15.8
14.8
13.8
12.8
11.8
10.8
9.800000000000001
8.800000000000001
7.8
6.8
5.8
4.8
3.8
2.8
1.8
0.8
-0.2
-1.2
-2.2
-3.2
-4.2
-5.2
-6.2
-7.2
-8.199999999999999
-9.199999999999999
-10.2
-11.2
-12.2
-13.2
-14.2
-15.2
-16.2
-17.2
-18.2
-19.2
-20.2
-21.2
-22.2
-23.2
-24.2
-26.2
-28.2
-30.2
-32.2
-34.2
-36.2
-38.2
-40.2
Jan 10, 2017, 03:23 PM
#40
Evolving Member
Two things;
1. You are missing the 96530706.xml from your metadata directory. It is requried or ECUFlash will not display all the tables. Download and add all the files in Tephra v7 xml pack to your metadata directory so you have all you will need for tuning.
2. You have correctly defined the new TempFueldegC scaling, it's just that the table has no voltages or temparatures in it.
Here are the voltages (GM IAT calibration) so you can cut and paste in the first column:
0.1026392961876833
0.1124144672531769
0.1221896383186706
0.1319648093841642
0.1417399804496579
0.1564027370478983
0.1808406647116325
0.2003910068426197
0.2297165200391007
0.2541544477028348
0.2834799608993158
0.3079178885630499
0.332355816226784
0.3616813294232649
0.3910068426197458
0.4252199413489736
0.4643206256109482
0.5083088954056696
0.552297165200391
0.6011730205278593
0.6549364613880743
0.6940371456500489
0.7331378299120235
0.7771260997067448
0.8260019550342131
0.8748778103616813
0.9237536656891495
0.9775171065493646
1.036168132942326
1.094819159335288
1.158357771260997
1.192570869990225
1.226783968719453
1.26099706744868
1.295210166177908
1.334310850439883
1.36852394916911
1.407624633431085
1.44672531769306
1.485826001955034
1.524926686217009
1.564027370478983
1.608015640273705
1.652003910068426
1.695992179863148
1.739980449657869
1.78396871945259
1.832844574780059
1.87683284457478
1.920821114369502
1.96969696969697
2.018572825024438
2.062561094819159
2.116324535679374
2.165200391006842
2.214076246334311
2.262952101661779
2.316715542521994
2.365591397849462
2.419354838709677
2.468230694037146
2.521994134897361
2.575757575757576
2.629521016617791
2.678396871945259
2.732160312805474
2.785923753665689
2.834799608993158
2.888563049853373
2.942326490713588
2.991202346041056
3.044965786901271
3.093841642228739
3.147605083088954
3.196480938416422
3.24535679374389
3.294232649071359
3.343108504398827
3.391984359726295
3.435972629521017
3.484848484848485
3.528836754643206
3.577712609970674
3.621700879765396
3.66080156402737
3.704789833822092
3.748778103616813
3.787878787878788
3.822091886608016
3.86119257086999
3.900293255131965
3.934506353861193
3.973607038123167
4.007820136852395
4.042033235581623
4.071358748778104
4.100684261974584
4.134897360703812
4.164222873900293
4.188660801564027
4.217986314760508
4.242424242424242
4.266862170087976
4.29130009775171
4.315738025415444
4.340175953079179
4.359726295210166
4.379276637341153
4.39882697947214
4.418377321603128
4.437927663734115
4.457478005865102
4.472140762463343
4.501466275659824
4.530791788856305
4.555229716520039
4.579667644183774
4.599217986314761
4.618768328445748
4.633431085043989
4.648093841642229
Here are the corresponding temps in deg F so you can cut and paste them into the second column:
148.8
144.8
140.8
137.8
134.8
130.8
124.8
120.8
115.8
111.8
107.8
104.8
101.8
98.8
95.8
92.8
89.8
86.8
83.8
80.8
77.8
75.8
73.8
71.8
69.8
67.8
65.8
63.8
61.8
59.8
57.8
56.8
55.8
54.8
53.8
52.8
51.8
50.8
49.8
48.8
47.8
46.8
45.8
44.8
43.8
42.8
41.8
40.8
39.8
38.8
37.8
36.8
35.8
34.8
33.8
32.8
31.8
30.8
29.8
28.8
27.8
26.8
25.8
24.8
23.8
22.8
21.8
20.8
19.8
18.8
17.8
16.8
15.8
14.8
13.8
12.8
11.8
10.8
9.800000000000001
8.800000000000001
7.8
6.8
5.8
4.8
3.8
2.8
1.8
0.8
-0.2
-1.2
-2.2
-3.2
-4.2
-5.2
-6.2
-7.2
-8.199999999999999
-9.199999999999999
-10.2
-11.2
-12.2
-13.2
-14.2
-15.2
-16.2
-17.2
-18.2
-19.2
-20.2
-21.2
-22.2
-23.2
-24.2
-26.2
-28.2
-30.2
-32.2
-34.2
-36.2
-38.2
-40.2
1. You are missing the 96530706.xml from your metadata directory. It is requried or ECUFlash will not display all the tables. Download and add all the files in Tephra v7 xml pack to your metadata directory so you have all you will need for tuning.
2. You have correctly defined the new TempFueldegC scaling, it's just that the table has no voltages or temparatures in it.
Here are the voltages (GM IAT calibration) so you can cut and paste in the first column:
0.1026392961876833
0.1124144672531769
0.1221896383186706
0.1319648093841642
0.1417399804496579
0.1564027370478983
0.1808406647116325
0.2003910068426197
0.2297165200391007
0.2541544477028348
0.2834799608993158
0.3079178885630499
0.332355816226784
0.3616813294232649
0.3910068426197458
0.4252199413489736
0.4643206256109482
0.5083088954056696
0.552297165200391
0.6011730205278593
0.6549364613880743
0.6940371456500489
0.7331378299120235
0.7771260997067448
0.8260019550342131
0.8748778103616813
0.9237536656891495
0.9775171065493646
1.036168132942326
1.094819159335288
1.158357771260997
1.192570869990225
1.226783968719453
1.26099706744868
1.295210166177908
1.334310850439883
1.36852394916911
1.407624633431085
1.44672531769306
1.485826001955034
1.524926686217009
1.564027370478983
1.608015640273705
1.652003910068426
1.695992179863148
1.739980449657869
1.78396871945259
1.832844574780059
1.87683284457478
1.920821114369502
1.96969696969697
2.018572825024438
2.062561094819159
2.116324535679374
2.165200391006842
2.214076246334311
2.262952101661779
2.316715542521994
2.365591397849462
2.419354838709677
2.468230694037146
2.521994134897361
2.575757575757576
2.629521016617791
2.678396871945259
2.732160312805474
2.785923753665689
2.834799608993158
2.888563049853373
2.942326490713588
2.991202346041056
3.044965786901271
3.093841642228739
3.147605083088954
3.196480938416422
3.24535679374389
3.294232649071359
3.343108504398827
3.391984359726295
3.435972629521017
3.484848484848485
3.528836754643206
3.577712609970674
3.621700879765396
3.66080156402737
3.704789833822092
3.748778103616813
3.787878787878788
3.822091886608016
3.86119257086999
3.900293255131965
3.934506353861193
3.973607038123167
4.007820136852395
4.042033235581623
4.071358748778104
4.100684261974584
4.134897360703812
4.164222873900293
4.188660801564027
4.217986314760508
4.242424242424242
4.266862170087976
4.29130009775171
4.315738025415444
4.340175953079179
4.359726295210166
4.379276637341153
4.39882697947214
4.418377321603128
4.437927663734115
4.457478005865102
4.472140762463343
4.501466275659824
4.530791788856305
4.555229716520039
4.579667644183774
4.599217986314761
4.618768328445748
4.633431085043989
4.648093841642229
Here are the corresponding temps in deg F so you can cut and paste them into the second column:
148.8
144.8
140.8
137.8
134.8
130.8
124.8
120.8
115.8
111.8
107.8
104.8
101.8
98.8
95.8
92.8
89.8
86.8
83.8
80.8
77.8
75.8
73.8
71.8
69.8
67.8
65.8
63.8
61.8
59.8
57.8
56.8
55.8
54.8
53.8
52.8
51.8
50.8
49.8
48.8
47.8
46.8
45.8
44.8
43.8
42.8
41.8
40.8
39.8
38.8
37.8
36.8
35.8
34.8
33.8
32.8
31.8
30.8
29.8
28.8
27.8
26.8
25.8
24.8
23.8
22.8
21.8
20.8
19.8
18.8
17.8
16.8
15.8
14.8
13.8
12.8
11.8
10.8
9.800000000000001
8.800000000000001
7.8
6.8
5.8
4.8
3.8
2.8
1.8
0.8
-0.2
-1.2
-2.2
-3.2
-4.2
-5.2
-6.2
-7.2
-8.199999999999999
-9.199999999999999
-10.2
-11.2
-12.2
-13.2
-14.2
-15.2
-16.2
-17.2
-18.2
-19.2
-20.2
-21.2
-22.2
-23.2
-24.2
-26.2
-28.2
-30.2
-32.2
-34.2
-36.2
-38.2
-40.2
Jan 12, 2017, 12:38 PM
#41
Evolving Member
I think I've finally just about nipped this in the butt! I've attached screen shots from my 94171715 SD V7 Phenem rom.
SD Convert IAT to MAT is set to 0x0E
The 139 element table: SD MAT Scaling for IAT Scaling Table values are (in def F and volts ADC):
260.6
260.6
260.6
260.6
253.4
246.2
240.8
235.4
230
226.4
221
217.4
213.8
210.2
206.6
203
199.4
197.6
194
192.2
190.4
186.8
185
183.2
181.4
177.8
176
174.2
172.4
170.6
168.8
167
165.2
163.4
161.6
159.8
158
156.2
154.4
152.6
150.8
149
147.2
145.4
143.6
141.8
140
138.2
136.4
134.6
132.8
131
129.2
127.4
125.6
123.8
122
120.2
118.4
116.6
114.8
113
111.2
109.4
107.6
105.8
104
102.2
100.4
98.60000000000001
96.8
95
93.2
91.40000000000001
89.59999999999999
87.80000000000001
86
84.2
82.40000000000001
80.59999999999999
78.80000000000001
77
75.2
73.40000000000001
71.59999999999999
69.80000000000001
68
66.2
64.40000000000001
62.6
60.8
59
57.2
55.40000000000001
53.6
51.8
50
48.2
46.4
44.6
42.8
41
39.2
37.4
35.6
33.8
32
30.2
28.4
26.6
24.8
23
21.2
19.4
17.6
15.8
14
12.2
10.4
8.599999999999998
6.800000000000001
5
3.199999999999999
1.399999999999999
-0.3999999999999986
-2.200000000000003
-4
-5.800000000000004
-7.600000000000001
-9.399999999999999
-11.2
-13
-16.6
-20.2
-22
-25.6
-29.2
-34.60000000000001
-40
0.1176470588235294
0.1372549019607843
0.1568627450980392
0.1764705882352941
0.196078431372549
0.2156862745098039
0.2352941176470588
0.2549019607843137
0.2745098039215687
0.2941176470588235
0.3137254901960784
0.3333333333333333
0.3529411764705882
0.3725490196078431
0.392156862745098
0.4117647058823529
0.4313725490196079
0.4509803921568628
0.4705882352941176
0.4901960784313725
0.5098039215686274
0.5294117647058824
0.5490196078431373
0.5686274509803921
0.5882352941176471
0.6078431372549019
0.6274509803921569
0.6470588235294118
0.6666666666666666
0.6862745098039216
0.7058823529411764
0.7254901960784313
0.7647058823529411
0.7843137254901961
0.803921568627451
0.8235294117647058
0.8431372549019608
0.8823529411764706
0.9019607843137255
0.9215686274509803
0.9607843137254902
0.9803921568627451
1
1.03921568627451
1.058823529411765
1.098039215686275
1.137254901960784
1.156862745098039
1.196078431372549
1.235294117647059
1.254901960784314
1.294117647058824
1.333333333333333
1.372549019607843
1.411764705882353
1.450980392156863
1.490196078431373
1.529411764705882
1.568627450980392
1.607843137254902
1.647058823529412
1.686274509803922
1.745098039215686
1.784313725490196
1.823529411764706
1.882352941176471
1.92156862745098
1.96078431372549
2.019607843137255
2.058823529411764
2.117647058823529
2.176470588235294
2.215686274509804
2.254901960784314
2.313725490196078
2.372549019607843
2.431372549019608
2.470588235294118
2.549019607843137
2.588235294117647
2.647058823529412
2.705882352941177
2.745098039215686
2.803921568627451
2.862745098039216
2.901960784313725
2.96078431372549
3.019607843137255
3.058823529411764
3.117647058823529
3.176470588235294
3.215686274509804
3.254901960784314
3.313725490196078
3.372549019607843
3.411764705882353
3.450980392156863
3.509803921568627
3.549019607843137
3.588235294117647
3.647058823529412
3.686274509803921
3.725490196078431
3.764705882352941
3.803921568627451
3.843137254901961
3.882352941176471
3.92156862745098
3.96078431372549
3.980392156862745
4.019607843137255
4.058823529411764
4.098039215686274
4.117647058823529
4.15686274509804
4.176470588235294
4.215686274509804
4.235294117647059
4.254901960784314
4.294117647058823
4.313725490196078
4.333333333333333
4.352941176470588
4.372549019607843
4.392156862745098
4.411764705882353
4.431372549019608
4.450980392156863
4.470588235294118
4.490196078431373
4.509803921568627
4.529411764705882
4.549019607843137
4.568627450980392
4.588235294117647
4.607843137254902
4.627450980392156
4.647058823529412
4.666666666666667
Under MAT, my 121 element MAT Scaling table values in def F and Volts are:
302
294.8
287.6
282.2
276.8
269.6
258.8
251.6
242.6
235.4
228.2
222.8
217.4
212
206.6
201.2
195.8
190.4
185
179.6
174.2
170.6
167
163.4
159.8
156.2
152.6
149
145.4
141.8
138.2
136.4
134.6
132.8
131
129.2
127.4
125.6
123.8
122
120.2
118.4
116.6
114.8
113
111.2
109.4
107.6
105.8
104
102.2
100.4
98.6
96.8
95
93.2
91.4
89.6
87.8
86
84.2
82.4
80.6
78.8
77
75.2
73.4
71.6
69.8
68
66.2
64.4
62.6
60.8
59
57.2
55.4
53.6
51.8
50
48.2
46.4
44.6
42.8
41
39.2
37.4
35.6
33.8
32
30.2
28.4
26.6
24.8
23
21.2
19.4
17.6
15.8
14
12.2
10.4
8.6
6.8
5
3.2
1.4
-0.4
-2.2
-4
-5.8
-7.6
-9.4
-13
-16.6
-20.2
-23.8
-27.4
-31
-34.6
-38.2
0.1026392961876833
0.1124144672531769
0.1221896383186706
0.1319648093841642
0.1417399804496579
0.1564027370478983
0.1808406647116325
0.2003910068426197
0.2297165200391007
0.2541544477028348
0.2834799608993158
0.3079178885630499
0.332355816226784
0.3616813294232649
0.3910068426197458
0.4252199413489736
0.4643206256109482
0.5083088954056696
0.552297165200391
0.6011730205278593
0.6549364613880743
0.6940371456500489
0.7331378299120235
0.7771260997067448
0.8260019550342131
0.8748778103616813
0.9237536656891495
0.9775171065493646
1.036168132942326
1.094819159335288
1.158357771260997
1.192570869990225
1.226783968719453
1.26099706744868
1.295210166177908
1.334310850439883
1.36852394916911
1.407624633431085
1.44672531769306
1.485826001955034
1.524926686217009
1.564027370478983
1.608015640273705
1.652003910068426
1.695992179863148
1.739980449657869
1.78396871945259
1.832844574780059
1.87683284457478
1.920821114369502
1.96969696969697
2.018572825024438
2.062561094819159
2.116324535679374
2.165200391006842
2.214076246334311
2.262952101661779
2.316715542521994
2.365591397849462
2.419354838709677
2.468230694037146
2.521994134897361
2.575757575757576
2.629521016617791
2.678396871945259
2.732160312805474
2.785923753665689
2.834799608993158
2.888563049853373
2.942326490713588
2.991202346041056
3.044965786901271
3.093841642228739
3.147605083088954
3.196480938416422
3.24535679374389
3.294232649071359
3.343108504398827
3.391984359726295
3.435972629521017
3.484848484848485
3.528836754643206
3.577712609970674
3.621700879765396
3.66080156402737
3.704789833822092
3.748778103616813
3.787878787878788
3.822091886608016
3.86119257086999
3.900293255131965
3.934506353861193
3.973607038123167
4.007820136852395
4.042033235581623
4.071358748778104
4.100684261974584
4.134897360703812
4.164222873900293
4.188660801564027
4.217986314760508
4.242424242424242
4.266862170087976
4.29130009775171
4.315738025415444
4.340175953079179
4.359726295210166
4.379276637341153
4.39882697947214
4.418377321603128
4.437927663734115
4.457478005865102
4.472140762463343
4.501466275659824
4.530791788856305
4.555229716520039
4.579667644183774
4.599217986314761
4.618768328445748
4.633431085043989
4.648093841642229
In Evoscan, I am logging air temp from request 3a with the equation for deg F at x*1.8+32 and I'm attempting to log SD MAT/GM AIT from request 11 using x*1.8-40 to log def F. From what I understand logging request 11 is scaled data the ecu refers to for fueling.
I'm not sure what value I'm supposed to log at request 11, but airtemp is right around ambient at 59 degrees but fuel temp is showing like 75-76 degrees with just the ignition ON. I haven't started the car yet to see if I will change or how it will change but I think I'm finally very close after hours and hours of reading here!
SD Convert IAT to MAT is set to 0x0E
The 139 element table: SD MAT Scaling for IAT Scaling Table values are (in def F and volts ADC):
260.6
260.6
260.6
260.6
253.4
246.2
240.8
235.4
230
226.4
221
217.4
213.8
210.2
206.6
203
199.4
197.6
194
192.2
190.4
186.8
185
183.2
181.4
177.8
176
174.2
172.4
170.6
168.8
167
165.2
163.4
161.6
159.8
158
156.2
154.4
152.6
150.8
149
147.2
145.4
143.6
141.8
140
138.2
136.4
134.6
132.8
131
129.2
127.4
125.6
123.8
122
120.2
118.4
116.6
114.8
113
111.2
109.4
107.6
105.8
104
102.2
100.4
98.60000000000001
96.8
95
93.2
91.40000000000001
89.59999999999999
87.80000000000001
86
84.2
82.40000000000001
80.59999999999999
78.80000000000001
77
75.2
73.40000000000001
71.59999999999999
69.80000000000001
68
66.2
64.40000000000001
62.6
60.8
59
57.2
55.40000000000001
53.6
51.8
50
48.2
46.4
44.6
42.8
41
39.2
37.4
35.6
33.8
32
30.2
28.4
26.6
24.8
23
21.2
19.4
17.6
15.8
14
12.2
10.4
8.599999999999998
6.800000000000001
5
3.199999999999999
1.399999999999999
-0.3999999999999986
-2.200000000000003
-4
-5.800000000000004
-7.600000000000001
-9.399999999999999
-11.2
-13
-16.6
-20.2
-22
-25.6
-29.2
-34.60000000000001
-40
0.1176470588235294
0.1372549019607843
0.1568627450980392
0.1764705882352941
0.196078431372549
0.2156862745098039
0.2352941176470588
0.2549019607843137
0.2745098039215687
0.2941176470588235
0.3137254901960784
0.3333333333333333
0.3529411764705882
0.3725490196078431
0.392156862745098
0.4117647058823529
0.4313725490196079
0.4509803921568628
0.4705882352941176
0.4901960784313725
0.5098039215686274
0.5294117647058824
0.5490196078431373
0.5686274509803921
0.5882352941176471
0.6078431372549019
0.6274509803921569
0.6470588235294118
0.6666666666666666
0.6862745098039216
0.7058823529411764
0.7254901960784313
0.7647058823529411
0.7843137254901961
0.803921568627451
0.8235294117647058
0.8431372549019608
0.8823529411764706
0.9019607843137255
0.9215686274509803
0.9607843137254902
0.9803921568627451
1
1.03921568627451
1.058823529411765
1.098039215686275
1.137254901960784
1.156862745098039
1.196078431372549
1.235294117647059
1.254901960784314
1.294117647058824
1.333333333333333
1.372549019607843
1.411764705882353
1.450980392156863
1.490196078431373
1.529411764705882
1.568627450980392
1.607843137254902
1.647058823529412
1.686274509803922
1.745098039215686
1.784313725490196
1.823529411764706
1.882352941176471
1.92156862745098
1.96078431372549
2.019607843137255
2.058823529411764
2.117647058823529
2.176470588235294
2.215686274509804
2.254901960784314
2.313725490196078
2.372549019607843
2.431372549019608
2.470588235294118
2.549019607843137
2.588235294117647
2.647058823529412
2.705882352941177
2.745098039215686
2.803921568627451
2.862745098039216
2.901960784313725
2.96078431372549
3.019607843137255
3.058823529411764
3.117647058823529
3.176470588235294
3.215686274509804
3.254901960784314
3.313725490196078
3.372549019607843
3.411764705882353
3.450980392156863
3.509803921568627
3.549019607843137
3.588235294117647
3.647058823529412
3.686274509803921
3.725490196078431
3.764705882352941
3.803921568627451
3.843137254901961
3.882352941176471
3.92156862745098
3.96078431372549
3.980392156862745
4.019607843137255
4.058823529411764
4.098039215686274
4.117647058823529
4.15686274509804
4.176470588235294
4.215686274509804
4.235294117647059
4.254901960784314
4.294117647058823
4.313725490196078
4.333333333333333
4.352941176470588
4.372549019607843
4.392156862745098
4.411764705882353
4.431372549019608
4.450980392156863
4.470588235294118
4.490196078431373
4.509803921568627
4.529411764705882
4.549019607843137
4.568627450980392
4.588235294117647
4.607843137254902
4.627450980392156
4.647058823529412
4.666666666666667
Under MAT, my 121 element MAT Scaling table values in def F and Volts are:
302
294.8
287.6
282.2
276.8
269.6
258.8
251.6
242.6
235.4
228.2
222.8
217.4
212
206.6
201.2
195.8
190.4
185
179.6
174.2
170.6
167
163.4
159.8
156.2
152.6
149
145.4
141.8
138.2
136.4
134.6
132.8
131
129.2
127.4
125.6
123.8
122
120.2
118.4
116.6
114.8
113
111.2
109.4
107.6
105.8
104
102.2
100.4
98.6
96.8
95
93.2
91.4
89.6
87.8
86
84.2
82.4
80.6
78.8
77
75.2
73.4
71.6
69.8
68
66.2
64.4
62.6
60.8
59
57.2
55.4
53.6
51.8
50
48.2
46.4
44.6
42.8
41
39.2
37.4
35.6
33.8
32
30.2
28.4
26.6
24.8
23
21.2
19.4
17.6
15.8
14
12.2
10.4
8.6
6.8
5
3.2
1.4
-0.4
-2.2
-4
-5.8
-7.6
-9.4
-13
-16.6
-20.2
-23.8
-27.4
-31
-34.6
-38.2
0.1026392961876833
0.1124144672531769
0.1221896383186706
0.1319648093841642
0.1417399804496579
0.1564027370478983
0.1808406647116325
0.2003910068426197
0.2297165200391007
0.2541544477028348
0.2834799608993158
0.3079178885630499
0.332355816226784
0.3616813294232649
0.3910068426197458
0.4252199413489736
0.4643206256109482
0.5083088954056696
0.552297165200391
0.6011730205278593
0.6549364613880743
0.6940371456500489
0.7331378299120235
0.7771260997067448
0.8260019550342131
0.8748778103616813
0.9237536656891495
0.9775171065493646
1.036168132942326
1.094819159335288
1.158357771260997
1.192570869990225
1.226783968719453
1.26099706744868
1.295210166177908
1.334310850439883
1.36852394916911
1.407624633431085
1.44672531769306
1.485826001955034
1.524926686217009
1.564027370478983
1.608015640273705
1.652003910068426
1.695992179863148
1.739980449657869
1.78396871945259
1.832844574780059
1.87683284457478
1.920821114369502
1.96969696969697
2.018572825024438
2.062561094819159
2.116324535679374
2.165200391006842
2.214076246334311
2.262952101661779
2.316715542521994
2.365591397849462
2.419354838709677
2.468230694037146
2.521994134897361
2.575757575757576
2.629521016617791
2.678396871945259
2.732160312805474
2.785923753665689
2.834799608993158
2.888563049853373
2.942326490713588
2.991202346041056
3.044965786901271
3.093841642228739
3.147605083088954
3.196480938416422
3.24535679374389
3.294232649071359
3.343108504398827
3.391984359726295
3.435972629521017
3.484848484848485
3.528836754643206
3.577712609970674
3.621700879765396
3.66080156402737
3.704789833822092
3.748778103616813
3.787878787878788
3.822091886608016
3.86119257086999
3.900293255131965
3.934506353861193
3.973607038123167
4.007820136852395
4.042033235581623
4.071358748778104
4.100684261974584
4.134897360703812
4.164222873900293
4.188660801564027
4.217986314760508
4.242424242424242
4.266862170087976
4.29130009775171
4.315738025415444
4.340175953079179
4.359726295210166
4.379276637341153
4.39882697947214
4.418377321603128
4.437927663734115
4.457478005865102
4.472140762463343
4.501466275659824
4.530791788856305
4.555229716520039
4.579667644183774
4.599217986314761
4.618768328445748
4.633431085043989
4.648093841642229
In Evoscan, I am logging air temp from request 3a with the equation for deg F at x*1.8+32 and I'm attempting to log SD MAT/GM AIT from request 11 using x*1.8-40 to log def F. From what I understand logging request 11 is scaled data the ecu refers to for fueling.
I'm not sure what value I'm supposed to log at request 11, but airtemp is right around ambient at 59 degrees but fuel temp is showing like 75-76 degrees with just the ignition ON. I haven't started the car yet to see if I will change or how it will change but I think I'm finally very close after hours and hours of reading here!
Jan 13, 2017, 04:48 AM
#42
Newbie
In Evoscan, I am logging air temp from request 3a with the equation for deg F at x*1.8+32 and I'm attempting to log SD MAT/GM AIT from request 11 using x*1.8-40 to log def F. From what I understand logging request 11 is scaled data the ecu refers to for fueling.
I'm not sure what value I'm supposed to log at request 11, but airtemp is right around ambient at 59 degrees but fuel temp is showing like 75-76 degrees with just the ignition ON. I haven't started the car yet to see if I will change or how it will change but I think I'm finally very close after hours and hours of reading here!
I'm not sure what value I'm supposed to log at request 11, but airtemp is right around ambient at 59 degrees but fuel temp is showing like 75-76 degrees with just the ignition ON. I haven't started the car yet to see if I will change or how it will change but I think I'm finally very close after hours and hours of reading here!
If the MUT table addresses for requests 11 and 3A have not been changed from the base 94170015 (I don't have a copy of 94171715 to check, sorry), MUT 3A is logging raw ADC input for the IAT sensor (i.e. Volts) and MUT 11 is logging the scaled output of the 139 element map at address 9a96 (which is normally the IAT Volts to temp scaling map).
Jan 13, 2017, 08:23 AM
#43
Evolving Member
Thanks for the feedback...these are the kind of suggestions I'm looking for. I'll check the mut table tonight after work. If that seems correct then possibly my mat scaling for iat scaling table (139 element) needs adjusted or my gm ait could be malfunctioning. I do have a spare new senor here I could swap in to test the logged data against what I'm getting now. I'll report back later with some info for you. Thanks!
Jan 13, 2017, 08:39 AM
#44
Evolving Member
What addresses are in the MUT table for the requests you're trying to use?
If the MUT table addresses for requests 11 and 3A have not been changed from the base 94170015 (I don't have a copy of 94171715 to check, sorry), MUT 3A is logging raw ADC input for the IAT sensor (i.e. Volts) and MUT 11 is logging the scaled output of the 139 element map at address 9a96 (which is normally the IAT Volts to temp scaling map).
If the MUT table addresses for requests 11 and 3A have not been changed from the base 94170015 (I don't have a copy of 94171715 to check, sorry), MUT 3A is logging raw ADC input for the IAT sensor (i.e. Volts) and MUT 11 is logging the scaled output of the 139 element map at address 9a96 (which is normally the IAT Volts to temp scaling map).
Jan 13, 2017, 01:43 PM
#45
Evolving Member
Here is a shot of my MUT table. As you can see, MUT11 is not the address of 9a96 and MUT3A is the address 883B. Which table and address should MUT3A come from, the other address value in the 139 element table, MAT Sensor ADC volts, address 9b2c?
