Test Pipe VS 130 cell MS high-flow cat
A Evo came in today to switch from a test pipe to a 130 cell metal substrate high-flow cat because he wanted to get rid of a little stink and make the car a little quieter.
A 130 cell metal substrate is much more free-flowing than a 300 cell metal substrate cat, and even more free-flowing than a normal ceramic "high flow" cat.
I threw it on the dyno to check for any power changes and make any adjustments needed because of the switch.
Some interesting stuff happened.
Here are the power curves just strapping it on the dyno, no tuning changes whatsoever.
Dotted lines are 130 cell cat, solid lines are with Test Pipe:
Down in power from peak torque all the way to 7100 rpm. -17whp / -11wtq
Now, looking at the boost log, you can see why.
Dotted lines are 130 cell cat, solid lines are with Test Pipe:
Down on boost through the whole rev range. -2psi on average.
So at this point I am thinking the drop in power is because the wastegate duty cycles in ecu-boost just need to be adjusted because of the added back pressure from the cat. So I matched the boost as close as possible to when the car had the Test Pipe:
Solid lines are 130 cell cat, dotted lines are with Test Pipe: (the dotted and solid plots switched for this plot, my apologies)
Notice that the cat boost plot is not as smooth as the test pipe plot, also it has small fluctuations throughout the plot where the test pipe plot is pretty solid.
So now the boost was back to matching what the car was making with the test pipe, so the power curves should be closer to matching right? Well, yes and no.
Solid lines are 130 cell cat, dotted lines are with Test Pipe: (the dotted and solid plots switched for this plot, my apologies)
Curves match exactly now, until approx 5,500 rpm where the high-flow cat just cannot match the flow of the test pipe. Peak horsepower still down 16whp. 6500+, down more than 20whp.
Very interesting test case indeed. Now I wonder what a 100 cell cat and a traditional ceramic "high flow" cat would see in differences.
A 130 cell metal substrate is much more free-flowing than a 300 cell metal substrate cat, and even more free-flowing than a normal ceramic "high flow" cat.
I threw it on the dyno to check for any power changes and make any adjustments needed because of the switch.
Some interesting stuff happened.
Here are the power curves just strapping it on the dyno, no tuning changes whatsoever.
Dotted lines are 130 cell cat, solid lines are with Test Pipe:
Down in power from peak torque all the way to 7100 rpm. -17whp / -11wtq

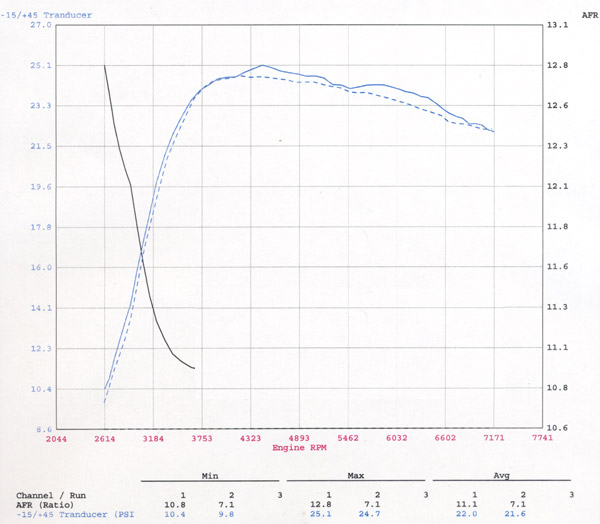

Now, looking at the boost log, you can see why.
Dotted lines are 130 cell cat, solid lines are with Test Pipe:
Down on boost through the whole rev range. -2psi on average.
So at this point I am thinking the drop in power is because the wastegate duty cycles in ecu-boost just need to be adjusted because of the added back pressure from the cat. So I matched the boost as close as possible to when the car had the Test Pipe:
Solid lines are 130 cell cat, dotted lines are with Test Pipe: (the dotted and solid plots switched for this plot, my apologies)
Notice that the cat boost plot is not as smooth as the test pipe plot, also it has small fluctuations throughout the plot where the test pipe plot is pretty solid.
So now the boost was back to matching what the car was making with the test pipe, so the power curves should be closer to matching right? Well, yes and no.
Solid lines are 130 cell cat, dotted lines are with Test Pipe: (the dotted and solid plots switched for this plot, my apologies)
Curves match exactly now, until approx 5,500 rpm where the high-flow cat just cannot match the flow of the test pipe. Peak horsepower still down 16whp. 6500+, down more than 20whp.
Very interesting test case indeed. Now I wonder what a 100 cell cat and a traditional ceramic "high flow" cat would see in differences.
