71HTA Install Problem: Won't Slide Into Turbine Housing

Reply Subscribe

Thread Tools

Search this Thread

Apr 28, 2018 | 03:01 PM

#16

Siege

Thread Starter

Newbie

iTrader: (2)

Joined: Nov 2004

Posts: 56

Likes: 5

From: Bel Air, Maryland

Quote:

Originally Posted by 2006EvoIXer

I doubt there's 1 cm diameter difference between the two. From your wheel measurement, it looks like 71HTA radius is 2 or 3 mm, which would add up to about 0.5cm diameter. Either way, this could be why your hotside isn't fitting. Measure the inner diameter in your hotside and it's probably smaller than the 21 cm you measured.

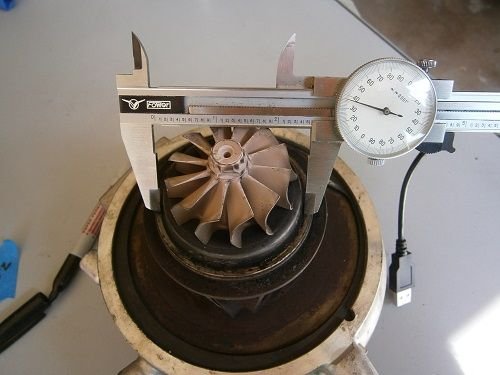

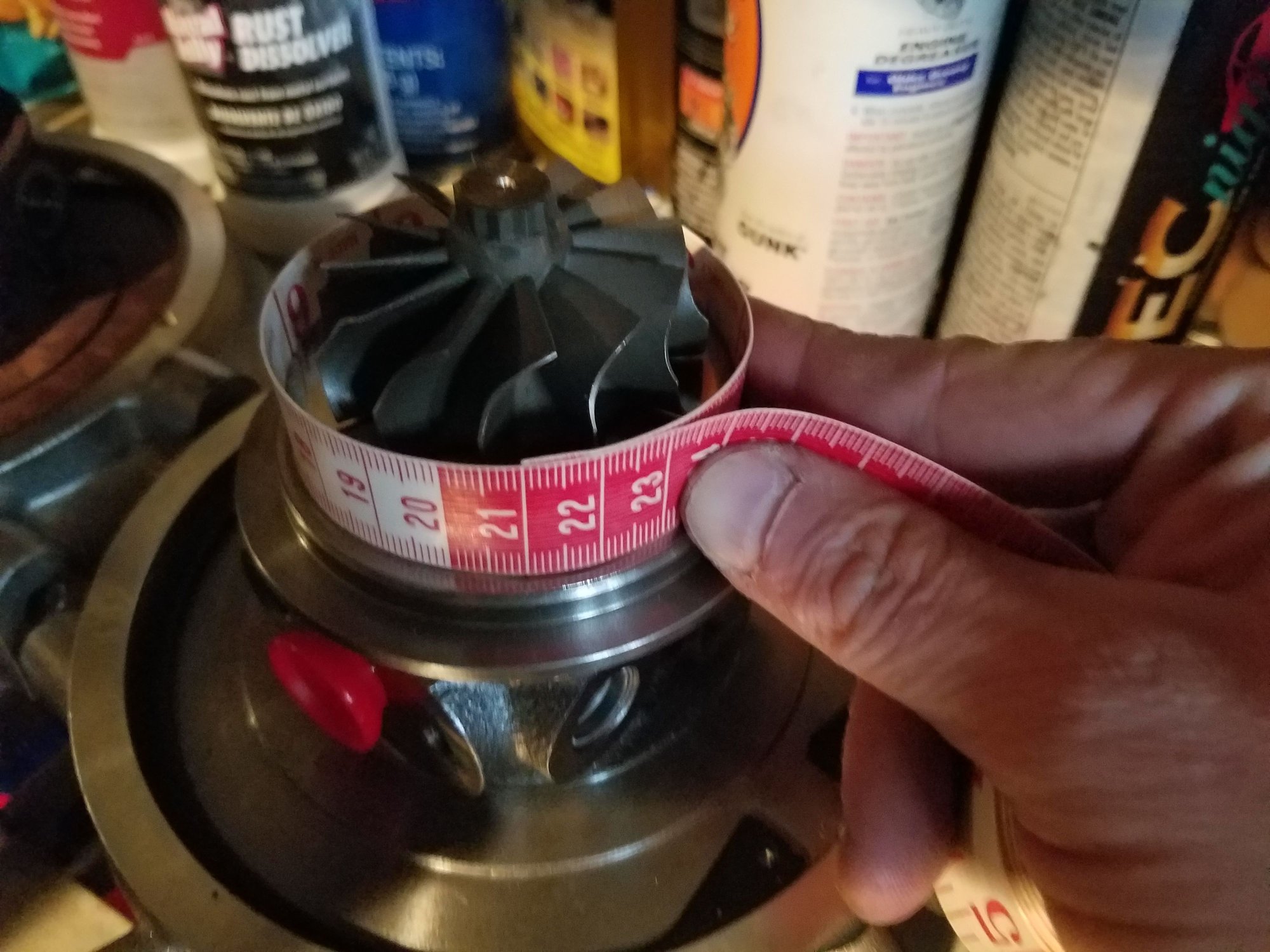

I double-checked the circumference of both and it was 20cm for the factory turbo and 21cm for the 71HTA.

The turbine housing came in at right around 20cm so this definitely appears to be the issue.

I'm happy I wasn't screwing up something simple. I'll reach out to FP and have no doubt they'll take care of me.

Thanks again for the troubleshooting help guys.

Last edited by Siege; Apr 28, 2018 at 03:59 PM.

Apr 28, 2018 | 03:05 PM

#17

kaj

EvoM Community Team Leader

iTrader: (60)

Joined: Mar 2006

Posts: 13,636

Likes: 824

From: Fresno, CA

This is just weird. In for the mystery.

Apr 28, 2018 | 03:20 PM

#18

2006EvoIXer

Evolved Member

iTrader: (1)

Joined: Jul 2012

Posts: 3,294

Likes: 197

From: California

Quote:

Originally Posted by Siege

I double-checked the diameter of both and it was 20cm for the factory turbo and 21cm for the 71HTA.

that is circumference. Lol

Apr 28, 2018 | 04:03 PM

#19

Siege

Thread Starter

Newbie

iTrader: (2)

Joined: Nov 2004

Posts: 56

Likes: 5

From: Bel Air, Maryland

Quote:

Originally Posted by 2006EvoIXer

that is circumference. Lol

Dammit! It's been a long day.

Apr 28, 2018 | 04:31 PM

#20

MinusPrevious

EvoM Staff Alumni

iTrader: (3)

Joined: May 2008

Posts: 7,704

Likes: 1,387

From: So.Cal

Gents

I measured my 9 hot side flange & came out w/20.252 CM circumference which is a 2.538" DIA
" DIA

Looks like FP sent out the incorrect 71HTA

Joe

Apr 28, 2018 | 04:52 PM

#21

2006EvoIXer

Evolved Member

iTrader: (1)

Joined: Jul 2012

Posts: 3,294

Likes: 197

From: California

Quote:

Originally Posted by MinusPrevious

Gents

I measured my 9 hot side flange & came out w/20.252 CM circumference which is a 2.538" DIA
" DIA

Looks like FP sent out the incorrect 71HTA

Joe

probably used a Green piece by mistake.

Apr 28, 2018 | 04:55 PM

#22

2006EvoIXer

Evolved Member

iTrader: (1)

Joined: Jul 2012

Posts: 3,294

Likes: 197

From: California

Quote:

Originally Posted by MinusPrevious

Gents

I measured my 9 hot side flange & came out w/20.252 CM circumference which is a 2.538" DIA
" DIA

Looks like FP sent out the incorrect 71HTA

Joe

and spot on calculting Joe

Apr 28, 2018 | 04:55 PM

#23

Siege

Thread Starter

Newbie

iTrader: (2)

Joined: Nov 2004

Posts: 56

Likes: 5

From: Bel Air, Maryland

Quote:

Originally Posted by MinusPrevious

Gents

I measured my 9 hot side flange & came out w/20.252 CM circumference which is a 2.538" DIA
" DIA

Looks like FP sent out the incorrect 71HTA

Joe

I really appreciate you taking the time to measure your 71HTA!

Michael at FP has been great to work with so I'm sure this will get sorted out on Monday when they're back in the office.

Apr 28, 2018 | 04:59 PM

#24

MinusPrevious

EvoM Staff Alumni

iTrader: (3)

Joined: May 2008

Posts: 7,704

Likes: 1,387

From: So.Cal

Quote:

Originally Posted by 2006EvoIXer

probably used a Green piece by mistake.

Huge diff in values (2.631" DIA as received by FP vs 2.538" DIA(.093 diff)

Apr 28, 2018 | 05:01 PM

#25

MinusPrevious

EvoM Staff Alumni

iTrader: (3)

Joined: May 2008

Posts: 7,704

Likes: 1,387

From: So.Cal

Quote:

Originally Posted by Siege

I really appreciate you taking the time to measure your 71HTA!

Michael at FP has been great to work with so I'm sure this will get sorted out on Monday when they're back in the office.

That was the 9 Hot side i measured, but my 71HTA would have measured the same

Yeah, FP failed to overnight me a package & it went ground UPS. They refunded me the full shipping cost which was good business

Apr 28, 2018 | 05:03 PM

#26

Siege

Thread Starter

Newbie

iTrader: (2)

Joined: Nov 2004

Posts: 56

Likes: 5

From: Bel Air, Maryland

Quote:

Originally Posted by 2006EvoIXer

and spot on calculting Joe

What you didn't like my wife's calibrated sewing tape measure?

Apr 28, 2018 | 05:16 PM

#27

2006EvoIXer

Evolved Member

iTrader: (1)

Joined: Jul 2012

Posts: 3,294

Likes: 197

From: California

Quote:

Originally Posted by Siege

What you didn't like my wife's calibrated sewing tape measure?

Joe measured his 9 diameter at 2.538" and converted that to metric diameter by: 2.538" × 2.54 cm/" × PI = 20.25 cm.

Apr 28, 2018 | 05:51 PM

#28

MinusPrevious

EvoM Staff Alumni

iTrader: (3)

Joined: May 2008

Posts: 7,704

Likes: 1,387

From: So.Cal

Quote:

Originally Posted by 2006EvoIXer

Joe measured his 9 diameter at 2.538" and converted that to metric diameter by: 2.538" × 2.54 cm/" × PI = 20.25 cm.

Don,
Ive tried my best to tell you that "I am a Throttle Engineer"

Apr 28, 2018 | 05:53 PM

#29

2006EvoIXer

Evolved Member

iTrader: (1)

Joined: Jul 2012

Posts: 3,294

Likes: 197

From: California

Quote:

Originally Posted by MinusPrevious

Don,
Ive tried my best to tell you that "I am a Throttle Engineer"

May 2, 2018 | 04:37 PM

#30

Siege

Thread Starter

Newbie

iTrader: (2)

Joined: Nov 2004

Posts: 56

Likes: 5

From: Bel Air, Maryland

Quote:

Originally Posted by 2006EvoIXer

probably used a Green piece by mistake.

I asked FP and they said the larger heat shield piece is for a Red or Black.

Turbo is on the way back to FP now and they're going to swap out the head shield and get it back to me.

Reply Share
