Can someone please post pics of the stock intercooler piping on the car, especially in the area around the bypass valve/blow off valve. I had put custom pipping on, but took it off cause I didnt like it, now Im having a hard time realighning the stock pipping. Any help would be appreciated, thanks in advance.



http://www.lovehorsepower.com/images...EVO_Engine.jpg



Thanks for the quick response, it helped somewhat but if someone could get a shot of the left side with no air box panel that would be great.

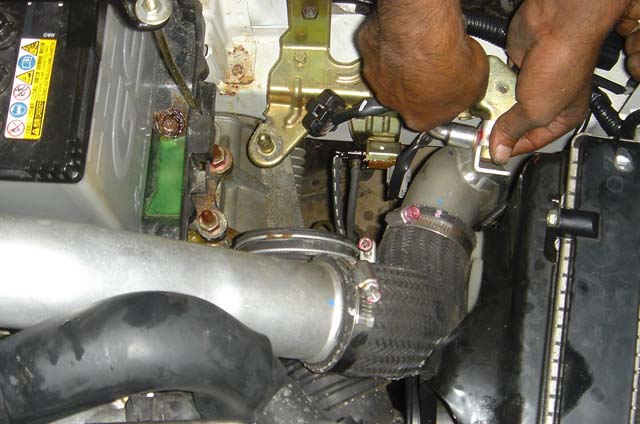

see if this helps.



Thanks thats what I need, so I guess that hose right there is supposed to rest on the fan? cause it will fit that way, but I didnt think it was supposed to rest on the fan so thats why I didnt adjust it like that.



no. the hose isnt supposed to rest on the fan. there should be some distance. the radiator on this evo was just knocked in. otherwise the pipe is ok. the fan should be a bit further.
