Hi guys,

Sorry it took so long to disclose this information. We really wanted to get a good sample pool before posting anything. But there it is....

Attached below is wheel hp and wheel torque. You'll notice that there is a subtantial output variation above 5500rpm. Some cars, during some runs, ran into knock (barely audible through our detonation microphone) and the knock control system responded accordingly. But even when running det-free, the cars all made around 180 wheel hp.

All testing is done with 91 octane CA gas on our Dyno Dynamics All-Wheel Drive dyno. All cars were testing within a four day window.

Remember that it reads approx 15% lower than most Dynojet All-Wheel Dynos when tested under similar conditions. For example, stock 2nd gen GSXs typically dyno around 140-145 wheel hp.

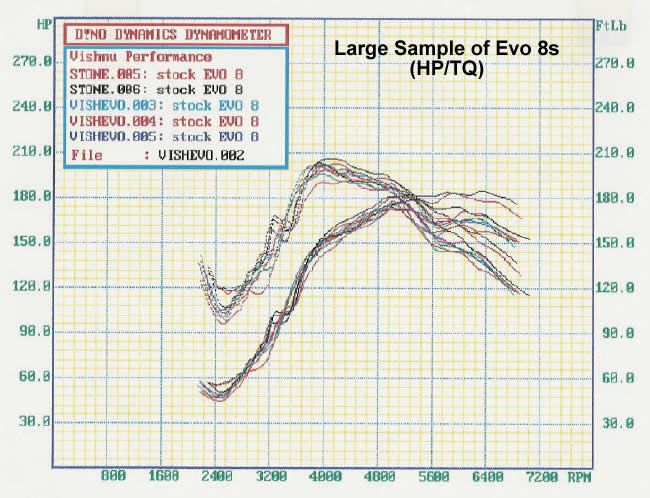

US Evo 8 HP/TQ Curve

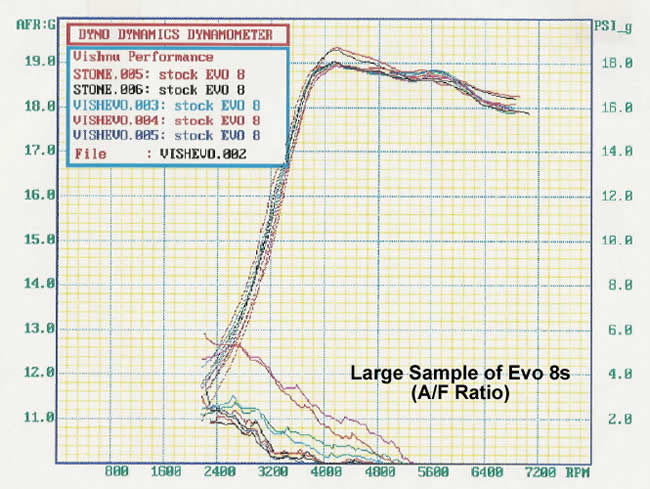

US Evo 8 A/F Ratio & Boost







The following graphs are for comparison purposes only:

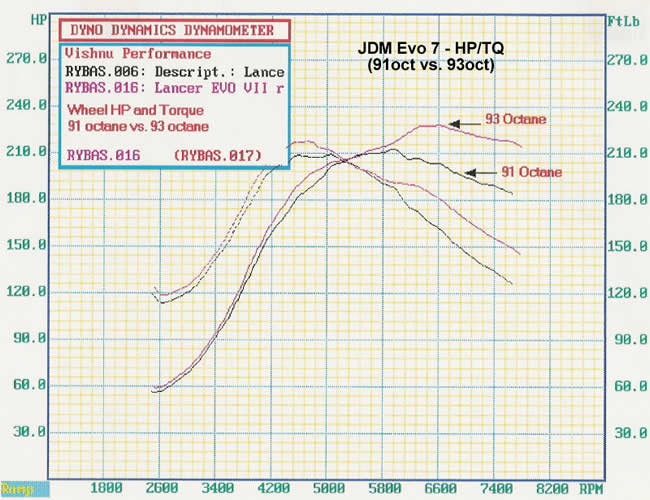

JDM Evo 7 HP/TQ - 91 vs. 93 Octane



Stock '97 Eclipse GSX HP/TQ



WRX HP/TQ - Vishnu Stage 3

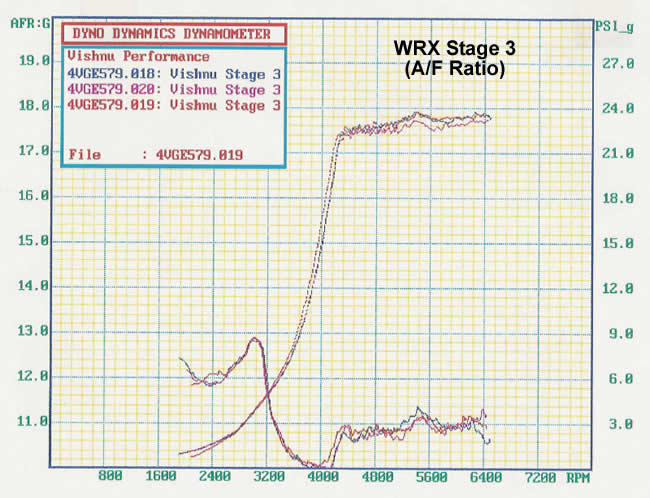

WRX A/F Ratio - Vishnu Stage 3


Cheers,
Shiv Pathak



please repost it's 1/2 graph.

No graph now.



what's up with the picture??



Sorry, the file size to too big and we don't have Photoshop to resize the image. We'll repost the graphs tomorrow.

Thanks,
Ken



http://www.irfanview.com/

Free program. go to image and then click on resize from pull down menu.

That's what i use.

Just trying to help you out shiv



the ultimate teaser...



Shiv,

I'd be happy to do the honor of resizing your graphs.

You can email them to me (evo at jedinite dot com) and I can resize them and get them back to you.



shiv e-mail them to me i can host it on my web space.

e-mail to dakar2m@roadfly.org



Thanks guys. Already emailed them to the admin. He should be posting them up...

Sorry for the technical difficulties,
Shiv



Cool. And by the way, Shiv... thanks for participating in this forum. You've taken some heat over the past few threads... but ignore the haters. A lot of us really appreciate your participation... including me.



and me aaaand bump



looking forward on the graphs. Maybe it'll shed more light on the stock behavior of Evo.

I think most people are jumping the gun by these dynos numbers. These are two very similar cars (2 liters) in terms of performance. Just look at the different versions of EVOs and how different they are...because of minor difference and tuning.

This classic rivalry just begun and you're already nitpicking things like dynos. Be more constructive and think of why the number is low, learn and derived from it. I'm not saying Shiv is God, he certainly didn't say the EVO is a piece of junk...I'm sure he's learning about the EVO as he's tuning it.
Patience is a virtue....in the end everyone will be happyier with a faster, more refined AWD car.



180hp at the Wheels equate to how much at the flywheel?

Thanks



For the EVO, I'd say it's closer to 260 hp based on what we've learned so far. On 93 octane, we've tested EVOs to make nearly 190 wheel hp which would match up to factory claims well.

Cheers
Shiv
