I'm new to the site, me and a mate who is a certified mechanic have been doing a rebuild on a evo4 I have put a tommy makinen 6.5 head new gaskets cleaned engine bay and parts etc.etc. now my friend has left to go overseas and I need to finish the car off by myself, I have a little bit of knowledge when it comes to cars, we have the head on water pump on I know where everything goes except for these vacuum hoses that are connected to some sort of sensor with a Mitzi knob on the end that you can turn I'm a bit lost as he took all of these parts off and I don't know where they came off

Thanks in advance and if anyone has an diagrams of how the whole engine is assembly including water hoses and vacuum lines and sensors that would be a great help please.

Also the car now has
adjustable suspension
External waste gate
Greedy boost controller
Turbo timer
Blow off valve
Big inter cooler
Front and rear strut braces
3 inch exhaust 4inch tip
Dump pipe
New gates racing belt
Balance shaft belt
New serpentine belt
Short ram intake
New plugs
Screamer pipe
Tachos
Shift lights

Heaps of mods have been done just trying to finish it PLEASE HELP



Post some pics up and maybe we can help you out.



Hey mate thanks for your reply I,m at work will post some up within the next couple of hours but I recall most of the vac lines from the intake mani and all the vac lines around there and ground wires that grind to head



Pix



I don't know where most of the vac lines go that are near the intake manifold it's abit of a mess in there and I'm stumped trying to find where these vac lines all go

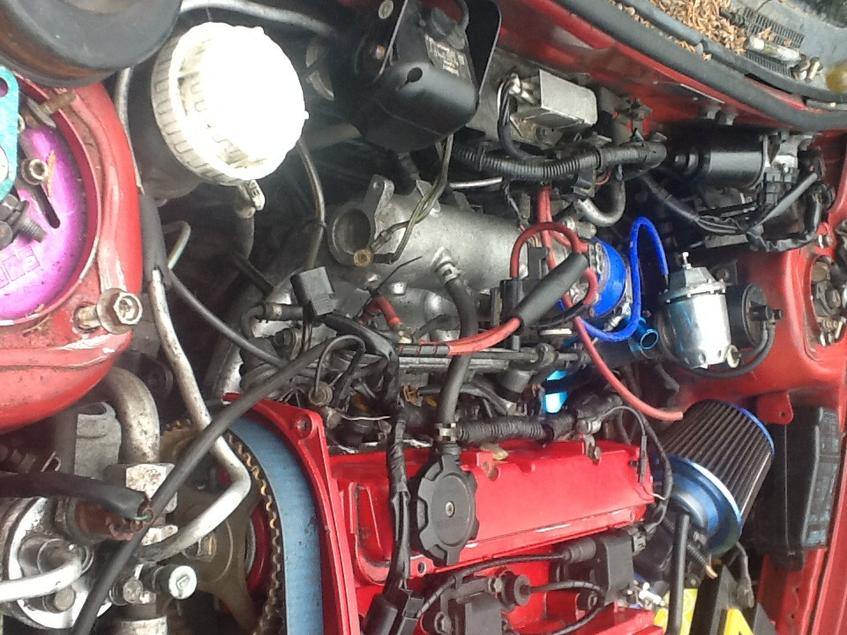

Hopefully you can make something out of it all the vac lines around and that plug into intake mani I'm really lost thanks mate



From what I can tell in those pics, that piece is teed into the fuel pressure regulator vacuum line, eventually those vacuum lines need to be on the intake manifold. Hard to see from the pics if they are or not already though. The blue vacuum line from your bov looks like it already Is connected to a vacuum port on the intake manifold as well.
