Dynoed Stock Lancer
#1
Evolved Member
Thread Starter
iTrader: (2)
Join Date: Mar 2003
Location: Wisconsin
Posts: 952
Likes: 0
Received 0 Likes
on
0 Posts
Dynoed Stock Lancer
Hey guys... just dynoed my lancer tonight. all I have is 2.25" cat back Magnaflow exhaust and an intake as far as engine mods.
I'll have exact numbers and graphs for you soon but my Lancer pulled 91 hp. The curves look very very nice. For comparison a stock Mazda Protege MP3 which is rated for 140 hp versus our rated 120 hp pulled 96 hp.
This was Mustang dyno, not a Dynojet. So the numbers will show about 10% lower than what a Dynojet would.
I ran a simulated quarter mile time as well which I should have to show you when I get the files tomorrow. I had a 2.42 second 60' on my second try... but do not remember my time.
I'll have curves and specific numbers for you guys tomorrow.
Other numbers for comparison:
Japanese Type R VTEC swapped Civic - 155 hp
Ford T-Bird 4.6L 157 hp
Hope this is of some use for baselines for you guys!
Later.
Steve
P.S. hp was SAE corrected with a factor of .959
I'll have exact numbers and graphs for you soon but my Lancer pulled 91 hp. The curves look very very nice. For comparison a stock Mazda Protege MP3 which is rated for 140 hp versus our rated 120 hp pulled 96 hp.
This was Mustang dyno, not a Dynojet. So the numbers will show about 10% lower than what a Dynojet would.
I ran a simulated quarter mile time as well which I should have to show you when I get the files tomorrow. I had a 2.42 second 60' on my second try... but do not remember my time.
I'll have curves and specific numbers for you guys tomorrow.
Other numbers for comparison:
Japanese Type R VTEC swapped Civic - 155 hp
Ford T-Bird 4.6L 157 hp
Hope this is of some use for baselines for you guys!
Later.
Steve
P.S. hp was SAE corrected with a factor of .959
#3
Evolved Member
Thread Starter
iTrader: (2)
Join Date: Mar 2003
Location: Wisconsin
Posts: 952
Likes: 0
Received 0 Likes
on
0 Posts
I wouldn't be so quick to say that it is horribly sad. Keep in mind that two engines that were rated for OVER 200 hp ran right around 150 hp. 60 over the Lancer.. which is rated for more than 80 less than these guys.
Also keep in mind that civics and others that are typically compared against the Lancer are running 75 -85 hp on this dyno. So not so sad in my opinion. You can't expect 100's of horsepower from a 14,000 car.
Also keep in mind that civics and others that are typically compared against the Lancer are running 75 -85 hp on this dyno. So not so sad in my opinion. You can't expect 100's of horsepower from a 14,000 car.
#4
Evolved Member
iTrader: (7)
Join Date: Dec 2001
Location: Chicago
Posts: 1,572
Likes: 0
Received 0 Likes
on
0 Posts
Ive gotten on my soap box before and Ill do it again. If you bought the regular US Lancer to be fast out of the box bone stock, you got the wrong car.
I agree sdhotwn, not bad numbers.
I agree sdhotwn, not bad numbers.
#5
Evolved Member
Join Date: Jul 2003
Location: Westchester, NY
Posts: 543
Likes: 0
Received 0 Likes
on
0 Posts
I had mine done about 2 weeks ago. I posted under general and the thread is HP, free dyno. Is it a standard or auto,Was that a 3 or 4 gear pull. What kind of dyno. I have intake header test pipe and exhaust. My peak horse was 109 and trq. was 114
Trending Topics
#8
Evolved Member
iTrader: (3)
Join Date: Apr 2002
Location: Somerset, KY
Posts: 1,509
Likes: 0
Received 0 Likes
on
0 Posts

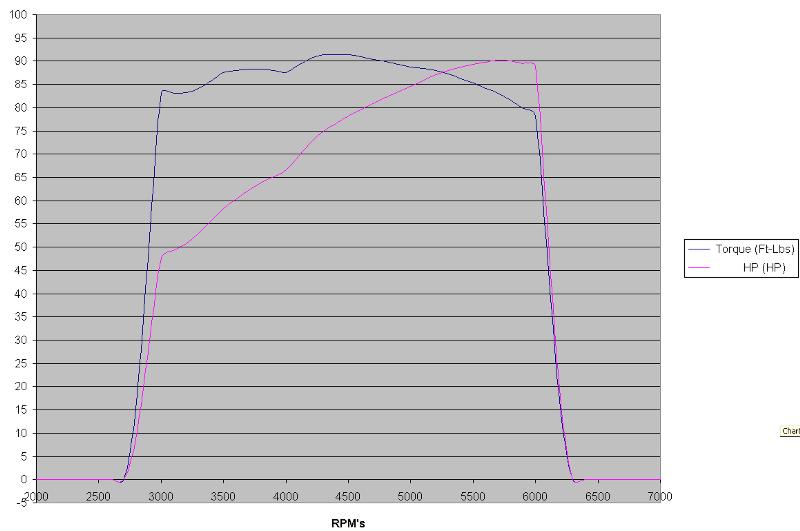

graph looks about right..notice how the HP was flattening out at revlimit? Get the ECU reflash and your curve won't flatten like that...good stuff though. If anyone is interested www.calslam.net is holding a Dyno day in Oakdale, CA. Check out the site for details. Performance Dyno will also give you a wideband O2 reading.
#9
In Timeout
iTrader: (1)
Join Date: Aug 2003
Location: TEAMSLAM.COM
Posts: 105
Likes: 0
Received 0 Likes
on
0 Posts
I dyno'd my Lancer sans boost or FMU @ Performance Dyno Tuning and got 149whp at 114 mph. That was just one pull.
Sign up for Team SLAM Dyno Day by clickin on this link.
Here's a pic of PDT's shop... well that's only one of two dynometers, actually:
Sign up for Team SLAM Dyno Day by clickin on this link.
Here's a pic of PDT's shop... well that's only one of two dynometers, actually:
#10
Evolved Member
iTrader: (3)
Join Date: Apr 2002
Location: Somerset, KY
Posts: 1,509
Likes: 0
Received 0 Likes
on
0 Posts
Anyone know what a Dodge stratus HP is? I was .....ahem...racing one on the freeway and he couldn't pass me or even match my acceleration from 60mph up. It was an ES stratus...doesn't that have a V6?
#11
Evolved Member
Thread Starter
iTrader: (2)
Join Date: Mar 2003
Location: Wisconsin
Posts: 952
Likes: 0
Received 0 Likes
on
0 Posts
Yeah I'll jump right on signing up for another dyno day after I just dynoed.. ANNNNNDDDD I'd have to drive to California from Wisconsin...
Please keep this thread relative to the topic at hand... what a stock Lancer puts out.
Please keep this thread relative to the topic at hand... what a stock Lancer puts out.
#14
Evolved Member
Thread Starter
iTrader: (2)
Join Date: Mar 2003
Location: Wisconsin
Posts: 952
Likes: 0
Received 0 Likes
on
0 Posts

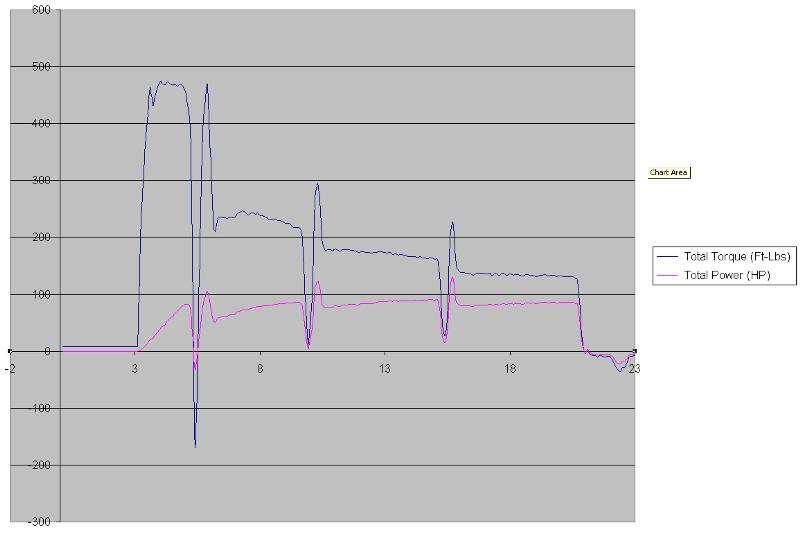

The quarter mile simulation so you can see gear ratios (based on the torque ratios... knowing what the peak torque is in 3rd which is nearly 1:1.. then you can go from there)
I was a little surprised by the car coming up on the rollers after the launch in 1st gear... so I didn't shift right away for 2nd gear.. which you can see... and I was over revving the engine between gears by holding down the gas part way during shift..so the spikes are the extra torque as the clutch put the torque from the higher rpms out to the wheels before being matched...
The total 1/4 mile time was like 17.2 or 17.5... I know I beat 17.7.. and considering that the "stock 1/4" time is 18.6 that's respectable I think.
Here you go:
I was a little surprised by the car coming up on the rollers after the launch in 1st gear... so I didn't shift right away for 2nd gear.. which you can see... and I was over revving the engine between gears by holding down the gas part way during shift..so the spikes are the extra torque as the clutch put the torque from the higher rpms out to the wheels before being matched...
The total 1/4 mile time was like 17.2 or 17.5... I know I beat 17.7.. and considering that the "stock 1/4" time is 18.6 that's respectable I think.
Here you go:
#15
Evolving Member
iTrader: (1)
Join Date: Feb 2002
Location: Southern CA
Posts: 113
Likes: 0
Received 0 Likes
on
0 Posts
Hey nice job with all the info and dyno posts, for a 120 hp car its really pretty decent. 24% loss from engine to the wheels but if you add that 10% back for a dyno jet... 14% loss really isn't bad at all. Good thing our car's aren't rwd!
