How to remove / replace your spark plugs
I have searched, but no how to. Even though this is change is really simple, I have seen posts asking how to do it. So here it is. Be sure to read though before starting, to make sure you have all the necessary tools to complete it.
Do not gap Iridium plugs are they come pregapped
Copper plugs need to be gapped
notes
Evo 8 2003-2004 shop manual
- spark plug gap = Stock Spark plug gap: 0.7 - 0.8 mm (0.028 - 0.031 inch)
Evo 9 and 2005 shop manual
- Stock spark plug gap 0.5 - 0.6 mm (0.020-0.024 inch)
limit 0.75mm (0.0295 inch)
Most evom users recommend 0.026 inch gap for either evo 8/9
anything above 26psi and you want to be gapped at 0.022 inch
- when tightening the spark plug use a torque of 25Nn +/- 5 or 18 FOOT-lb +/- 4
- coil packs (two black / 3 bolt pieces over 2 spark plugs) tighten to 10Nn +/- 2 or 89 INCH-lb +/- 17
- mitsubishi spark plug cover torque spec 3Nm +/- .5 or 27 INCH-lbs +/- 3
- +/- means: you can add or subtract foot or inch pounds when tighting with a torque wrench
- a spark plug socket is nice and easy(get one), but not necessary
Step 1:
disconnect battery using a 10mm wrench or socket. -always a good idea to remove power while working on the engine. plus once you are done, reconnecting the battery will reset the ecu. w/ fresh plugs in.
Step 2:

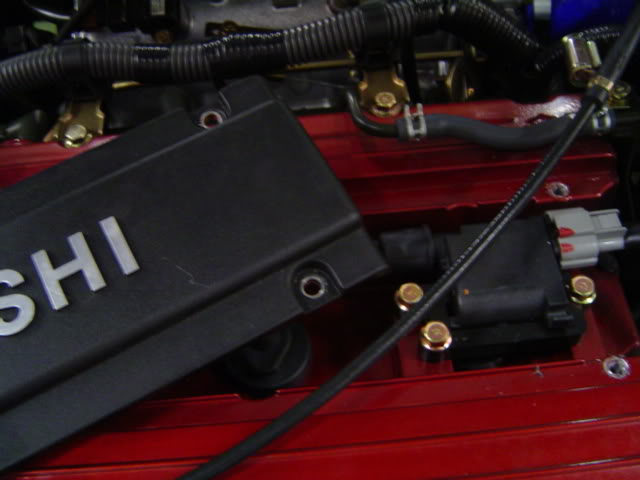

remove engine plug cover. use a phillips head screwdriver or a 10mm socket
Step 3:

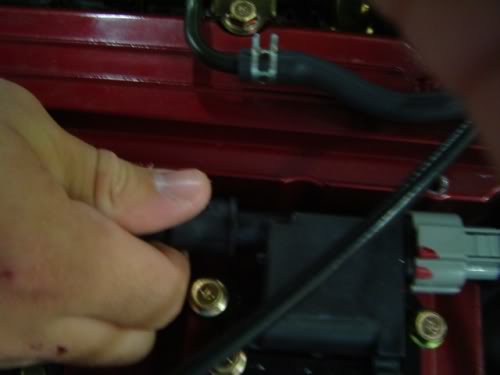

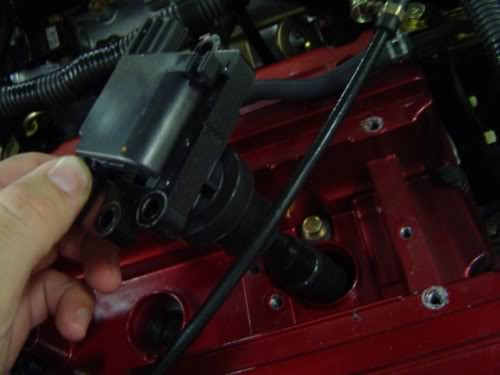

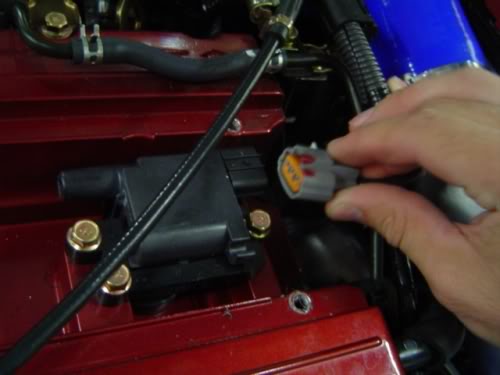

remove spark plug wires and unplug wire harness - use a 10mm socket to remove the 3 screws on the plug

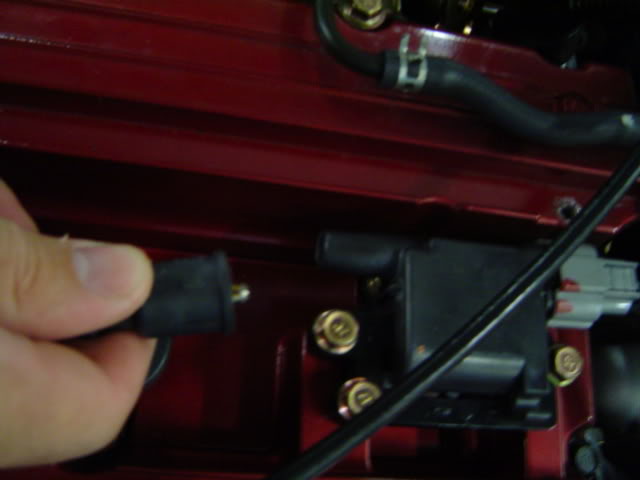

note: the plug wires are set in good. meaning its gonna take some effort / pull to get the wires out. dont be afraid - yank on them

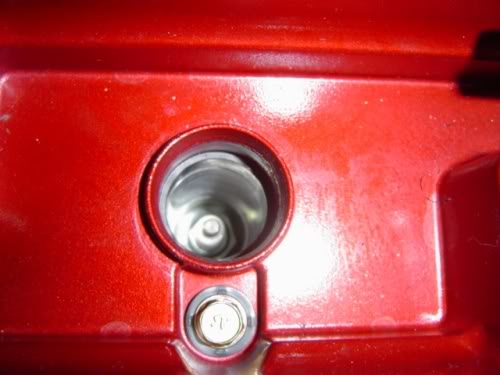

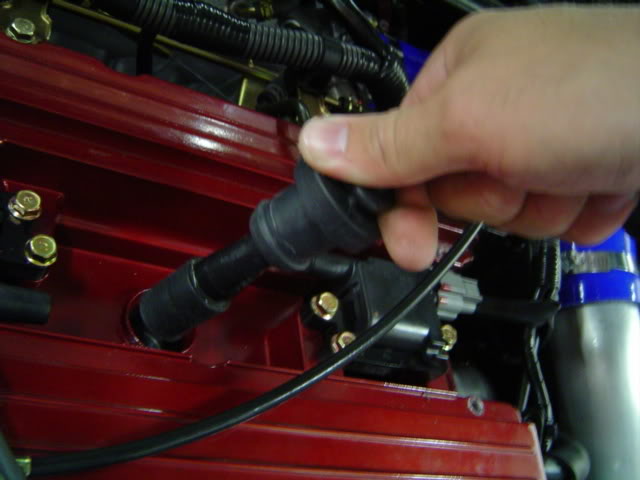

after plug wire removal you can see the spark plugs set deep in the engine block
Step 4:

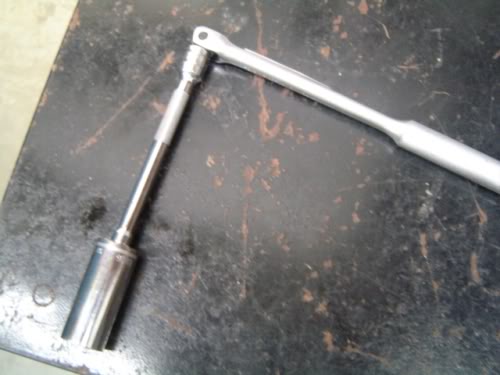

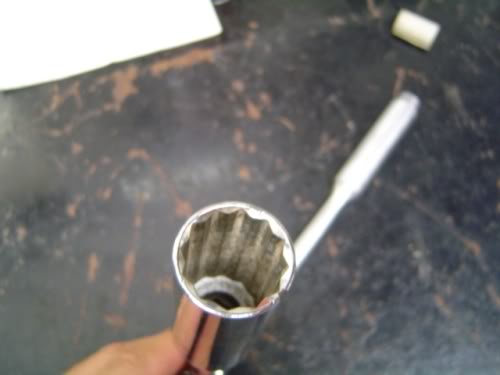

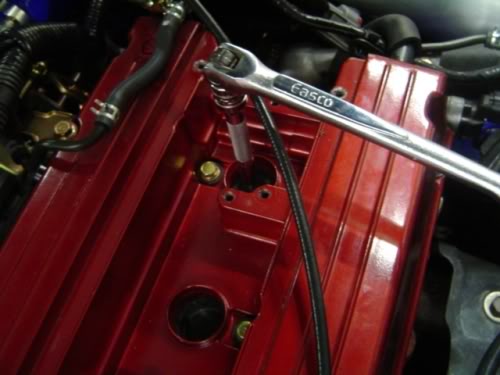

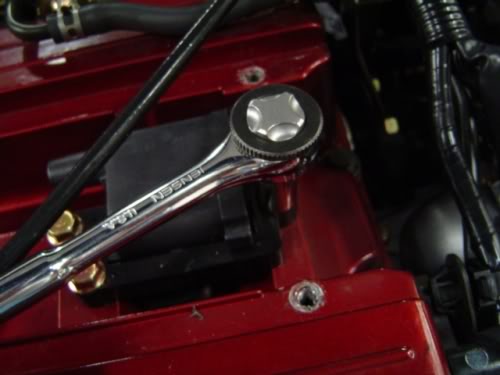

you will need a deep set socket with extension to reach the spark plug in its location. i used size 13/16 deep well socket to reach and unscrew the plug.

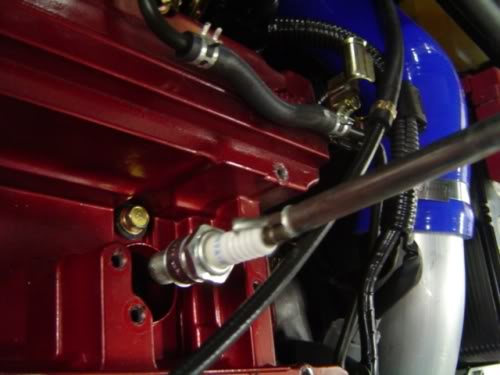

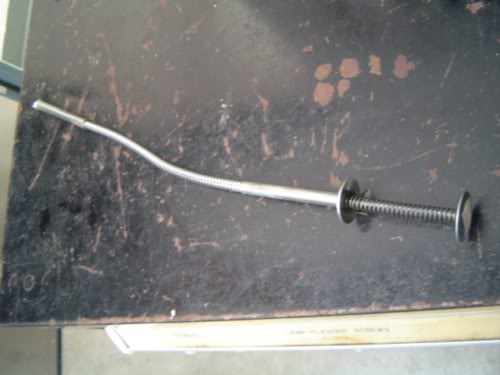

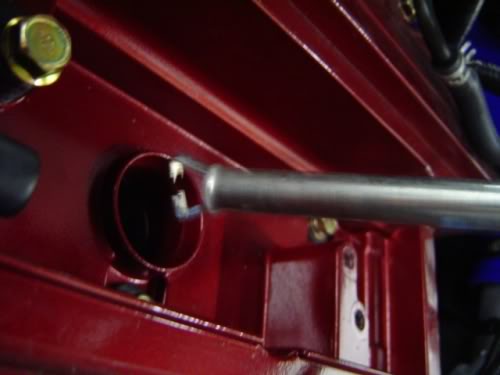

then i used this to remove the plug- not sure what the proper name of this device is, or a slang term, but works like a charm
or use a much easier tool , a 13/16 spark plug socket
Step 5:
replace your old spark plugs with new ones
i have read that its recommended to replace your iridium spark plugs every 6 months.
and change the copper plugs every 3 months
i used the cheap, but effective copper NGK BPR7ES as easy replacement for a car with less than 300whp. ie stock
Step 6:
put everything back together, reconnect battery and feel the difference. it amazes me the simple changes that you can do to this vehicle to see or feel it running better.
