Unknown wire hanging?

What is this black wire? found it hanging, where does it connect to? Please help, thanks.

Name:  IMAG0436_zps9nkejnai.jpg
Views: 0
Size:  143.8 KB
Reply
Old Aug 23, 2016 | 07:34 AM
  #2
MinusPrevious's Avatar
EvoM Staff Alumni
iTrader: (3)

Joined: May 2008
Posts: 7,704
Likes: 1,387
From: So.Cal
Originally Posted by fugiwara
What is this black wire? found it hanging, where does it connect to? Please help, thanks.
Its got a body clip attached to it. If you dont get an answer today, Ill pop the hood after work & see if I can find it on mine

Will let you know
Reply
Old Aug 23, 2016 | 05:14 PM
  #3
MinusPrevious's Avatar
EvoM Staff Alumni
iTrader: (3)

Joined: May 2008
Posts: 7,704
Likes: 1,387
From: So.Cal
Sorry, I checked but dont see any similar connector. I have an RS so they could be the reason

Can you trace that harness or does it go into a bundle?
Reply
Old Aug 23, 2016 | 07:49 PM
  #4
evo_nation's Avatar
Evolving Member
iTrader: (5)

Joined: Aug 2014
Posts: 116
Likes: 2
From: mess, arizona
Looks like it's right on the back of the power steering pump. Mine has two body clips on it.
Name:  20160823_194639.jpg
Views: 0
Size:  180.4 KB
Reply
Old Aug 23, 2016 | 11:27 PM
  #5
fugiwara's Avatar
Thread Starter
Evolved Member
iTrader: (124)

Joined: Aug 2005
Posts: 2,253
Likes: 0
From: Arcadia, CA
Originally Posted by MinusPrevious
Sorry, I checked but dont see any similar connector. I have an RS so they could be the reason

Can you trace that harness or does it go into a bundle?
it's a bundle
Reply
Old Aug 23, 2016 | 11:51 PM
  #6
fugiwara's Avatar
Thread Starter
Evolved Member
iTrader: (124)

Joined: Aug 2005
Posts: 2,253
Likes: 0
From: Arcadia, CA
Originally Posted by evo_nation
Looks like it's right on the back of the power steering pump. Mine has two body clips on it.
Looks like this is it, but now I found a blue wire hanging

Name:  IMAG0442_zpszyw09ab0.jpg
Views: 0
Size:  140.3 KB
Reply
Old Aug 24, 2016 | 07:12 AM
  #7
evo_nation's Avatar
Evolving Member
iTrader: (5)

Joined: Aug 2014
Posts: 116
Likes: 2
From: mess, arizona
Originally Posted by fugiwara
Looks like this is it, but now I found a blue wire hanging

The black connector should hook up to the blue wire connector and the blue wire goes to the back of the pump on mine.
Reply
Old Aug 24, 2016 | 09:38 AM
  #8
fugiwara's Avatar
Thread Starter
Evolved Member
iTrader: (124)

Joined: Aug 2005
Posts: 2,253
Likes: 0
From: Arcadia, CA
Originally Posted by evo_nation
The black connector should hook up to the blue wire connector and the blue wire goes to the back of the pump on mine.
Bingo! looks like I am missing a plate too, thanks so much for your help evonation.
Reply
Old Aug 24, 2016 | 09:40 AM
  #9
fugiwara's Avatar
Thread Starter
Evolved Member
iTrader: (124)

Joined: Aug 2005
Posts: 2,253
Likes: 0
From: Arcadia, CA
Originally Posted by evo_nation
The black connector should hook up to the blue wire connector and the blue wire goes to the back of the pump on mine.
Can you check one thing for me? does the blocking plate attached to power steering pump or sits on AC compressor? thanks in advance
Reply
Old Aug 24, 2016 | 11:41 AM
  #10
evo_nation's Avatar
Evolving Member
iTrader: (5)

Joined: Aug 2014
Posts: 116
Likes: 2
From: mess, arizona
Originally Posted by fugiwara
Can you check one thing for me? does the blocking plate attached to power steering pump or sits on AC compressor? thanks in advance

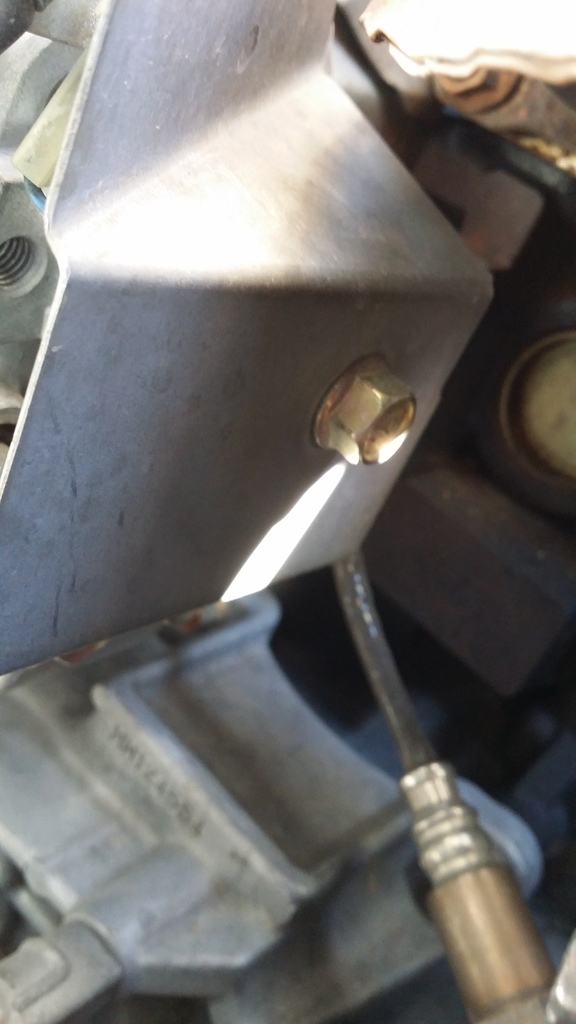

Name:  20160824_112104.jpg
Views: 0
Size:  155.6 KB
1 bolt and it goes throu the power steering bracket.
Reply
Old Aug 30, 2016 | 05:25 PM
  #11
fugiwara's Avatar
Thread Starter
Evolved Member
iTrader: (124)

Joined: Aug 2005
Posts: 2,253
Likes: 0
From: Arcadia, CA
Originally Posted by evo_nation

1 bolt and it goes throu the power steering bracket.
thank you very much, I talked to a tuner and mechanic they said that wire isn't important, I might just leave it alone for now.
Reply
Old Aug 30, 2016 | 09:39 PM
  #12
evo_nation's Avatar
Evolving Member
iTrader: (5)

Joined: Aug 2014
Posts: 116
Likes: 2
From: mess, arizona
Originally Posted by fugiwara
thank you very much, I talked to a tuner and mechanic they said that wire isn't important, I might just leave it alone for now.
Did they tell you what it was for?
Reply
Old Aug 30, 2016 | 09:54 PM
  #13
Pal215's Avatar
EvoM Guru
15 Year Member
Liked
Loved
Community Favorite
iTrader: (12)

Joined: Apr 2008
Posts: 2,925
Likes: 361
From: San Diego, CA
Not 100% on this, but it could be the wire responsible for sending the signal to the ecu that ramps up idle when using the steering wheel.

-pal215
Reply
Old Aug 30, 2016 | 10:34 PM
  #14
fugiwara's Avatar
Thread Starter
Evolved Member
iTrader: (124)

Joined: Aug 2005
Posts: 2,253
Likes: 0
From: Arcadia, CA
Originally Posted by Pal215
Not 100% on this, but it could be the wire responsible for sending the signal to the ecu that ramps up idle when using the steering wheel.

-pal215
Yes, you're right
Reply
