I'm talking about an actual exploded view of pictures/diagrams. Not just a random list of parts with an occasional picture to click on, half the stuff there has nothing.

http://acuraautomotiveparts.org/acur...s=&view=normal

Something like that....



Ah! I have seen that site before. I just emailed our IT Dept about it. I will find out what it takes to get that setup - may not be worth it to us right now. That catalog is a little more like our catalogs we use here in the dealership.

Good Call!



Wow, I feel for you. I work at a German general dealer and every manufacturer has a program with full on diagrams like that. It would make your life a lot easier, you should push them for it

Like the transfer case, there is no diagram. There are two o-rings there, and they only list the main one, the small one is the one you always need(falls out and no one notices apparently.....not paying attention.)



I need the part numbers for the relays(fuses) (3) that go in the skinny fuse box under the hood. The skinny box is right next to the regular one.



Hi guys, need help finding the part number for a 2003 Evo 8 Crankshaft Positioning Sensor (CPS).

Thanks!!



Looking for the bolt holding the rear suspension to the arm. The bolt has a number 8 on the head. Piece 2 on the below link. I found a few suspesion bolts, but can not verify if the part number I found is actually correct.

https://www.evolutionm.net/forums/at...sorberassy.jpg

Any help would be appreciated.



Need some help guys. Can anyone verify if the two brackets that are being pointed to in the picture are the ones that the radio and HVAC control box (when they're mounted in the OEM location in a GSR) bolt/snap too inside the dash? By the picture they are the correct shape and do look like them, but I would just like to be sure. Also if anyone can give me the part # for each that would be great. Thanks.



LINK
http://www.mitsubishiparts.net/cart/...50048+MR550047



i need part number for 2005 reg evo and 2006 mr evo trancfer case. The reason behind this is I need new tcase for my 06 mr and there is a guy selling 05 reg evo one. Help would be apreciated!





Not sure what it's called but I'm looking for a part that goes in the driver's side front fender and covers the transfer case.

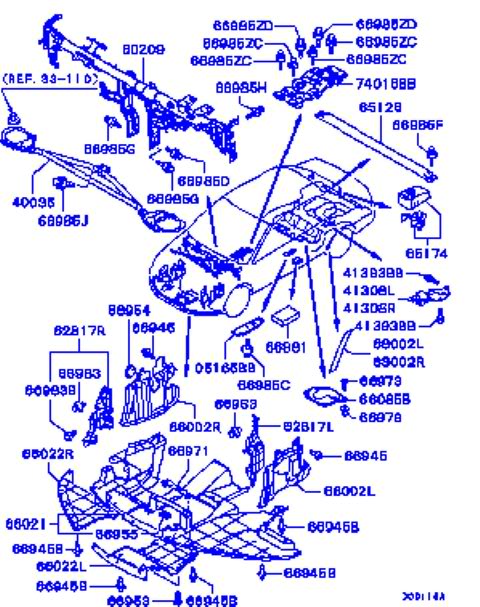

In the picture below, it might be 62617L or 66002L but these numbers don't seem to help, I can't find these part numbers anywhere.

Or this might not even be the right picture... It is a small plastic piece that is missing on my car and exposes the engine compartment, specifically the transfer case.



Thanks in advance for any help you can provide!



Well , I've searched EvoM for an hour and looke through my service manual, but no luck.

What's the part number for the clamp bolt and nut on the bottom of the front suspensions knuckle? The one that clamps the ball joint into the knuckle?

The nut was missing when I got under the car for an oil change, not good. I suspect the tire shop that did the alignment left it loose.



And also, what is the part number for this clip? Looks like the previous owner installed a hose clamp in place of it.

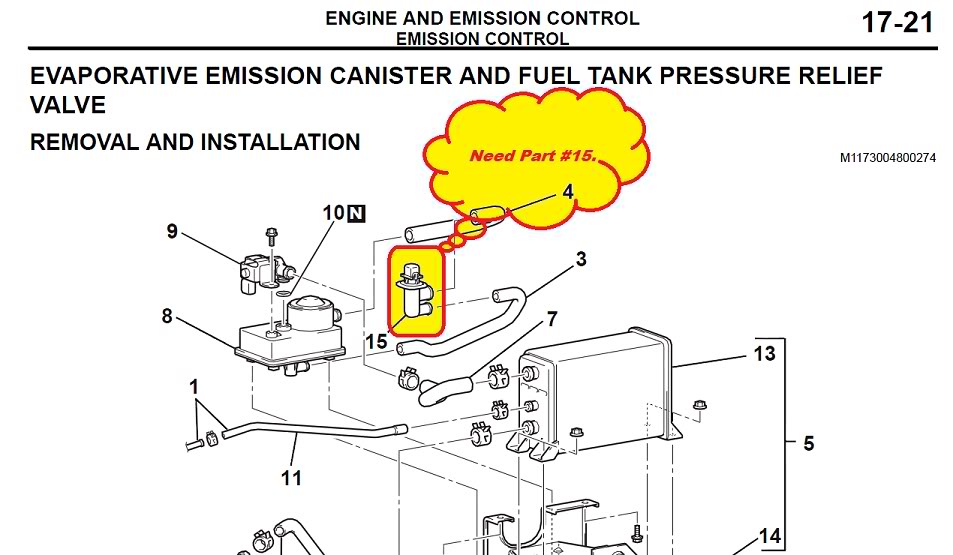

I'm looking for the fitting that goes inside the fuel pump assembly the three way siphon "T"

Here a pic of it








Thanks



I'm looking for the part numbers for all the undertray plastics for an 06 MR. The passenger wheel well plastics are damaged and all the under tray stuff looks like it's missing.
