so I just got a beautiful Cusco oil catch can 15mm and some braided hoses from summit racing parts to make a really nice install.

I can't find a single treat in the Evo X forms about how to install it.

I just read about the left one of the can entrances open to suck in air?

It sounds weird to me, but actually the box of the can comes with a similar setup
Only one hose is connected


Does anybody help me please?????



anyone?
please



instructions in japaneese
no way to understand it



come on guys?
any picture of a cusco catch can installed in an evo X????
how the sistem works?
please?



Not sure how it is on the X, but the basics of it is to take the line coming from the crankcase breather line, or the cam cover breather line, and put that into one side of the CC. Then the other side can either be vented to atmosphere (why you see one not connected in the pic on the box), or the other side can be connected to the line going to the intake. I'm not sure where the PCV valve is on the X, but if it's inline where you are putting the CC, make sure to tap into the line AFTER the PCV. You don't want boost going into places it shouldn't be going.

I would connect the other line to the one going to the intake because the vacuum helps to vent the crankcase (or cam cover). You also don't lose any metered air in the system(even though its a negligable amount).

Some people run dual CC setups, inline with both the crankcase and camcover breather lines. That's the optimal setup.



:



Johny V:
thanks for the explanation.!!!!
any guru running catch cans on EVO Xs?????
come on guys
hook me with some pictures!!



this thread is full of fail



http://home.earthlink.net/~ejhonda/evoPerrin.html

Top right of engine to #1 nipple on catch can
You cant vent the #2 nipple on catch can back to air intake hose past airbox and MAF



I have a greddy can I will post pics tonight!



Thanks td 66.
that's an evo 8, i was looking for pictures of evo Xs, but thanks anyway

Txfoster, i'm will wait for your pictures like a kid waiting for the icecream.
take a good ones of the hose conection, that's more what i'm looking for.

thanks everybody



Sorry thought the concept would help. Didnt know that was an Evo 8, but knew it wasnt X. Ill attach a few pictures. Should help. Something I plan on doing myself once this cold season is over!




Two options to do it you choose your method!

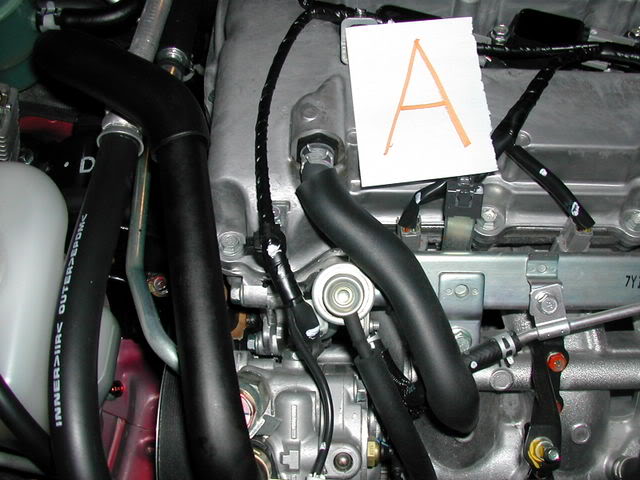

A-PCV location

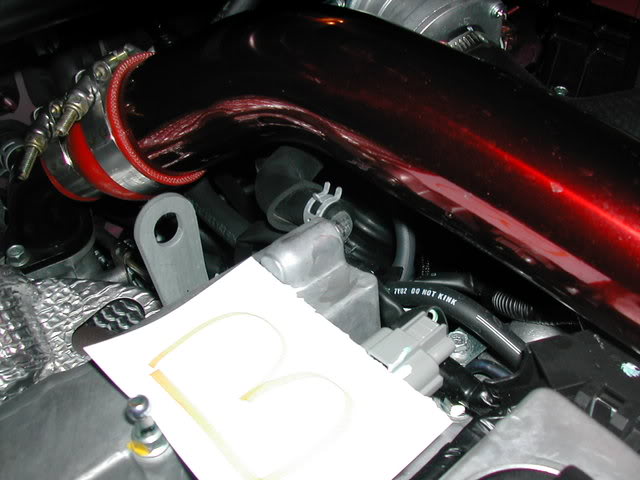

B-blowby from crank vent

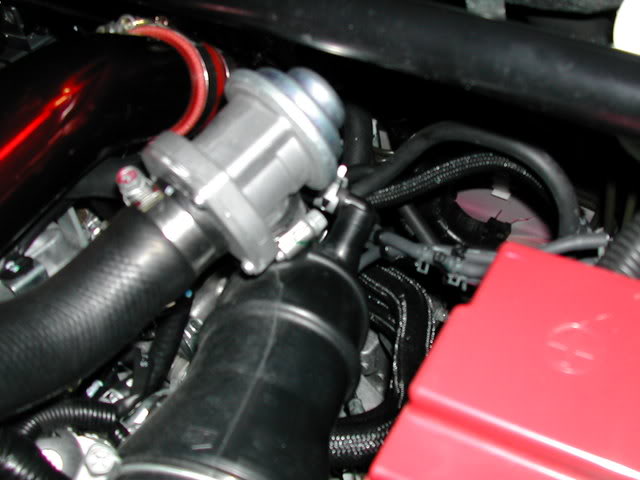

Picture where hose enters air intake past MAF. Either exhaust hose here or vent to air, also your choice.



Here u go sorry was busy last night!



^^^ simple & clean I like it



Thanks everybody
Special thanks to TD66 and TX foster
I have the catch can installed already, just need to connect the hoses. I’m checking first how it beehives under vibration and heat for a couple of days
I’m taking pictures of the whole installation.
I’m going to post them and make a pdf for everybody.
I will include your helpful sketches with your okay ion of course.
