Evo X How Tos / InstallationsPost or link to your detailed how to / installation articles in here. If you have any questions regarding the how tos, feel free to post them in the Request sub-forum.
As many of you may or may not be aware Mitsubishi removed the CAN BOX when they went to the N-11 MMCS in the USDM Lancer/Evo/Outlander Sport/RVR and changed the wiring between 2008-2013 and and 2014-2017 Lancers (which is why this thread is dedicated to SDA into USDM 2014-2015 MY Evos) and for example I believe Russia and the UK did not see these changes and I believe Kolyandex was not aware of them.
The bad news, not only did Mitsu remove the CANBOX, they also removed the CAN H and CAN L wires from the head unit harness C-103 20 pin connector to CANBUS 1 itself and Kolyandex's CANBUS PCB adapter uses these wires.

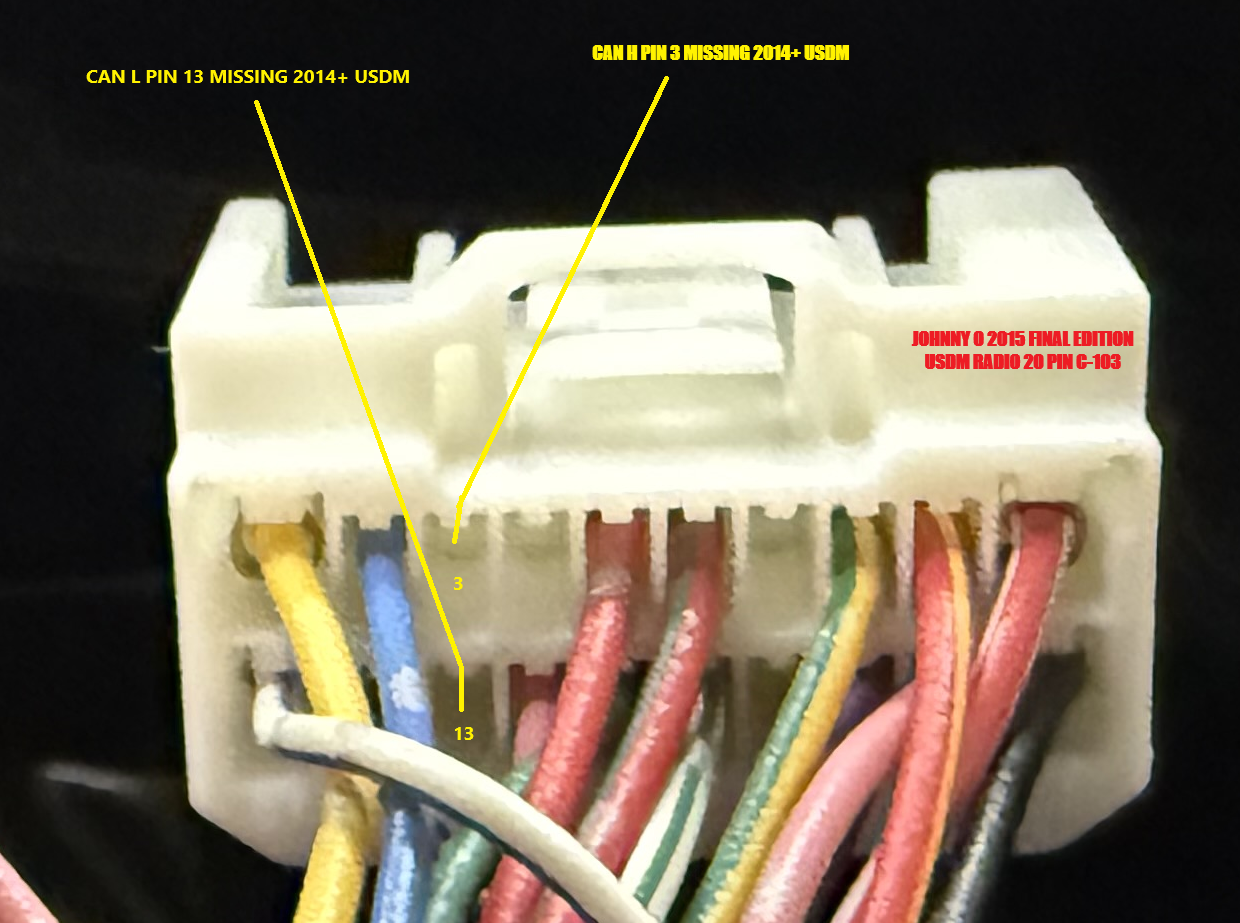

Above: Kolyandex CANBUS PCB Adapter Install Diagram connecting to CAN H and CAN L Above: My USDM 2015 MY 20 pin C-103 harness from factory lacking CAN H pin 3 and CAN L pin 13
The other bad news, Mitsubishi seems to only publish 2008 and 2010 wiring diagrams so there are no official ones I know of for 2014-2015 MY changes, which made this somewhat a PITA.
The good news, after thinking about it and absolutely not wanting to use CAN H/L from the OBD2 port (as it would make the port unusable as it can't share or split the CAN signal and may not even connect to the CANBUS appropriately) and considering the SDA install overall and looking at 2010 wiring diagrams I thought of 2 other solutions to permanently install Kolyandex's CANBUS adapter. Since he is in Russia where wiring didn't change and the they have DAB+ not SXM and no SXM module and no USDM 2014+ wiring diagrams I passed an idea to him, knowing Lancer/RVR SXM module was the same from 2008-2017.
1) Install the Kolyandex PCB in place of the factory SXM module. Since the USDM only cars have SiriusXM module and SDA have SXM built in, the SiriusXM module is no longer needed and by a miracle of God has a CAN L and CAN H connection to CANBUS 1 which is where we need to connect. (Off the top of my head the Evo has 7-8 CANBUSES and an IE-BUS etc.) This 14 pin connector's male terminal is also easily obtained on AliExpress and this connection also has power and ground! (Although I need to verify still it has constant 12v and not ACC 12v). I have talked with Kolyandex about installing his PCB this way and he has given this idea his blessing. Details to follow when I know it actually works, etc. The way I look at this is, SXM module not needed, already have to run Fakra cable from here to SDA anyway so running 2 more wires is easy, no factory wiring needs cut, just need to pin the 2 wires and slip them into the empty factory 20 pin connector holes and pin 4 wires from Kolyandex PCB into 14pin male connector to plug into the SXM harness connector. All parts sub $10 off AliExp. And no harder than making a 20 pin patch harness to not have to splice it's factory cable pins 3,13,19,20. (Preliminary pics of concept in spoiler.)
Spoiler

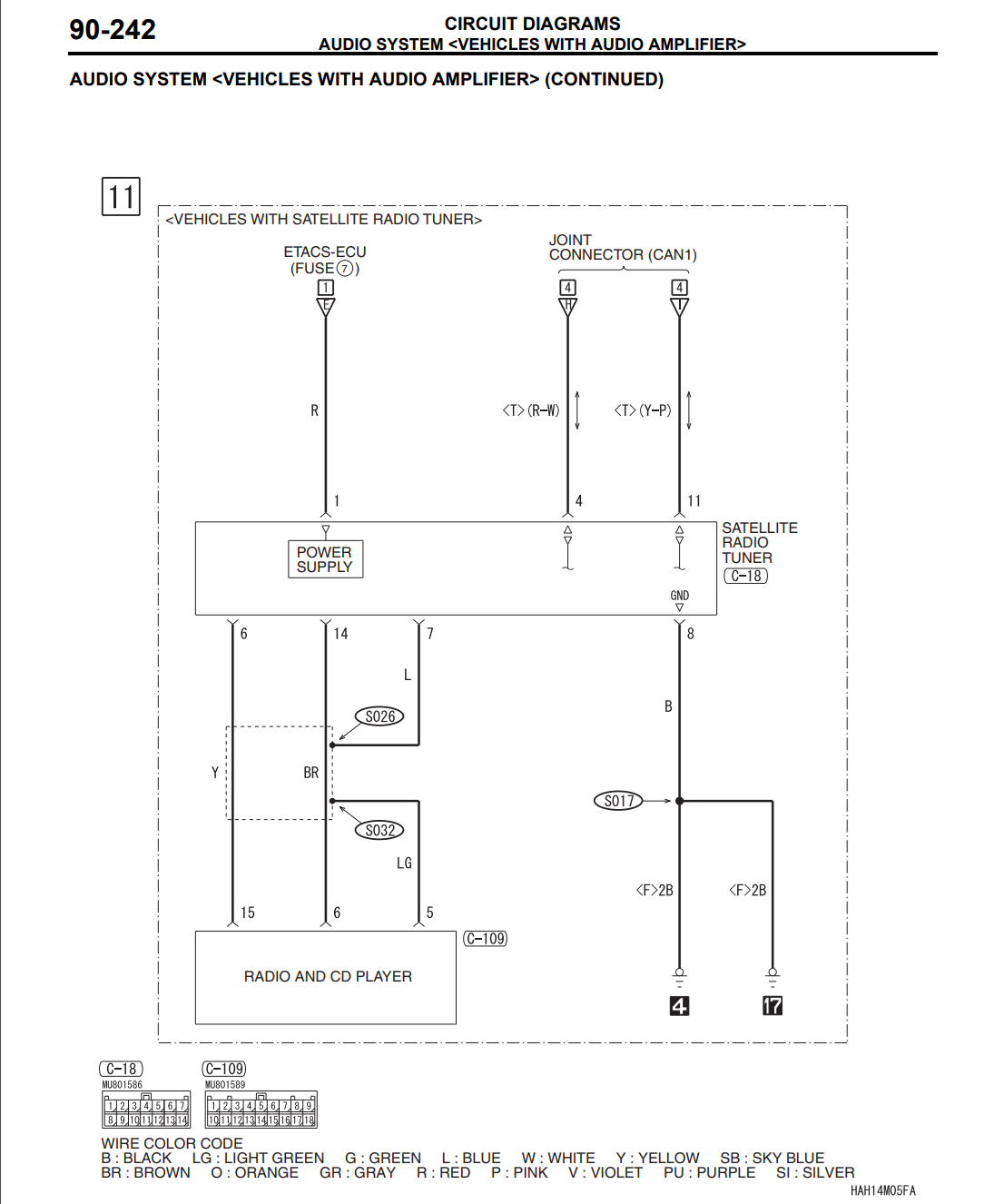

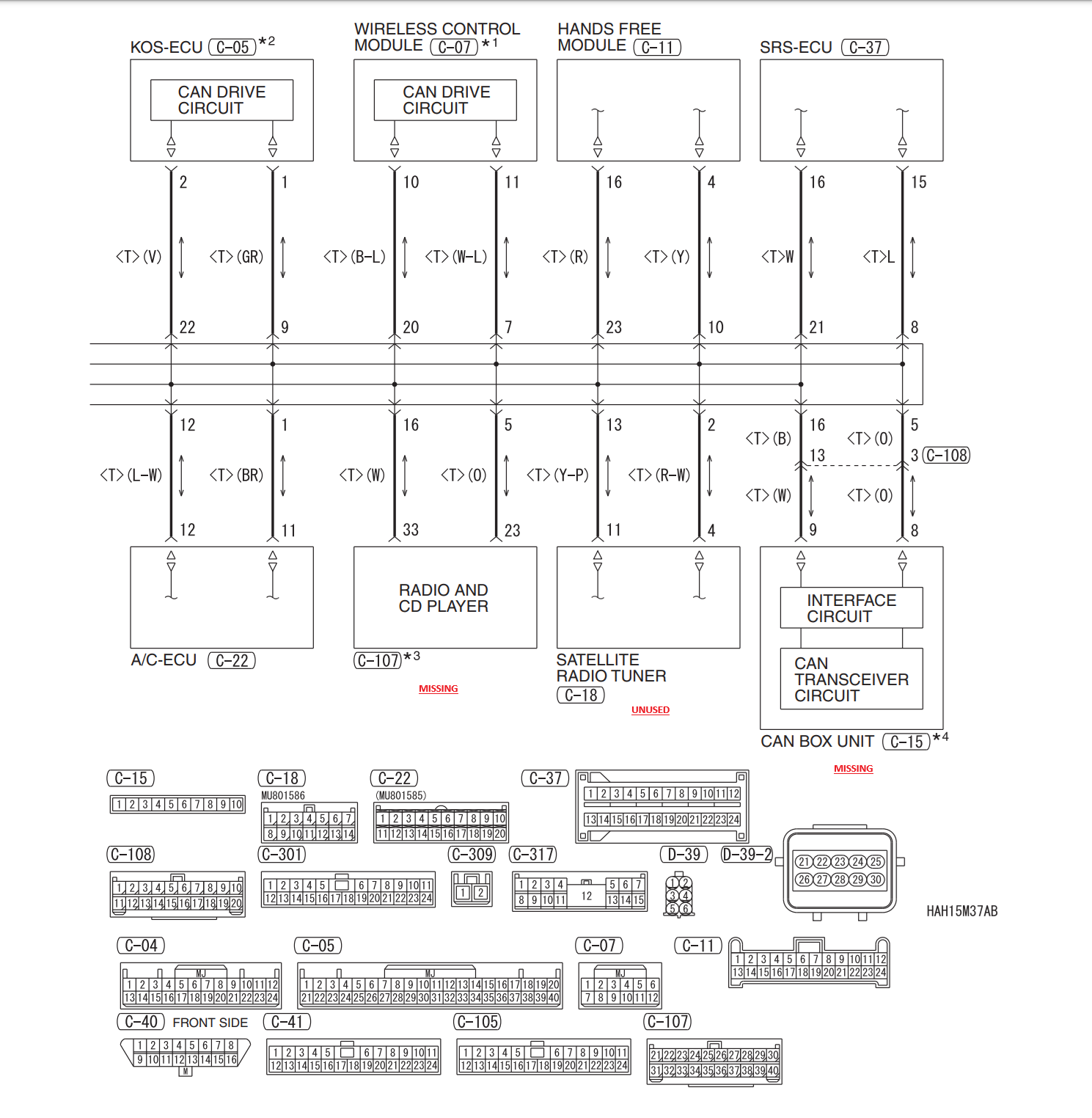

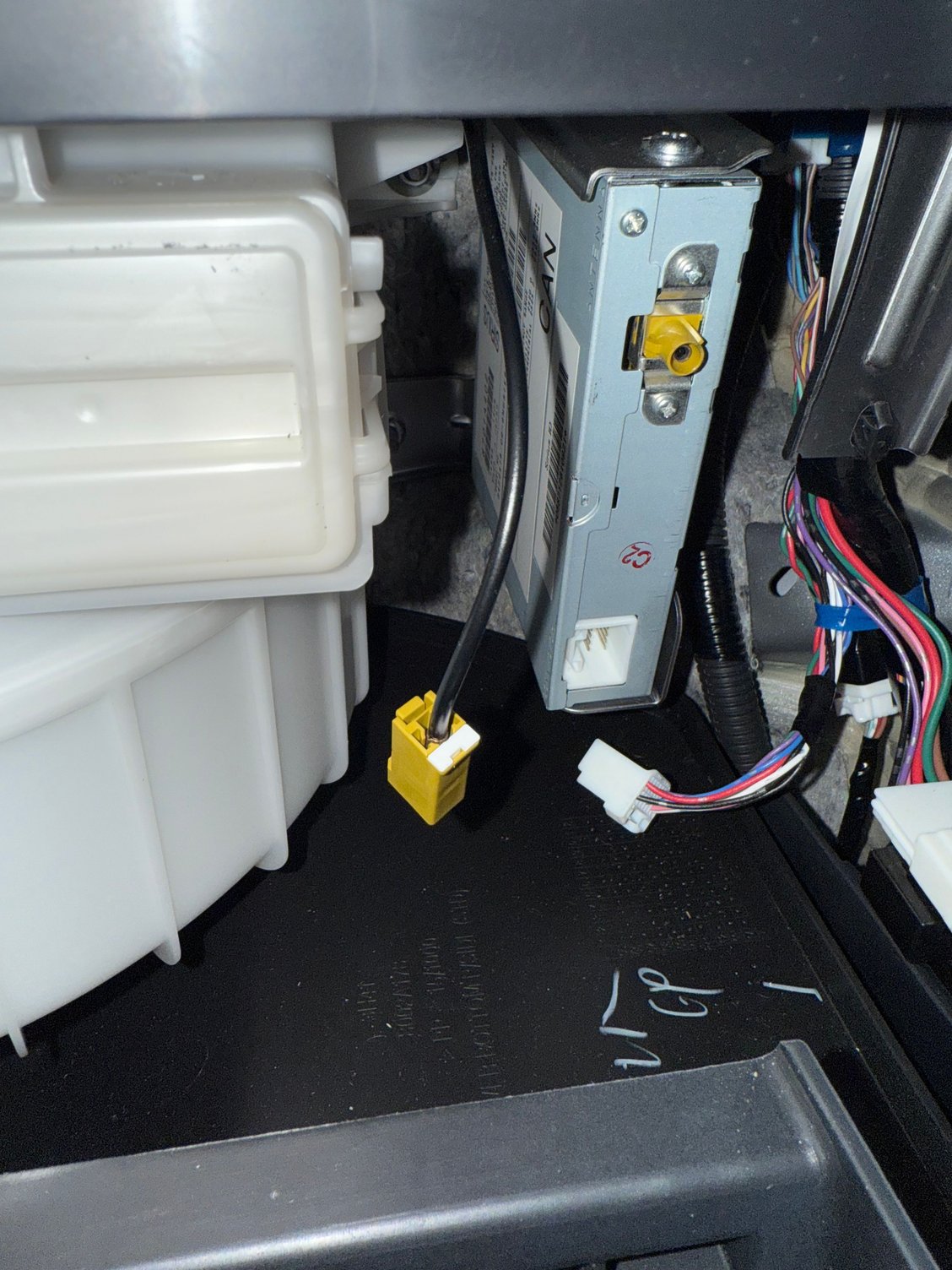

Above: SXM Module 14pin C-18 connector (behind glove box) pins 4 and 11 to CAN1 connection Above: 2010 DIAGRAM SHOWING CAN1 L/H TO: 20 PIN (missing in 2014+), SXM MODULE & HFM Above: SXM module (to be removed) with FAKRA cable disconnected to be extended to SDA and SXM module C-18 connector disconnected and ready to be used to supply CAN L/H and power(hopefully constant)/ground to Kolyandex PCB and the have CAN L/H wires run with FAKRA extension from here (behind glove box) to the SDA
2) For non factory NAV cars (and not using the factory NAV upgrade install kit) or people willing to do the direct mic to SDA wiring removing the need for the Handsfree module (aka HFM aka bluetooth and usb module) this connection is actually very close to the head unit area and also has CAN L and CAN H on CANBUS 1 and may be a better option as it is ideal to keep CANBUS wiring as short as possible and constant 12v power and ground can still be taken from the 20 pin radio harness.
3) I did also think about restoring the wiring Mitsubishi removed in 2014+ from connector C-105 (Joint Connector CAN1) to connector C-103 (head unit 20 pin) but I never got past thinking about it and am not sure if the wiring exists or not on the other side of that connector - I just didn't dig that far with 2 other seemingly easier viable solutions. I mention it incase someone with a car in a market w/o SXM or w/o HFM (if that even exists in any 2014+ anywhere) has another path to investigate.
Spoiler

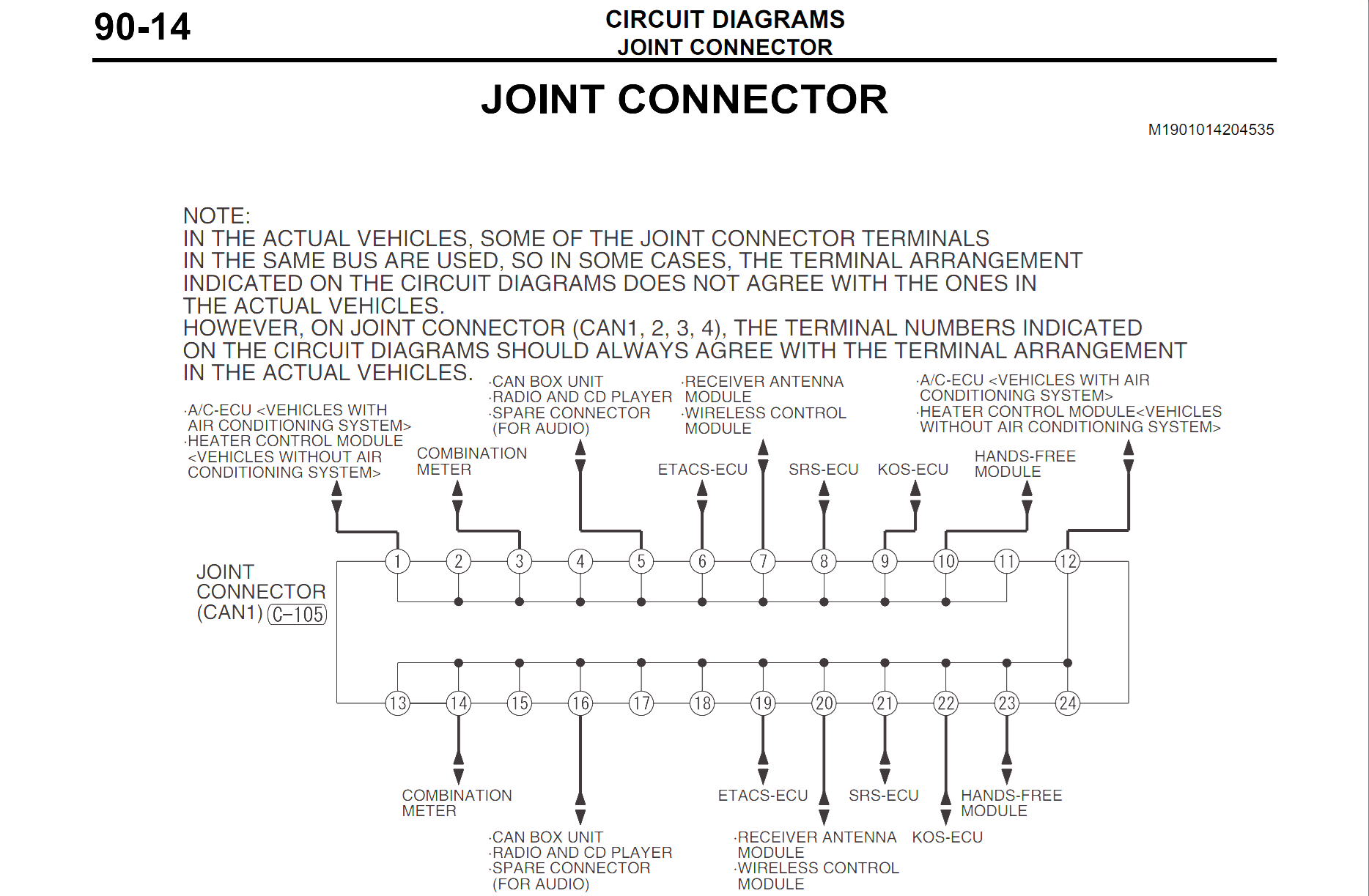

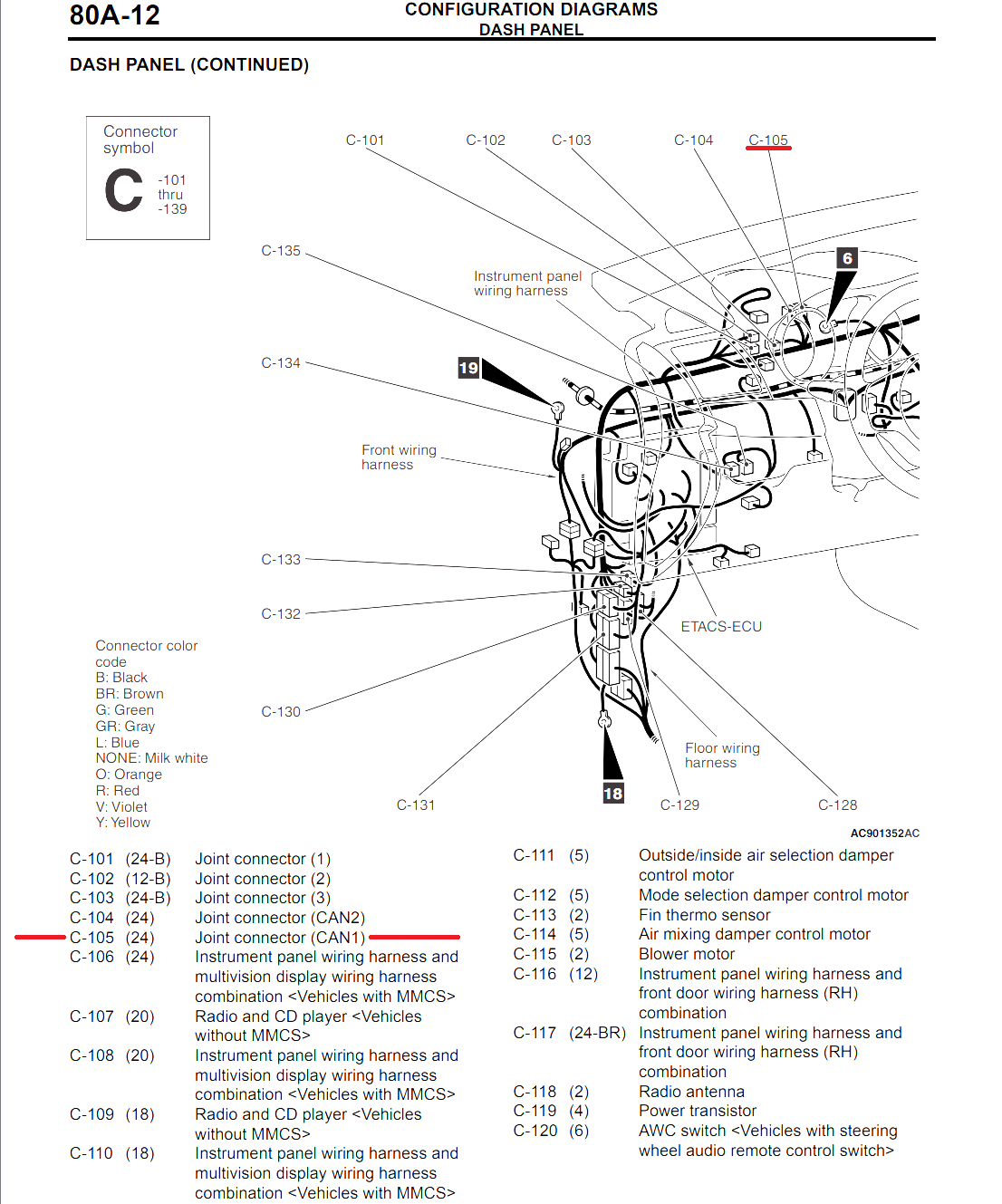

Above: C-105 Joint Connector CAN1 location Above: Joint Connector CAN1, you would be restoring 5 & 16, of note SXM module connections 2 & 13 are shown as blank - thanks Mitsu lol
More detailed info to come, just wanted to give everyone a heads up and that I have been in contact with Kolyandex about this within the last day and things are going on in the background.
Last edited by johnny o; Jan 10, 2025 at 11:02 AM.
Reason: was too short had to make it even longer :)
In the spoiler are pictures showing how to modify a grey connector GPS antenna to fit into a green GPS antenna connector. Takes about 5 minutes with a bastard file, will be much harder to do in car but still possible - but a lot easier than taking the antenna out of the car and having to put it back in under the dash again!
Spoiler

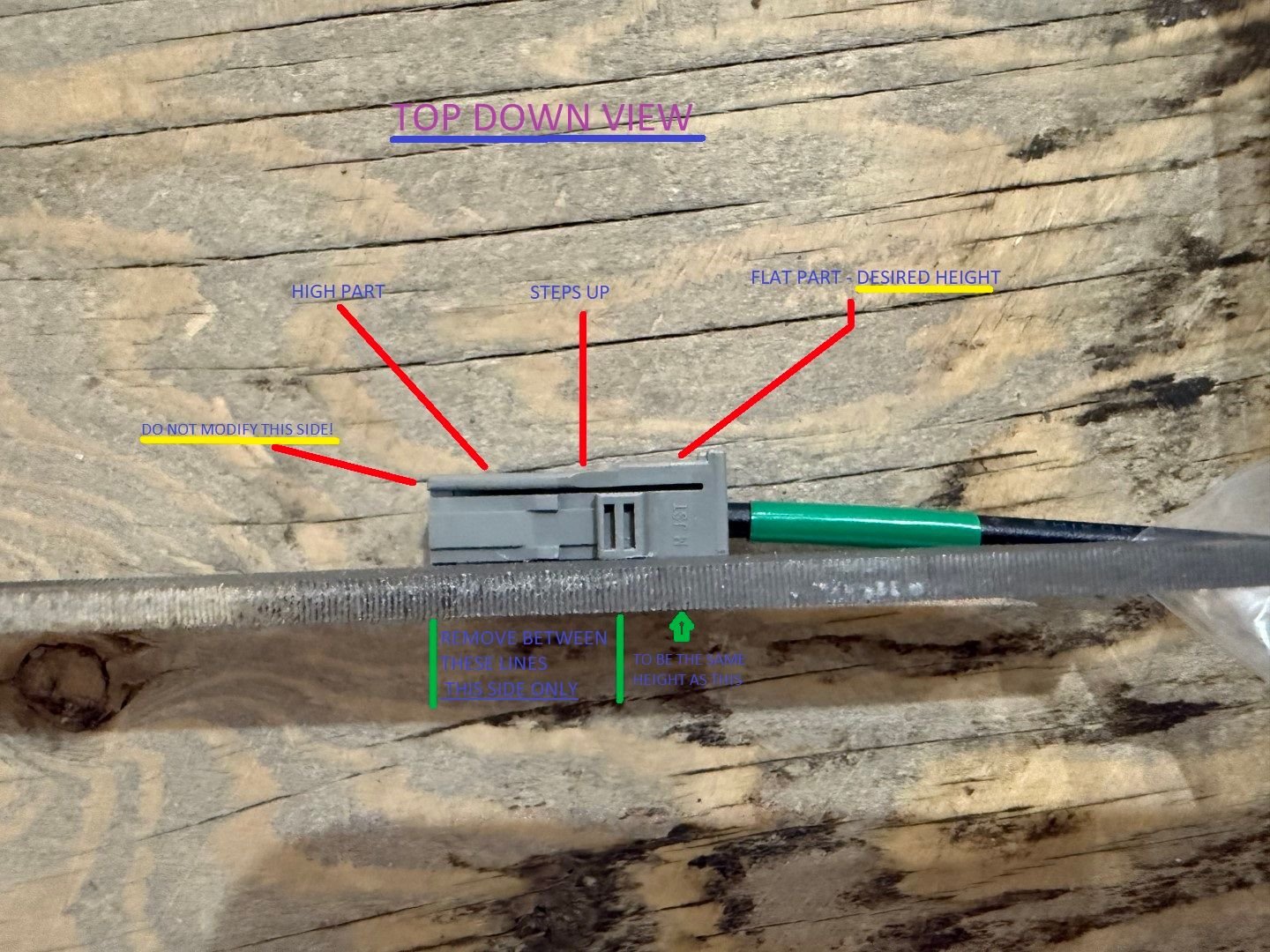

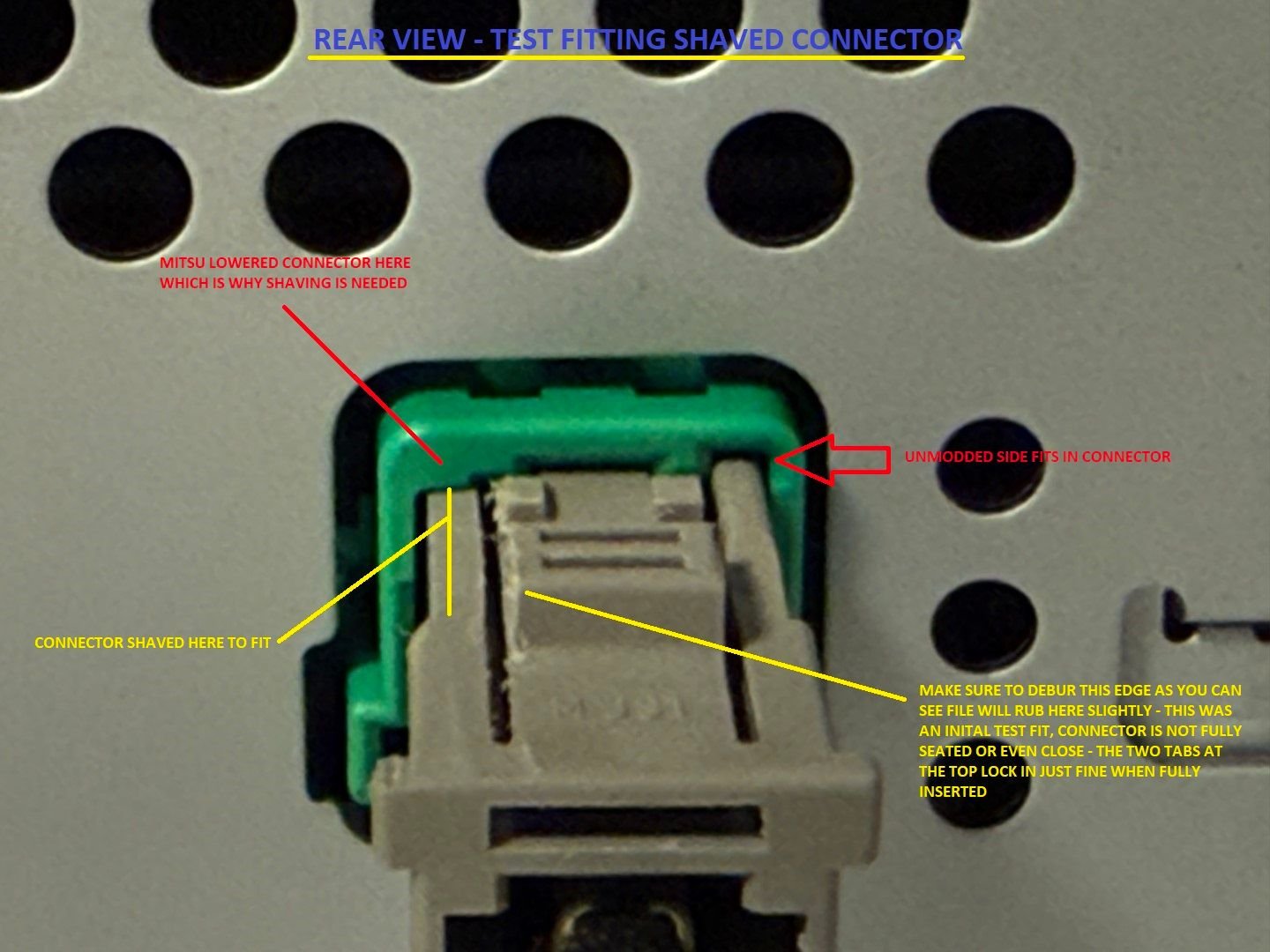

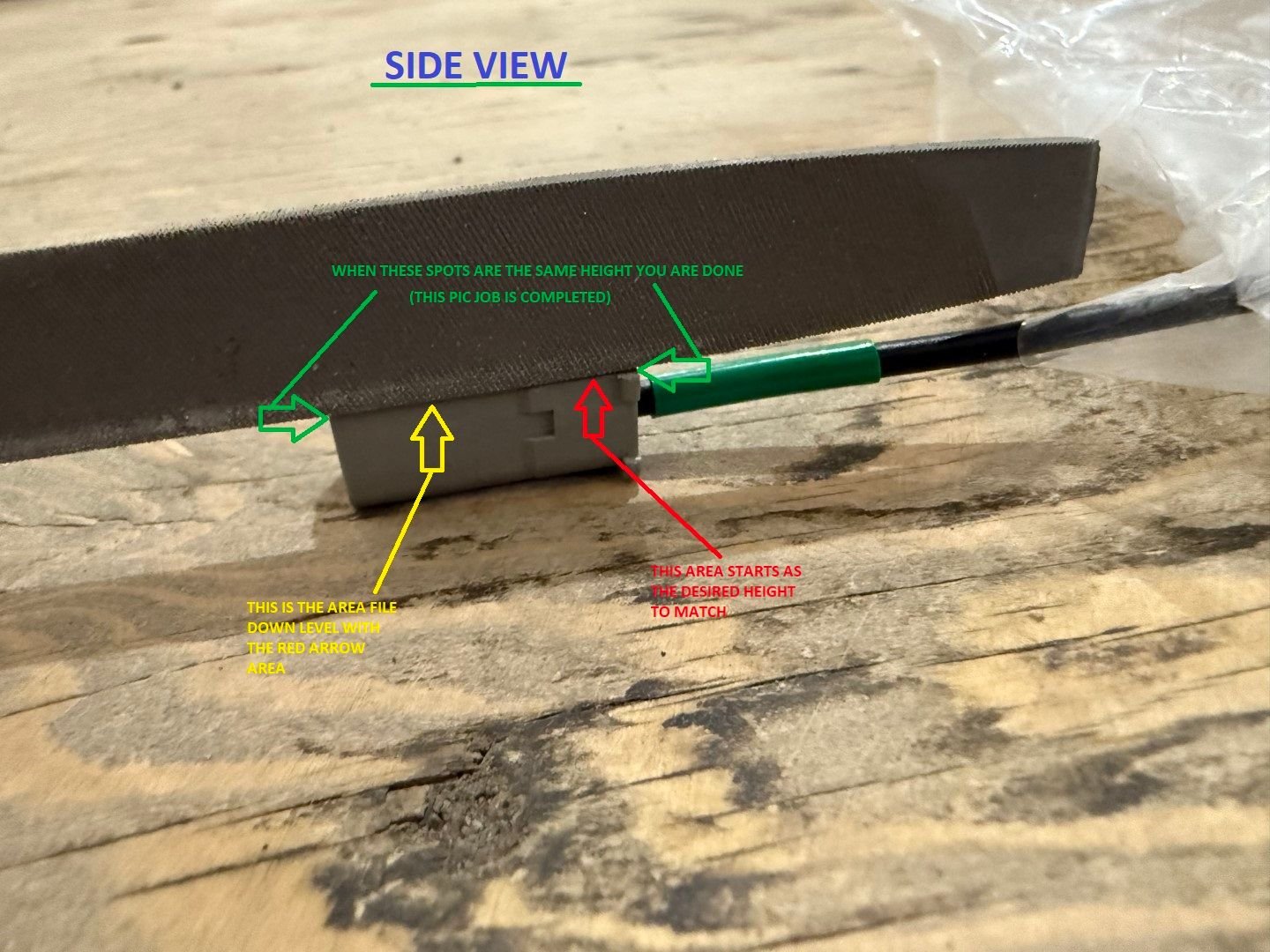

As you can see above you are removing a VERY small amount of height off one side of the plastic Take a bastard file and move left to right like above and you'll be done in no time I tagged it with green tape after so I knew it was done and can now be used in grey or green connectors Once you can see the side of the connector you filed is flat it is going to fit, but can't hurt to double check by partially inserting it before deburring it and blowing it out
What exactly does this accomplish Johnny? I so want this factory carplay in my 2011 usdm, but looks like I can't. idk.
Installation of a 2018-2019 SDA in a 2011 is not impossible, but wiring changes beyond the scope of my knowledge and this thread would be required. I know Russian's have done it and one of them was making/selling wiring adapter harnesses to do so. Not sure I can directly refer to other forums here but you should check out the Russian Mitsu forums as I remember seeing one of them had specific directions on how the adapt the wiring. It did not look easy but not super hard either. If you can find a used SDA on eBay from an auto wreckers with wiring still attached and cut off that will likely assist you, other plugs can probably be found on AliExpress. If I stumble on one of the threads how to make the wiring adapter I'll PM you it.

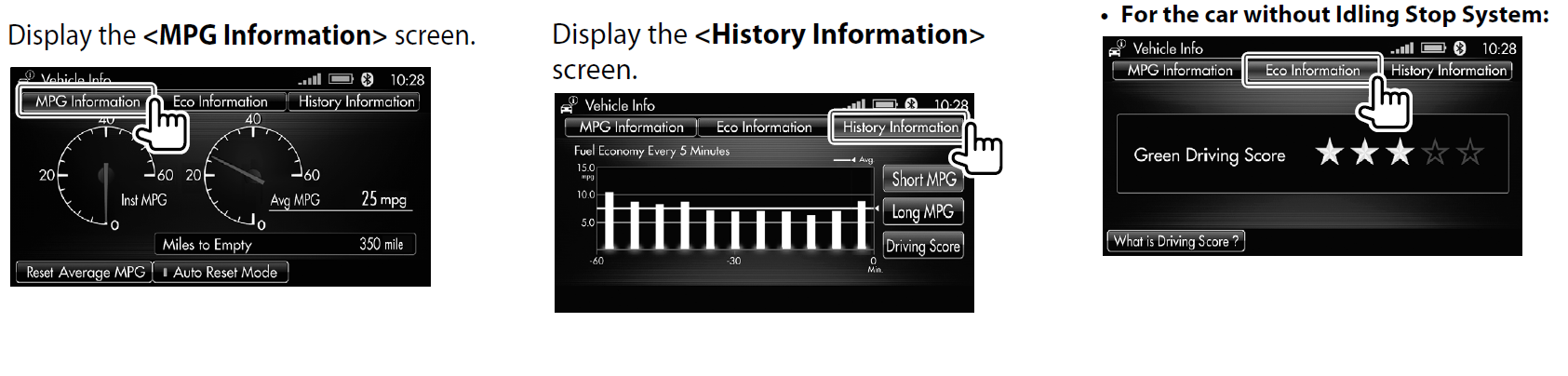

As for Kolyandex's canbus adapter it accomplishes adding back in the CANBOX functionality and ETACS options Mitsubishi removed from the MMCS in the 2014+ Lancer/Outlander Sport/RVR but remained in the Outlander. ETACS examples being: changing on your head unit how your windshield wipers behave or if you need to press unlock once or twice to unlock all 4 doors or if your horn chirps when you lock your car or not. CANBUS examples being your head unit can calculate your instant gas mileage just like your cluster can or your head unit can display when you change your fan settings. Mostly somewhat gimmicky things or things that can be done in other ways via the cluster (you try that convoluted method to change/disable it's service interval lol) or with a laptop and openport cable and ETACS software, but is much more convenient to have just built into the car on a touch screen. Example screen shots from SDA manual in spoiler.
Appreciate the follow up and additional information. I've learned a lot in the last few days since my original reply.
Regarding sound quality - totally agree bluetooth isnt ideal - I just thought it was worth noting given I am running bluetooth on both, I was still hearing a difference in audio quality. For clarity, I wasnt comparing bluetooth on new to hardwire on existing.
Some additional info for people thinking about doing this with a non-rf system
- the OEM Evo head unit has both bluetooth and satellite radio, but they arent built directly into the head unit, they run off standalone modules both located in passenger side behind and above glovebox
- As RuCas noted above, the Microphone wiring goes to the Hands Free Module (HFM) located above the glovebox, not the stock head unit. There are 3 wires (+ , - , shield) that need to move directly to the new head unit and a fourth ground (detect) needs to be added
- the mic wires plugs into the grey 16 pin connector on the new head unit
- Satellite radio antenna can be moved from the existing standalone SatRadio module, over to the new head unit.
- i removed the stock hands free module and satellite radio module which was nice clutter to get rid of. As mentioned these are built directly into new head unit.
Next up for me is to tackle moving the mic cables to the head unit. I know which cables need to go where, just waiting on the connector to be delivered so i can wire it up in a clean fashion.
For those wondering, this is the connector needed: https://www.aliexpress.com/item/1005...750a1802dOlt9D
Thanks again for the time and reply, all the info from people like you on forums is what enabled this in the first place! Cheers.
Hi, I’ve been following in this post for quite sometime now. Made an account just to reply to this post. Haha. I recently did this. I got the 005 head unit. Everything works except the mic and gps. I understand I need to depin 3 wires from the Bluetooth module transfer them to the 16 pin connector then onto the new head unit. Where do I get the 4th ground (detect) mic wire from?
Hi, I’ve been following in this post for quite sometime now. Made an account just to reply to this post. Haha. I recently did this. I got the 005 head unit. Everything works except the mic and gps. I understand I need to depin 3 wires from the Bluetooth module transfer them to the 16 pin connector then onto the new head unit. Where do I get the 4th ground (detect) mic wire from?
Does anyone know of a source for a male 28 pin connector to plug the harness that gets disconnected from the hands free module and contains the 3 mic wires? I'd like to make my own cable with the female 16 pin connector (16 pin DJ7165C-1.0-10/21) Scarab23 posted, which connects to the grey connector on the head unit to a 28 pin male connector from the car wiring harness. This way I won't have to just stick male pins into the harness connector or vampire clip into the factory wiring harness. I know DoctorBob on Mitsu Forum had found such a thing a few years ago but his Ali Express link is dead. I could unsolder one from a used HFM but that seems extreme.
Generally you can grab the mic wires on the harness where there is a jump connector installed, its like a blue plug. I unplugged that connector in my outlander sport and connected 8755A129 to it and to the radio. This cable is part of the OEM Navv install kit for evos and the same process for connecting it is described here. That's how I originally found the cable part number lead:
This is the looped signal plug/harness that you need to remove. It basically sends the mic signals to the handfree from here. Instead you use that harness above to tap the mic signals and send to the radio:
I'm trying to add a reverse camera on an ASX from 2015 Invite . Got a head unit with display 8701A750 and an original backup cam 8781A057. In the cockpit there is wiring prepared with a grey cam connector but in the back at the tailgate I can't find the connector nor wiring for the cam. Where is the wiring from the cockpit lead to? Not to the back I suppose because I checked the wires in the back but they lead to other components like lamps, lock and wiper motor. No connector to connect the OEM cam. Is there an official mitsu camera installation guide avaiable for the 2015 ASX? Can I pick up the cam wiring from another place then on the back of the head unit?
After changing the original radio head unit to the one with the display I got an airbag service warning on the display. How to get rid of that?
Anyone know where one can get the Navigation Kit: MZ360438EX?
It looks OOS everywhere. There is a Navigation Kit for the 2016-17 Lancer but not sure if this will work for a 2014/15 non-NAV EVO
I went ahead and bought the kit for a 2016-2017 lancer which is still currently in stock (as of 2/2026) - MZ360473EX and this included the correct wire harness and GPS antenna.
Not sure if anyone can help me on this one. I have the 005 unit on a 2015 GSR non-nav but RF and everything works - except for the backup camera (aftermarket).
I can enter the diagnostic menu and change the vehicle type (to outlander for instance) - and this will allow me to see the camera in the diagnostic menu but then the reverse sensing no longer works. If I change it to a outlander sport the reserve sensing works but the video no longer gets displayed.
Essentially I can have sensing OR video but not both at the same time. Not sure if I got a updated or non-updated version of the 005 which makes it so that it has this issue. Any help here would be great!
Not sure if anyone can help me on this one. I have the 005 unit on a 2015 GSR non-nav but RF and everything works - except for the backup camera (aftermarket).
I can enter the diagnostic menu and change the vehicle type (to outlander for instance) - and this will allow me to see the camera in the diagnostic menu but then the reverse sensing no longer works. If I change it to a outlander sport the reserve sensing works but the video no longer gets displayed.
Essentially I can have sensing OR video but not both at the same time. Not sure if I got a updated or non-updated version of the 005 which makes it so that it has this issue. Any help here would be great!

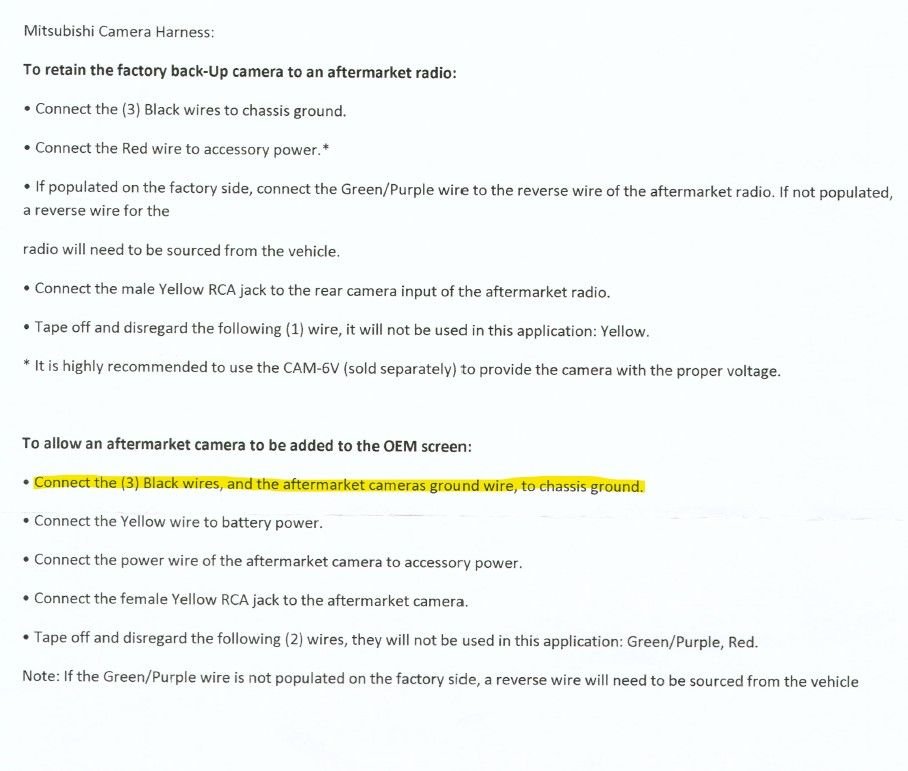

I figured this out. Basically you gotta follow these directions when using the mitsubishi wiring harness adapter for a backup camera. All three black wires need to be connected together. This allows the loop to be closed and for the vehicle to think there is a backup camera installed.

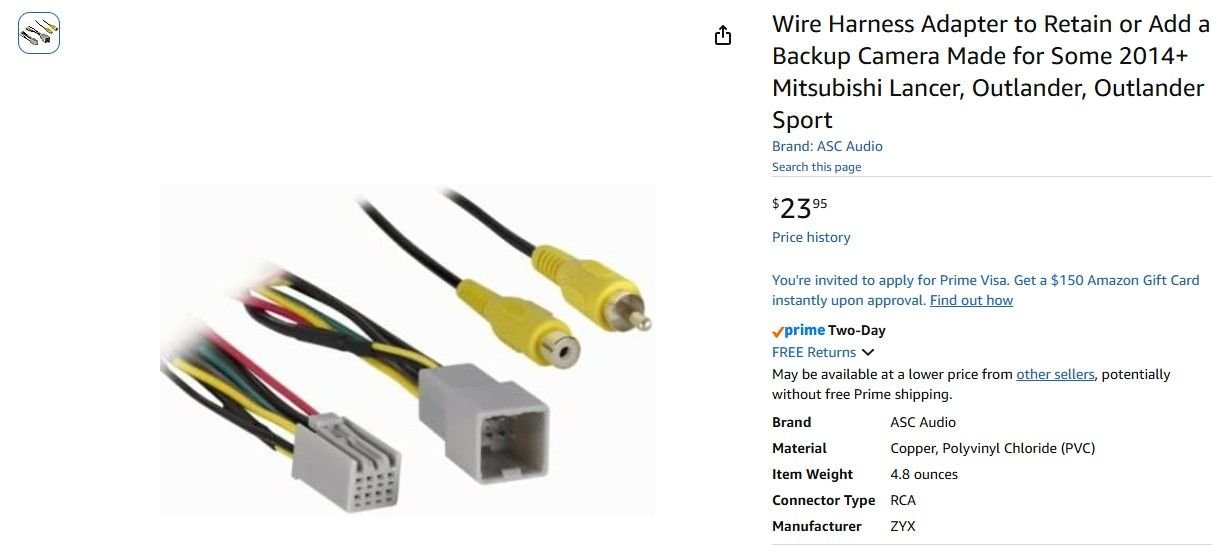

This is the harness adapter I bought - you must plug it into your cars partial backup camera plug and then connect the three black wires and then plug it into the back of your outlander unit.
I went ahead and bought the kit for a 2016-2017 lancer which is still currently in stock (as of 2/2026) - MZ360473EX and this included the correct wire harness and GPS antenna.
Do you have photos, and or part numbers of the components, in the kit? I want to verify if it comes with wire harness 8755A129
