05 lancer turbo kit fuel questions
hey guys i got a kid wanting me to throw a turbo kit he has asembled on his 05 lancer es, just need to know if this has a fuel return so i cna use an fmu. i havnt seen the car yet i just know what he has for parts
Trending Topics
Originally Posted by Mitsiman
You cannot fit a FPR unit to the vheicles which are returnless systems. Only the earlier models which did run a stock FPR setup. Using a FPR stock type 1 : 1 ratio unit is of no real value - a rising rate FPR unit under vacuem is what you would be after.

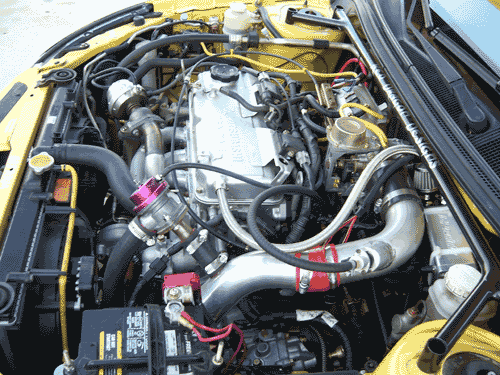

We instead setup on our turbo cars a surge tank system with a larger pump to avoid problems with the fuel pump and returnless system on the lancers - this way we used the stock pump to fill up the surge tank, setup a return line system and then fed it back to the petrol tank. Worked a treat.
You cannot fit a FPR unit to the vheicles which are returnless systems. Only the earlier models which did run a stock FPR setup. Using a FPR stock type 1 : 1 ratio unit is of no real value - a rising rate FPR unit under vacuem is what you would be after.
We instead setup on our turbo cars a surge tank system with a larger pump to avoid problems with the fuel pump and returnless system on the lancers - this way we used the stock pump to fill up the surge tank, setup a return line system and then fed it back to the petrol tank. Worked a treat.
And if neither works i guess well try this Aeromotive Digital FMU suposedly for returnless systems.
02-03 fuel rail wont fit 04s, the injectors are spaced differently, if you wanted to go with an 03 fuel rail im pretty sure you would have to get their intake manifold too.
As for the conversion i cant give you any more info because i havent done it yet, and if somebody has done it , they havent posted on the forums
, i will be doing it within this next week, i will try to take some pictures and all that.
As for the conversion i cant give you any more info because i havent done it yet, and if somebody has done it , they havent posted on the forums
, i will be doing it within this next week, i will try to take some pictures and all that.
well we were looking at the fuel rail last night, and it is way too thin at the end to tap for a fitting, which means a new fuel rail needs to be made, or find one that fits it
If you only plan on runing 7psi you could talk to RRM about getting the fuel setup they use for their 04 turbo kit, but it wont be cheap, they use a 5th injector in the intake pipe with their piggy back
If you only plan on runing 7psi you could talk to RRM about getting the fuel setup they use for their 04 turbo kit, but it wont be cheap, they use a 5th injector in the intake pipe with their piggy back
Evolving Member
Joined: Jan 2005
Posts: 256
Likes: 0
From: Orlando, FL
Here, go to this website below, its vortechs. I worked on a bunch of dodge trucks and jeeps and the earlier models had a non return fuel system similiar to the 04+ lancer. You can do the same thing to the lancer as we did to trucks when boosting. This is the manual of the full install of the kit on a jeep but only pay attention to page 16 and 18. There are diagrams there that show you two ways you can hook up an FMU to an non return fuel system. You just have to get a aux pump to make it work.
http://www.vortechsuperchargers.com/pdf/manuals/4CJ218im.pdf
http://www.vortechsuperchargers.com/pdf/manuals/4CJ218im.pdf
