Alarm Install Wiring

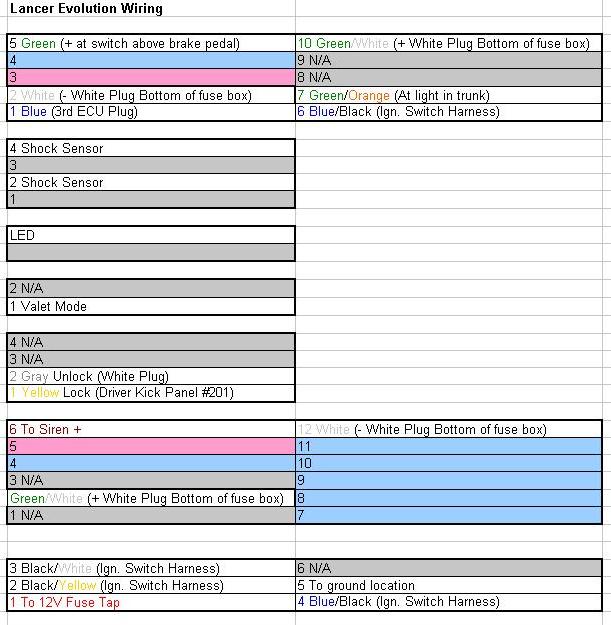

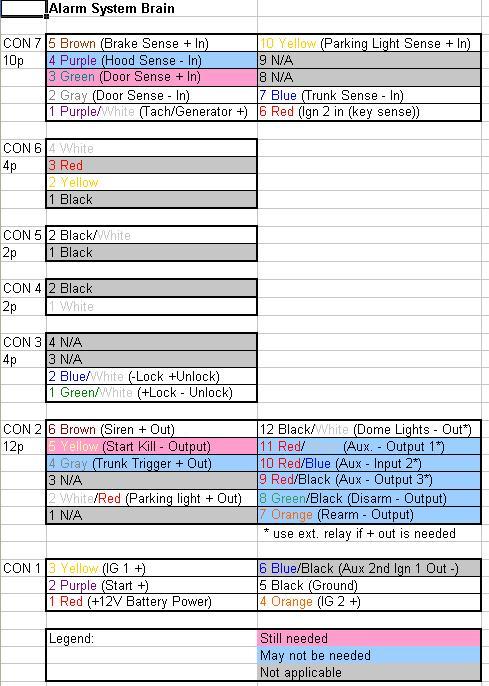

I'm going to be doing an alarm install on my Evo, and am wondering about some of the wiring. I have devised the following guide, and plan on doing a How-To with photos. If anyone could help out on the remaining wiring locations I'd appreciate it. The first image is from the Alarm brain, and the second image is the corresponding wiring locations on the Evo. I'm still needed the items highlighed in pink, and may need the items highlighted in blue.

Thanks

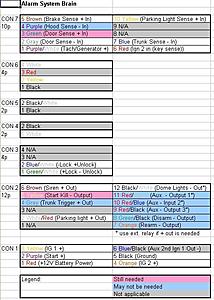

Attached Thumbnails Alarm Install Wiring-brain.jpg
Reply
Old Jul 29, 2003 | 11:33 AM
  #2
ExoByte's Avatar
Thread Starter
Newbie
iTrader: (1)

Joined: Jul 2003
Posts: 90
Likes: 0
From: Dallas, TX
Con't

Con't
Attached Thumbnails Alarm Install Wiring-evo.jpg
