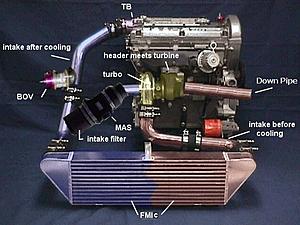

I don't how many of you all out there get a little confused when you look at pictures of peoples engine bays after they install their turbos. I know i can be confused easily, cuz there is not ONE right way of doing it, so you're always looking at something different. well with a little help from Paul i have put together a simple diagram to show the basic layout of a turbo. I know it helped me out so hopefully it will also help others too.



Hey thats very informative. Your da **** ez!



Nice diagram. Very simple.



Great diagam! thanks for the information.



forgot the waste gate and instead fo calling it "to rest of piping" call it a down pipe



post some pics of your car liquid lancer



the waste gate is internal, and the down pipe isnt apart of the turbo layout, its apart of the exhaust, so i chose not to label it. thanks for the comments. glad i could help.



Hey liquid? Do you have pictures on here of your Lancer. Just wondering cause you listed every part rrm makes. I figure if you got no pictures then maybe your talking out your ***....Cause if I had all that done i would be showing people, not talking about it...



i'm with speedyst9 . . . .



Okay, it looks pretty nice.. Just 1 thing though...
FMIC.. not FMI

FMIC...


-M



Look at the picture again. It has an external wastegate. Also liquid is right, it's not "the rest of the piping" it's the "down pipe". The external wastegate is usually attached to the exhaust manifold somewhere and the dump tube is either vented back into the down pipe (exhuast) or into the atmosphere. Mine is vented into atmosphere and makes a phat *** noise.



I agree with the rest of the guys. Show some pics Liquid!!!!!



He has pics in the car registry (spelled right )
I don't know if it shows exactly all the parts listed, didn't look that hard but there are pics!
