Hi everyone. My name is Stanislav.
In this post I will describe the history of improvements to my car.
The car was purchased in 2013. Since 2014 I have been actively engaged in tuning my car.




Engine specs
* 4g64 block CR is 8.7
* 100mm stock crankshaft
* 150mm Manley Forged connecting rods

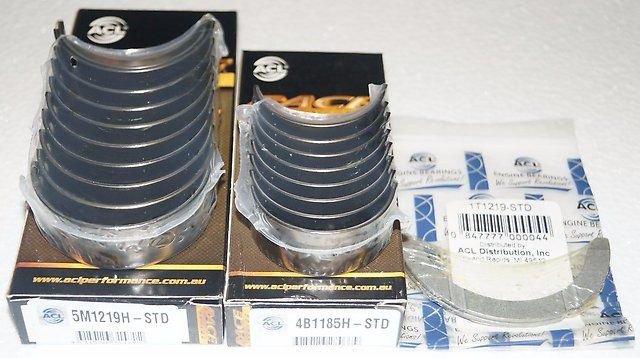

* ACL bearings
* ARP head studs + ARP block bottom studs
* Eliminated balance shafts

Evo 9 Mivec head
* 272 Fp4r cams
* Tomei cam gears
* Manley valves

Electronics
Modified stock ECU

Fuel and ignition system
* ID1000 fuel injectors
* Walbro 400lph fuel pump (with rewiring)
* AEM fuel pressure regulator
* HKS fuel rail
* AN fuel hose

* Ngk Racing 8 spark plugs

Cooling system
70mm custom aluminum radiator
Samco silicon radiator hoses
71C thermostat
19rows Trust oil cooler
19rows Trust AT oil cooler

Intake system
* Modified intake manifold
* Mazda RX-8 throttle body 80mm
* AMS Intercooler
* Custom intercooler piping
* Kinugawa td05-20g
* Tial BOV
* Oil catch tank

Exhaust system
* Doc race manifold
* Full 3” custom exhaust + adjustable valves

Drivetrain
* 2200 RPM torque converter
* Evo front LSD
* Evo rear LSD
* custom AT gearbox

Brakes
* Evo X 4-pot 350mm front brakes
* Evo 9 rear brakes

Etc

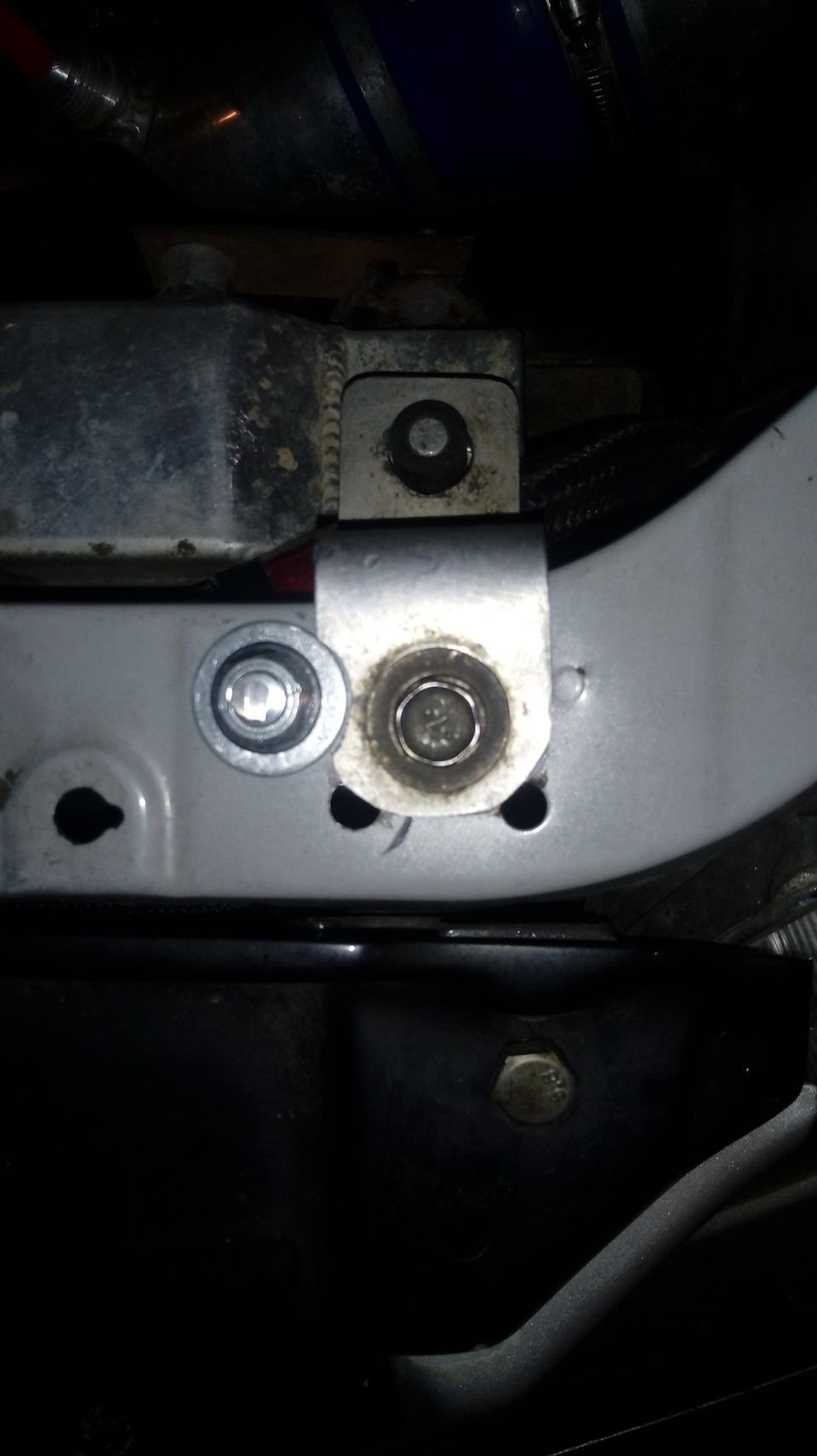

* Carbing front and rear strut bar



History

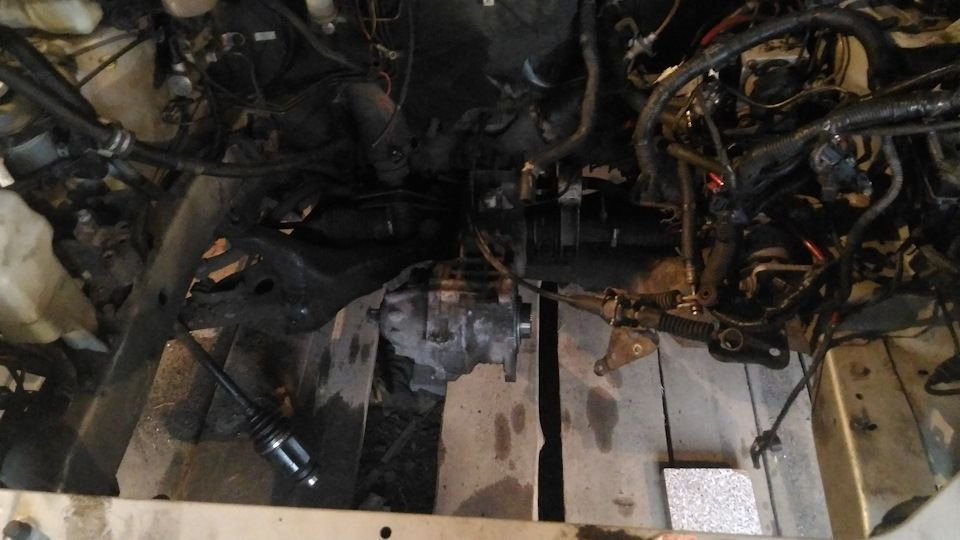

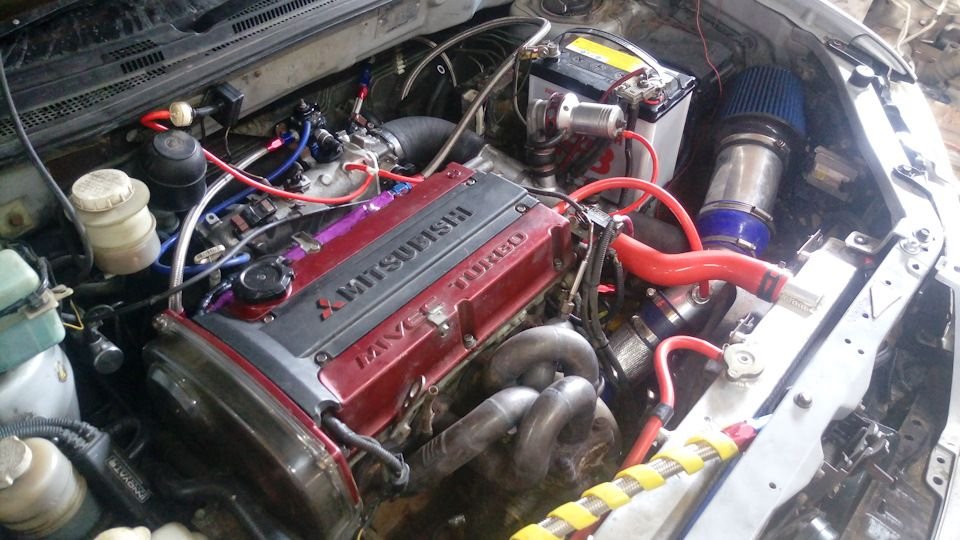

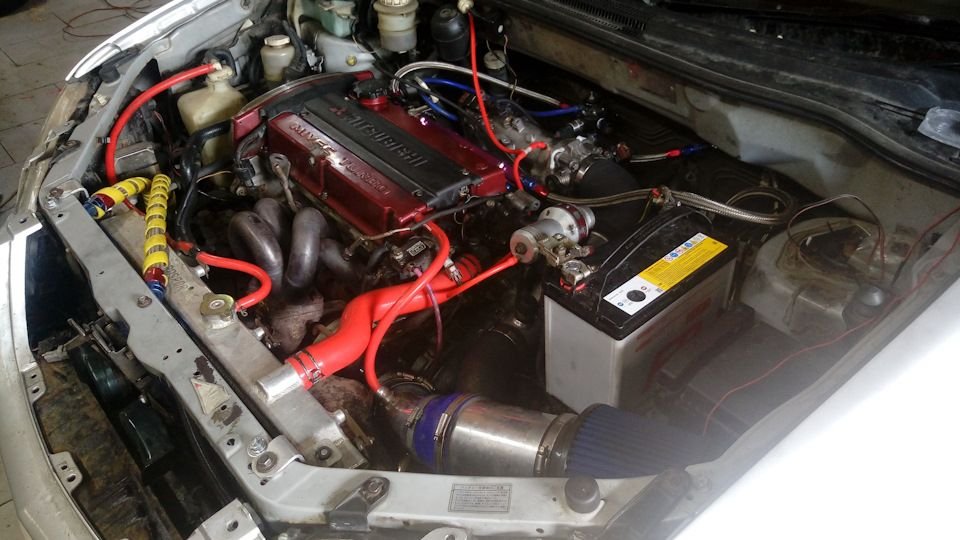

Initially, the car was with 2.0 4g63t + Evo manual transmission + garrett gtx3071.

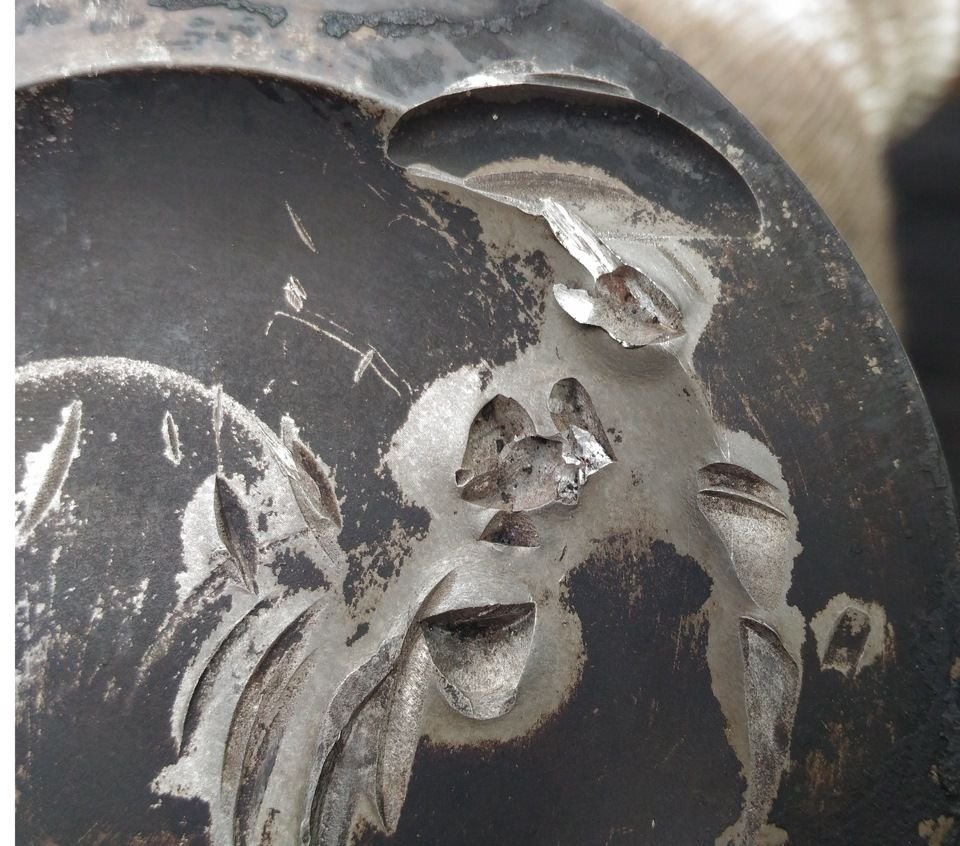

But there was one unpleasant incident. And I thought about changing the config









A 4g64 was purchased to build 2.4 liters

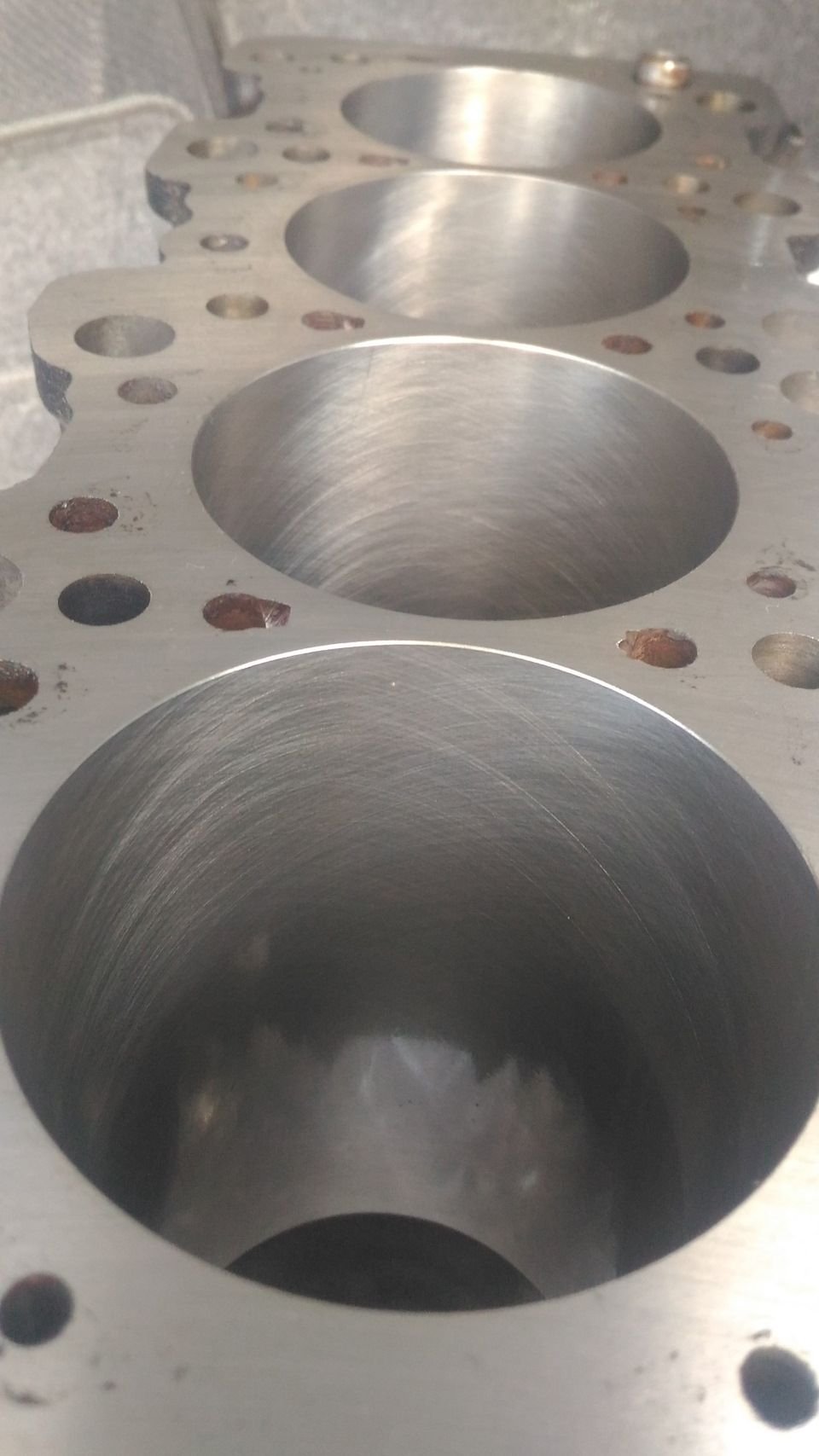

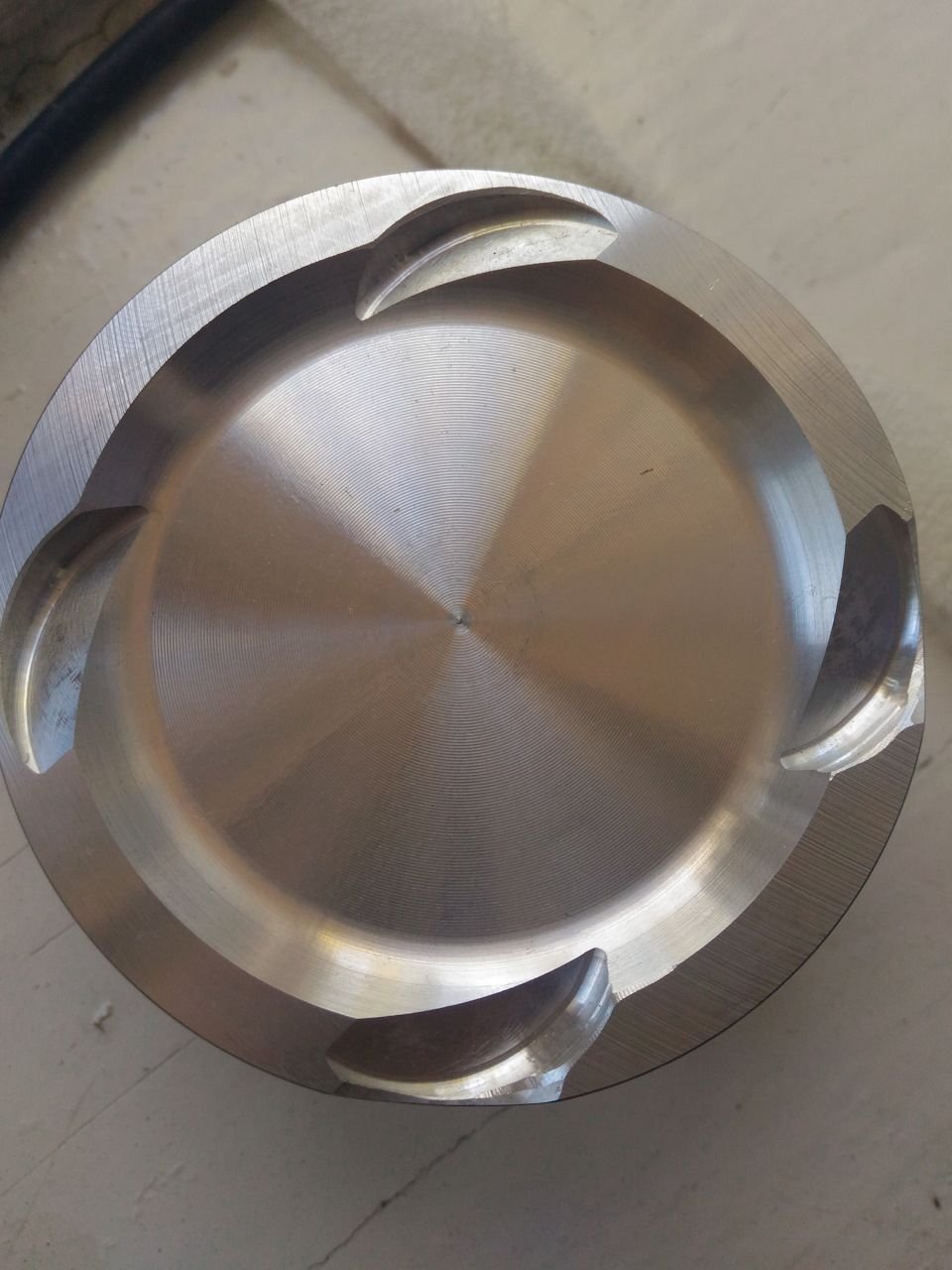

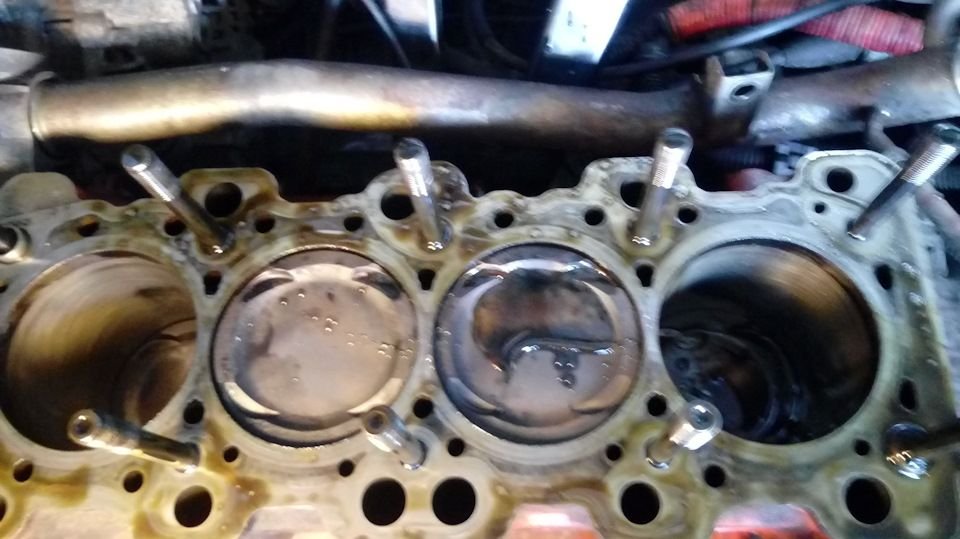

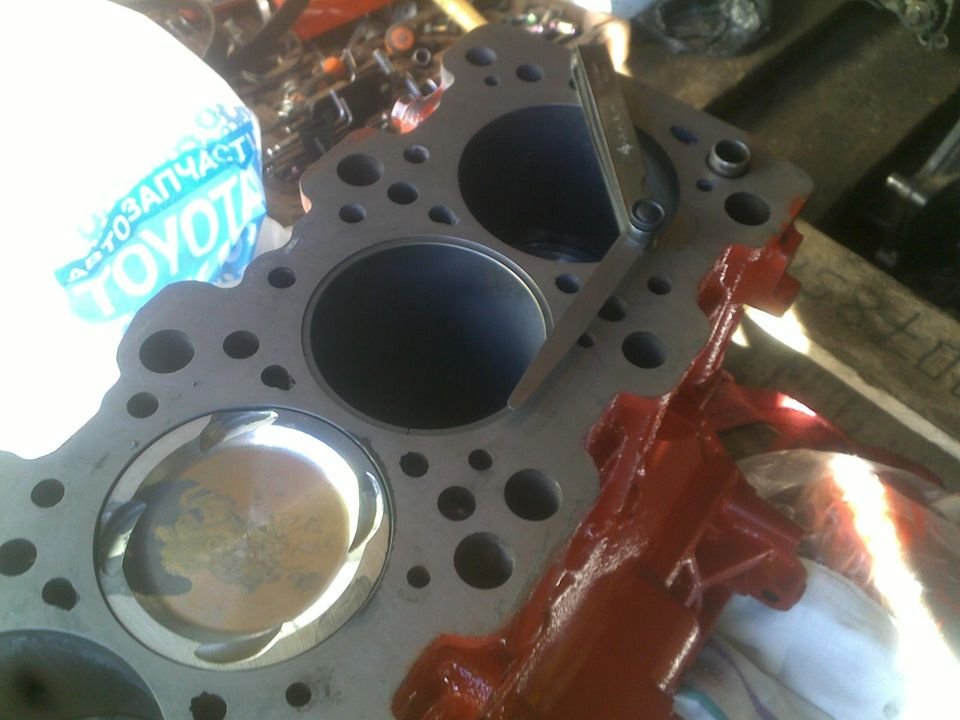

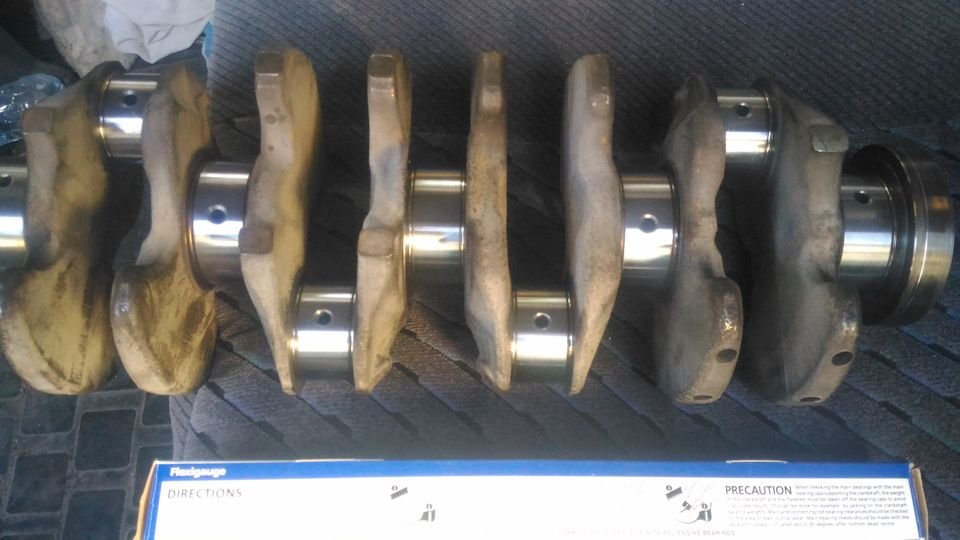

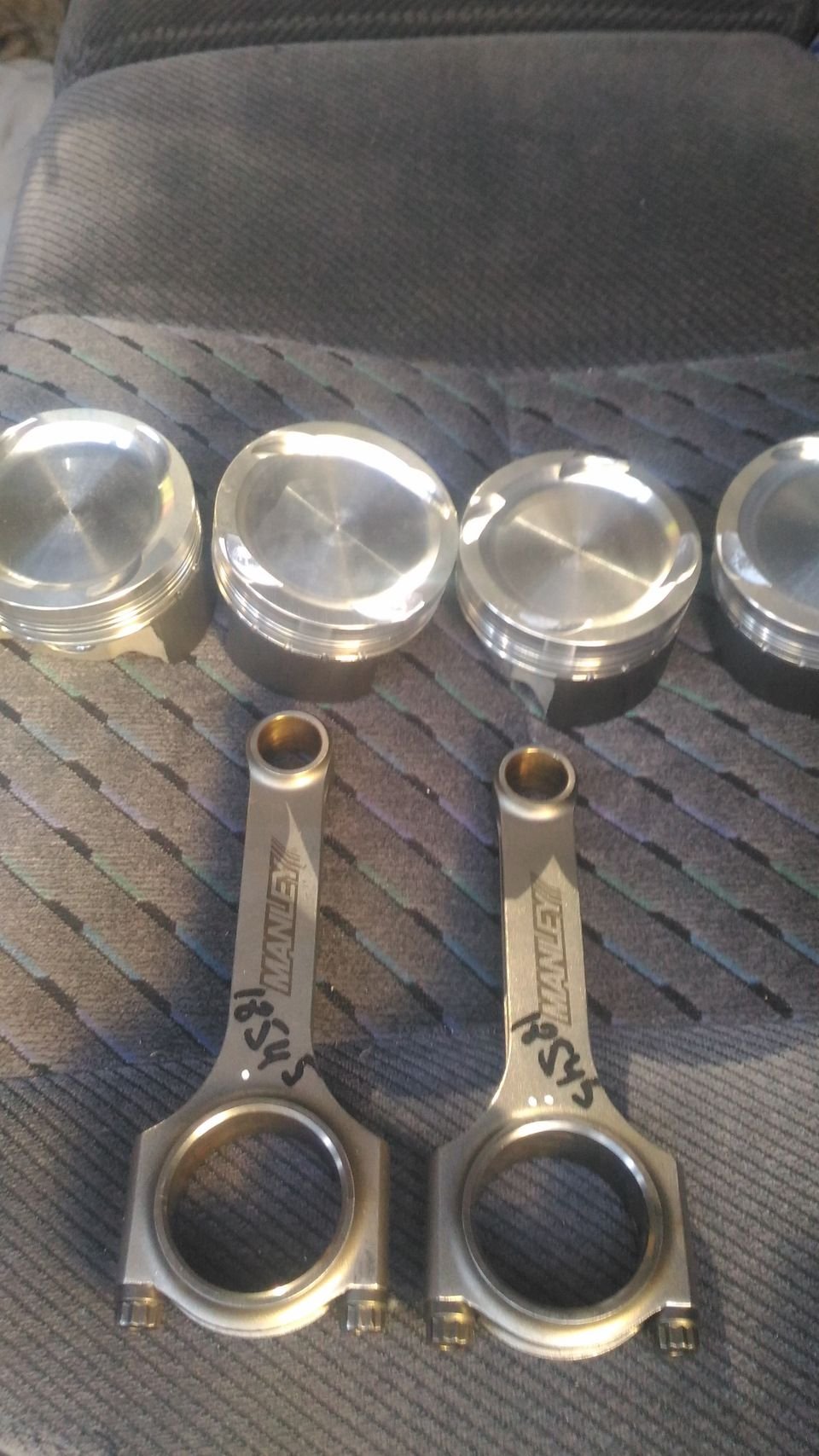

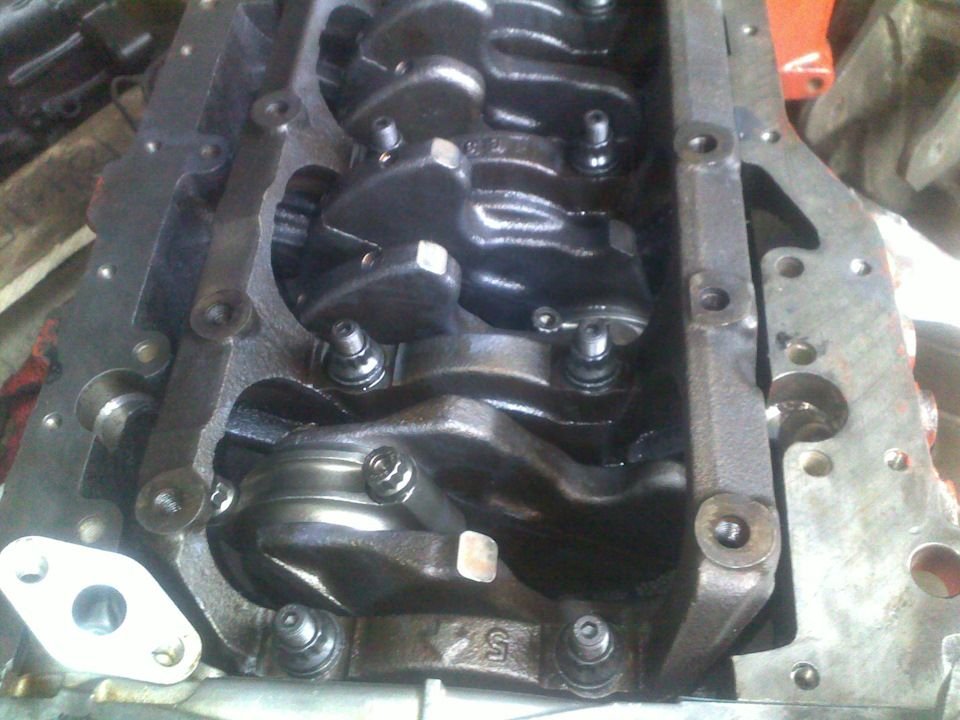

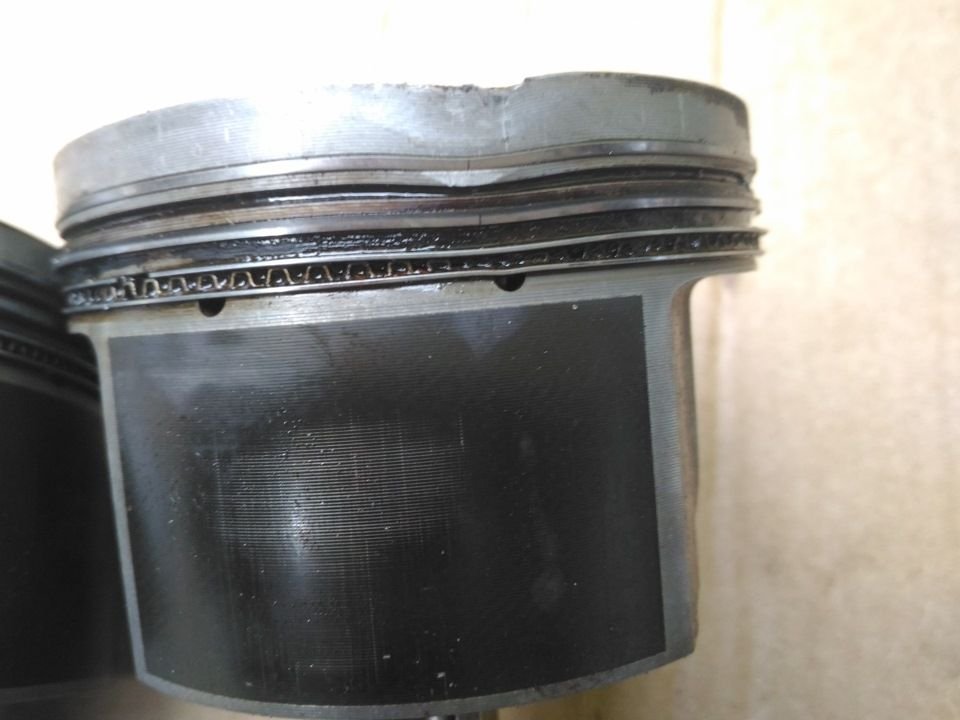

Next, the process of preparing for the engine assembly. Building custom pistons. Purchase of parts, boring..

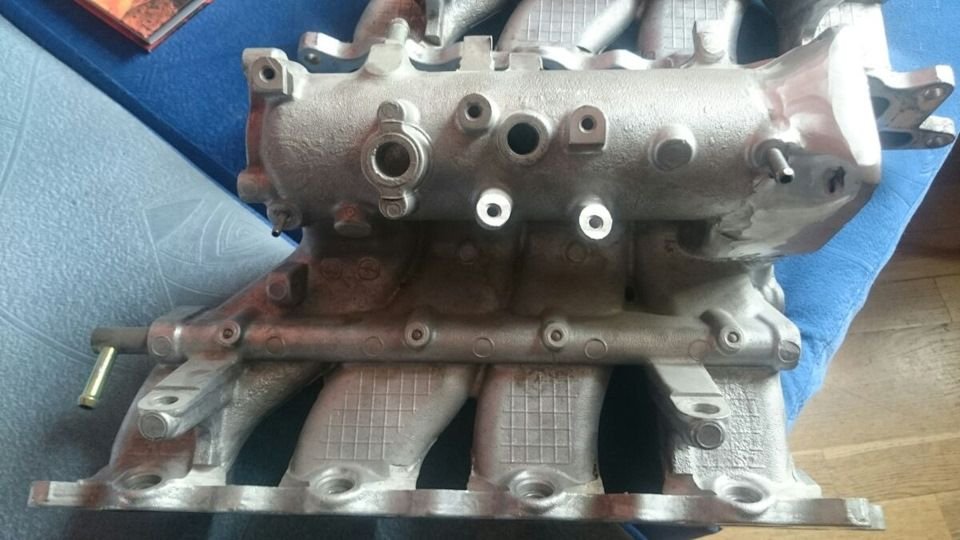

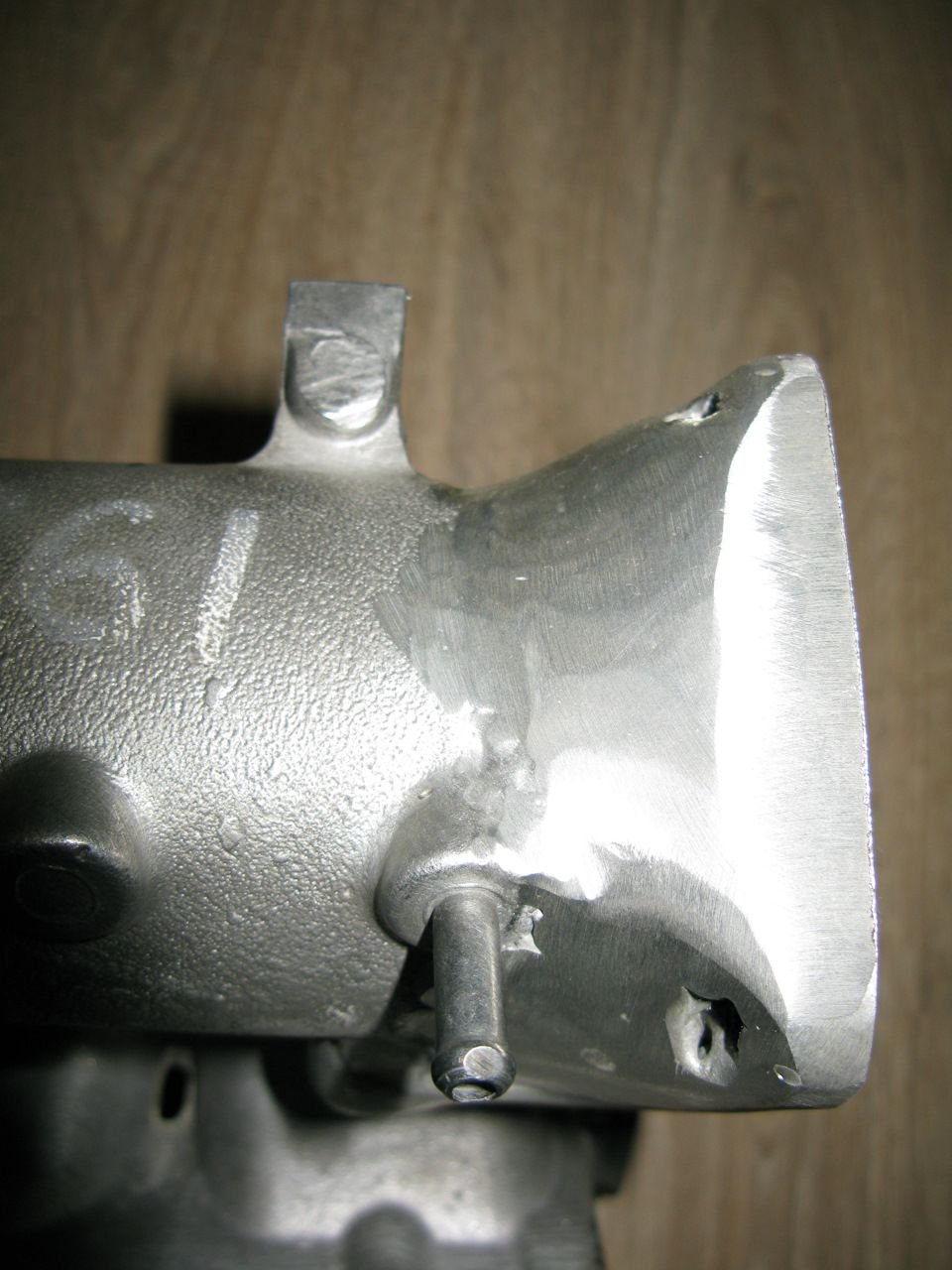

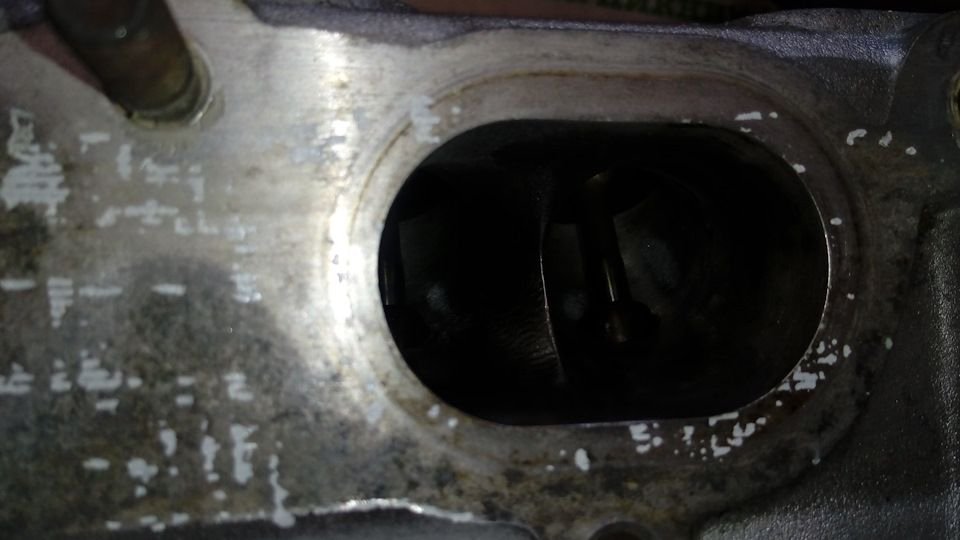

modifying the manifold flange for an increased throttle body

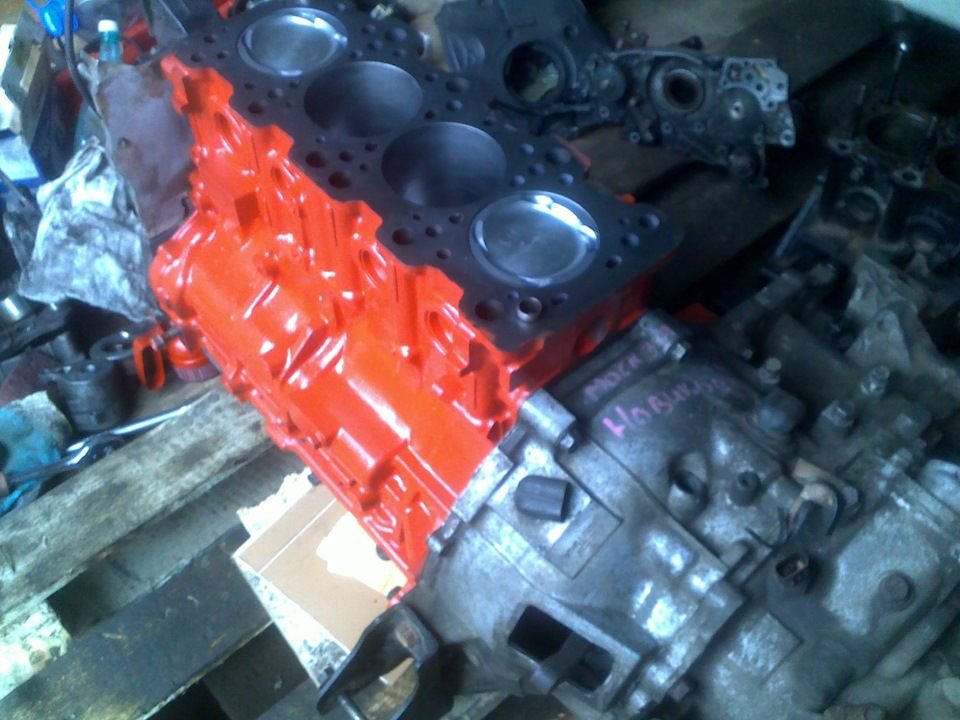

ready to install



After assembling the engine, running-in in gentle mode

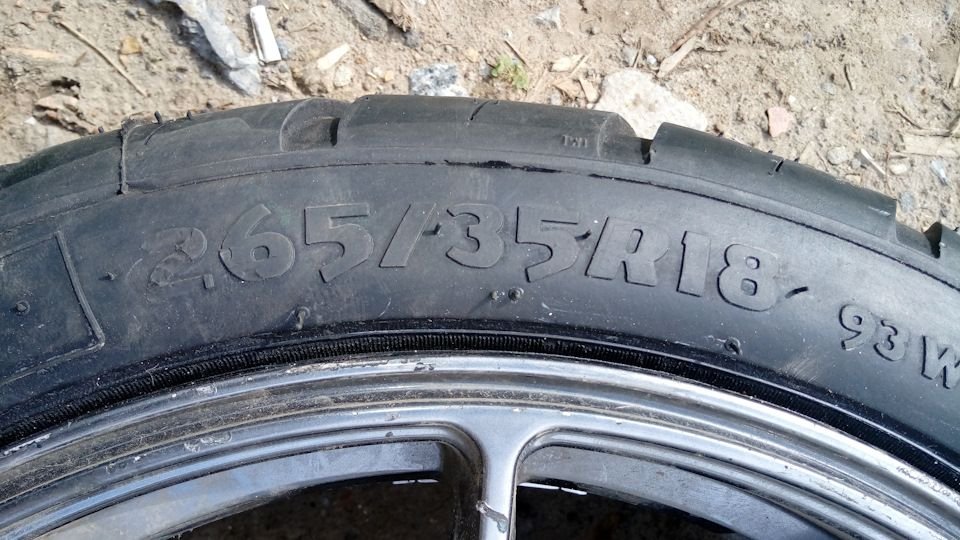

my new tires

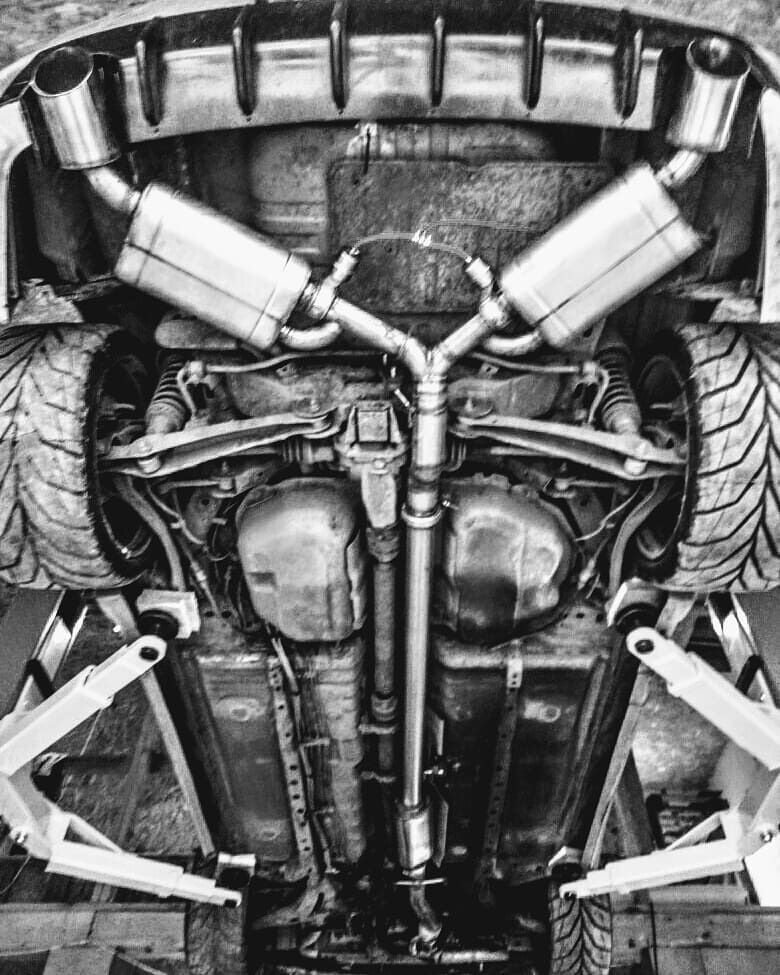

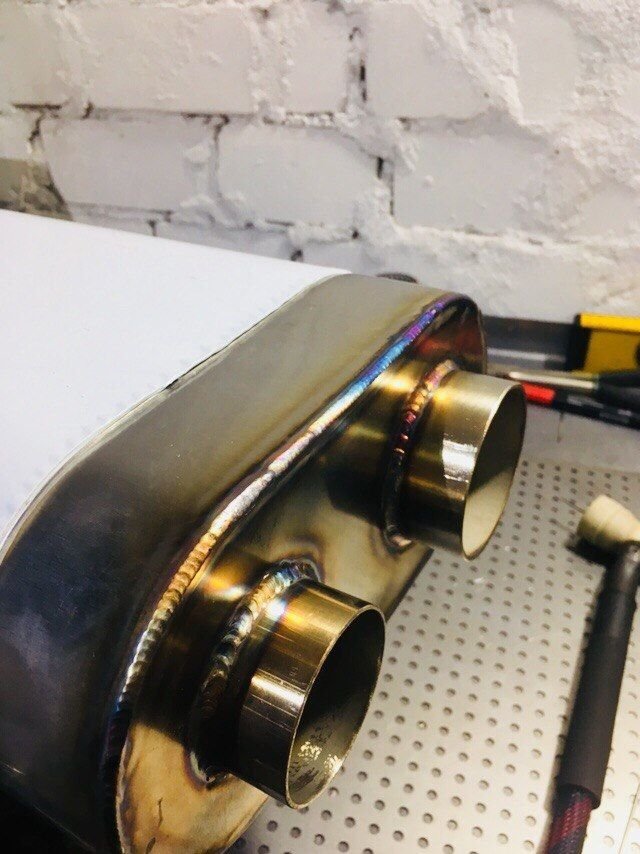

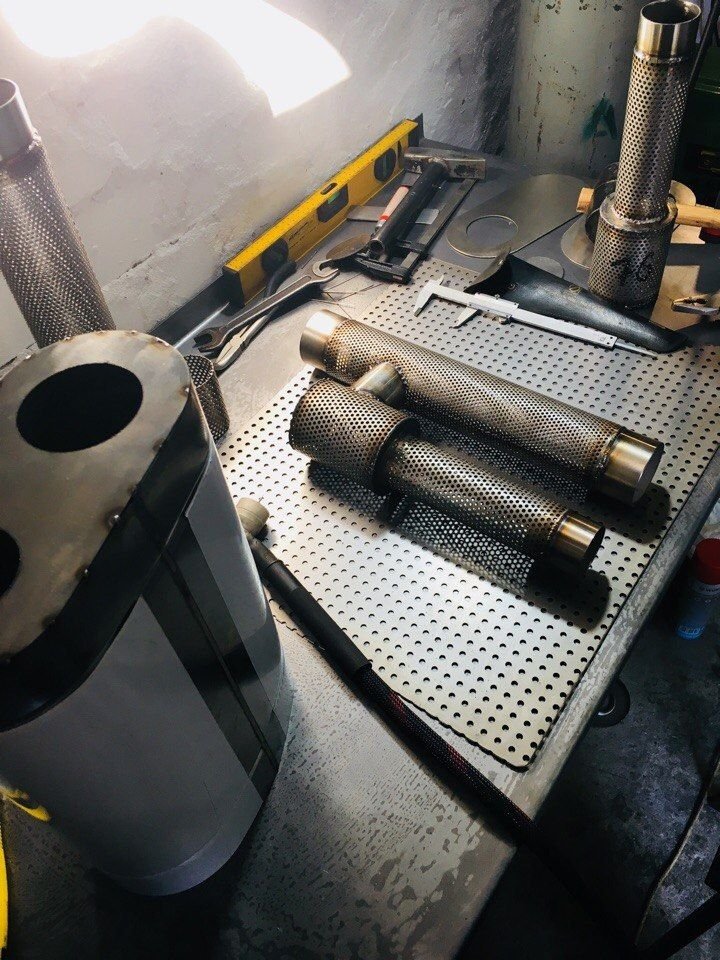

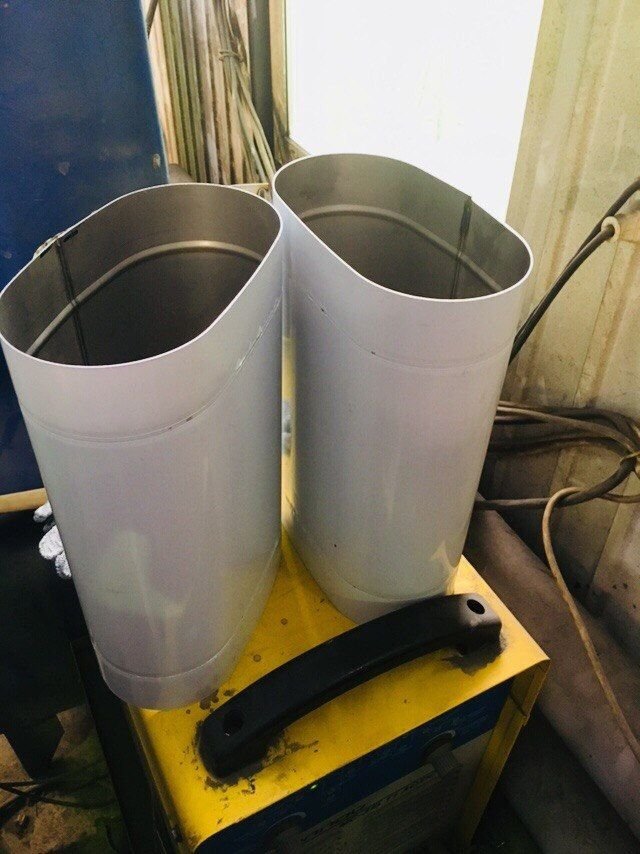

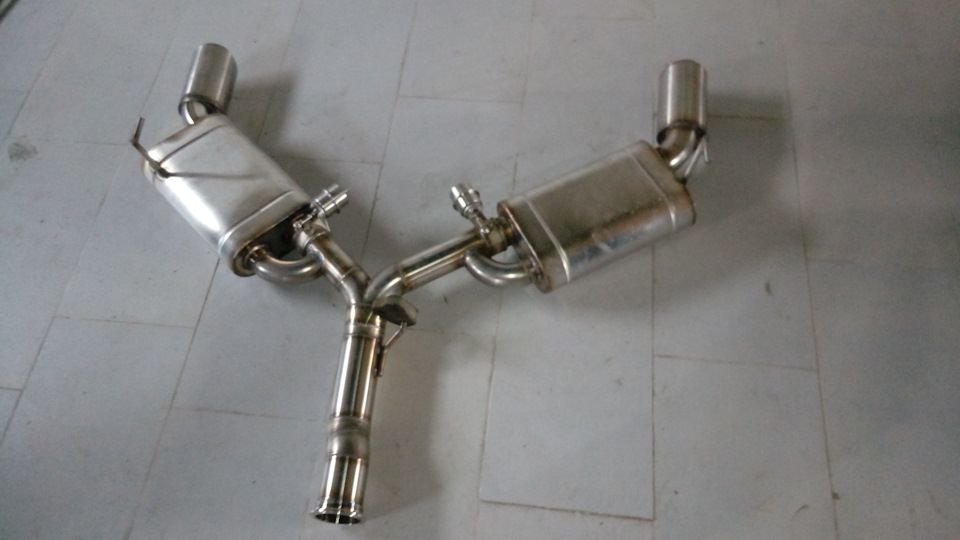

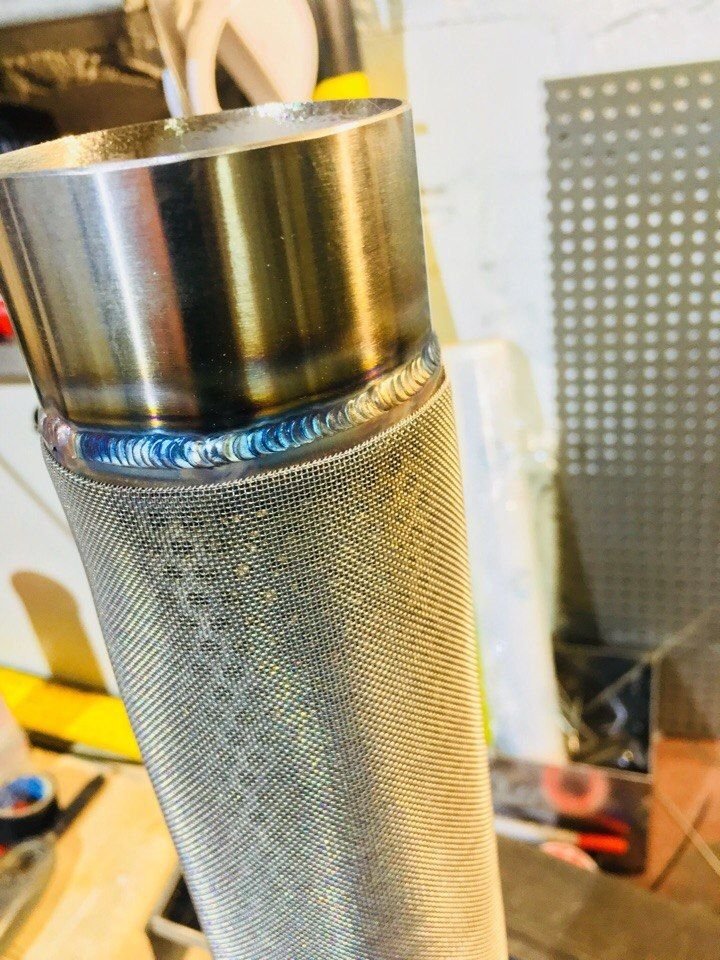

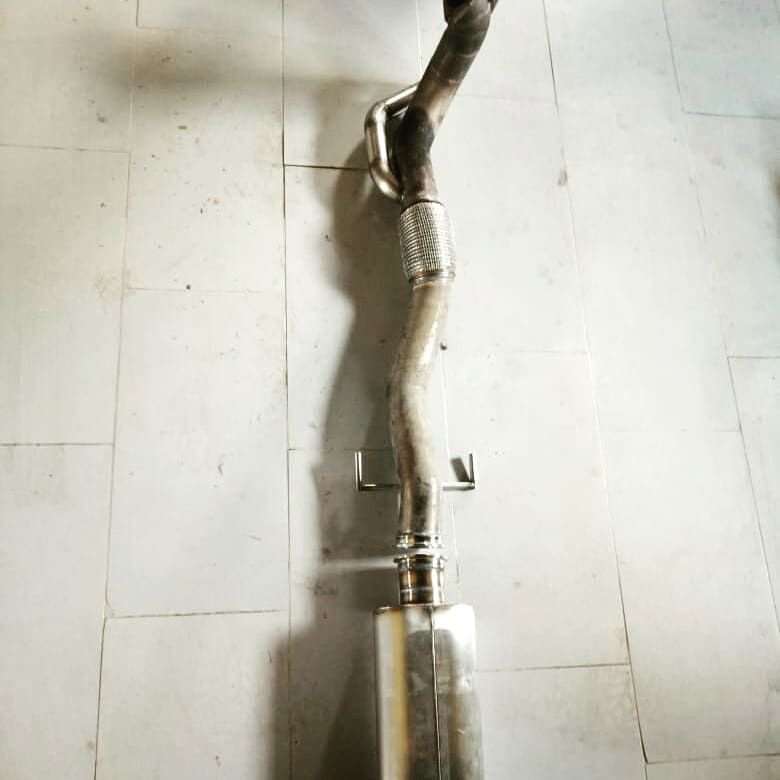

prepare to new exhaust






Check

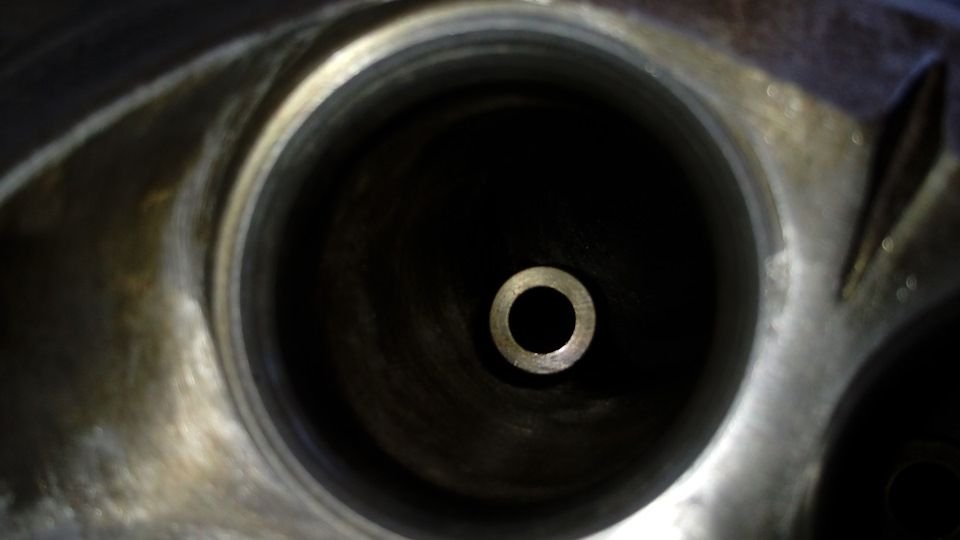

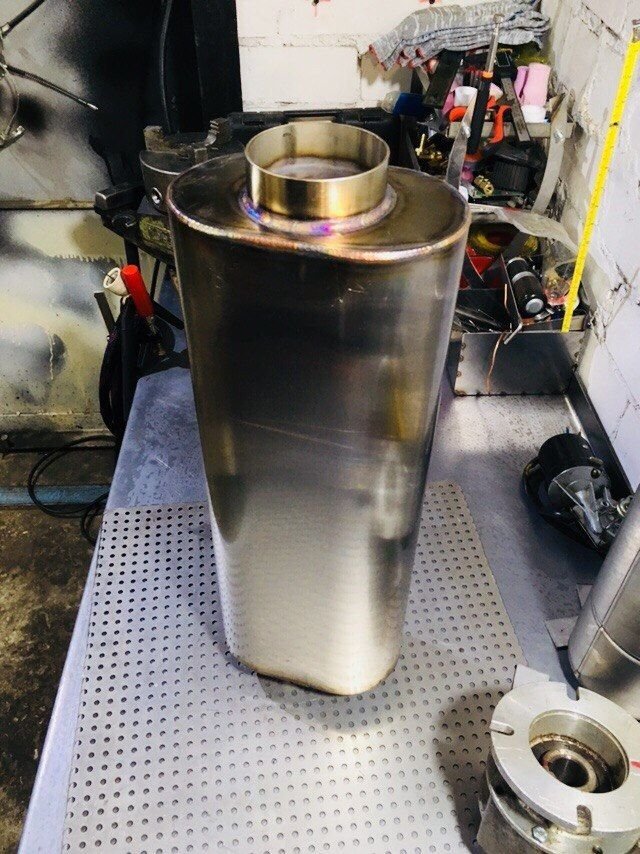

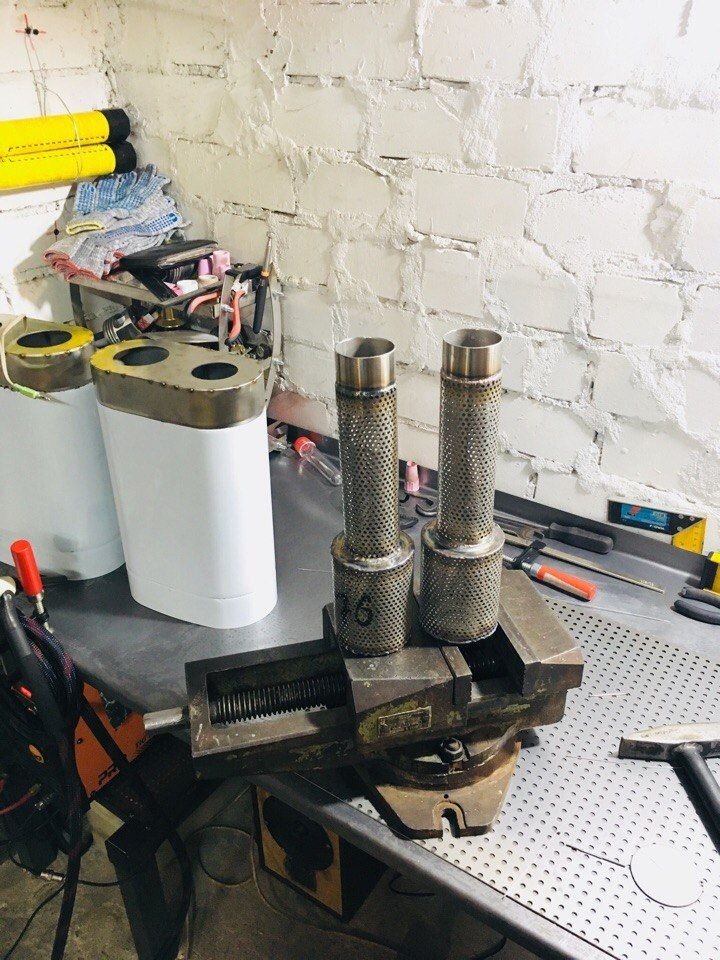

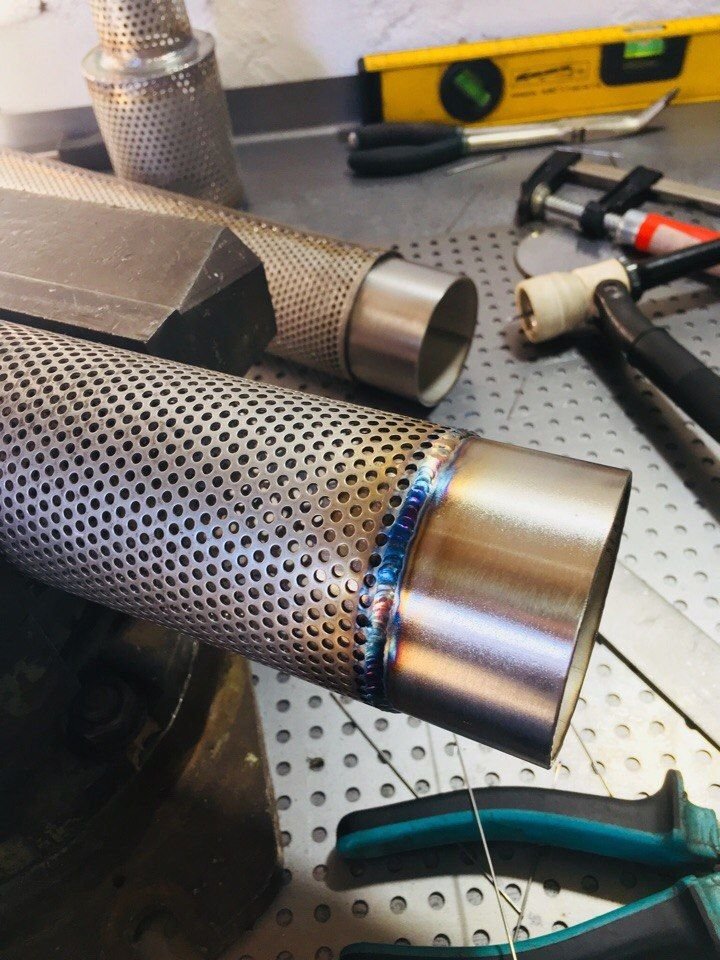

Exhaust valves



ready to install

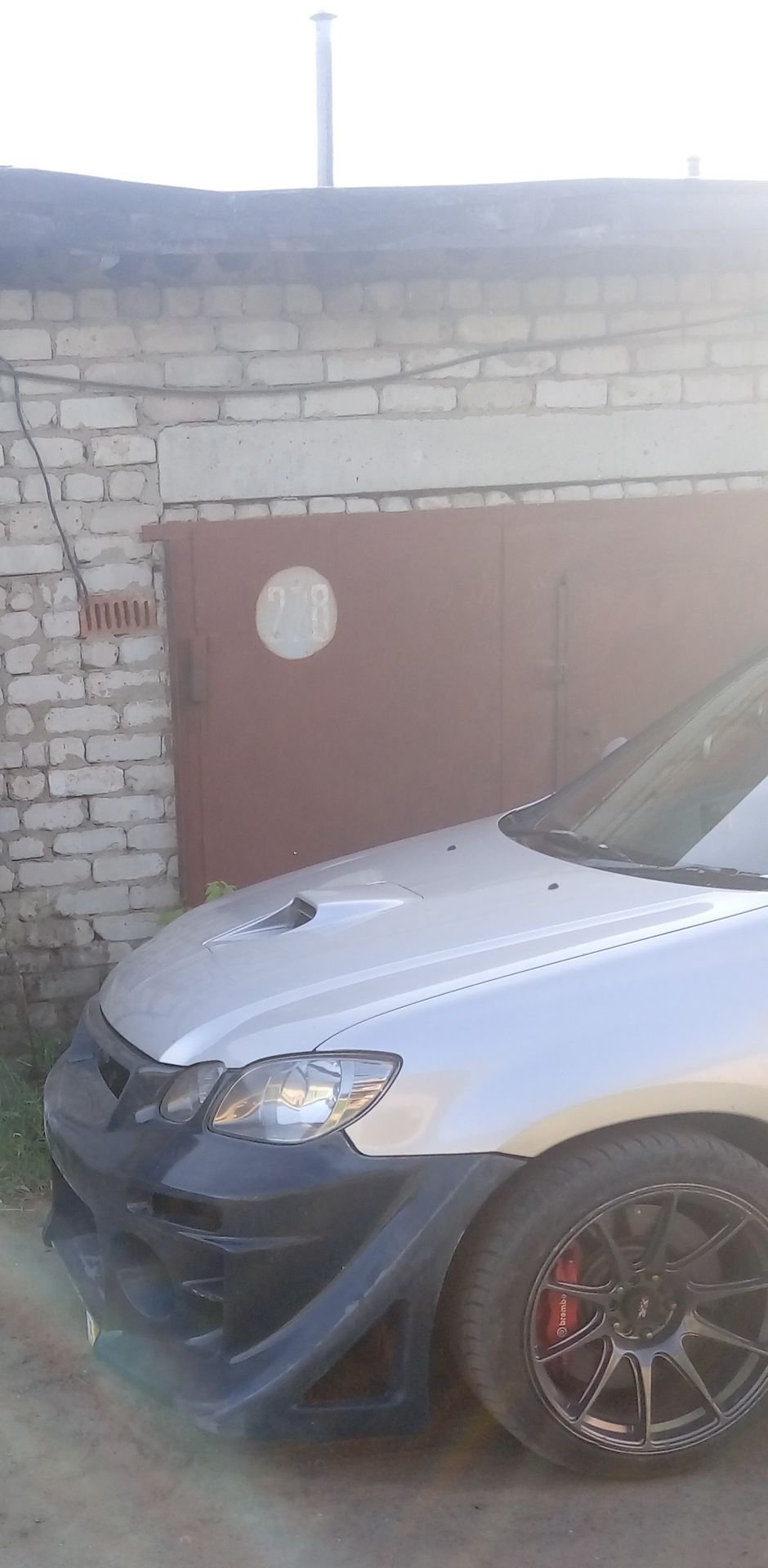

buying something new in exterior

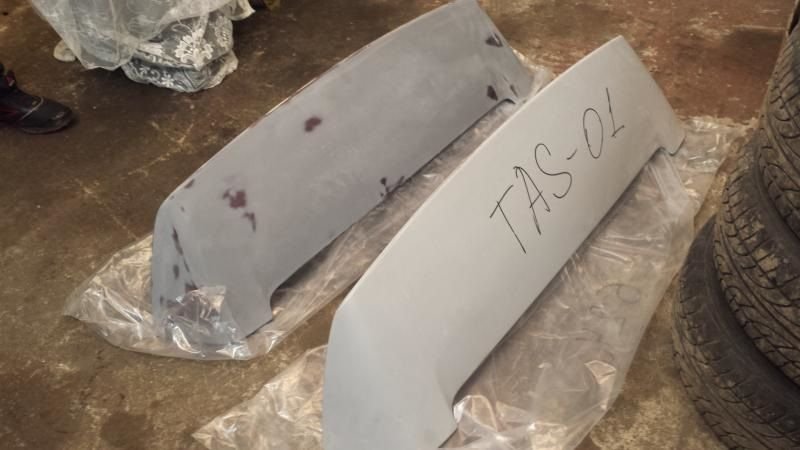

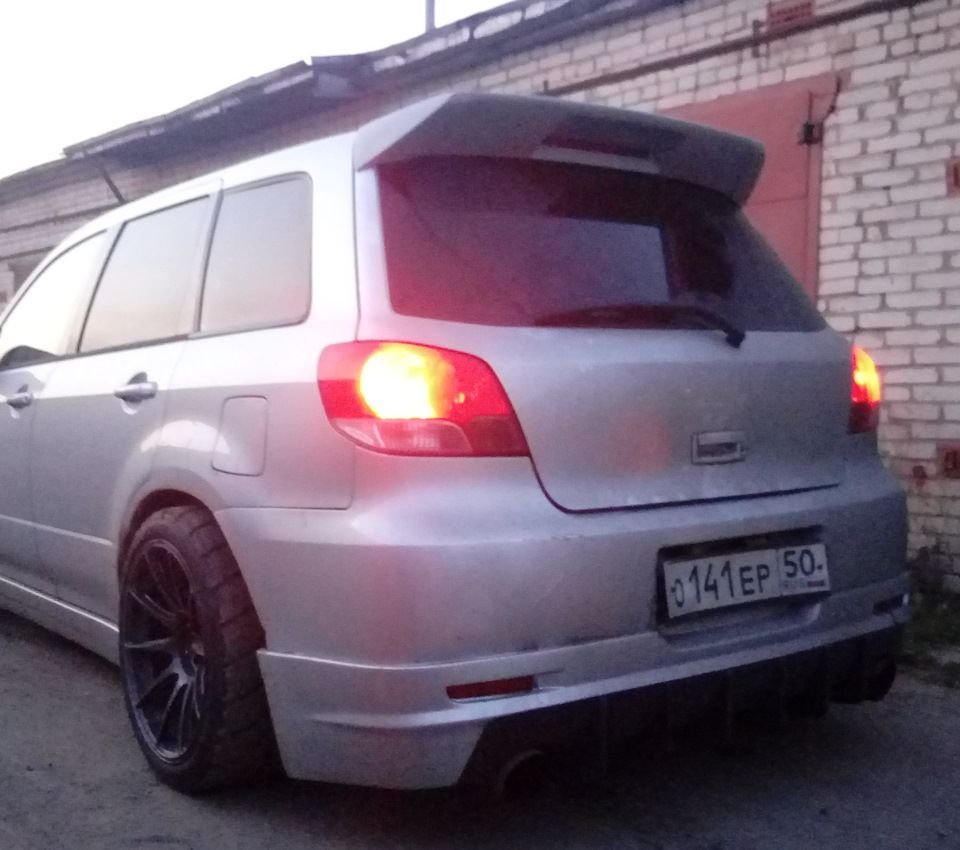

okuyama spoiler

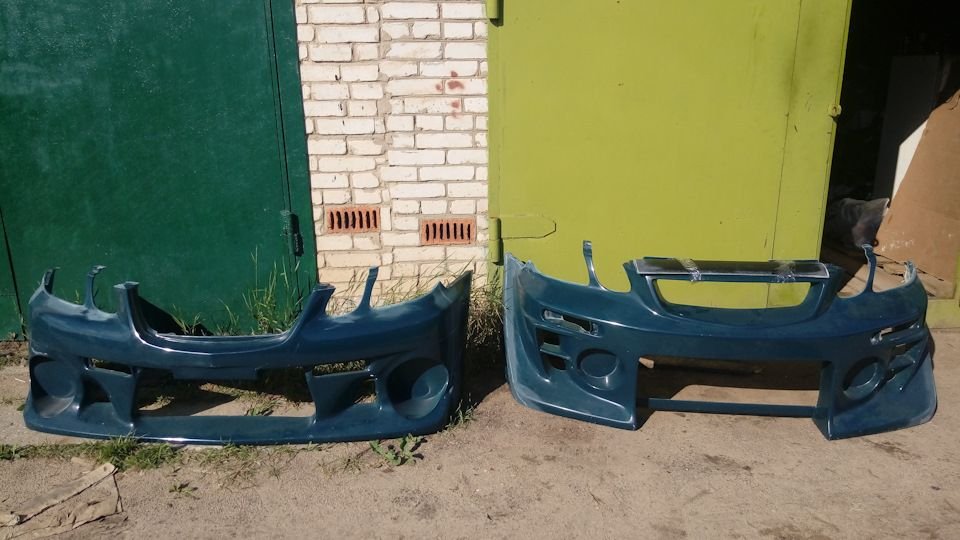

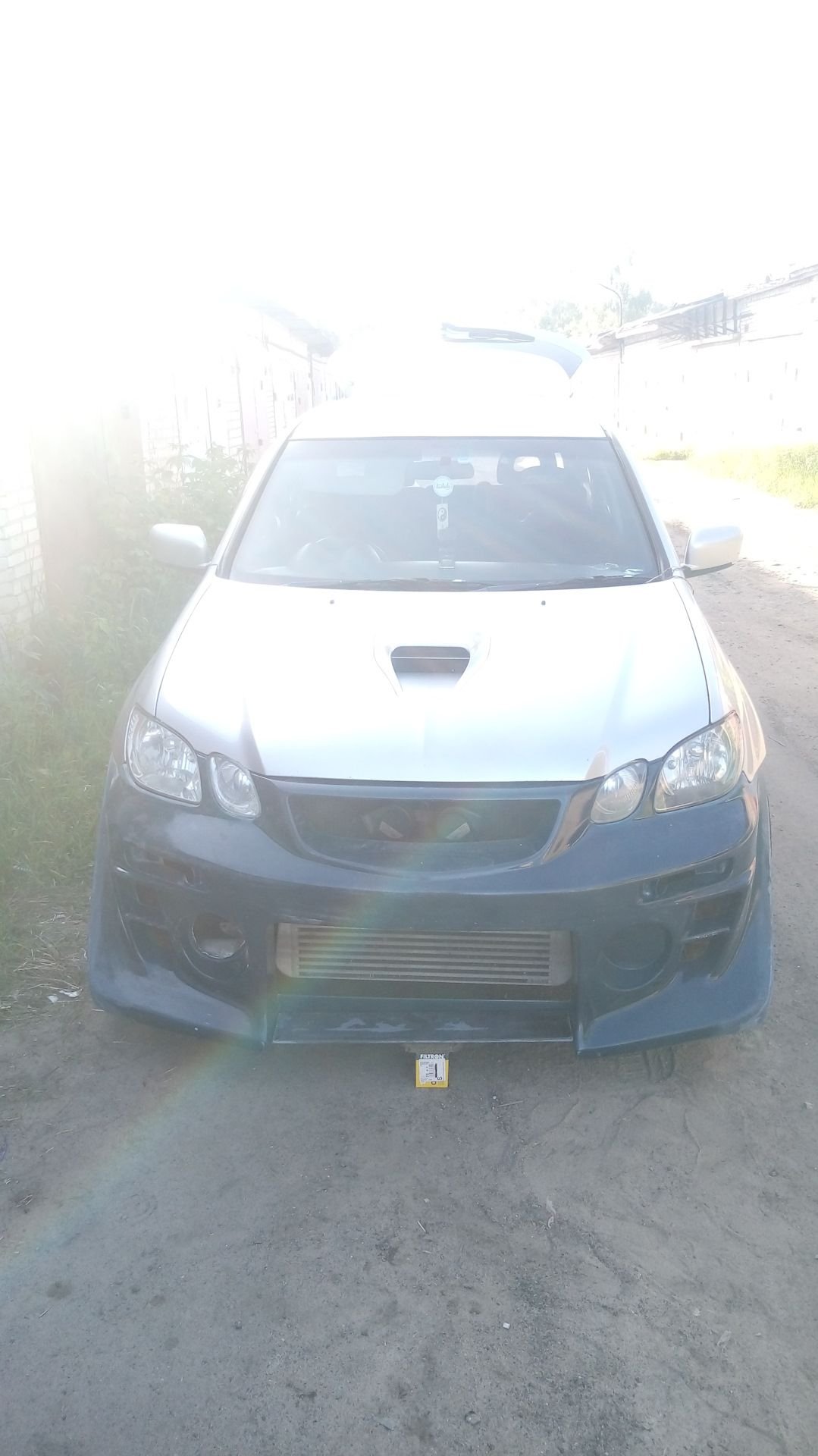

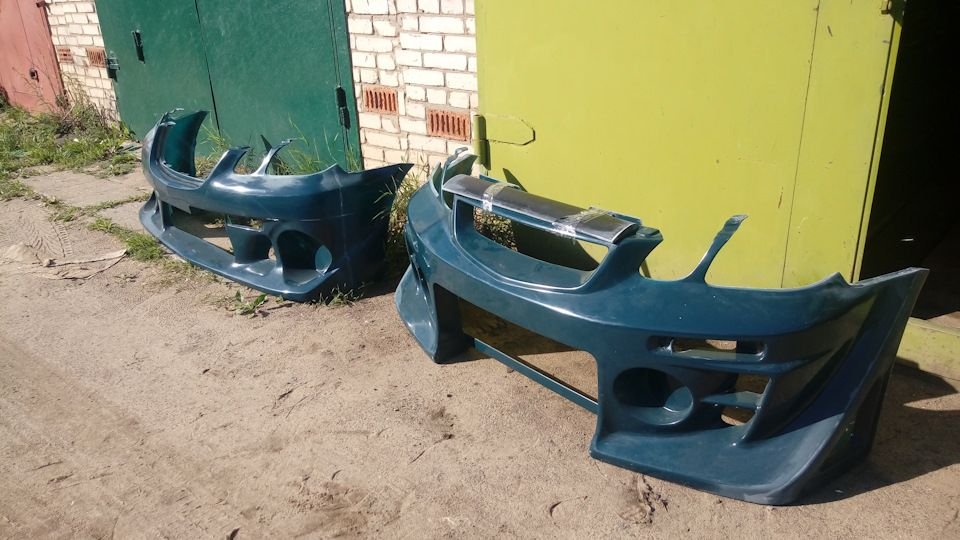

Okuyama and Damd front bumpers






some diffusor

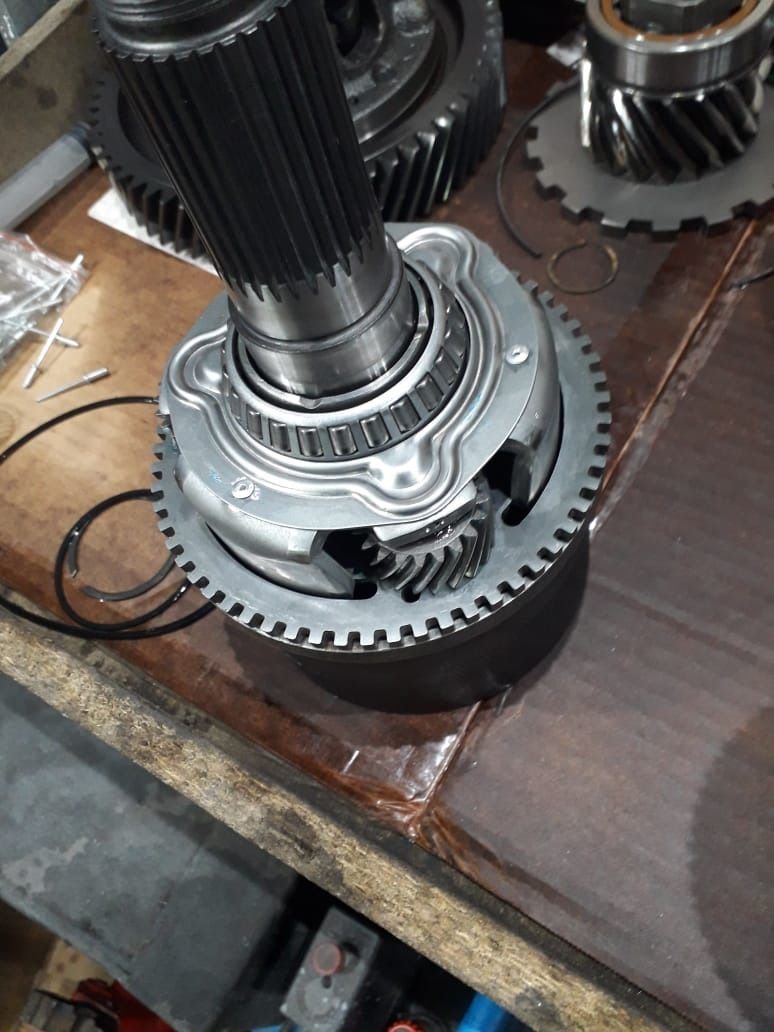

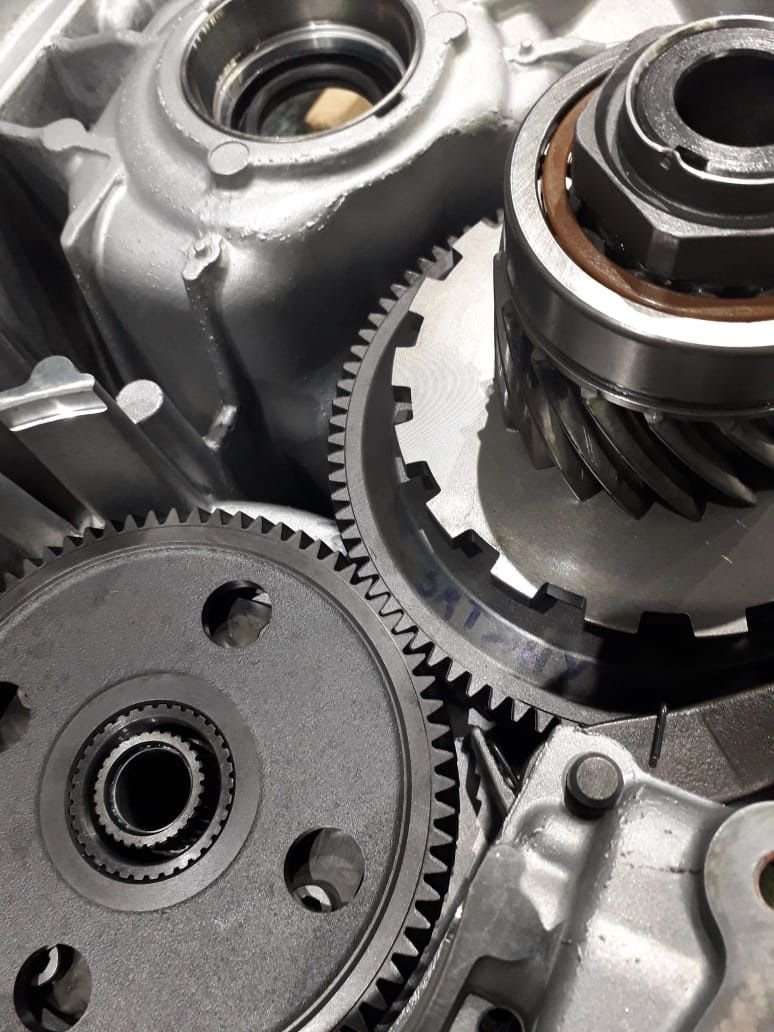

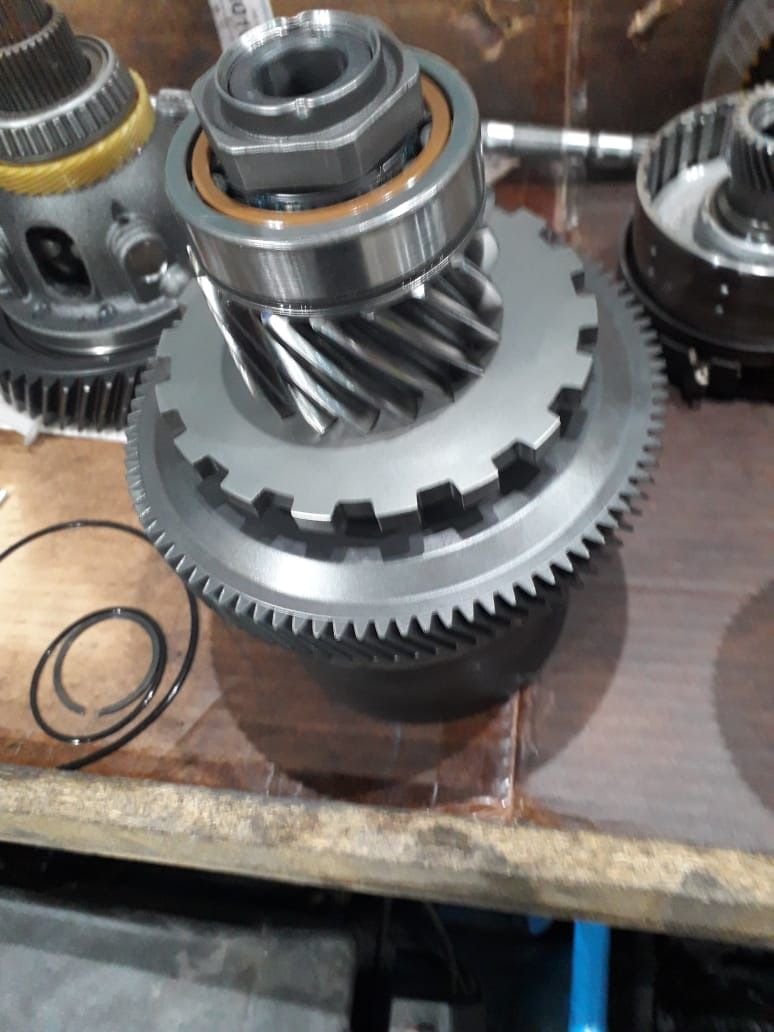

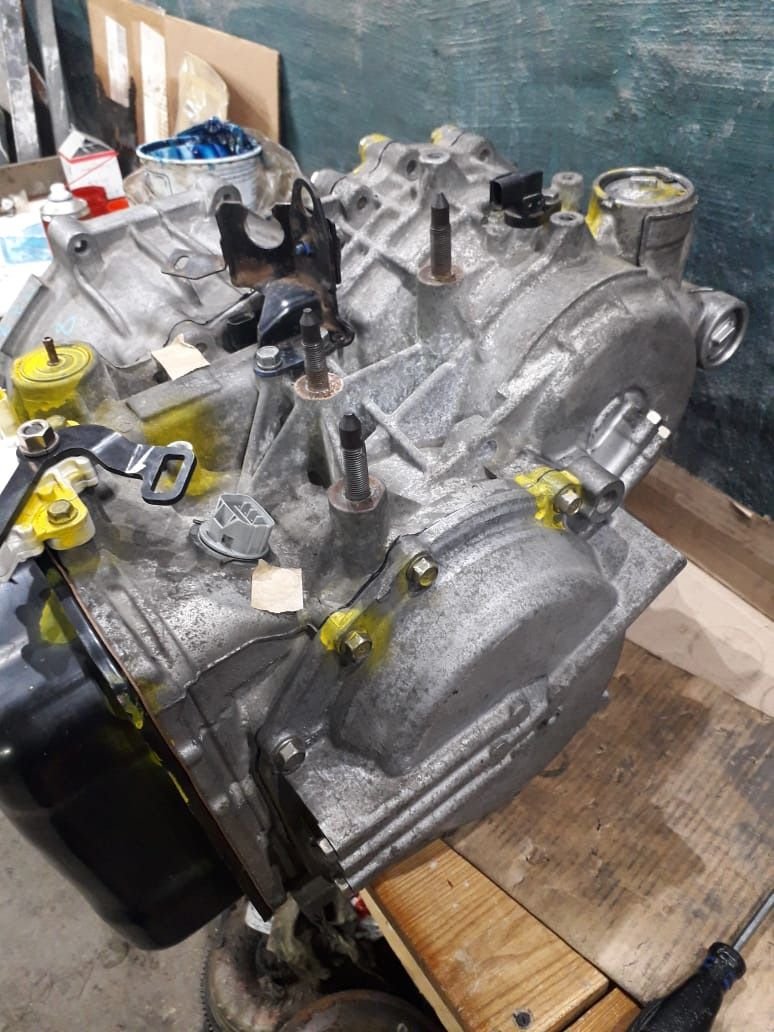

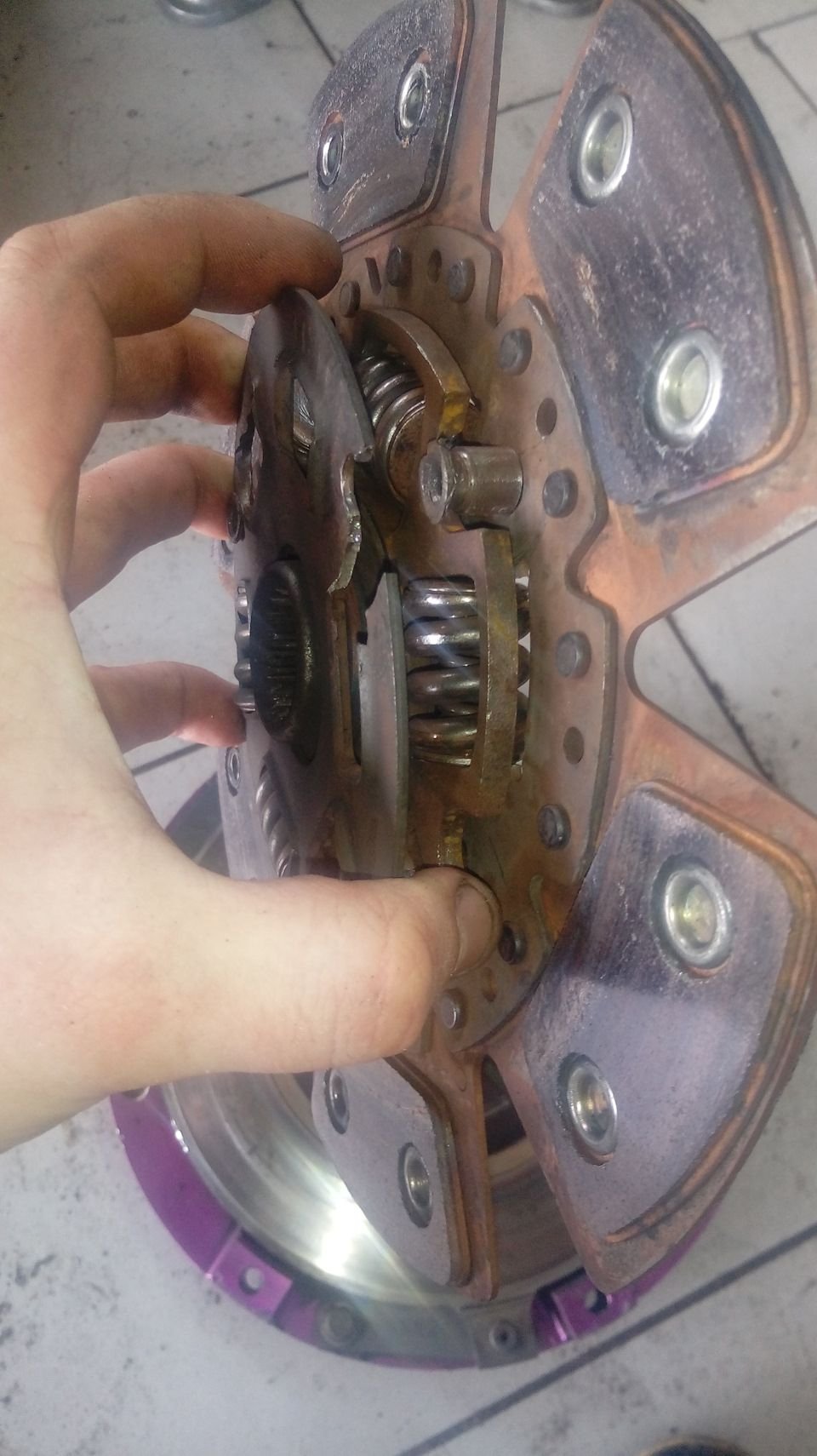

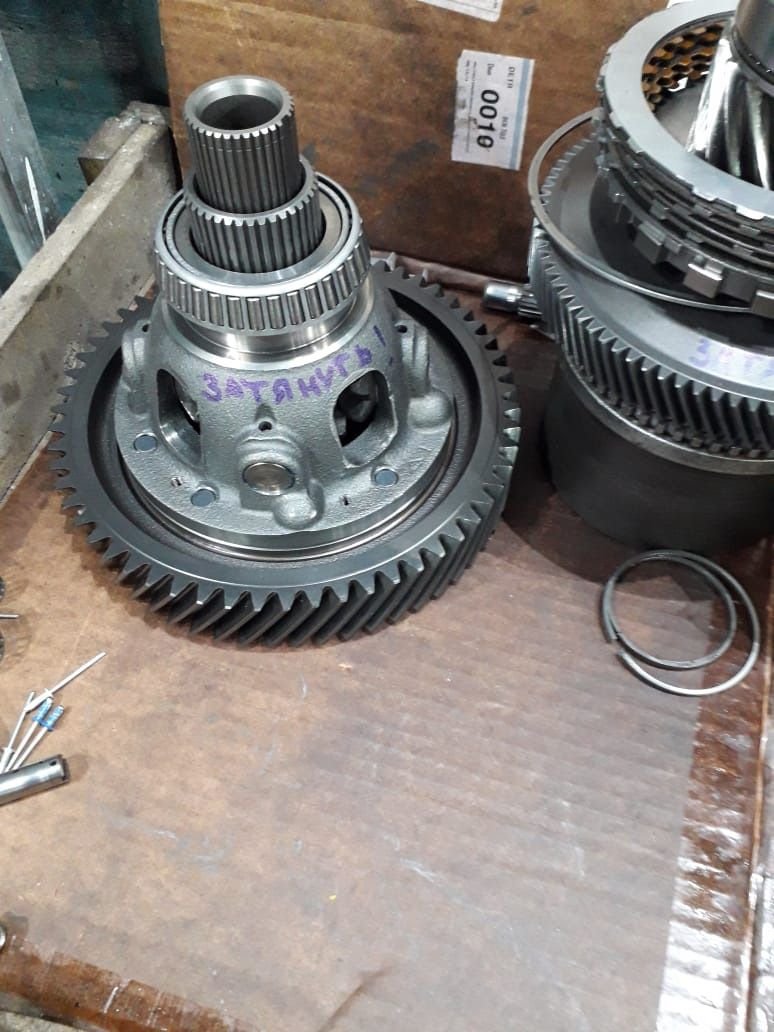

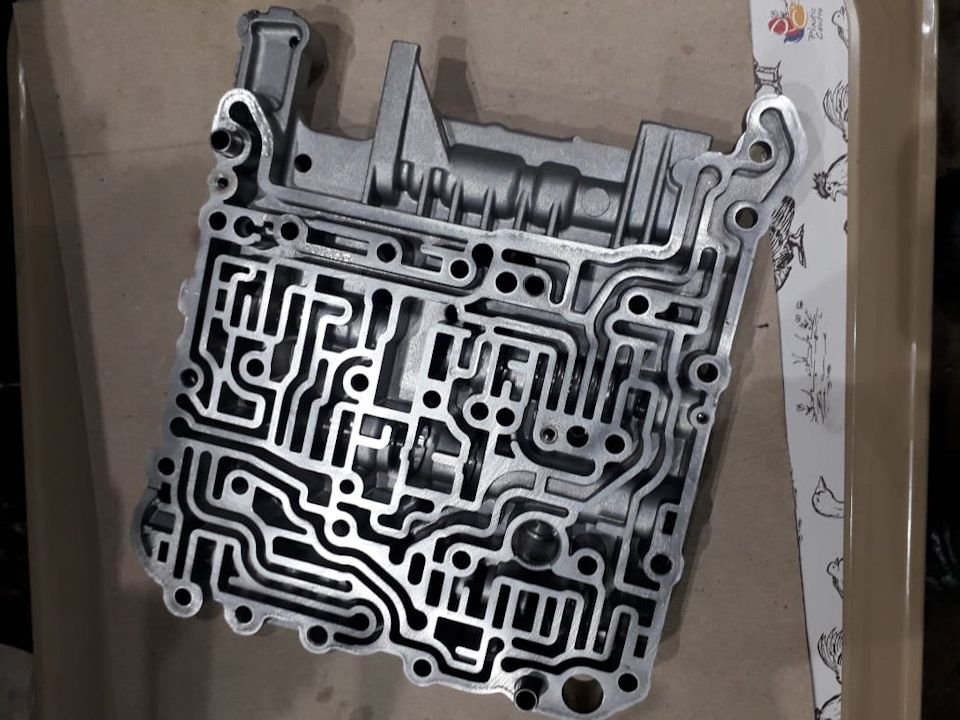

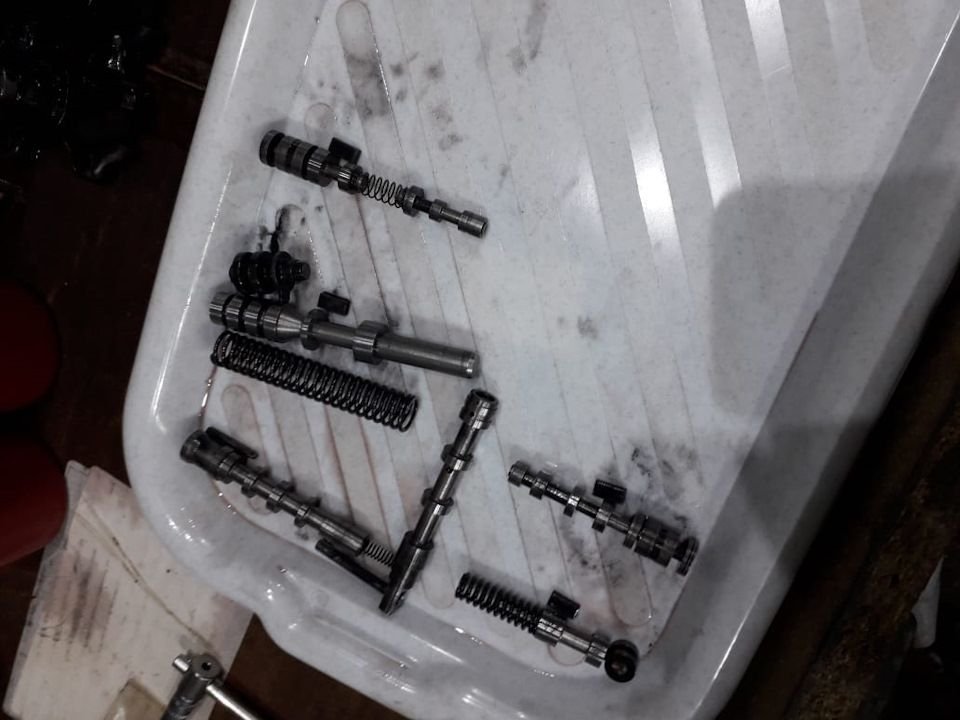

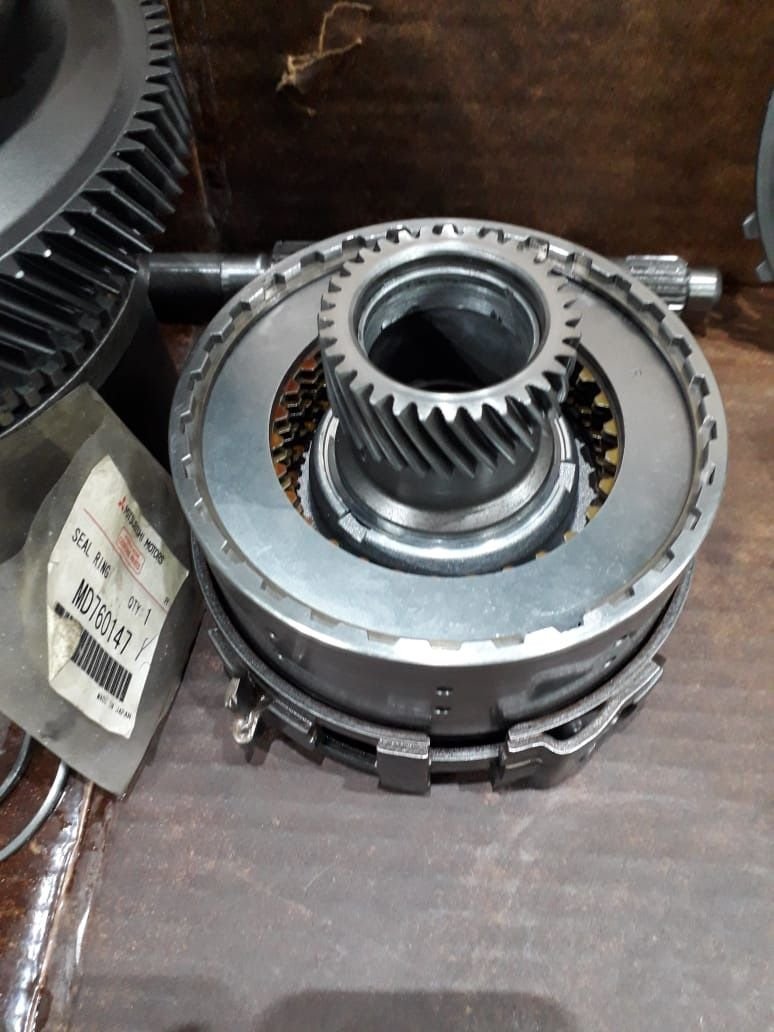

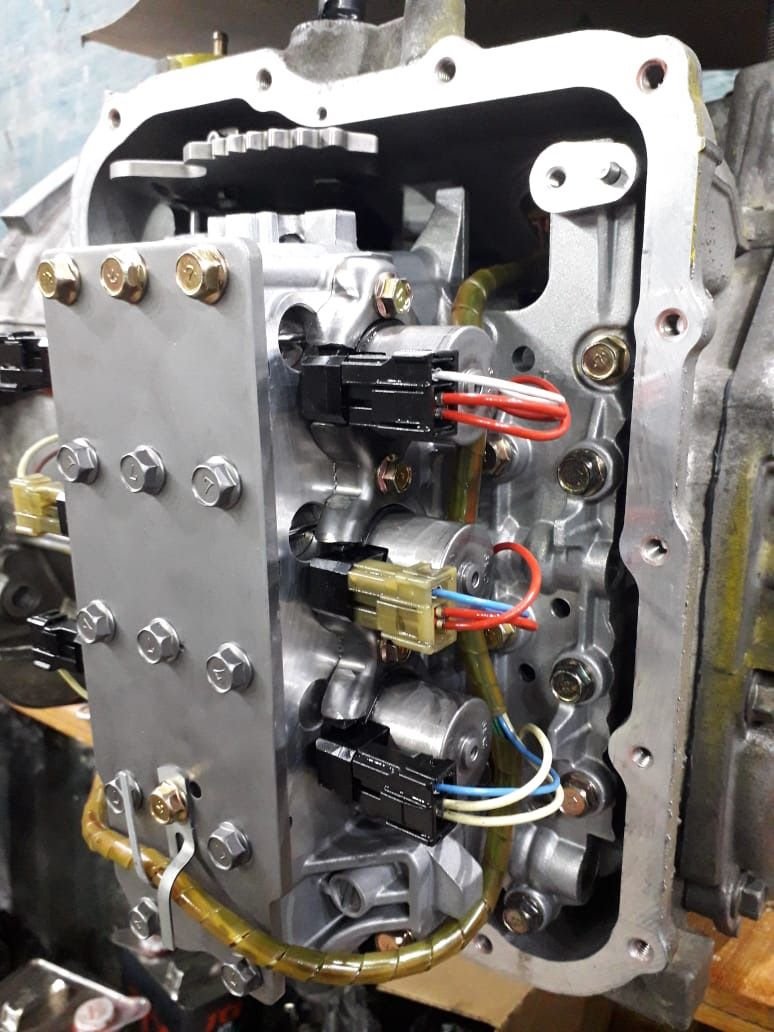

Assembly of the AT gearbox after the Exedy clutch fail



Let`s do it

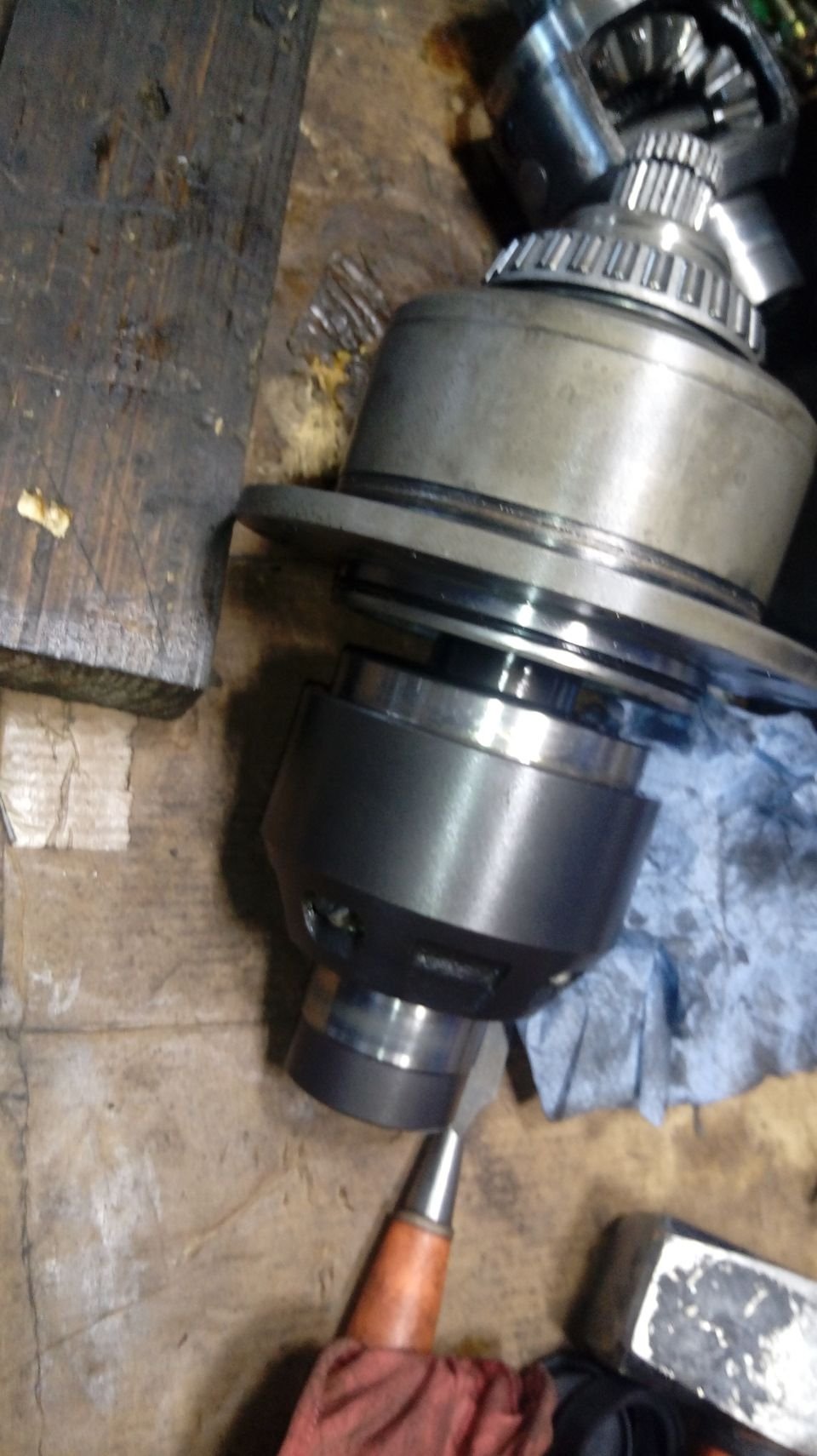

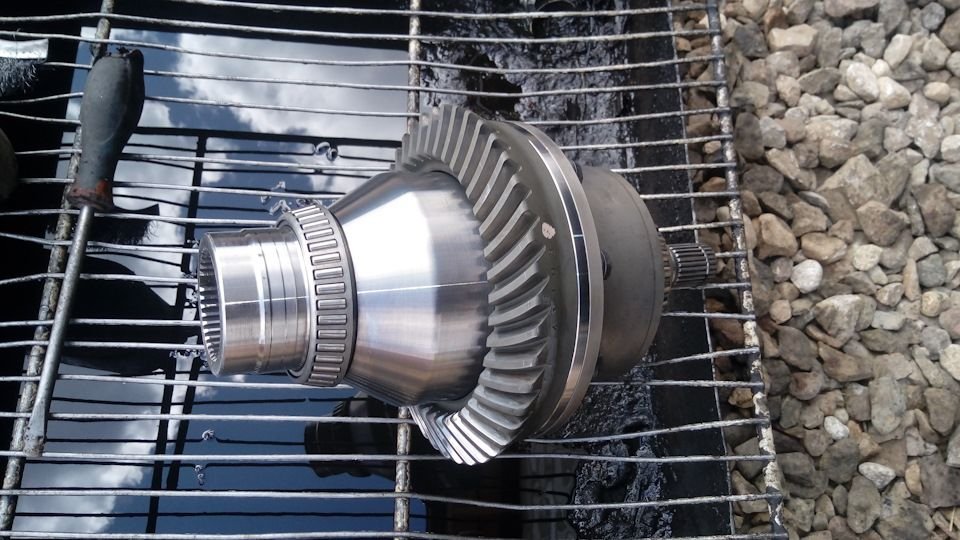

Evo front LSD

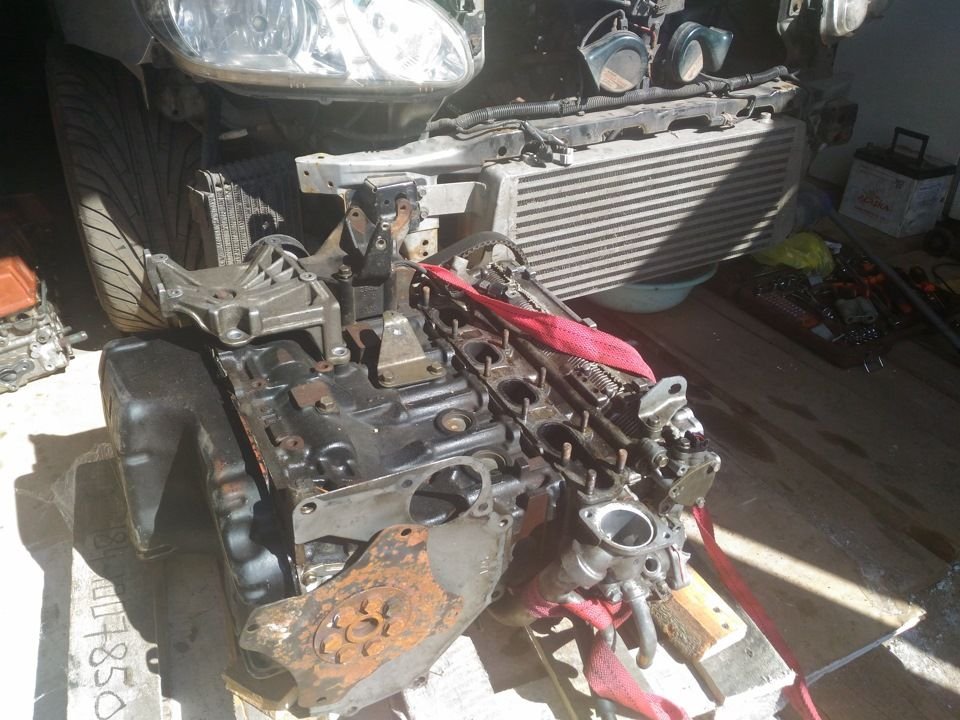

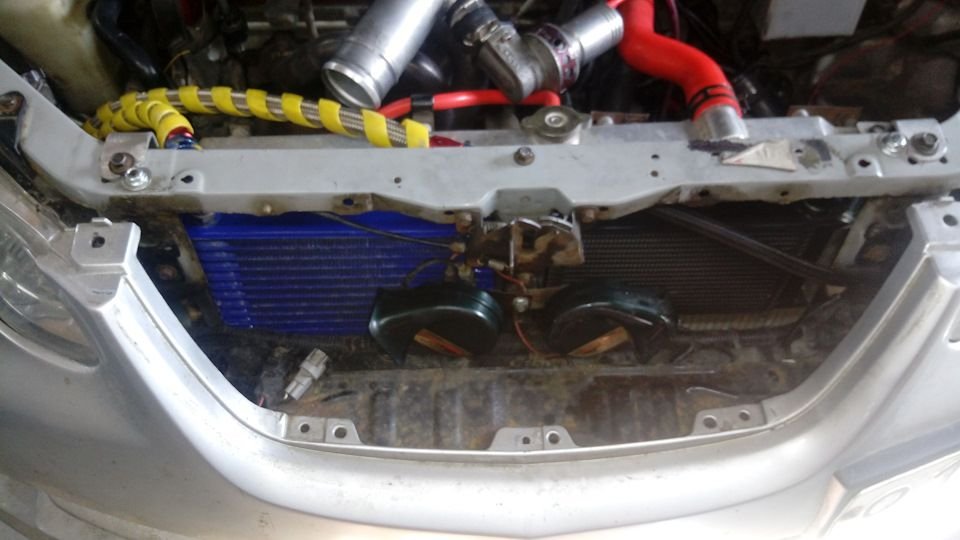

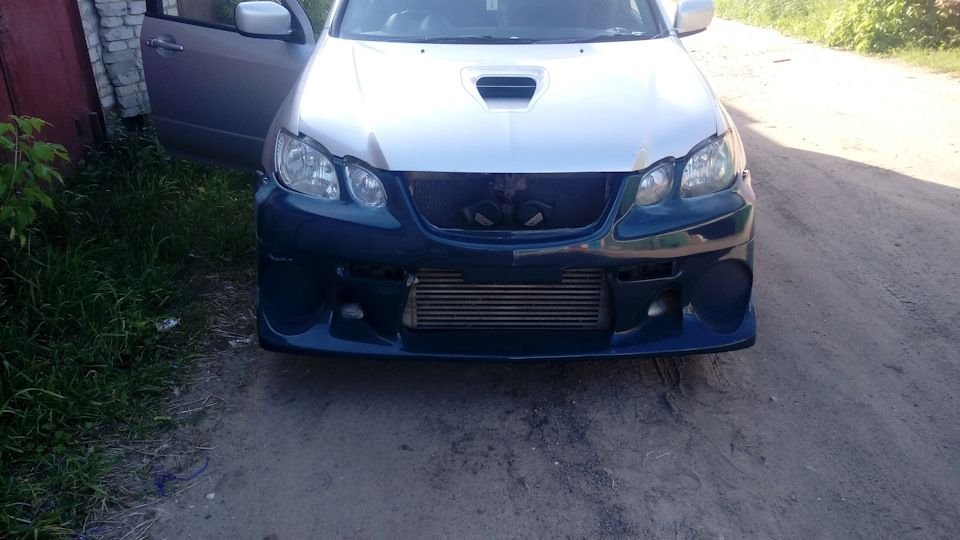

front mount engine and AT coolers and fat coolant cooler

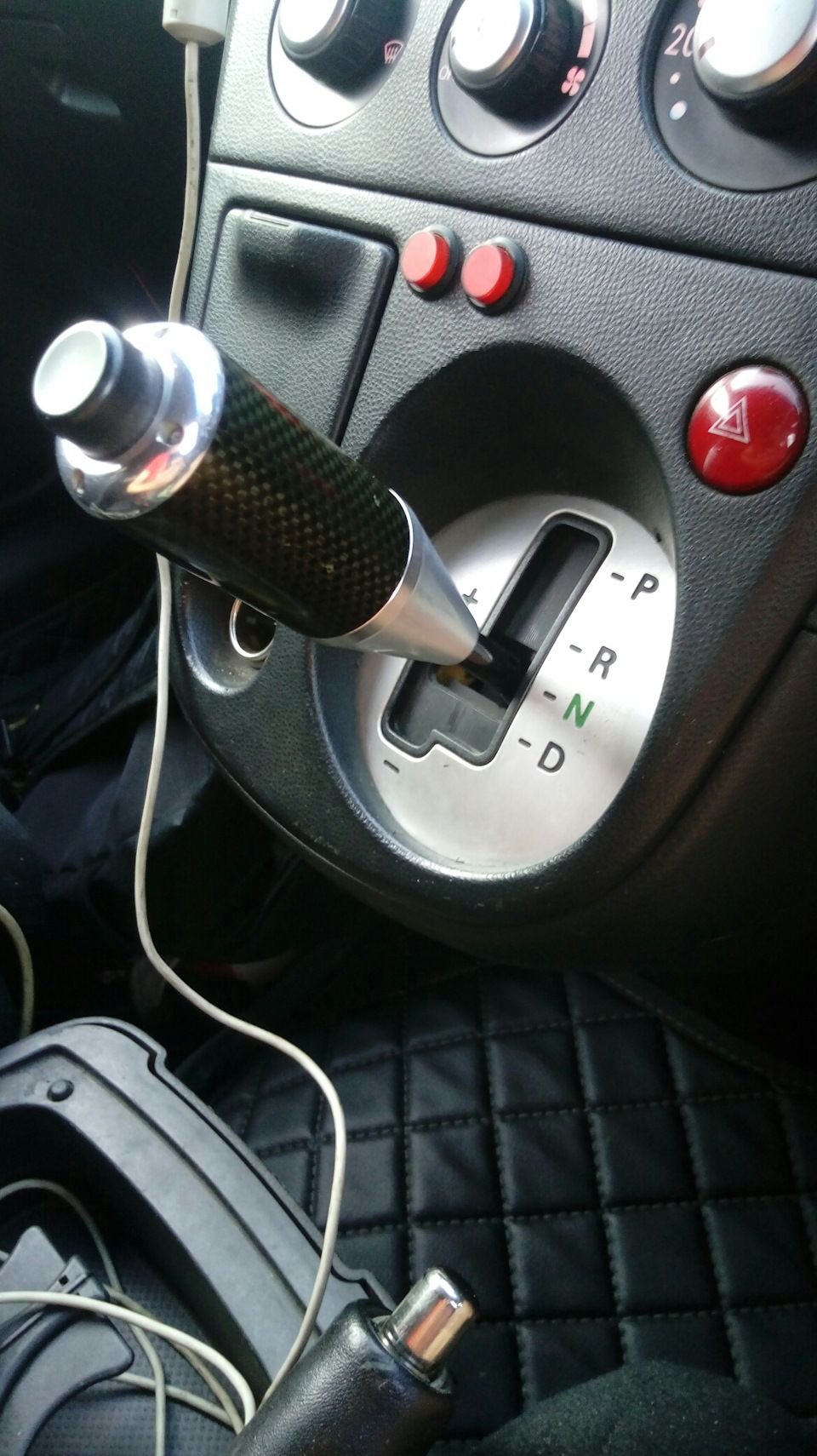

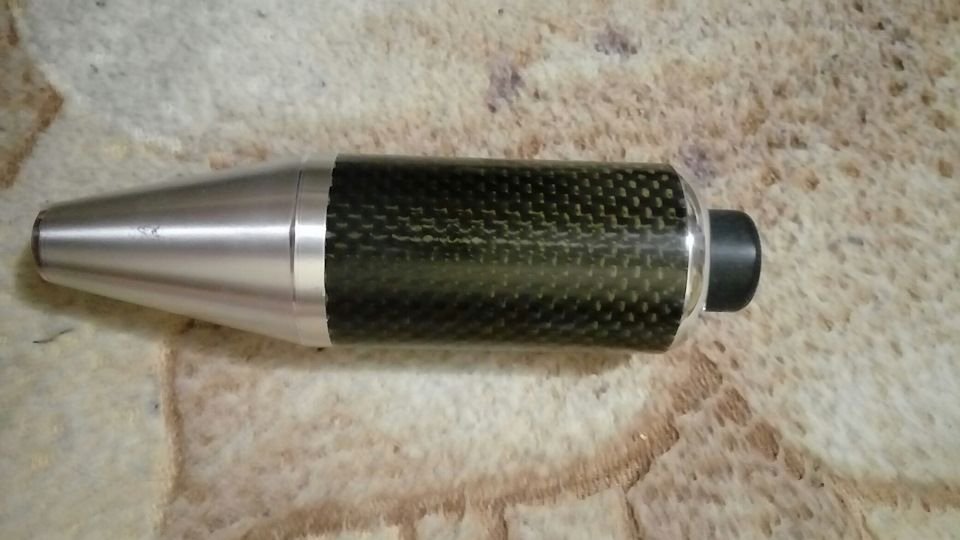

Pajero Evolution carbon knob

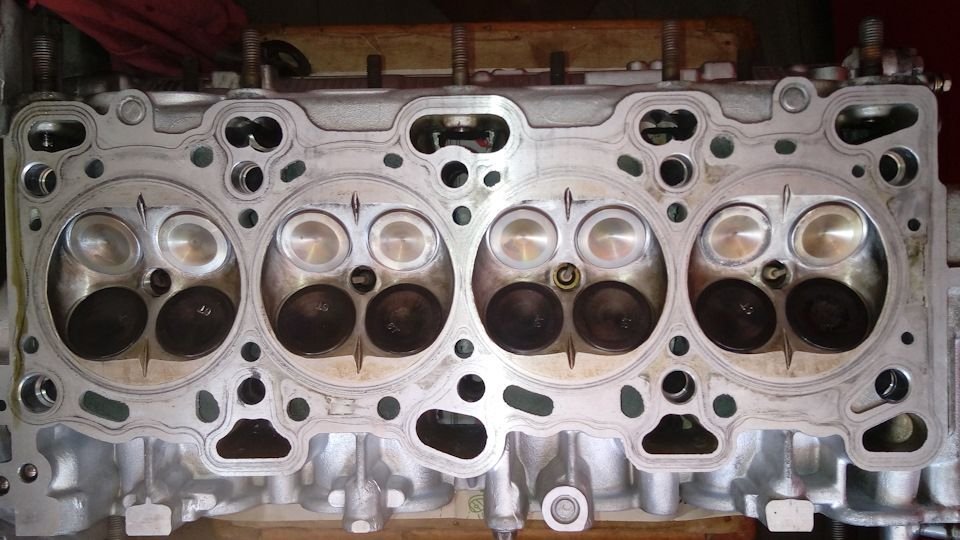

Buying evo 9 mivec head

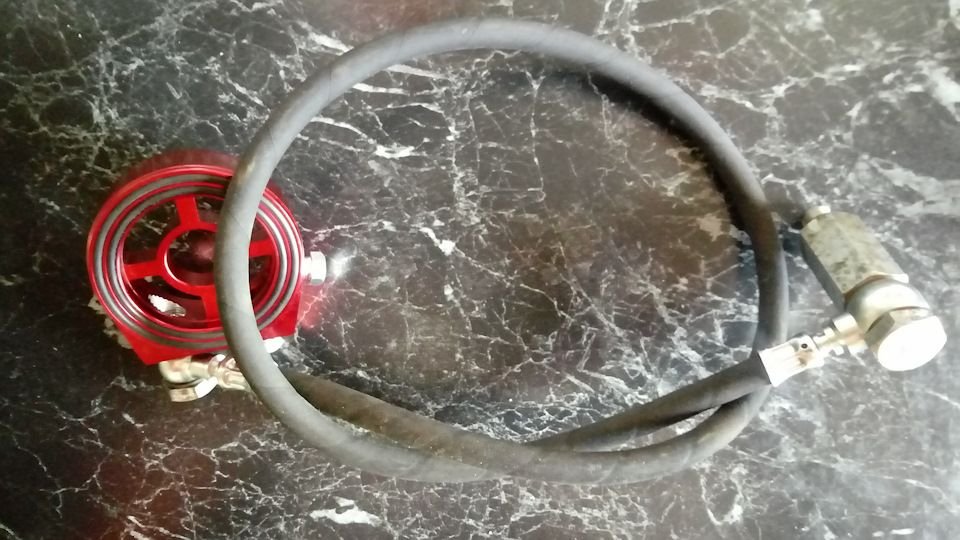

some hose

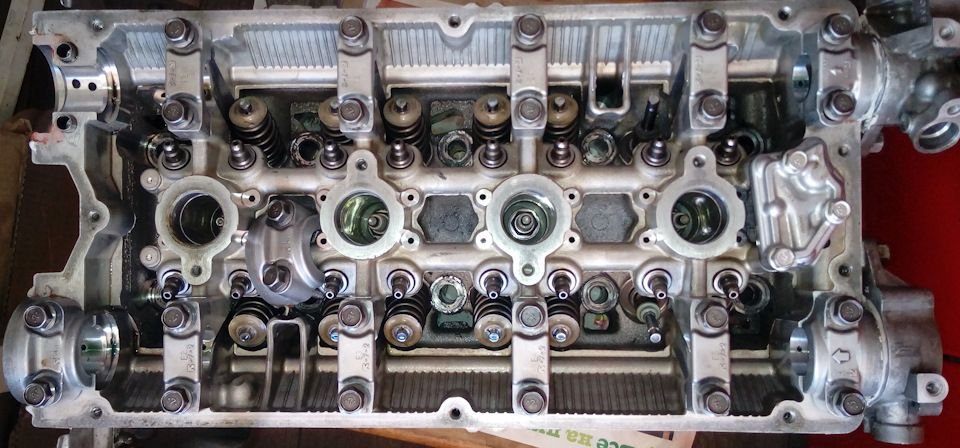

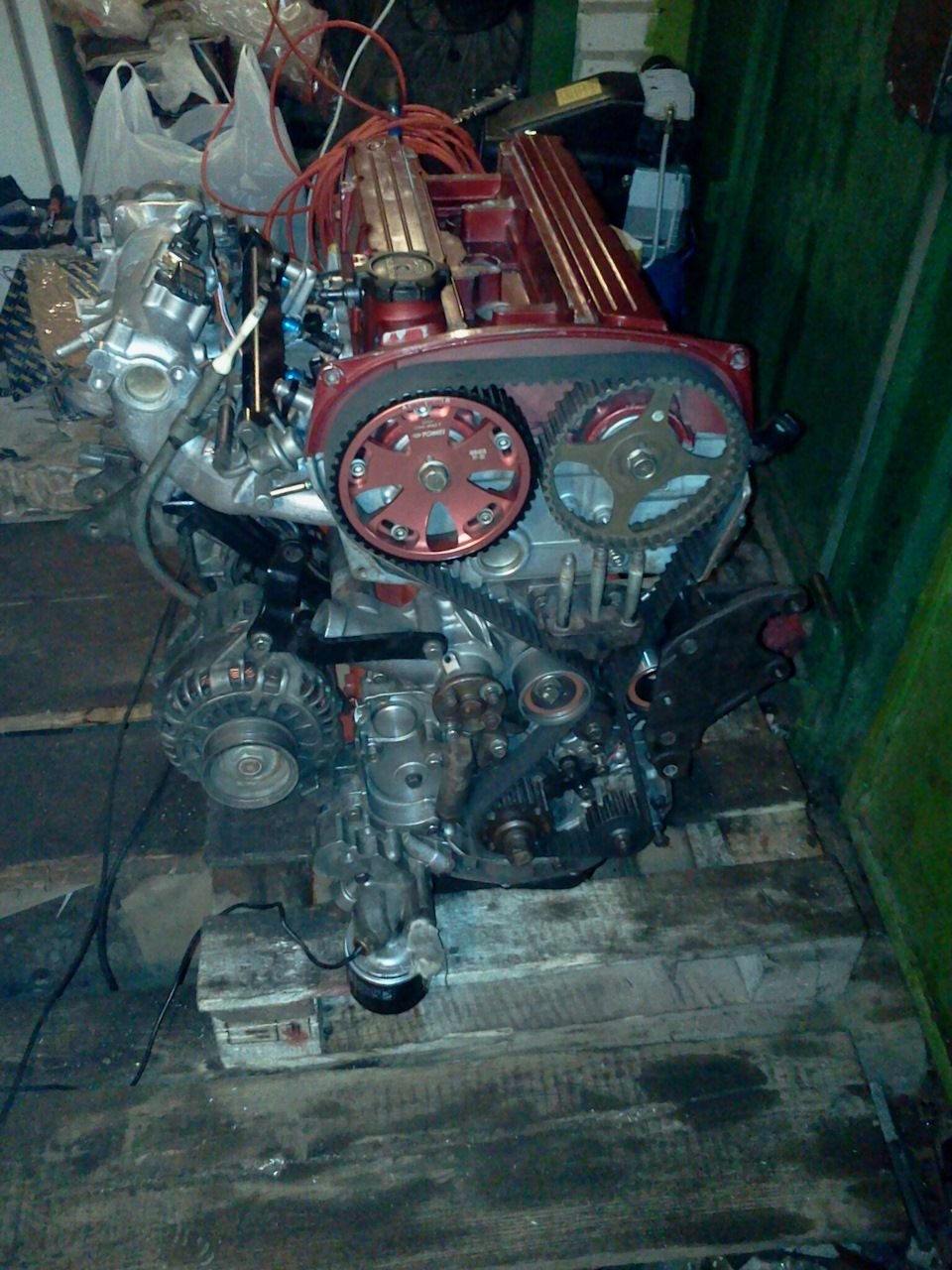

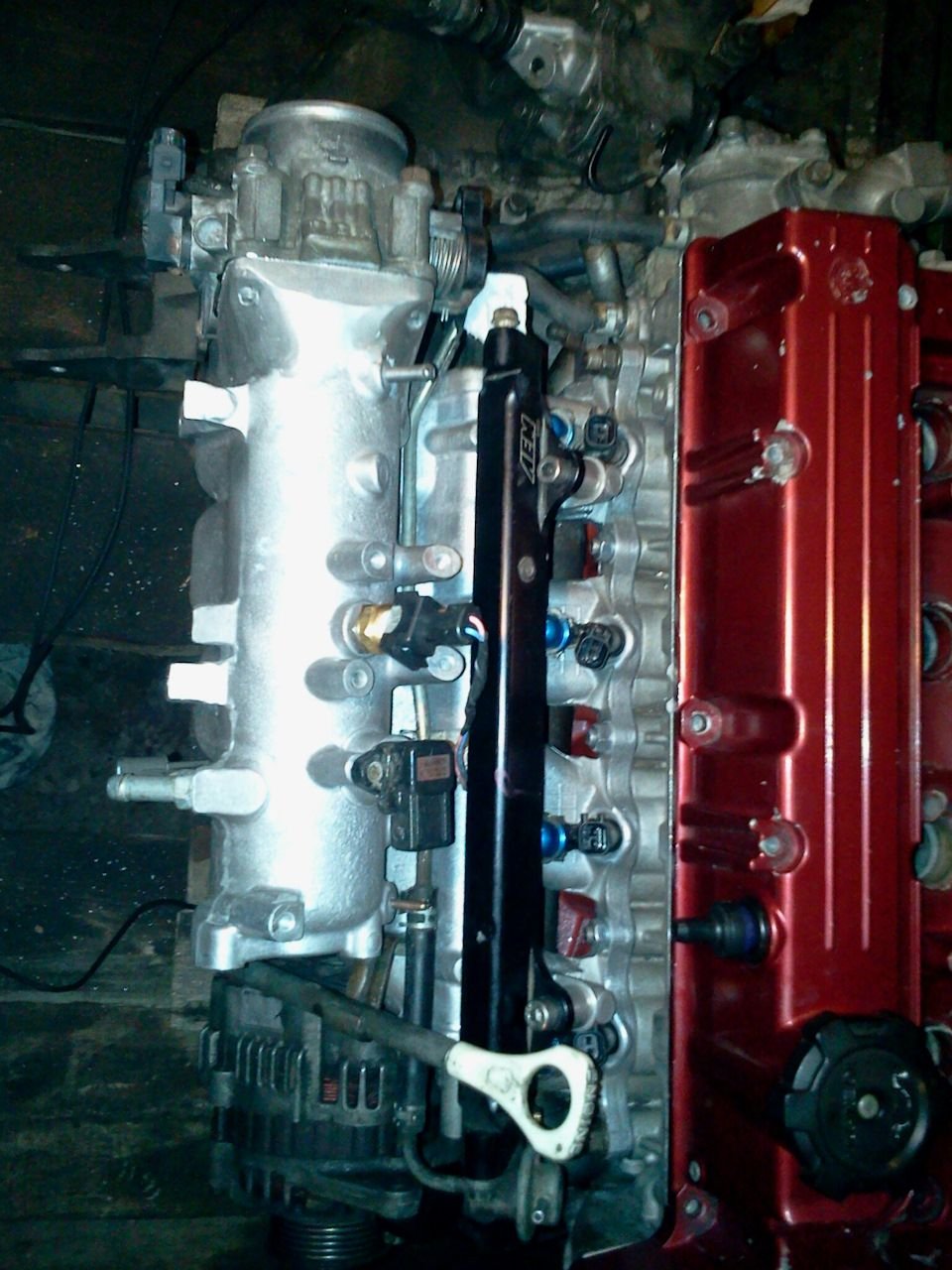

ready to assembly

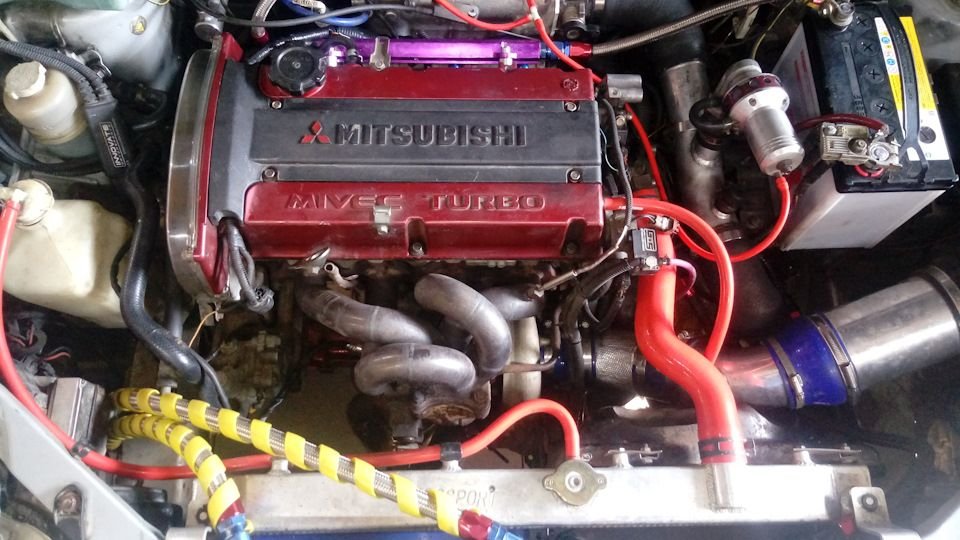

First start



Before buying a evo head, of course, I thought about how the mivec solenoid control will occur. From the factory there were no automatic cars with such a head.

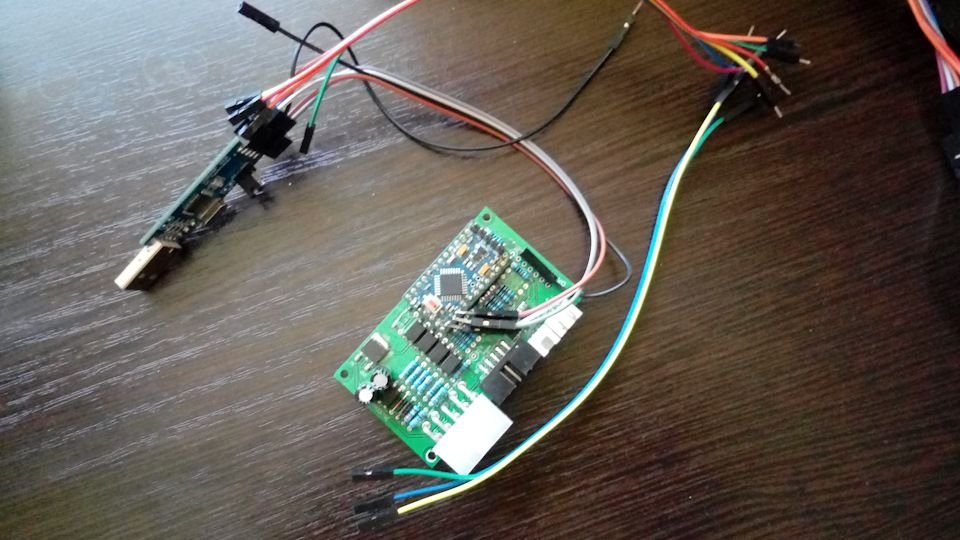

I made a controller that controls miveс and wiring for the solenoid and intake camshaft sensor.

Also a mini dash was developed for the stock instrument panel in this controller. Which communicates with the stock ECU via the DMA protocol and receives any data to display.
The controller calculates the current position of the intake camshaft based on signals from the CAS and Cam sensors. I also modified the ROM program for the functionality I need.
The target angle is taken from the standard ECU via DMA and rotates the intake camshaft by the desired number of degrees.

The first version looked something like this






Solenoid test

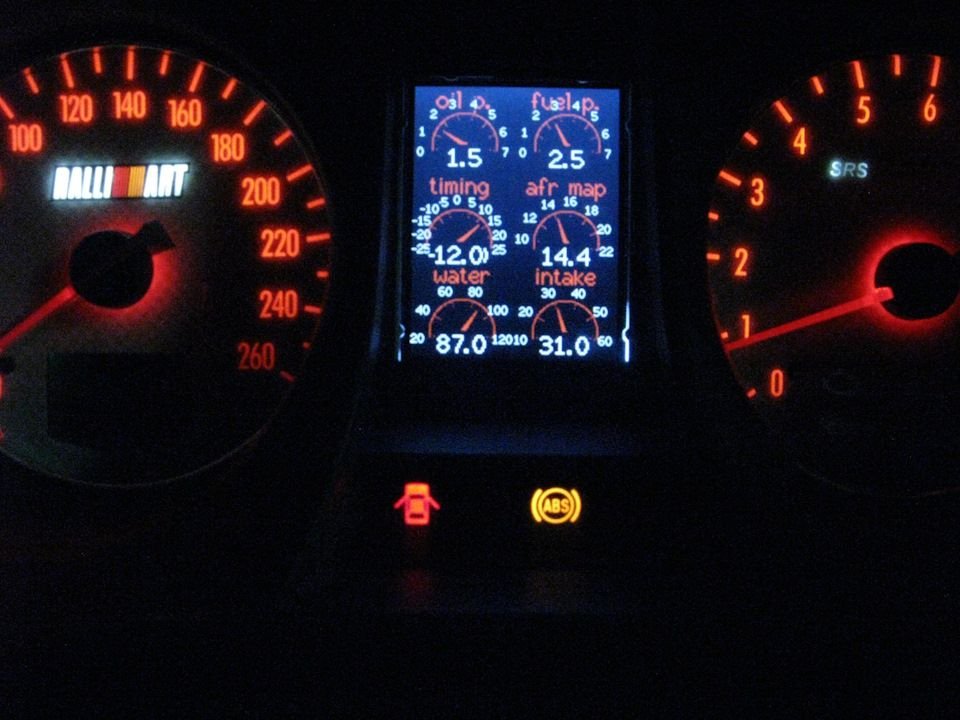

Mini dash



I also rewrote the calculation of air and transferred the car to speed density.
So I think it is the world first AT car on true speed density with mivec on stock ECU

something in between from a configs

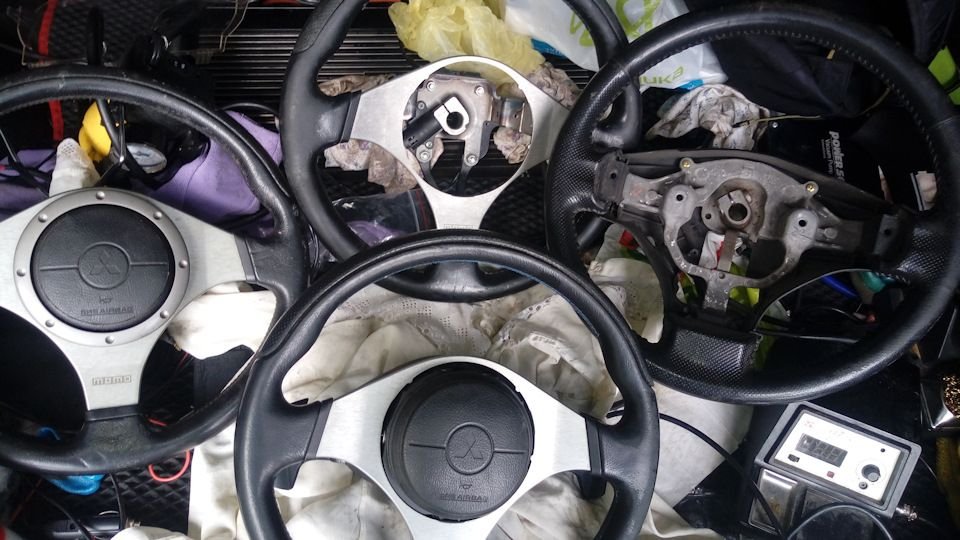

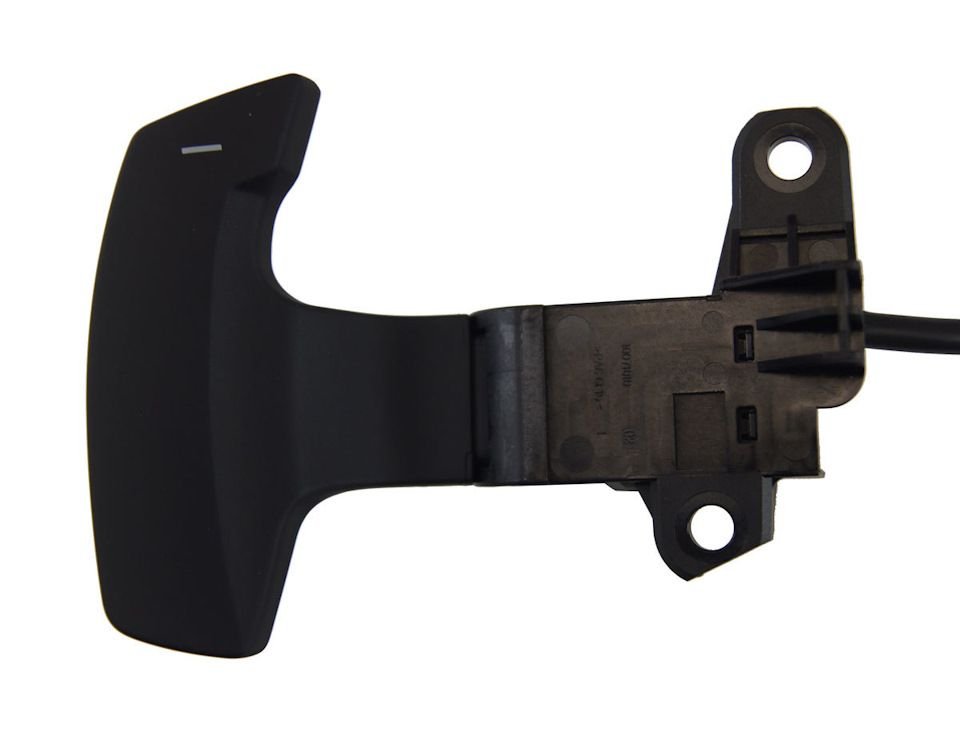

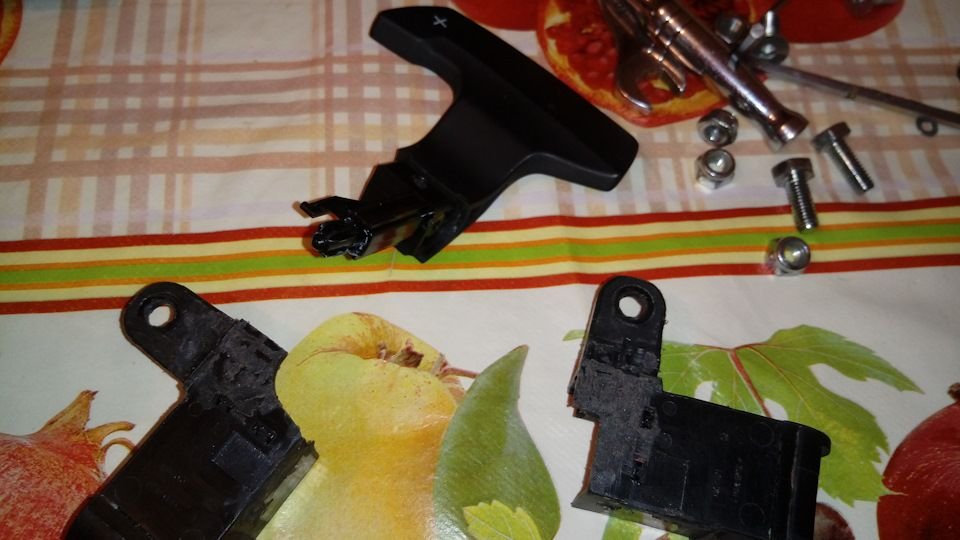

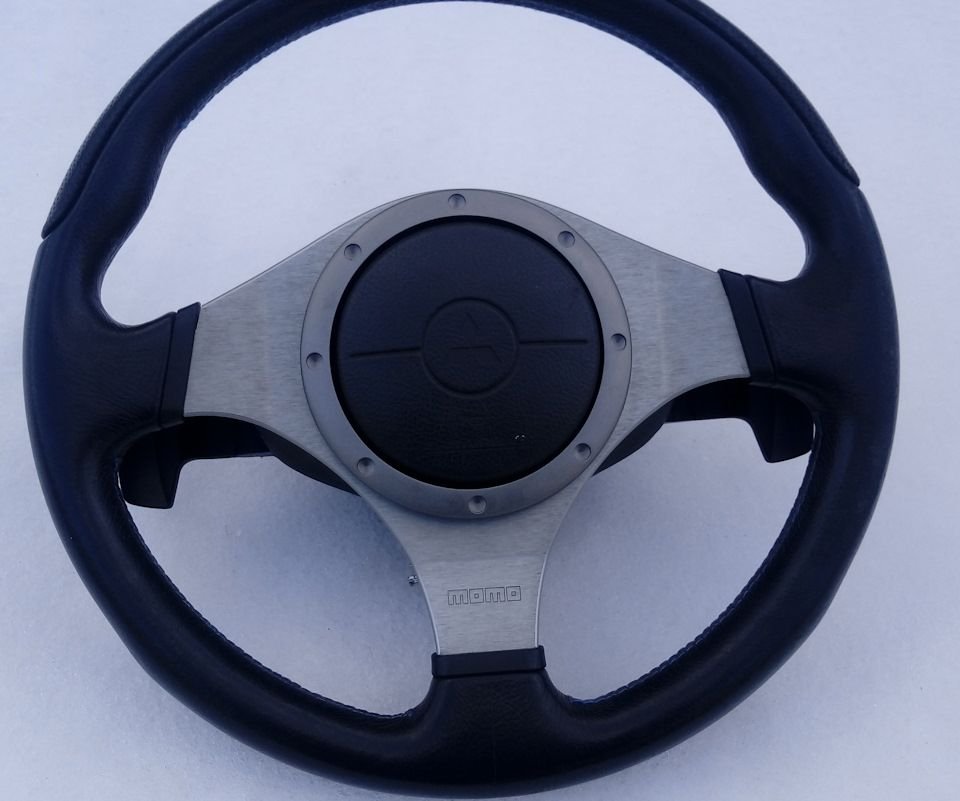

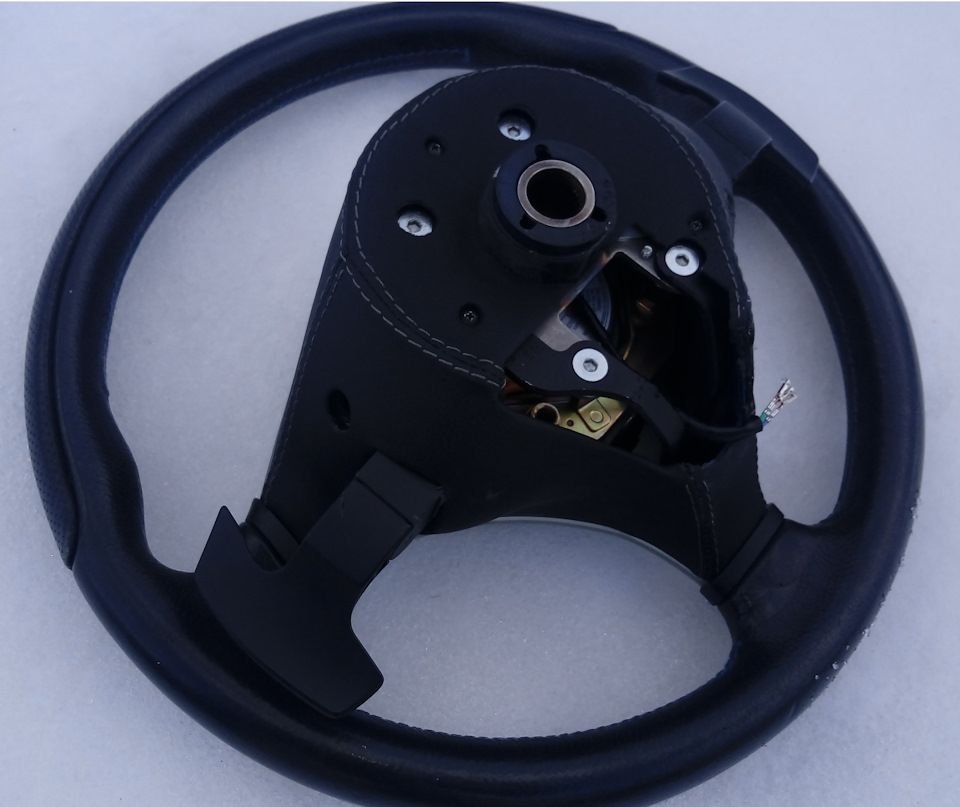

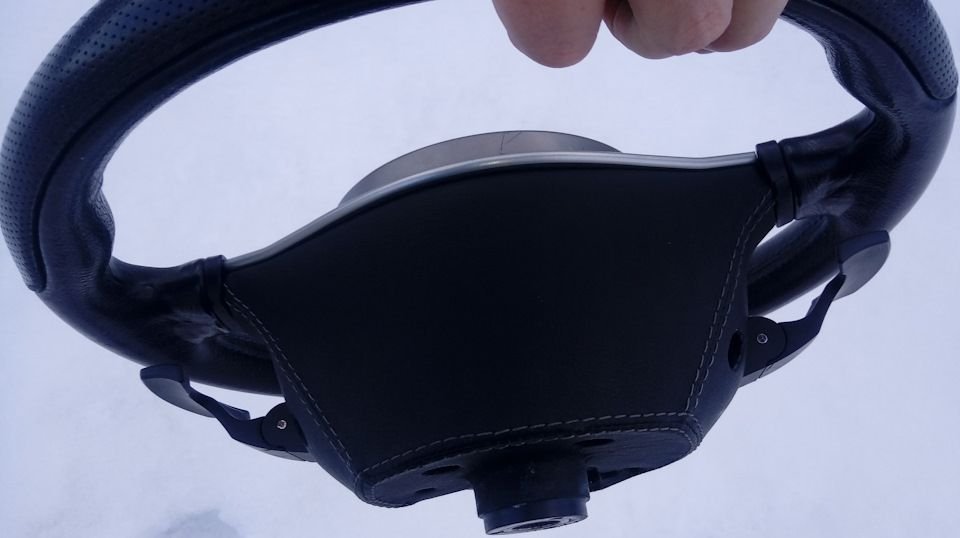

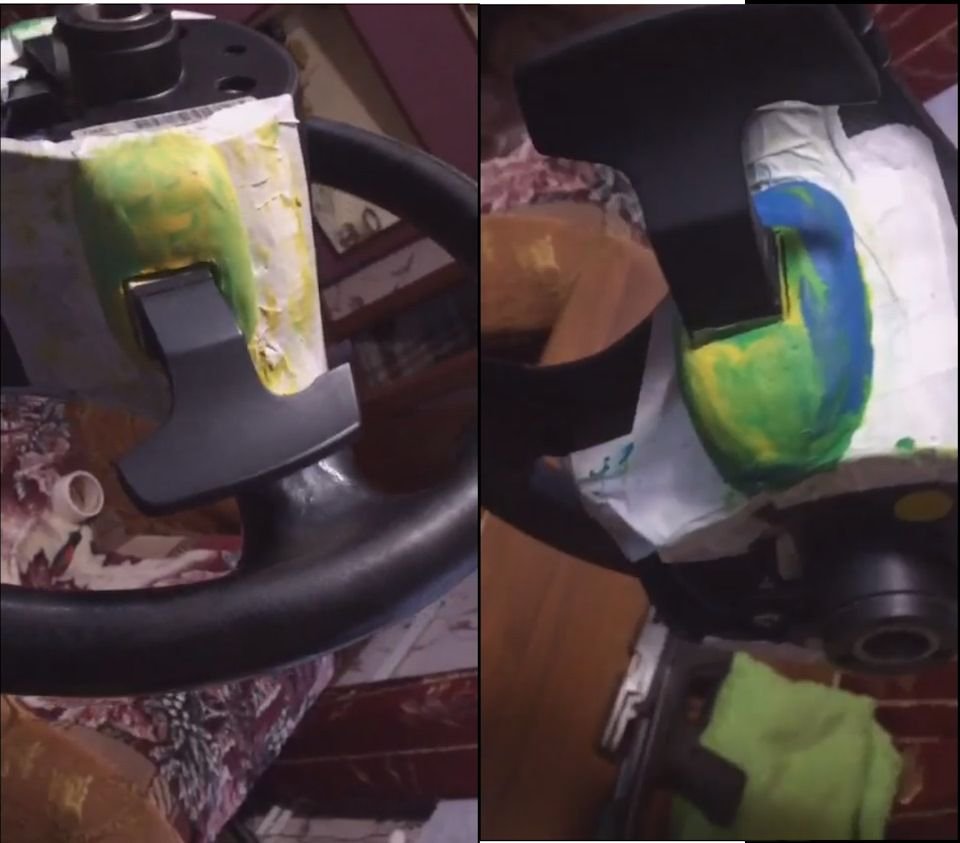

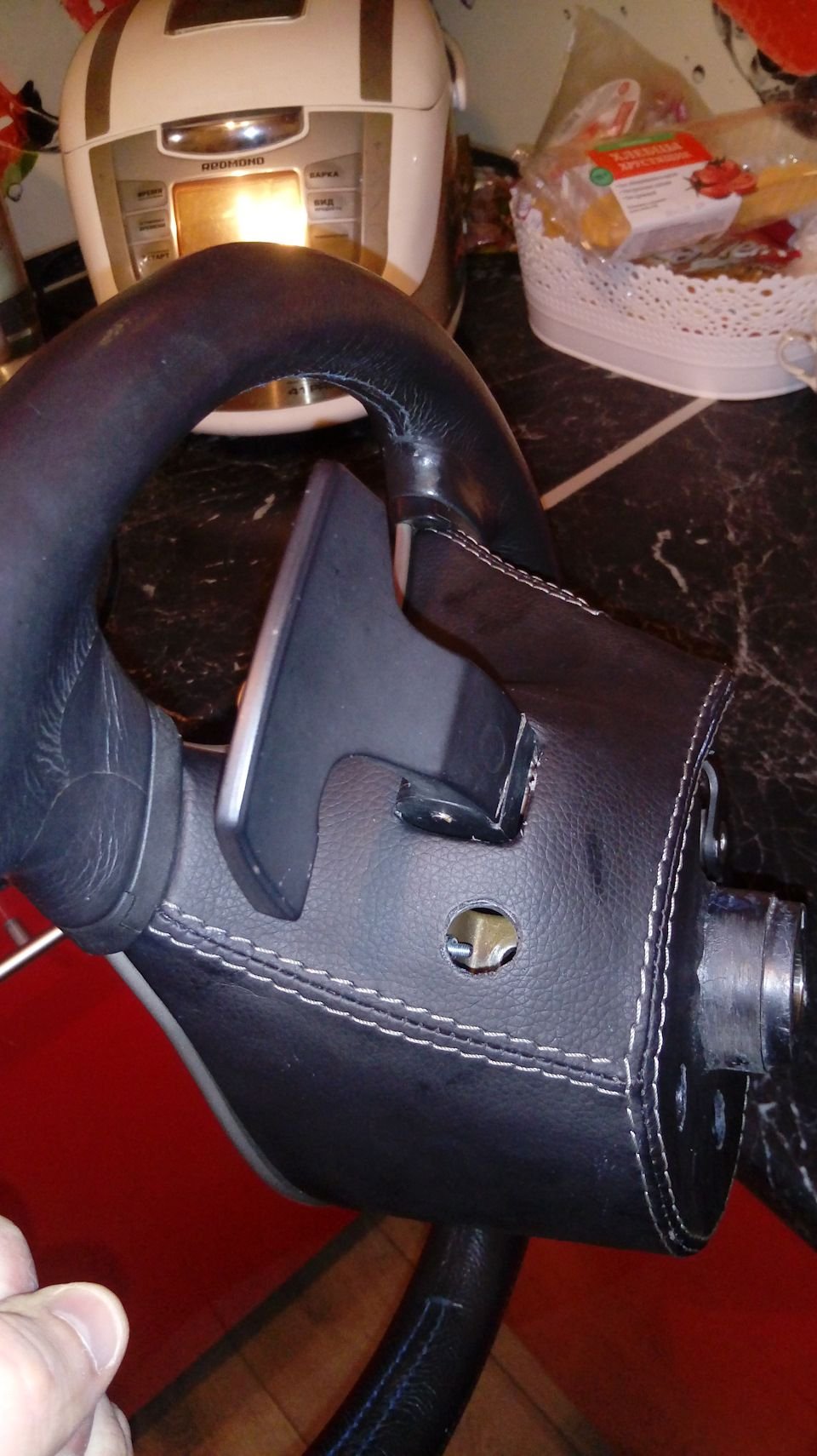

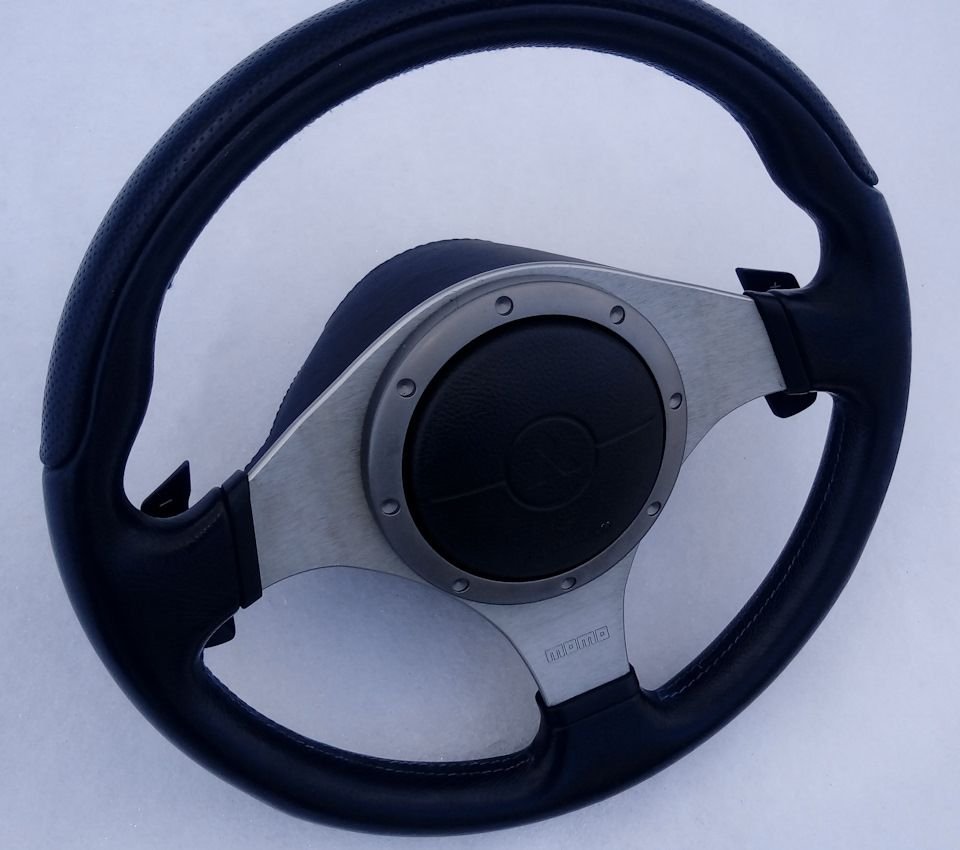

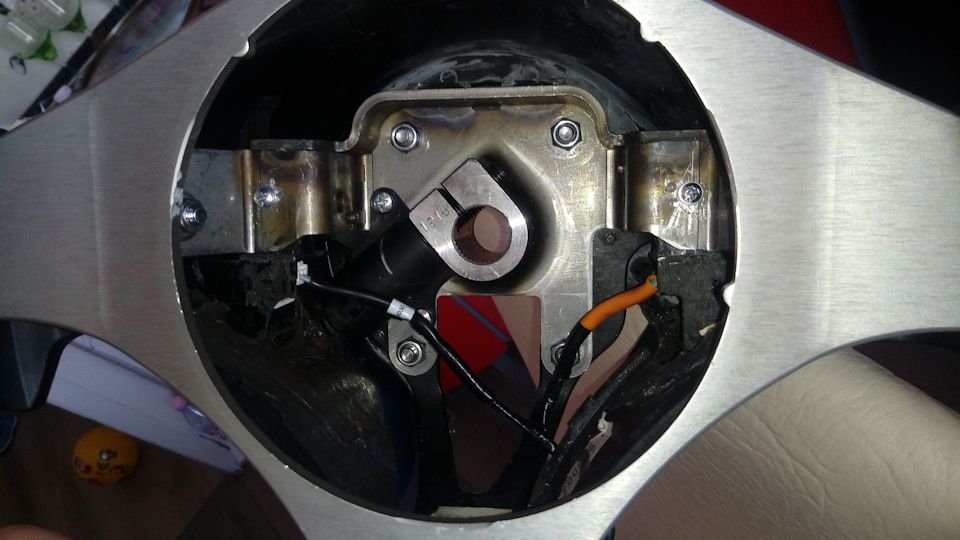

how about evo steering wheel + paddle shifters?



My torque converter is 2200 rpm and it is very little to inflate the turbine (stock torque converter 3200 rpm for Airtrek, 3800 rpm for Evo GTA).

Testing a new launch control algorithm with different settings and different throttle position.
This is my torque monster

https://youtu.be/DcDKeqqlxt0



Added pseudo random spark and fuel cut, like a Motec. Allows you to specify a seed that changes a pseudo random sequence of cuts. What ultimately affects the sound of launch control, rolling launch, and similar features

https://drive.google.com/file/d/1iMs...ew?usp=sharing




And immediately did DSG burp (random spark cut with spark retard) on gear shift

You Tube

and my buddy car

You Tube
