Converting the car to speed density
Originally Posted by kcevo
Here is the thread on the AEM forum that I used to convert the car to speed density.
http://forum.aempower.com/bbs/viewtopic.php?t=80
Evo wiring:
MAP sensor:

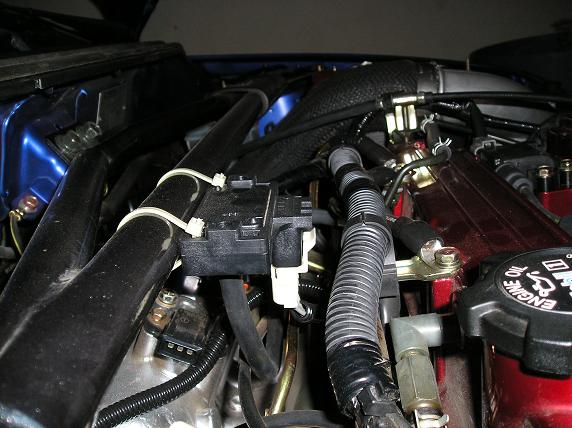

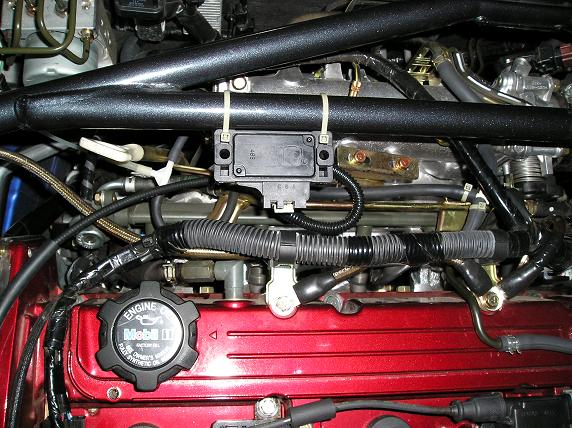

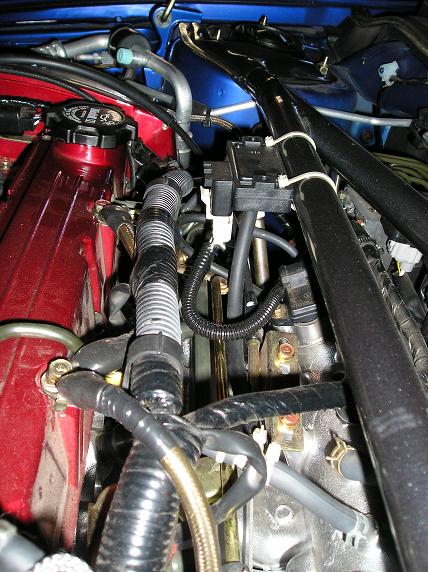

you are going to want to tap into the MDP sensor as mentioned in the 2G install. It is on the top of the intake manifold closer the FPR. The three wires are black = ground (pin 91), grey = power (pin 81), and yellow = is the signal wire (pin 73). The AEM 3.5 bar map sensor i installed had a plug with a red = 5v power, green = output, and black = ground. Wire it black to black, red to grey, and yellow to green, if this is the sensor you use.
.
http://forum.aempower.com/bbs/viewtopic.php?t=80
Evo wiring:
MAP sensor:
you are going to want to tap into the MDP sensor as mentioned in the 2G install. It is on the top of the intake manifold closer the FPR. The three wires are black = ground (pin 91), grey = power (pin 81), and yellow = is the signal wire (pin 73). The AEM 3.5 bar map sensor i installed had a plug with a red = 5v power, green = output, and black = ground. Wire it black to black, red to grey, and yellow to green, if this is the sensor you use.
.
Originally Posted by manOfaith
my aem map sensor harness has 1 unshielded wire also....does anything have to be done to that?
i figured that, as it didn't go through to the actual weatherpack connector. Just when i am doing things for the first time i ask lots of questions. thanks kcevo.
The only thing left to wire in is the wideband. I am slowly getting there...
The only thing left to wire in is the wideband. I am slowly getting there...
