you've read my mind. I plan on gradually reducing the load threshold and watch how the multiplier handles the knock. give me some time and ill get this testing done.

i dont know if this was covered but is it possible to find the rpm ranges for the three multiplier tables on the evo 8 rom?



Well I will be testing this myself.

However as I only got mine back on the road last night, and only done 100 miles so far, I haven't had the chance to hook up some det cans, so I can findout what knock is real and what is phantom (according to the cel I am not getting alot anyhow).



Thanks for that. It is definatly a field day for us with these knock issue solutions. Also, lucky for me that Eric has a 96940011 ECU. That clears up my questions then. I'll change the settings and see what happends.

BTW, DMA/live mapping, is that a direct memory access logging? That sounds pretty damn amazing!



The RPM ranges were controlled by the bit flag I mentioned earlier. It wasn't immediately clear how they were calculated. I think it would be easier to sort out by logging knockbase by RPM and say just doubling the middle value and logging with known safe ignition timing. You'll then see the RPM at which it switches from low to mid and then mid to high. It doesn't look like it interpolates, it is a sudden switch. The other alternative if this gets nowhere, is for me to find the address of the bit flag in your ECU and give you the address to add to your MUT table so you can log it and see the RPM at which it switches. If I had an 8 I would do this personally.

Yes, the logging/live mapping RAM maps was using high speed DMA (a feature in our ECU but unused as stock) to read and write large quantities of data very quickly - eg datalogging 20 times faster than usual, 2 kilobytes of ignition/fuel/boost/injector alt maps (with space left over) can be pushed through the OBD port in one third of a second at 62500 baud with the engine running smoothly. Search if interested, I released a test for 88590015, not done Evo 7/8, but there are some Evo 7 guys keen to test so might do it at some point. It is well tested on my JDM IX and has been very useful when mapping cars with cams, turbos, injectors etc that would need many flashes to get right. Trouble is it was a very complex patch and needed custom PC software, all this was a bit much for anyone except me that wrote it and understood it I think!



well i went out and tried lowering my knock threshold and raising my multipliers with success, unfortunately my tuning session was cut short by my favorite local constable. luckily I was let off with a verbal warning

Officer: Why do you have a laptop?
Me: well i have some low load knock im trying to fix
Officer: licence and registration
Me:

anyway, this is my new knock threshold:

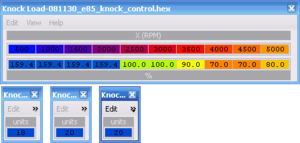

Knock multiplier Low RPM:


Knock multiplier Mid RPM:


Knock Multiplier High RPM:


Here is a moderate acceleration graph with the new settings:

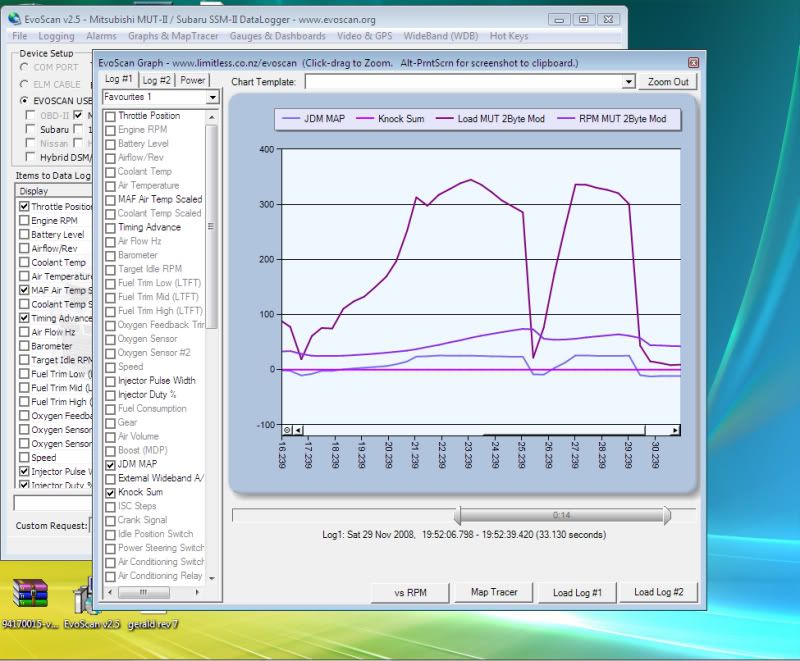

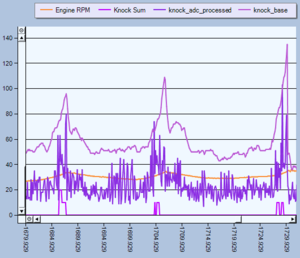

Here is full WOT pull with the new settings:


I think with a little more tweaking I can get this perfect



Looks great, except the constable bit Here you get to sit in the back of their police car, there they put you on the ground and wave guns at you? Maybe I watch too many movies



lol! I'm lucky I've never been caught tuning. I like to use forth and 5th.



As the DMA logging is a patch, I can see I will never have a chance to use his because of the whole 96940011 space issue. Oh well.



Does anyone have the XML code to put into my 94170015 definition? I am confused on what I need to enter for the addresses.....looks like justboosted02 has 94170008 and has had success. I just need to know if the address for 08 are the same for 15 and how to code the XML.

Any help would be appreciated....

~Zach



To save me a lot of disasm, best to just copy the 94170008 stuff if justboosted02 can put his xml fragment up. If the tables look the same, assume it is correct. If not, pls post again.

I have a logging setup ready to go to test some real knock sums when it is less icy, it should catch knocksum, knockbase, knockfiltadc, RPM, MAP, TPS for every spark event up to 6000 RPM. I would like to catch some graphs of knockbase being breached by knockfiltadc each time knocksum increments. I can usually get some sporadic knocksums up to 3 as long as I can use some boost in these weather conditions.



OK here is what I used for 94170014 or 94170015 that gave me the values I needed:


~Zach



im using 94170015, everyone with 94170008 or 94170014 should upgrade to 0015.

here is my xml if anyone wants to use it.



Just add the XML I posted above to your 94170015 XML definition in ECUFlash. If you use justboosted02's definition and don't have the same mod's (Tephra and other) you will see tables that don't exist in your ROM.

The best way is to add each MOD yourself to your OWN XML.

I have confirmed with another EVO that this works exactly as described. I used justboosted02's settings above because he has a 2.3 with the same stuff I have. Everything is perfect now.....

+10000000000 for getting this solved!

Awesome work guys!

~Zach



glad to hear that the settings are working for you

that is my entire xml so make sure you know what you are doing/looking at before you start modifying and changing your own xml file.



Bryan (razorlab) had a hard time with 3000-3500 rpm during a dyno session on Saturday, so he started the dyno at 3500 and the car was knock free. He tried lowering timing a whole bunch but it made no difference.

So yesterday I brought my laptop with me and had a chance to adjust values during an errand. The car is on E85 now and it still (phantom) knocked during that range. When I stopped, I made adjustments and it's virtually knock free. I don't mind random 2's and 1's but anything 3 or higher affect the whole pull.





Thanks for figuring out knock control and sharing it!
