ACD Relocation Help

Reply



Thread Tools Search this Thread
Old Jun 18, 2017, 02:01 PM   #1
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,504
Thanked 27 Times in 24 Posts

Drives: 05AS MR

ACD Relocation Help

Hi Guys,

I am done relocating my ACD pump physically. Just have to plumb it and finish wiring. I've tried plumbing via hard-line and re-purposing the EVAP line but am not satisfied with the outcome. Where the pump is on the passenger side rear requires a lot of bends and turns to get connected to straight piece of hard-line. So I want to use high pressure PTFE line and AN connections instead to connect to hard-line in between front and rear of car.

My question is with AN fittings and PTFE line. I've never used either before. I realize its easy to build it, but my question lies with what I need to order specifically.

The bolts thread pitch I need on either extreme are 14 x 1.5. Planning to use AN 6 size PTFE line and fittings.

Something like this:

ACD PUMP OUTPUT(14x1.5 inverted flare) <---> Rear PTFE hose <---> HARD-LINE(To get back to front) <---> Front PTFE hose <---> Connection to OE hose at Transfer-case(14x1.5 inverted flare)

Does anyone have experience in getting everything I need to build it?

Last edited by V.8MR; Jun 18, 2017 at 04:45 PM.
Offline

Reply With Quote
Old Jun 18, 2017, 02:04 PM   #2
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,504
Thanked 27 Times in 24 Posts

Drives: 05AS MR

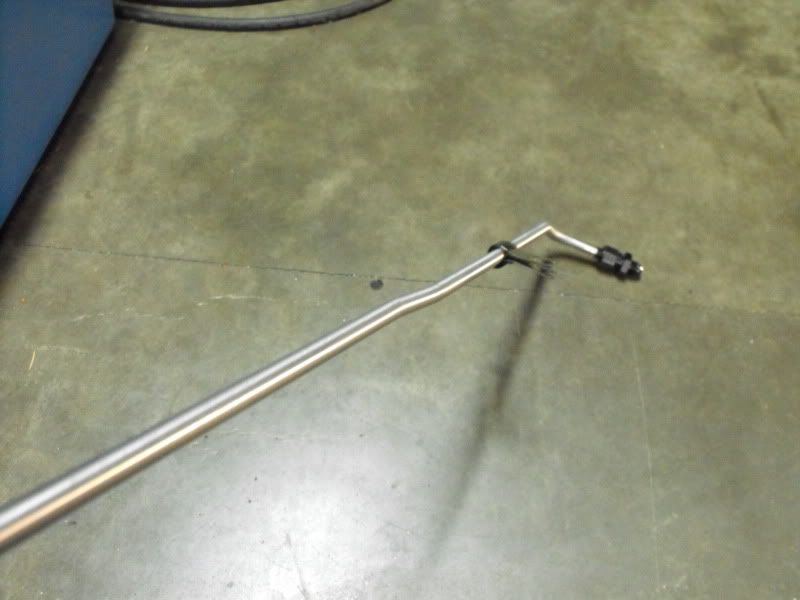

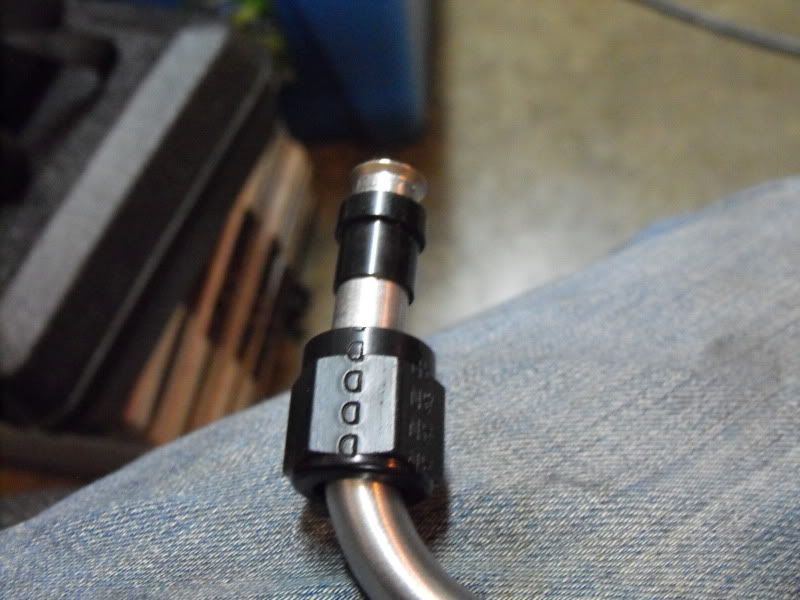

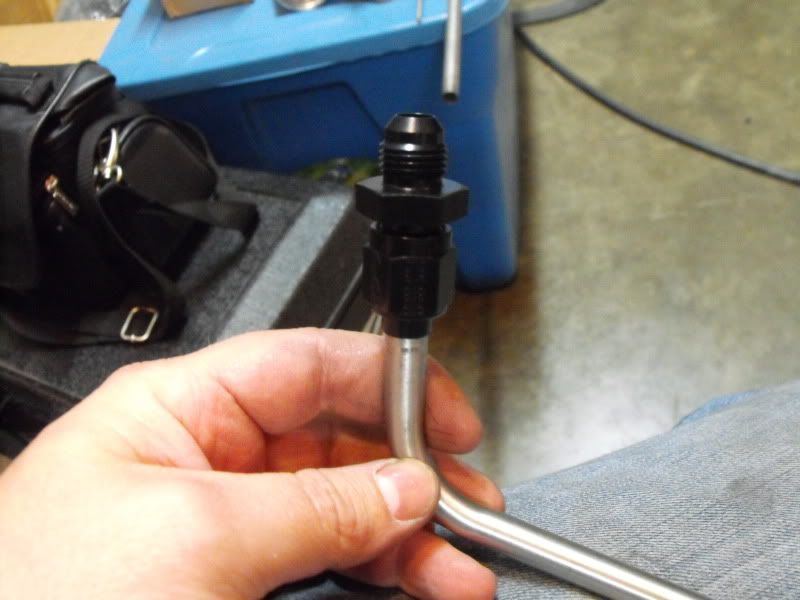

I am trying to emulate how R/TErnie did his. Here are some of his pictures. So needing help to order the right fittings/adapter at the pump, and then the fittings for a piece of 5/16" or 8mm hard-line, and same scenario at the front to connect to OE ACD line at the transfer-case.












Offline

Reply With Quote
Old Jun 18, 2017, 04:49 PM   #3
Evolved Member
iTrader: (9)

Abacus's Avatar

Join Date: Jun 2012
Location: FL
Posts: 661
Thanked 39 Times in 31 Posts

Drives: 06' IX SE

It's been years since I had mine relocated and highly recommend moving it into the trunk. I ended up keeping the factory hardline and welding a fitting to it . Driven fab has an evo x kit and you may be able to source the custom fitting they had made from them. -6 to m14 by 1.5 inverted flare.
https://www.driven-fabrication.com/p...-kit-pre-order
Offline

Reply With Quote
Old Jun 18, 2017, 05:32 PM   #4
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,504
Thanked 27 Times in 24 Posts

Drives: 05AS MR

That fitting, to go from 6an to 14 x 1.5 inverted flare seems to be the missing link. In my research so far I have put this Earls package together. 5/16" is AN5 which is hard to find. So in going to AN6 I'll use 3/8" hard-line.

1x 629106ERL Convoluted Swivel Hose End Bagged Packaging -6AN 90 deg.
2x 620106ERL Convoluted PTFE Hose End Bagged Packaging -6AN Straight
1x 624606ERL Convoluted Swivel Hose End Bagged Packaging -6AN 45 deg.
1x 682006ERL Convoluted Polyester Braid Hose -6AN 20 ft. Ultra Pro Convoluted Polyester Braid
2x AT981506ERL -6 AN Male Union
1x AT581906ERL Ano-Tuff 3/8" Tube Sleeve, (Pack of 2)
1x AT581806ERL Ano-Tuff Tube Nut, (Pack of 2)
NiCopp CNC-625 Nickel Copper Coil 3/8" x 25'
Offline

Reply With Quote
Old Jun 19, 2017, 10:41 AM   #5
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,504
Thanked 27 Times in 24 Posts

Drives: 05AS MR

Anyone know of a male AN6 to inverted flare 14mm x 1.5?
Offline

Reply With Quote
Old Nov 29, 2017, 12:18 PM   #6
Evolving Member
iTrader: (1)

dave_evolvix's Avatar

Join Date: May 2007
Location: Champaign, IL
Posts: 474
Thanked 1 Time in 1 Post

Drives: Evo IX SE

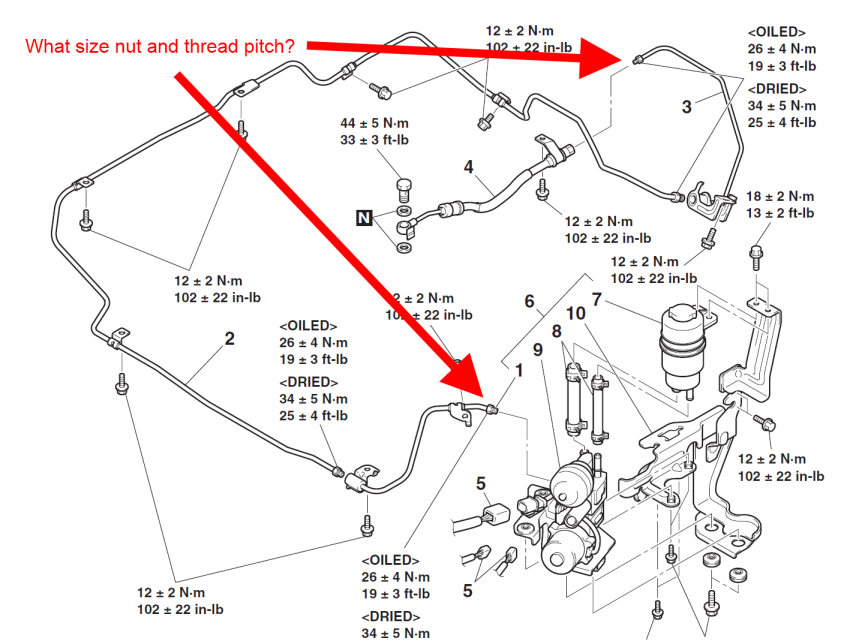

Bumping this thread up. Getting ready to do this on the offseason. One detail I'm not following is where/how people are accessing the ACD line/fitting on the transfer case. I followed the line from the ACD pump around the engine bay and I lost sight of it. I know there is a banjo bolt on the pump a soft hose section (See #4 on photo).

Are you guys connecting there? Dropping the transfer case and replacing all of the lines?

Offline

Reply With Quote
Old Nov 29, 2017, 01:24 PM   #7
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,504
Thanked 27 Times in 24 Posts

Drives: 05AS MR

I had it all out so it was easy to just remove ALL the old lines. I actually just ordered all the AN and PTFE line to build mine. Probably go with an AN banjo bolt for the connection to the tcase which I have not ordered yet.
Offline

Reply With Quote
Old Nov 29, 2017, 01:24 PM   #8
EvoM Super Moderator
iTrader: (41)

heel2toe's Avatar

Join Date: Jul 2007
Location: Massachusetts
Posts: 3,805
Thanked 34 Times in 32 Posts

Drives: 05 Evo SSL

Leave that flexible line with the banjo in place. If you follow the hardline it goes up in the trans tunnel over the driveshaft and there is a union there. I started my line right from there.

EDIT: My rec above is assuming youre planning on bending up a hardline. If youre going braided them I would make it go all the way. Personally I thought a hardline would look proper. I will say it was a giant PITA and if I didnt have a lift Im not sure I would have been able to bend up the hardline.
Offline

Reply With Quote
Old Nov 29, 2017, 01:27 PM   #9
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,504
Thanked 27 Times in 24 Posts

Drives: 05AS MR

I've basically mimicked RTErnie on this. Plan on a hardline for the long section going front to back, then 2 sections of braided line on either end.
Offline

Reply With Quote
Old Nov 29, 2017, 02:11 PM   #10
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 9,643
Thanked 370 Times in 353 Posts

Drives: 2005 Evo 8. 2011 F150 FX4

Just FYI, you don't need PTFE hose. PTFE hose is for fue line that is run inside the cabin and you don't the smell of fuel permeating the hose. Save a few bucks and just run standard braided AN line. Either stainless or the fiber braided stuff.
Offline

Reply With Quote
Old Nov 29, 2017, 03:58 PM   #11
Evolving Member
iTrader: (1)

dave_evolvix's Avatar

Join Date: May 2007
Location: Champaign, IL
Posts: 474
Thanked 1 Time in 1 Post

Drives: Evo IX SE

Quote:
Originally Posted by heel2toe View Post
Leave that flexible line with the banjo in place. If you follow the hardline it goes up in the trans tunnel over the driveshaft and there is a union there. I started my line right from there.

EDIT: My rec above is assuming youre planning on bending up a hardline. If youre going braided them I would make it go all the way. Personally I thought a hardline would look proper. I will say it was a giant PITA and if I didnt have a lift Im not sure I would have been able to bend up the hardline.
So I can access the union by removing the driveshaft? I need to crawl under there and have another look.

I'm planning on using hard-line to the majority, short sections of braided as-needed. No lift, just jackstands....
Offline

Reply With Quote
Old Nov 29, 2017, 04:04 PM   #12
EvoM Super Moderator
iTrader: (41)

heel2toe's Avatar

Join Date: Jul 2007
Location: Massachusetts
Posts: 3,805
Thanked 34 Times in 32 Posts

Drives: 05 Evo SSL

I think technically you could get to it without pulling the shaft but you're going at it with a flare nut wrench which is 6pt so it doesn't leave you much room if any to physically turn it before making contact with the driveshaft. For as easy as it is to pull the shaft I'd just do it. Make sure you have extra xcase fluid too bc it'll **** out of the tailshaft.
Offline

Reply With Quote
Old Dec 2, 2017, 11:07 AM   #13
Evolving Member
iTrader: (1)

dave_evolvix's Avatar

Join Date: May 2007
Location: Champaign, IL
Posts: 474
Thanked 1 Time in 1 Post

Drives: Evo IX SE

Quote:
Originally Posted by V.8MR View Post
That fitting, to go from 6an to 14 x 1.5 inverted flare seems to be the missing link. In my research so far I have put this Earls package together. 5/16" is AN5 which is hard to find. So in going to AN6 I'll use 3/8" hard-line.
I tried e-mailing driven fab to request their adapter for this tough to find item. I haven't heard back yet. Did you find an alternative source?
Offline

Reply With Quote
Old Dec 2, 2017, 02:27 PM   #14
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 9,643
Thanked 370 Times in 353 Posts

Drives: 2005 Evo 8. 2011 F150 FX4

Offline

Reply With Quote
The Following User Says Thank You to letsgetthisdone For This Useful Post:
dave_evolvix (Dec 2, 2017)
Old Dec 2, 2017, 02:30 PM   #15
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 9,643
Thanked 370 Times in 353 Posts

Drives: 2005 Evo 8. 2011 F150 FX4

Offline

Reply With Quote
