Piston ring problem


Old Apr 17, 2019, 07:46 PM
  #1
Newbie
Thread Starter

Join Date: Apr 2019
Location: Indonesia
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Piston ring problem

Dear all,

I am Vincent, a new member, want to ask about piston ring problem.

I just rebuilded my EVo 6, 4G63 engine with new Wiseco WSC-K596M86 pistons.

Crankshaft is Manley GSC-1002 and ACL race bearing (both new).

Engine was running about 600 KM with normal driving (no engine stress or revving).

3 days ago, we were tuning engine/ECU, boost target 1.5 bar, 7500 RPM max.

After just 2 driving/pull (less than 7K RPM), engine sounded strange.

We dismantled engine and found 3 out of 4 pistons have problem.

Piston rings are jammed.

What can be wrong that causes piston rings jammed?

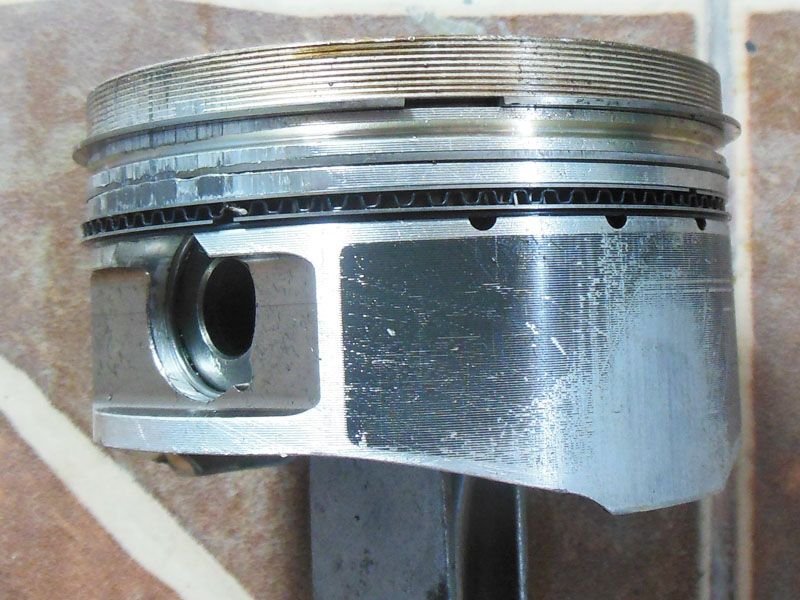

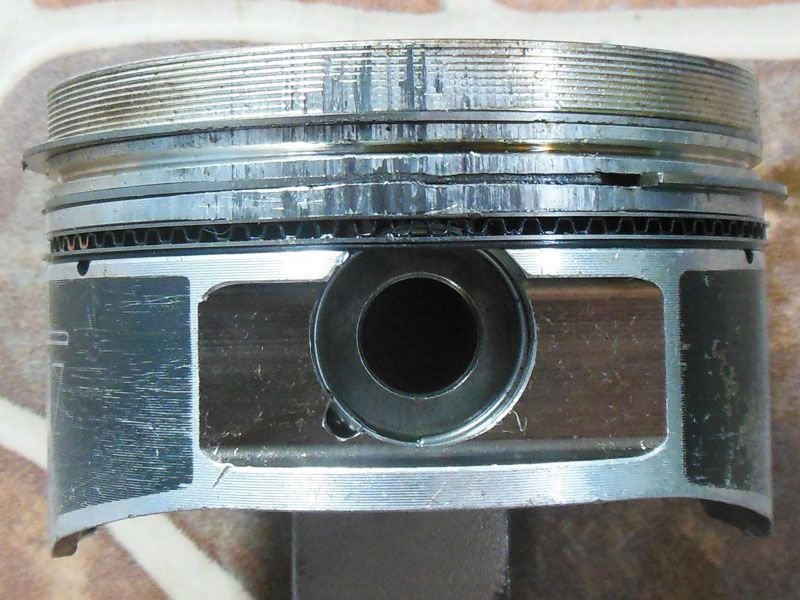

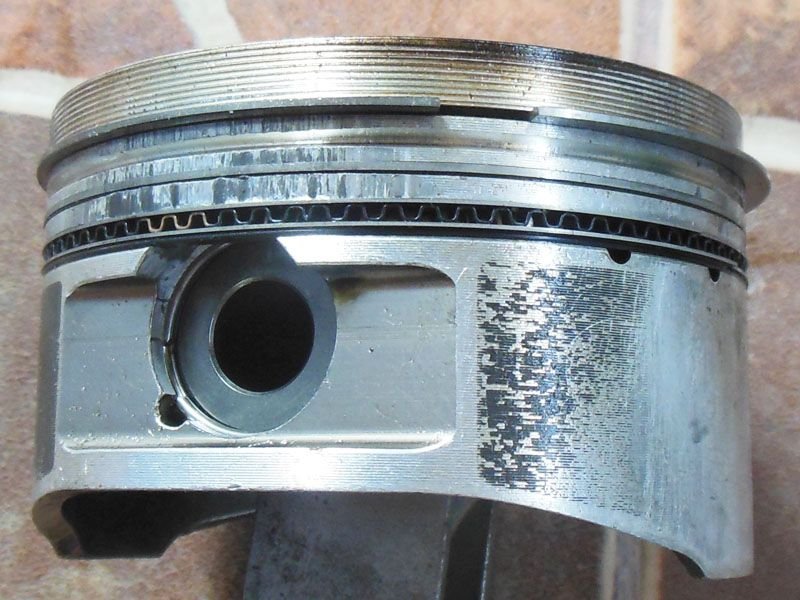

I enclose pictures for reference.

FYI, I drive this EVO for years without problem before rebuilding.


vincent.semesta is offline
Old Apr 17, 2019, 07:58 PM
  #2
EvoM Super Moderator
iTrader: (3)

MinusPrevious's Avatar

Join Date: May 2008
Location: Billings MT
Posts: 5,826
Received 786 Likes on 751 Posts
Hi Vincent. Welcome aboard @vincent.semesta

Hey, sorry to see the rebuild fail like that. Im not the best engine guy but wonder if the PTW clearance was too tight? (piston to wall). Possible piston ring gap issue? (too tight?)

Im sure the guys will chime in & give some insightful comment

Joe
MinusPrevious is offline
Old Apr 17, 2019, 08:32 PM
  #3
Evolving Member
iTrader: (1)

Lumpy Sticks's Avatar

Join Date: Sep 2018
Location: CA/AZ
Posts: 465
Likes: 0
Received 37 Likes on 35 Posts
Joe I think you nailed this one. Looks like too little piston to wall clearance to me. Especially if that's what it looks like after such a short time. Forged pistons grow more than cast too. Clearances are a very important thing!
Lumpy Sticks is offline
Old Apr 17, 2019, 08:49 PM
  #4
Newbie
Thread Starter

Join Date: Apr 2019
Location: Indonesia
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Thanks MinusPrevious and LumpySticks.

My mechanic said the same, may be wall clearance.

We brought engine block to machine shop where it was bored.

They measured engine bores piston by piston, everything is according to Wiseco manual.

This machine shop is quite familiar with EVO block.

Is there something wrong with con rods? They are used not new.

All bearings are in good shape.
vincent.semesta is offline
Old Apr 17, 2019, 08:53 PM
  #5
Newbie
Thread Starter

Join Date: Apr 2019
Location: Indonesia
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
"Possible piston ring gap issue? (too tight?)"

We did not touch anything with ring gap.

I sent email to Wiseco but have not received response from them.
vincent.semesta is offline
Old Apr 17, 2019, 09:10 PM
  #6
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 12,196
Received 690 Likes on 653 Posts
The rings are file fit, so they would need the gap adjusted. But that 100% looks like insufficient piston to wall clearance
letsgetthisdone is online now
Old Apr 17, 2019, 09:46 PM
  #7
Newbie
Thread Starter

Join Date: Apr 2019
Location: Indonesia
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
"But that 100% looks like insufficient piston to wall clearance"

Wall clearance is 0.101 mm based on machine shop.

Is this too tight?

What wall clearance should be for 1.5 bar boost (GT3076 trubo)?

I never drive car daily time, always night time.

Temperature here around 23 - 26 deg C at night with high humidity.

Sorry for all different measurement unit.

I have no idea in mile, inch, Fahrenheit.
vincent.semesta is offline
Old Apr 18, 2019, 12:17 AM
  #8
Evolved Member
iTrader: (1)

2006EvoIXer's Avatar

Join Date: Jul 2012
Location: California
Posts: 2,847
Received 136 Likes on 129 Posts
1 inch = 25.4mm
F = C 9/5 + 32
1 mile = 5,280 feet
1 foot = 12 inches

0.101mm is about 0.004-inch
2006EvoIXer is offline
Old Apr 18, 2019, 01:50 AM
  #9
Evolved Member

Join Date: Mar 2008
Location: Croatia
Posts: 1,476
Received 97 Likes on 85 Posts
Originally Posted by vincent.semesta View Post
"Possible piston ring gap issue? (too tight?)"

We did not touch anything with ring gap.

I sent email to Wiseco but have not received response from them.
0.1 mm is ok for wiseco pistons provided it is the real and correctly measured PTW
Rings that come with wiseco, as has been posted above, are filt to fit rings.. i.e. you need to measure the ring gap and file the ring to get the propper ring gaps...
You can take those rings out and measure the gaps.. ring gap instructions are included with the pistons/rings when you buy them but off the top of my head, they should be .45 for top, .55 for second ring.... as defined by wiseco..
Take a picture of the ring ends I bet they are polished..

Looking at the pic of the pistons the PTW looks too small.. so I kind of doubt that it is .1 mm.. (where did they measure the piston dimension????)
kikiturbo is offline
Old Apr 18, 2019, 02:35 AM
  #10
Newbie
Thread Starter

Join Date: Apr 2019
Location: Indonesia
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Piston ring problem









Thanks 2006EvoIXer.

"you need to measure the ring gap and file the ring to get the propper ring gaps"

We didnt do this thing, big mistake.

I thought pistons were new and just installed them.

Mechanic also did not mention to measure ring gap.

We both made very big mistake.

"where did they measure the piston dimension"

Mechanic suspects problem is caused by wall clearance.

Then we brought engine block and pistons to machine shop.
vincent.semesta is offline
Old Apr 18, 2019, 02:43 AM
  #11
Newbie
Thread Starter

Join Date: Apr 2019
Location: Indonesia
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
"they should be .45 for top, .55 for second ring"

Are they in mm or inch?

It is more than 0.45 mm and 0.55 mm when I bought them.

It is too big if it is in inch (0.45 x 25.4 = 11.43 mm).
vincent.semesta is offline
Old Apr 18, 2019, 02:57 AM
  #12
Newbie
Thread Starter

Join Date: Apr 2019
Location: Indonesia
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Piston ring problem

I dont have filler gap to measure.

Gap is around 1 mm for top ring.



vincent.semesta is offline
Old Apr 18, 2019, 07:40 AM
  #13
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 12,196
Received 690 Likes on 653 Posts
Is it .1mm now that you wore .08mm off the pistons?

You may not have finished gapping the rings, but wiseco's rings only usually about .08-.1mm removed, so they would still run fine until you really turned it up.

So, again, those pistons look like insufficient PTW, or it could be detonation. But I'm still leaning towards PTW.
letsgetthisdone is online now
Old Apr 18, 2019, 08:10 AM
  #14
Newbie
Thread Starter

Join Date: Apr 2019
Location: Indonesia
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Piston ring problem

"Is it .1mm now that you wore .08mm off the pistons?"

From picture, caliper showing 1.00 mm.

Based on caliper, top ring gap is around 1.00 mm.

"it could be detonation"

There was no sign of detonation.

I drove the car that night while tuner sit next to me.

We just started tuning ECU, then stop after 2 pull.

FYI, there is dyno machine in my town nor tuner.

People here call tuners from Jakarta, Malaysia, Singapore.

All tuning must be done on public street/road.

Luckily there is no road speed limit.

We can drive as crazy as we want as long as nobody complains (usually noisy sound).




vincent.semesta is offline
Old Apr 18, 2019, 08:15 AM
  #15
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 12,196
Received 690 Likes on 653 Posts
I'm not talking about the ring gap, I'm talking about the piston to wall.

You came here with a blown up engine and the correct theory of PTW issue is something you are denying even though it's very clear that's what it is. Either clearance was overall too tight, or the bores were out of round or not straight and ate itself up.

You cannot measure ring gap with a caliper. the difference between .015" and .020" is not discernible by the naked eye. You have to use feeler gauges.
letsgetthisdone is online now
