Thanks Bill. The diagram I posted is from the Evo 8 Body Repair Manual, not CAPS. I took a look at PNC 02807B/MR592000; that's the engine side (right-hand) mount, and is shown in 42-180.

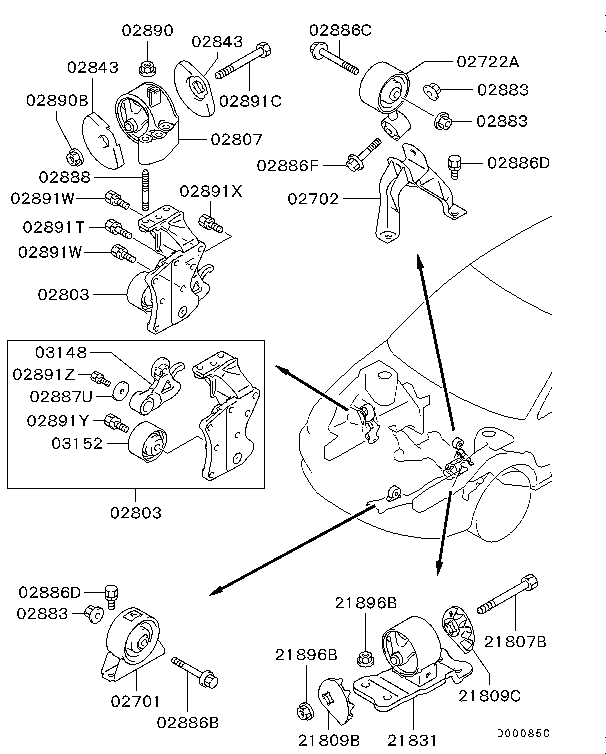

Interestingly the part that bolts to it is PNC 02807/MR454434, in diagram 11-510. The part that bolts to the "mystery" bracket I'm looking for is PNC 21831/MR491558. By the same logic, the welded bracket it bolts should be PNC 21831B; I can't see if there's a part number for that PNC though. Also, as shown in the body repair manual, it's actually three pieces.



that part number your looking for is in fact mr592000, description = bracket, eng fr mount.



Bill,
Part number for the tiny bulb in the interior gauge dimmer module. Or I'll take the part number for the module itself. Gracias!



Actually, no. That's the part number for the engine mount bracket on the right (passenger) side. On the left (driver's) side, the bracket is a transmission mount bracket. Bill did some digging and made some calls for me (thanks Bill! ) and found the answer. The only way to get the transmission mount bracket is to order the left (driver's) side front sidemember as an assembled unit, 65009AL in the CAPS diagram, part number MN161475.

Seems like a curious (and expensive) omission on Mitsubishi's part... but then again chances are if you need a new tranny bracket you also need a new sidemember; my mistake was ordering parts of the latter separately. Ah well.



Looks like stuck getting the whole thing, so the number you seek is MR190954



No prob, and good luck!



Hey guys,

Im looking for 6512A149HB but it looks like all SE lips have been superceeded by WA which is WW prepainted lip?

Is it no longer possible to order and SE lip in any color but WW?

Thanks!



Nope, you are stuck getting it in white. As a matter of fact, almost all the plastic body pieces like lips, bumpers, wings, are all coming pr-painted white. Sorry man. But trust me on that one, I have sold over 2 dozen SE lips, and every single one has been white.



Hey all, I an looking for the part numbers for a lancer evo. Here is what I need

Rear caliper mounting bolts
Rear Caliper brake line bolt, the one that goes in the banjo
Rear Caliper Brake line bolt washer

Thanks



^^^^
I need the two rubber intercooler pipes that connect to the intercooler off an evo 8. I also need to know the part numbers, and cost.


Evo 8 : MR312000 turbo pipe <--- is this the black pipe that connects to the turbo, from the lower intercooler pipe? I need this part as well.

Pricing and shipping to 90620

thanks in advance.

Chris



Here's an obscure one...
MD770376 clutch release lever
The part that moves the TOB...
Hope nobody else finds out like I did....



Rear caliper mounting bolts : MR370730
Rear Caliper brake line bolt, the one that goes in the banjo : MR249625
Rear Caliper Brake line bolt washer : MA111832



[QUOTE=DC_TypeR;4172174]

^^^^
I need the two rubber intercooler pipes that connect to the intercooler off an evo 8. I also need to know the part numbers, and cost.

Dr. Side Coupler : MR993892 : $27.56
Pass. side coupler: MR968013 : $21.74



Evo 8 : MR312000 turbo pipe <--- is this the black pipe that connects to the turbo, from the lower intercooler pipe? I need this part as well.

Yes, it is, that goes for $26.54, and if you need the gasket as well, it is MR281085 ($3.02)

Pricing and shipping to 90620

Shipping, would run about $12/$13 UPS ground.

Thanks!





Is there a part # for the plastic on the backs of the front seats? This is for an
evo ix and I have heard "rumors" that this plastic can be purchased seperate from the entire seat back,is this true or just "rumored"? Thanks.
BTW,Leather seats.
