Where is the tach wire?

Thread Tools

Search this Thread

Old Sep 22, 2003 | 08:41 PM
Share
  #1
turbonawd's Avatar
turbonawd
Thread Starter
Newbie

Joined: Feb 2003
Posts: 30
Likes: 0
Where is the tach wire?
Does anyone know where the tach wire is located on the Evo besides on the ECU..

I'm trying to install a Remote Start Alarm.
Reply
0
Old Sep 22, 2003 | 09:00 PM
Share
  #2
mrdecibel's Avatar
mrdecibel
Evolved Member
iTrader: (1)

Joined: Feb 2003
Posts: 900
Likes: 0
From: Chicago
Why are you avoiding the ECU. If you avoid ECU, you will have to grab it under the hood.
Reply
0
Old Sep 22, 2003 | 09:34 PM
Share
  #3
turbonawd's Avatar
turbonawd
Thread Starter
Newbie

Joined: Feb 2003
Posts: 30
Likes: 0
Originally posted by mrdecibel
Why are you avoiding the ECU. If you avoid ECU, you will have to grab it under the hood.
do you know where it is under the hood?

I might have to just use the ECU if I can't find it..
Reply
0
Old Sep 22, 2003 | 10:02 PM
Share
  #4
Deceit's Avatar
Deceit
Evolved Member
iTrader: (6)

Joined: Jul 2003
Posts: 905
Likes: 0
From: Ocean, NJ
get the field harness so you wont have to tap into your "real" ecu
Reply
0
Old Sep 23, 2003 | 03:49 PM
Share
  #5
Coolguy949's Avatar
Coolguy949
Evolved Member
iTrader: (10)

Joined: Jan 2003
Posts: 1,630
Likes: 0
From: Orange County, CA

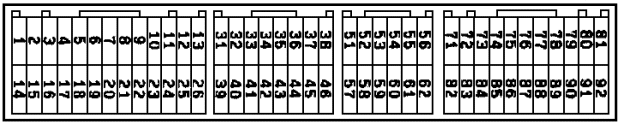

You need to tap pin 89 on the ECU known as the "Crankshaft Position Sensor". This is where your tach signal can be obtained for devices like turbo timers, fuel controllers, etc.
Attached Thumbnails Where is the tach wire?-ecu-harness-evo.gif
Reply
0
Old Sep 25, 2003 | 08:05 AM
Share
  #6
SpeedFactor's Avatar
SpeedFactor
Newbie

Joined: Sep 2003
Posts: 12
Likes: 0
From: Arlington, Virginia
The Tach Wire is located as a Black/Green wire located under the valve cover. You can find it running into the Direct Ignition. Sounds like you are installing remote start on your alarm ?
Reply
0
Old Sep 25, 2003 | 08:19 AM
Share
  #7
zupber4930's Avatar
zupber4930
Evolved Member
iTrader: (22)

Joined: May 2003
Posts: 994
Likes: 0
You can also find it at the cluster (i.e. Tach wire for the Tachometer) broblem is I forgot the color of it. I want to say white, but might be green with silver dots.
Reply
0

Trending Topics

Old Sep 25, 2003 | 05:55 PM
Share
  #8
Coolguy949's Avatar
Coolguy949
Evolved Member
iTrader: (10)

Joined: Jan 2003
Posts: 1,630
Likes: 0
From: Orange County, CA
On my eclipse behind the cluster it was green with silver dashes when I installed a monster tach a couple years ago.
