I'm trying to do some 3D modeling of the Evo and need some pics from directly front, right, left, back, and most importantly TOP (straight down). If you have any pics like that please post them here.

Something like this of the VIII would be great...

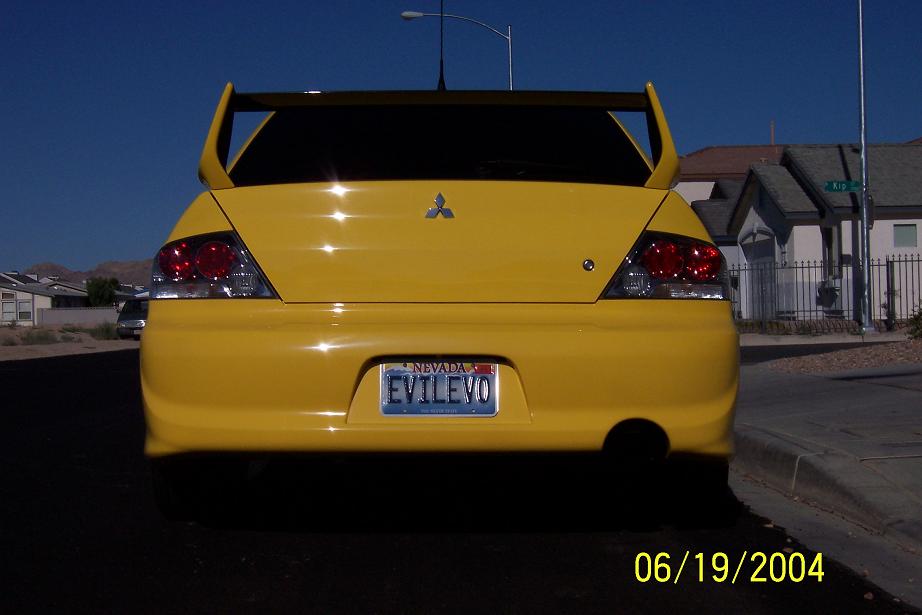

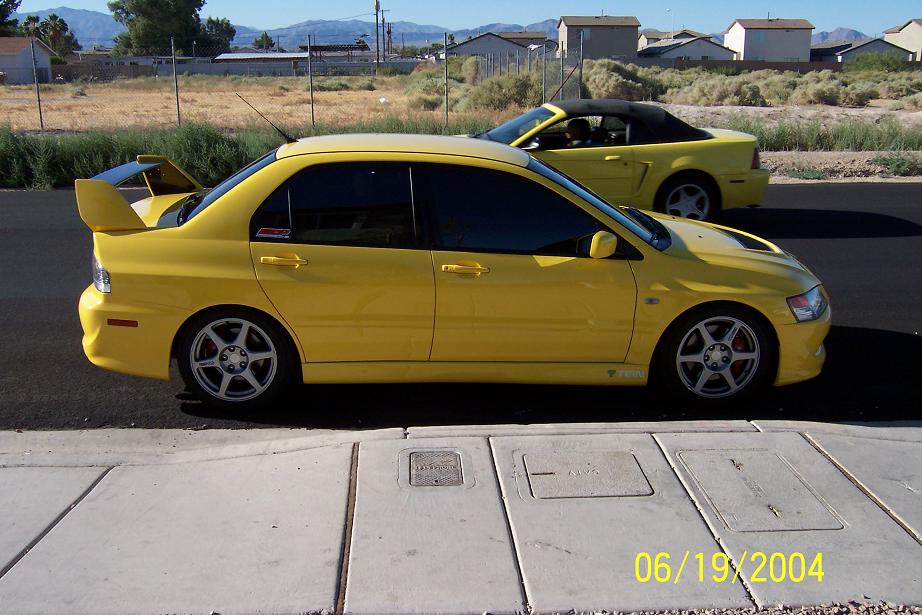

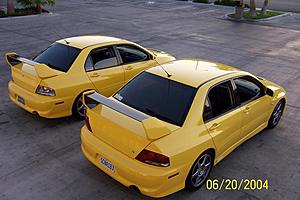

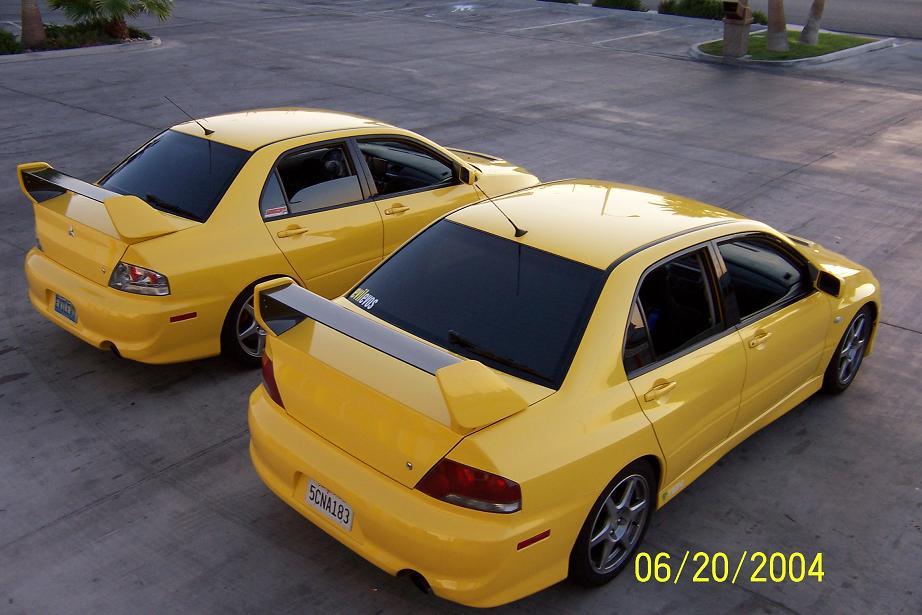

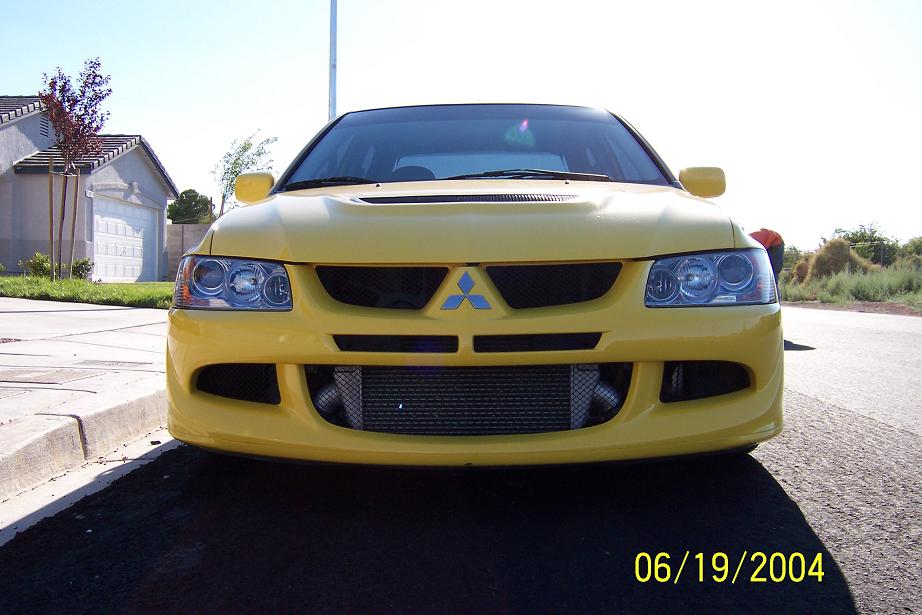

Here is a couple not sure if its what you need but



bump, i don't have any but maybe someone else will



thanks guys. and those pics will definitely help.



What software are you using?



It'd be real sweet if we had the CAD model of whole EVO for all the mechanicals. If I had the time and resources, I'd draw up the whole car in Pro/E. That would be a fun project.



I'm doing the modeling in SolidWorks. If all goes well eventually I want to start doing some design work. To have the entire Evo in CAD is a mechanical DREAM. Of course we both know Mitsubishi is sitting on those files somewhere.



Hey, I'm currently in school for 3D animation right now, and was planning on making the Evo also. I found a good schematic view of it too. Let me know when you finish and how it turns out!

http://www.onnovanbraam.com/popup.ph...ars&s=20&w=557
