Evo x ayc read
Does anyone have pinout for reading and flash ayc ecu in evo x? We have searched all internet and can't find it anywhere.
Reply
0
Old Nov 22, 2022 | 08:26 AM
Share
  #2
Biggiesacks's Avatar
Biggiesacks
EvoM Community Team Leader
15 Year Member
Liked
Loved
Community Favorite

Joined: Aug 2005
Posts: 5,690
Likes: 708
From: West Coast

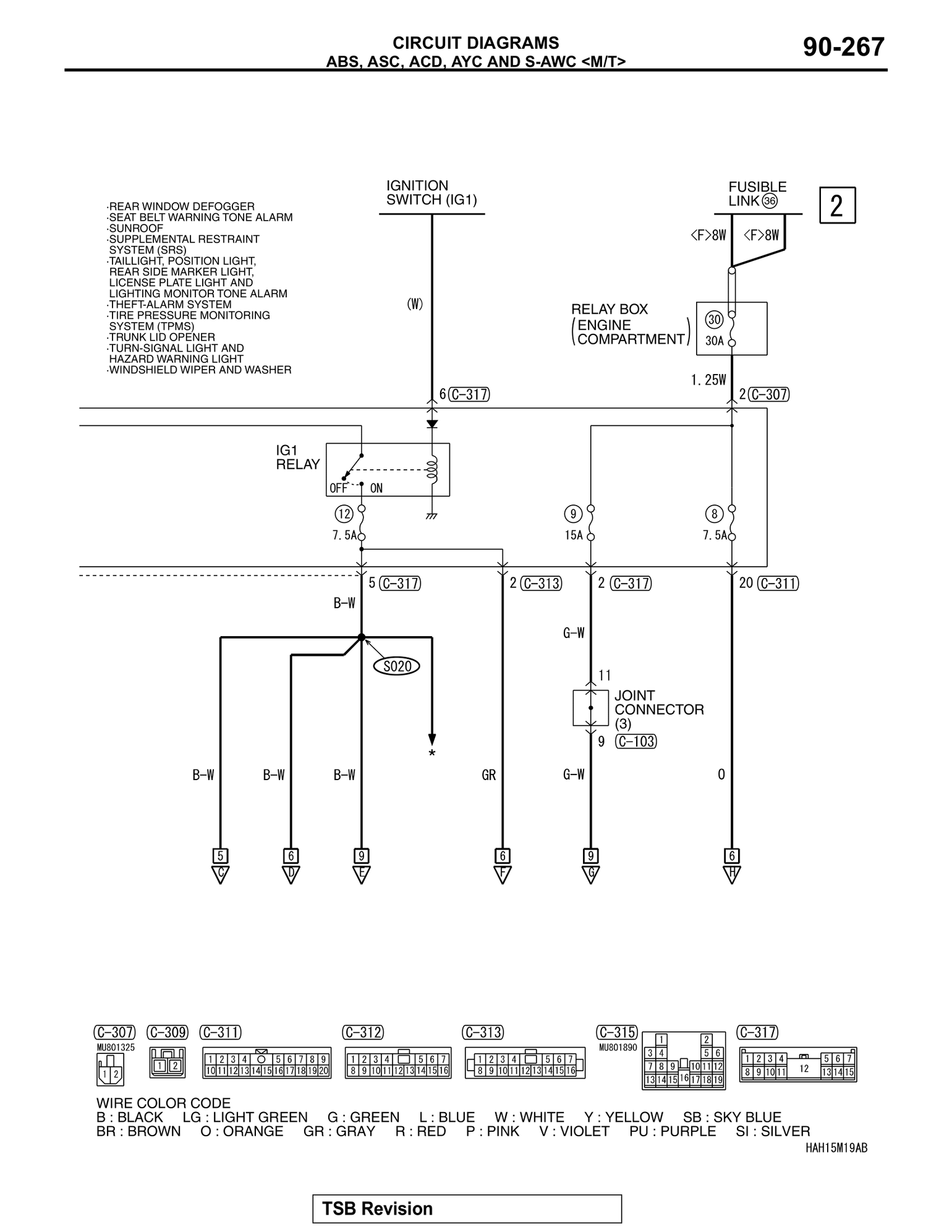

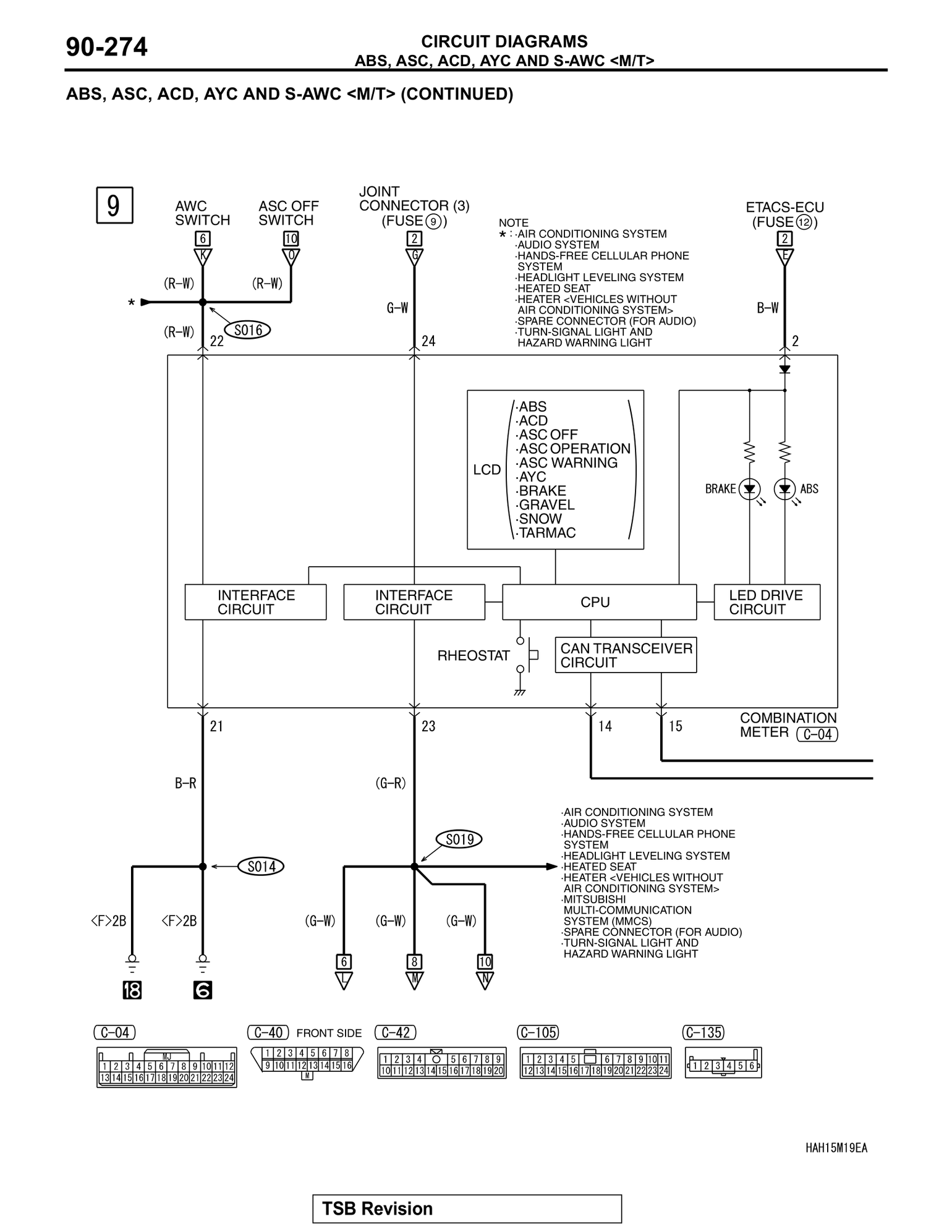

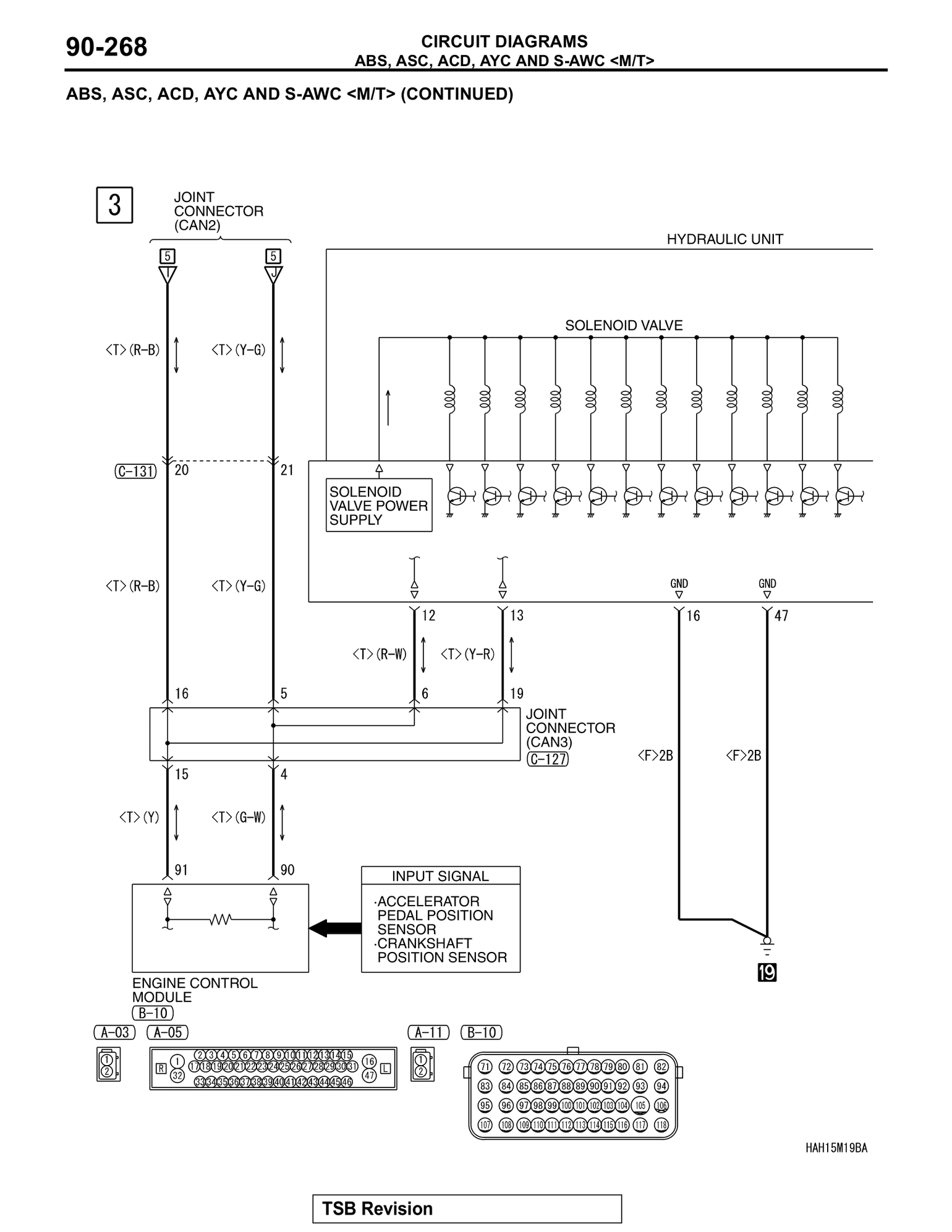

Here is the circuit diagram from the FSM











Reply
0
Old Nov 22, 2022 | 08:33 AM
Share
  #3
Biggiesacks's Avatar
Biggiesacks
EvoM Community Team Leader
15 Year Member
Liked
Loved
Community Favorite

Joined: Aug 2005
Posts: 5,690
Likes: 708
From: West Coast
Just guessing here, but it looks like CAN passthrough from ETACS.

From Pg. 90-270

C-46 Pin 4 and 5
Reply
0
Old Nov 22, 2022 | 08:42 AM
Share
  #4
splattj's Avatar
splattj
Evolved Member
20 Year Member
Liked
iTrader: (2)

Joined: Jun 2002
Posts: 1,020
Likes: 113
From: Allendale, MI
GEMS made a programmable AYC module. As far as I know the OEM unit isn't programmable.


Reply
0
Old Nov 22, 2022 | 11:52 AM
Share
  #5
RazorLab's Avatar
RazorLab
EvoM Guru
20 Year Member
Liked
Loved
Community Favorite
iTrader: (8)

Joined: Aug 2003
Posts: 14,094
Likes: 1,092
From: Mid-Hudson, NY
Here is a readout:

http://norcalmotorsports.org/users/b..._MT_ACD_EU.hex
Reply
0
Old Nov 23, 2022 | 08:00 AM
Share
  #6
splattj's Avatar
splattj
Evolved Member
20 Year Member
Liked
iTrader: (2)

Joined: Jun 2002
Posts: 1,020
Likes: 113
From: Allendale, MI
And, in case you were curious as to what the GEMS unit was doing:

Reply
0
