Lancer Aftermarket Forced Induction Tech Discuss forced induction related specs and upgrades for custom aftermarket setups.

Turbo Lancer picture thread Post a pic of your turbo lancer!

Thread Tools

Search this Thread

Old Mar 23, 2015 | 05:58 PM
  #1
marcouxa1's Avatar
Thread Starter
Evolved Member

Joined: Oct 2010
Posts: 522
Likes: 22
From: Montreal, Québec
Turbo Lancer picture thread Post a pic of your turbo lancer!

Hey guys i have been wondering how your turbo lancer looked like! Post a few pictures of your car with your mods list below!!!

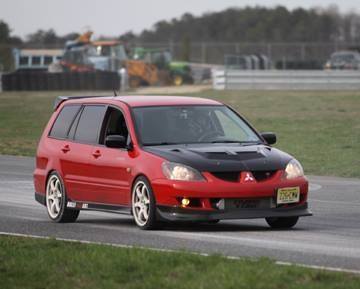

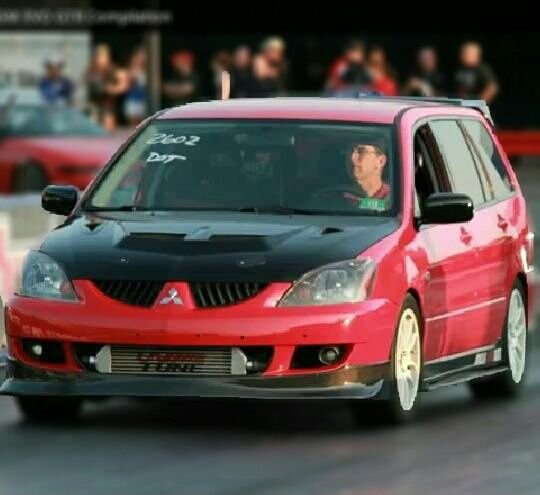

Here is my car currently
Turbo Lancer picture thread Post a pic of your turbo lancer!-lancer-2015.jpg Turbo Lancer picture thread Post a pic of your turbo lancer!-lancer-2015-2.jpg Turbo Lancer picture thread Post a pic of your turbo lancer!-lancer-2015-3.jpg

Parts list:
Evo 9 td05hr 16g6 10.5t turbo
Evo 8-9 DC Sports polished ss exhaust manifold
Evo 8 aftermarket stainless dump pipe w/O2 housing
Evo 8 aftermarket stainless 3'' downpipe
Evo 9 j pipe
Evo 9 maf w/maf adapter
Evo 8 oil feed/return lines and fittings
Evo 8 water feed/return lines and fittings
Cp forged pistons 82mm (3.228'') 0.50mm (0.020'') oversize
K1 forged connecting rods
Arp head studs
Wrx 440cc light blue injectors
Walbro 255 lph fuel pump
NGK BKR7E spark plugs
Spal 12'' radiator pull slim fan
Kia sportage 2001 clutch slave cylinder
ACT 6 puck sprung clutch disc with heavy duty pressure plate
K&N cone air filter
Greedy type rz bov
Aftermarket Intercooler/intercooler piping/couplers
3'' custom exhaust
Amsoil 10w30 dominator racing oil and honda oem coolant w/redline waterwetter
Aem 52mm wideband eugo afr gauge w/single pod
Glowshift triple A pillar pod with psi/oil temperature/oil pressure gauges
Turbosmart manual boost controller
Carbon creations carbon fiber hood w/ sickspeed hood pins
16'' Focal black 16x7 wheels
Spec D front and rear strut bar
Evo 8 JDM recaro seats
Tenzo black w/red stitches shift knob
D1 spec oil catch can w/small filter
Wilwood front big brake kit w/Hawk hp+ pads
Rear disc brake conversion w/ EBC rotors/yellowstuff pads
Ksport gt pro coilovers
Dunlop direzza z2 tires 225/50R16
Progress 19mm rear sway bar
Mishimoto oil cooler
Mishimoto oil sandwitch plate w/ thermostatic switch
Sparco 4 point harness
Evo 8 jdm cluster

Last edited by marcouxa1; Mar 23, 2015 at 06:05 PM.
Reply
Old Mar 24, 2015 | 02:08 PM
  #2
marcouxa1's Avatar
Thread Starter
Evolved Member

Joined: Oct 2010
Posts: 522
Likes: 22
From: Montreal, Québec
Come on guys don't be shy!!! it would be awsome to have a thread with everyone's project on here!
Reply
Old Mar 24, 2015 | 06:58 PM
  #3
jakermeister's Avatar
Evolved Member
iTrader: (11)

Joined: Sep 2006
Posts: 1,194
Likes: 2
From: Colorado
My bumper doesn't look so good. Lol I'll get a pic later. I need to do a bit more trimming.
Reply
Old Mar 27, 2015 | 04:27 PM
  #4
marcouxa1's Avatar
Thread Starter
Evolved Member

Joined: Oct 2010
Posts: 522
Likes: 22
From: Montreal, Québec
Originally Posted by jakermeister
My bumper doesn't look so good. Lol I'll get a pic later. I need to do a bit more trimming.
Come on now i have tie wraps on my bumper it doesnt matter post pics guys lets go!!!
Reply
Old Mar 28, 2015 | 11:20 AM
  #5
jakermeister's Avatar
Evolved Member
iTrader: (11)

Joined: Sep 2006
Posts: 1,194
Likes: 2
From: Colorado
I'll get pics when I get my bumper back on. I'm waiting on my pipe still. The car is in my garage waiting.
Reply
Old Apr 7, 2015 | 07:40 PM
  #6
slatermvp's Avatar
Evolved Member
iTrader: (13)

Joined: Apr 2007
Posts: 1,311
Likes: 0
From: sin city,ma
Mine is just sitting there. Hasn't been driven in like 2 years. My little boy was ecstatic the other day when I turned it on.
Reply
Old Apr 8, 2015 | 12:01 AM
  #7
Evodreamer28's Avatar
Evolved Member
iTrader: (14)

Joined: Nov 2004
Posts: 743
Likes: 0
From: Pa
Ah how I miss driving mine.......






Reply
Old Apr 8, 2015 | 02:52 AM
  #8
347-dis's Avatar
Evolving Member

Joined: Nov 2011
Posts: 150
Likes: 0
From: Brisbane, Australia
^ you sell yours?
Reply
Old Apr 8, 2015 | 03:04 PM
  #9
marcouxa1's Avatar
Thread Starter
Evolved Member

Joined: Oct 2010
Posts: 522
Likes: 22
From: Montreal, Québec
Originally Posted by slatermvp
Mine is just sitting there. Hasn't been driven in like 2 years. My little boy was ecstatic the other day when I turned it on.
Got any pics of it? Would be nice
Reply
Old Apr 11, 2015 | 12:20 AM
  #10
Evodreamer28's Avatar
Evolved Member
iTrader: (14)

Joined: Nov 2004
Posts: 743
Likes: 0
From: Pa
Originally Posted by 347-dis
^ you sell yours?
Nope. Sitting in the driveway basically in pieces.
Reply
Old Apr 16, 2015 | 05:41 PM
  #11
slatermvp's Avatar
Evolved Member
iTrader: (13)

Joined: Apr 2007
Posts: 1,311
Likes: 0
From: sin city,ma
Originally Posted by marcouxa1
Got any pics of it? Would be nice
Yeah I'll put one up this weekend.
Reply
Old Apr 26, 2015 | 11:29 AM
  #12
slatermvp's Avatar
Evolved Member
iTrader: (13)

Joined: Apr 2007
Posts: 1,311
Likes: 0
From: sin city,ma



This is how it sits right now. Ugly as heck!!
Reply
Old May 2, 2015 | 01:58 PM
  #13
marcouxa1's Avatar
Thread Starter
Evolved Member

Joined: Oct 2010
Posts: 522
Likes: 22
From: Montreal, Québec
There is no more than 3 turbo lancers here or what?!!!! Come in guys post some pics!!
Reply
Old May 2, 2015 | 09:39 PM
  #14
OZR_Lancer's Avatar
Evolved Member
iTrader: (2)

Joined: Feb 2007
Posts: 1,176
Likes: 7
From: San Diego - SDSU Area
Originally Posted by marcouxa1
There is no more than 3 turbo lancers here or what?!!!! Come in guys post some pics!!
sure theirs more, but some may have sold their cars and moved on and/or don't post to forums...
Reply
Old Dec 29, 2015 | 09:47 AM
  #15
truthdweller's Avatar
Evolved Member
Veteran: Navy
iTrader: (1)

Joined: May 2011
Posts: 1,732
Likes: 9
From: So. Jersey (San Diego native)



17 x 7 Gram Lights





IMG 20150125 184659





233388 2004 lancer sportback ralliart build img 20141011 171541 zps9x3hse8f





IMG 20150212 123252





Reply
