Originally Posted by Zeus
This is getting really interesting...
+1
Old Jan 8, 2006 | 08:30 AM
  #17
freedom's Avatar
Thread Starter
Evolved Member
iTrader: (1)

Joined: Jun 2003
Posts: 755
Likes: 0

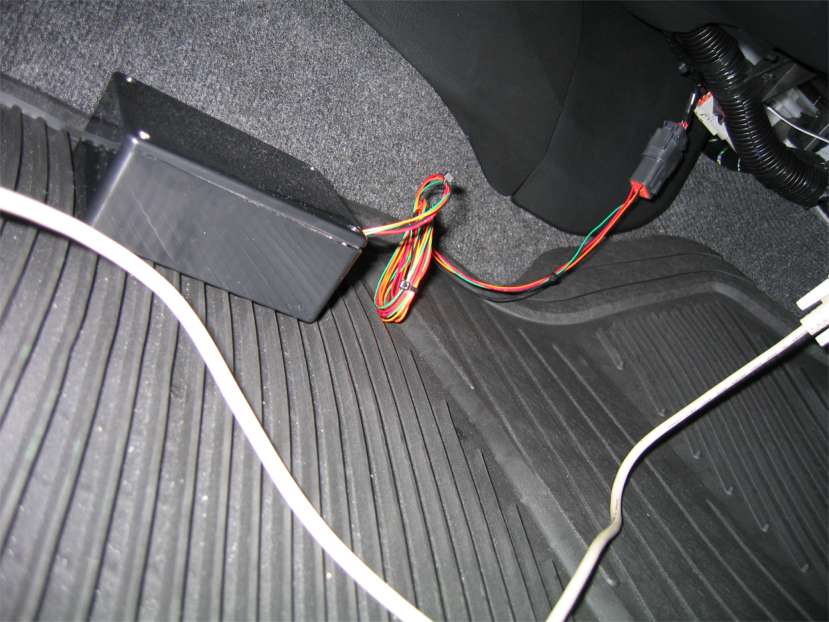

I have the functional prototype integrated with the car as shown in the attached picture. To be honest I'm not happy with the size of the unit. In a week or so I will have something that is a small fraction of this volume in hand.

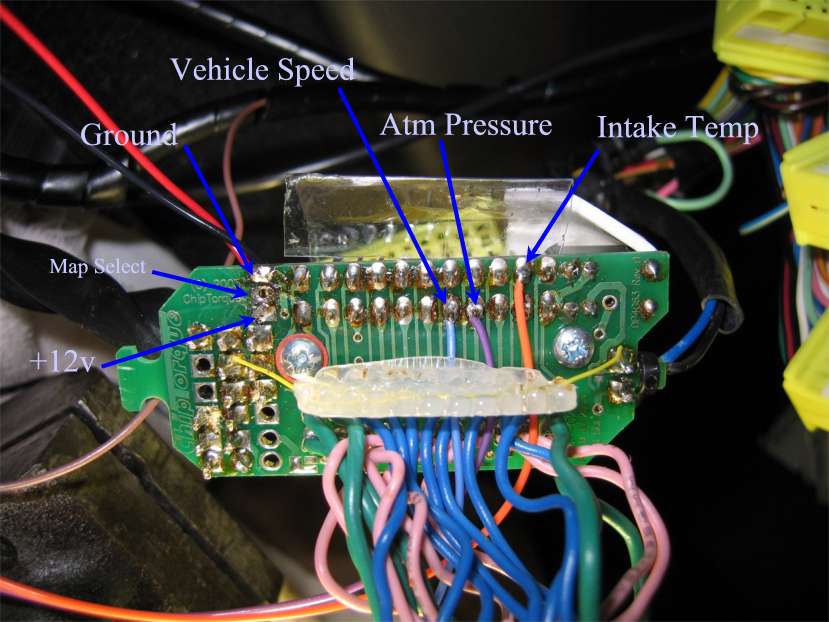

The interface with the Xede harness is only a few wires. As shown in the picture I'm tapping into the intake temp sensor, atm pressure sensor, as well as the vehicle speed sensor. The Xede harness board also provides connections for +12v and ground, as shown.

I changed the mapping scheme to permit using existing boost maps without modification. An example set of maps are attached. You will find a more or less standard boost map, where the output is changed from PWM0 to USER4. A new map is added (BoostComp) where the y-axis (load) is the PWM0 input (output of my box), the input to the map is USER4 and the output is PWM0. The BoostComp map is setup to scale the input data, thus the normal boost map is scaled up or down based upon intake temperature.

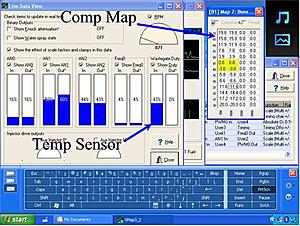

Attached is a screen shot of Xmap showing the live data from the temp sensor, as well as where the BoostComp map is (yellow cells) at this time, or ~35F.

I found that the temp to voltage conversion stated in the Evo shop manual is somewhat off from actual measurements on my car. Specifically I used an OBDII probe to get what the car actually thinks the intake temperature is. As such my calibration table / plot needs to be adjusted to account for my findings. (Yes I know it is a sample of one.) I will post the calibration spreadsheet later.

All in all this is working very well. My plan is to get the physical package volume down in size to something I consider reasonable for the function. As part of this effort I dumped the air conditioner compressor disable w/ load function. I'll deal with that in the future. Next I will look into completing the NLS / launch control function.
Attached Thumbnails Boost Compensation - Possible Implementation-xedeharnessconnections.jpg   Boost Compensation - Possible Implementation-functionalprototype.jpg   Boost Compensation - Possible Implementation-boostcompscreenshot.jpg
Attached Files
File Type: zip
BoostCompDemoMap.zip (1.5 KB, 14 views)
Old Jan 8, 2006 | 08:36 AM
  #18
freedom's Avatar
Thread Starter
Evolved Member
iTrader: (1)

Joined: Jun 2003
Posts: 755
Likes: 0
I should add that there is a 9-pin serial port that is not shown in the picture. Currently it only outputs what it is read from the sensors. For the next level of functionality it will be used to permit the user to set a vehicle speed threshold.

Last edited by freedom; Jan 8, 2006 at 10:55 AM.
Old Jan 8, 2006 | 09:32 AM
  #19
EvoTio's Avatar
Evolved Member
iTrader: (10)

Joined: May 2004
Posts: 1,614
Likes: 2
From: L.A.
freedom, very good work . Shiv should give a little room in his facility for R&D work .
Old Jan 8, 2006 | 09:48 AM
  #20
n00dle's Avatar
Evolved Member
iTrader: (4)

Joined: Jun 2003
Posts: 788
Likes: 0
Very cool. looking forward to the progress.
Old Jan 8, 2006 | 12:06 PM
  #21
Dustin@Vishnu's Avatar
Former Sponsor
iTrader: (1)

Joined: Jun 2004
Posts: 1,114
Likes: 0
From: Livermore, Ca
You're certainly coming along. I love the fact that our customers are some of the brightest and most innovative in the evo community. Keep up the good work gents.
Old Jan 9, 2006 | 12:20 PM
  #22
Ludikraut's Avatar
Evolved Member
iTrader: (17)

Joined: Apr 2004
Posts: 6,224
Likes: 0
From: 41° 59' N, 87° 54' W
Wow, very nice!

Makes my current efforts to relocate my battery to my trunk look somewhat "neanderthalian".

So, what would it take to not only do atmoshperic conditions based boost compensation, but also gear-based boost compensation?

l8r)
Old Jan 9, 2006 | 01:30 PM
  #23
Erik@MIL.SPEC's Avatar
Former Sponsor
iTrader: (94)

Joined: Dec 2001
Posts: 5,695
Likes: 24
From: Los Angeles
Originally Posted by Ludikraut
Wow, very nice!

Makes my current efforts to relocate my battery to my trunk look somewhat "neanderthalian".
But your use of "neanderthalian" makes you appear less neanderthalian.
Old Jan 9, 2006 | 02:34 PM
  #24
Ludikraut's Avatar
Evolved Member
iTrader: (17)

Joined: Apr 2004
Posts: 6,224
Likes: 0
From: 41° 59' N, 87° 54' W
Originally Posted by atlvalet
But your use of "neanderthalian" makes you appear less neanderthalian.
[GRUNT]

l8r)
Old Jan 9, 2006 | 03:12 PM
  #25
donour's Avatar
Evolved Member
iTrader: (6)

Joined: May 2004
Posts: 2,502
Likes: 1
From: Tennessee, USA
Rock on freedom. I wonder if I could use this for altitude compensation. I often go for drives where the altitude varies about 7000'. Even driving up the gravel road behind my house takes me from 6500' to 11000'. The difference in pressure (and power) is substantial.

d
Old Jan 9, 2006 | 03:35 PM
  #26
chronohunter's Avatar
EvoM Guru
iTrader: (1)

Joined: Dec 2002
Posts: 1,767
Likes: 0
From: Boulder, Co.
Originally Posted by donour
Rock on freedom. I wonder if I could use this for altitude compensation. I often go for drives where the altitude varies about 7000'. Even driving up the gravel road behind my house takes me from 6500' to 11000'. The difference in pressure (and power) is substantial.

d
now that sounds like fun . The stock turbo just doesn't have enough capacity for where we live, mine is basically wide oped at all times and can spike to 28 psi @ %5k feet to a sad 17psi @ 10500ft. That's with a 9.8 BTW a 10.5 would hold a little better (I hope).
Old Jan 9, 2006 | 05:24 PM
  #27
freedom's Avatar
Thread Starter
Evolved Member
iTrader: (1)

Joined: Jun 2003
Posts: 755
Likes: 0
Tap into the tach signal as well as the vehicle speed sensor. But at that point perhaps it would be better to just go closed loop with a MAP sensor. Or maybe I'm missing the reason to have different boost levels per gear....

Originally Posted by Ludikraut
Wow, very nice!

Makes my current efforts to relocate my battery to my trunk look somewhat "neanderthalian".

So, what would it take to not only do atmoshperic conditions based boost compensation, but also gear-based boost compensation?

l8r)
Old Jan 9, 2006 | 05:28 PM
  #28
freedom's Avatar
Thread Starter
Evolved Member
iTrader: (1)

Joined: Jun 2003
Posts: 755
Likes: 0
I just finished assembling the new circuit card. It's 1.25x1.25 in2, plus the 9-pin serial connector sticks beyond the card somewhat. Thus this will be way smaller than the current box. I'll order an enclosure in the morning.
Old Jan 9, 2006 | 07:09 PM
  #29
EvilBlueEvo8's Avatar
Evolved Member
20 Year Member
Photogenic
iTrader: (26)

Joined: Dec 2003
Posts: 1,054
Likes: 1
From: South Coast of MA
wow this is awesome. i'd been thinking of something similar cause the weather varies so much here in MA. rock on!
Old Jan 13, 2006 | 05:57 PM
  #30
freedom's Avatar
Thread Starter
Evolved Member
iTrader: (1)

Joined: Jun 2003
Posts: 755
Likes: 0

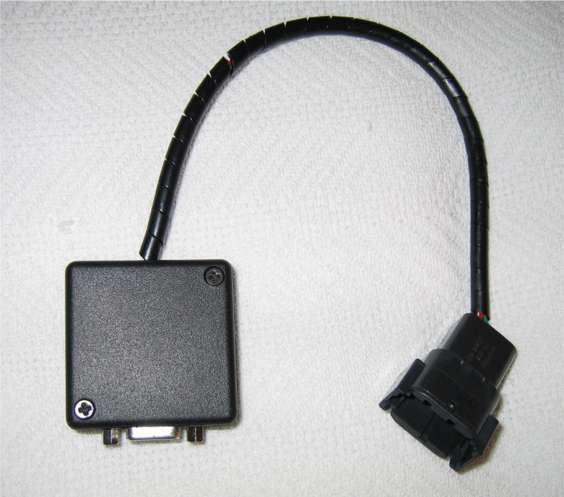

Here is the small version (2" x 2"). The guts were running in the car from Tuesday forward with no problems.

I had temps in the 30's all week except for yesterday where it was almost 60F. Today the temps fell to ~30F. As planned, maximum boost remained consistent so I'm planning on switch my efforts over to completing the NLS / launch control.
