Old May 26, 2010 | 12:49 AM
Share
  #61
merlin.oz's Avatar
merlin.oz
Evolved Member
15 Year Member

Joined: Jun 2008
Posts: 824
Likes: 24
From: Sydney
Has anyone found the MUT for fan monitoring?
Reply
0
Old May 26, 2010 | 01:19 PM
Share
  #62
knochgoon24's Avatar
knochgoon24
Evolving Member
iTrader: (2)

Joined: Feb 2009
Posts: 109
Likes: 0
From: State College, PA
Originally Posted by Deepnine
For 94170015:
---------------------

<table name="AC Fan Low Duty" category="Fan control" address="2478" type="2D" scaling="Percent (128)">
<table name="Condition" type="Static Y Axis" elements="2">
<data>Off -> Low</data>
<data>Low -> High</data>
</table>
</table>



<table name="AC Fan High Speed" category="Fan control" address="1ad2" type="2D" scaling="VehicleSpeed">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Fan High rpm" category="Fan control" address="1ada" type="2D" scaling="RPMStatLimit">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Fan High coolant" category="Fan control" address="1ade" type="2D" scaling="Temp">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Main Coolant" category="Fan control" address="1ae8" type="2D" scaling="Temp">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Main TPS" category="Fan control" address="1ae4" type="2D" scaling="ThrottlePercentage">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="Fan Counter" address="1b00" category="Fan control" type="1D" level="1" scaling="Hex16"/>
Originally Posted by clockworktoy
This is just what i was looking for, anything for the 9653 users? That would be great.
Originally Posted by logic
Looks like it should be the same as what Mattjin posted for 94170015.
Hmmm.... I just added those tables to my xml, for 96531706. I'm not sure the values that are showing make sense though.

AC Fan Low Duty
Off -> Low 0.0%
Low -> High 37.5%

AC Fan High Speed
On 199mph
Off 159mph

AC Fan High rpm
On 7969rpm
Off 7969rpm

AC Fan High Coolant
On 419 °F
Off 419 °F

AC Main Coolant
On 149 °F
Off 158 °F

AC Main TPS
On 78 %
Off 82%

Fan Counter
0x0000

The values don't seem correct.
Reply
0
Old May 26, 2010 | 02:07 PM
Share
  #63
knochgoon24's Avatar
knochgoon24
Evolving Member
iTrader: (2)

Joined: Feb 2009
Posts: 109
Likes: 0
From: State College, PA

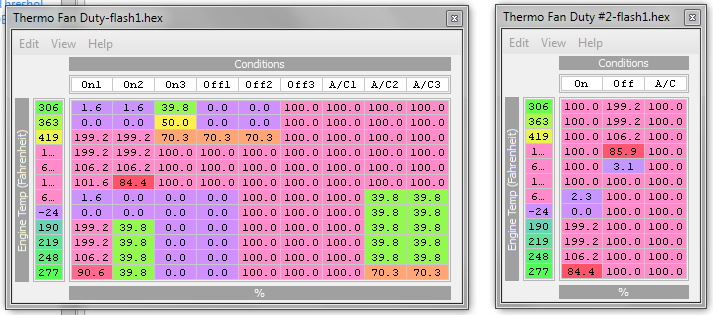

The 2 other Thermo fan control table addresses from 94170015 don't work for 96530006, so now I'm even more confused.

Found Thermo Fan Switch Conditions-wrong_fan_maps.png

I'm trying to track down the correct cooling fan tables because it's just been brought to my attention that Evos use PWM to control the main cooling fan, but DSMs use a relay that might not appreciate being controlled by PWM.

I'd like to find the tables in hopes that it will fix a slight overheating issue I'm having.
Reply
0
Old May 28, 2010 | 09:54 AM
Share
  #64
knochgoon24's Avatar
knochgoon24
Evolving Member
iTrader: (2)

Joined: Feb 2009
Posts: 109
Likes: 0
From: State College, PA
The headgasket is holding fine. It's only a little bit of over heating on long hill central PA hill climbs never getting past 3/4 of the way up the coolant temp gauge. Logger said 250*F max. The old headgasket looked fine when removed. Coolant tested negative for hydrocarbons. No mixing of oil/coolant. "Normal" temps even in the winter were 220*F before and after my most recent headgasket change. The FMIC and A/C condenser can't be helping airflow to the radiator.

I'd like to be able to have both fans kick on sooner, because right now, the A/C fan doesn't turn on until the car gets pretty hot.
Reply
0
Old Jun 15, 2010 | 01:48 AM
Share
  #65
knochgoon24's Avatar
knochgoon24
Evolving Member
iTrader: (2)

Joined: Feb 2009
Posts: 109
Likes: 0
From: State College, PA
So does anyone love me enough to find the addresses for the 9653 based roms?

Since it is becoming one of the universal roms, it's going to need found eventually. With the weather starting to warm up, I'm sure there are more people than just me who could use this.

Right now, I'd really like to have the A/C fan turn on at a lower temperature to help with the regular cooling.

I searched on here and found the tables for controlling the main coolant fan and both fans when the A/C is on (here), but nothing for the 9653 roms for controlling the A/C fan when the A/C is off.
Reply
0
Old Jun 15, 2010 | 10:33 AM
Share
  #66
Deepnine's Avatar
Deepnine
Evolving Member
iTrader: (4)

Joined: Apr 2008
Posts: 186
Likes: 0
From: Germany
I'm using an evo 8 ecu (with 90550001 or 96530006) in a dsm,
last summer i discovered, when the main fan is on 100% dc, the ac fan is running too.

there is a a value somewhere at what dc from the main fan the ac fan starts. i belive it was 50% or 70%. set it to 100% to make sure.

i got the whole fan stuff figuered out, but a damages harddrive destroyed my ecu stuff.
Reply
0
Old Jun 15, 2010 | 10:52 AM
Share
  #67
RoadSpike's Avatar
RoadSpike
Evolved Member
iTrader: (5)

Joined: Oct 2006
Posts: 3,805
Likes: 2
From: Sacramento, CA
Originally Posted by knochgoon24
So does anyone love me enough to find the addresses for the 9653 based roms?

Since it is becoming one of the universal roms, it's going to need found eventually. With the weather starting to warm up, I'm sure there are more people than just me who could use this.

Right now, I'd really like to have the A/C fan turn on at a lower temperature to help with the regular cooling.

I searched on here and found the tables for controlling the main coolant fan and both fans when the A/C is on (here), but nothing for the 9653 roms for controlling the A/C fan when the A/C is off.
Are you looking for the fan duty or the AC fan?

Main Fan:
PHP Code:
      <table name="Thermo Fan Duty 0-12mph" category="Miscellaneous" address="575c" type="3D" level="2" swapxy="true" scaling="Percent (128)">
        <table name="Conditions" type="Static X Axis" elements="3">
            <data>Main Fan 0-12mph</data>
            <data>A/C Fan 0-12mph</data>
            <data>Main+A/C 0-12mph</data>
        </table>
        <table name="Engine Temp" address="6a14" type="Y Axis" elements="12" scaling="Temp"/>
    </table>

    <table name="Thermo Fan Duty >12mph" category="Miscellaneous" address="45ac" type="3D" level="2" swapxy="true" scaling="Percent (128)">
        <table name="Conditions" type="Static X Axis" elements="9">
            <data>Main Fan 12-31mph</data>
            <data>Main Fan 31-50mph</data>
            <data>Main Fan 50->>mph</data>
            <data>A/C Fan 12-31mph</data>
            <data>A/C Fan 31-50mph</data>
            <data>A/C Fan 50->>mph</data>
            <data>Main+A/C 12-31mph</data>
            <data>Main+A/C 31-50mph</data>
            <data>Main+A/C 50->>mph</data>
        </table>
        <table name="Engine Temp" address="6a14" type="Y Axis" elements="12" scaling="Temp"/>
    </table>
Reply
0
Old Jun 15, 2010 | 11:07 AM
Share
  #68
Deepnine's Avatar
Deepnine
Evolving Member
iTrader: (4)

Joined: Apr 2008
Posts: 186
Likes: 0
From: Germany
For 96530006:
---------------------

<table name="AC Fan switchpoint" category="Fan control" address="2478" type="2D" scaling="Percent (128)">
<table name="Condition" type="Static Y Axis" elements="2">
<data>Off -> Low</data>
<data>Low -> High</data>
</table>
</table>
Reply
0
Old Jun 15, 2010 | 11:09 AM
Share
  #69
RoadSpike's Avatar
RoadSpike
Evolved Member
iTrader: (5)

Joined: Oct 2006
Posts: 3,805
Likes: 2
From: Sacramento, CA
Well double checked the code for you guys the AC fan table is EXACTLY the same for the 9563 variant as it is for the 9417. Only difference is the high coolant values.

PHP Code:
<table name="AC Fan Low Duty" category="Fan control" address="2478" type="2D" scaling="Percent (128)">
<table name="Condition" type="Static Y Axis" elements="2">
<data>Off -> Low</data>
<data>Low -> High</data>
</table>
</table>



<table name="AC Fan High Speed" category="Fan control" address="1ad2" type="2D" scaling="VehicleSpeed">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Fan High rpm" category="Fan control" address="1ada" type="2D" scaling="RPMStatLimit">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Fan High coolant" category="Fan control" address="1ade" type="2D" scaling="Temp">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Main Coolant" category="Fan control" address="1ae8" type="2D" scaling="Temp">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Main TPS" category="Fan control" address="1ae4" type="2D" scaling="ThrottlePercentage">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>
Reply
0
Old Jun 15, 2010 | 01:40 PM
Share
  #70
jamiestsi's Avatar
jamiestsi
Newbie

Joined: Apr 2007
Posts: 23
Likes: 0
From: Johnstown, PA
Does anybody know if the ecu is a pull to ground or 12 volt output? I do see it is a PWM output. What I would like to do is switch the programming(9653 rom) to either a 0 or 100 to simulate either on or off. Then use a simple relay to control the fans on my 1G DSM. Or is what I am trying to do not even possible?
Reply
0
Old Jun 15, 2010 | 02:08 PM
Share
  #71
RoadSpike's Avatar
RoadSpike
Evolved Member
iTrader: (5)

Joined: Oct 2006
Posts: 3,805
Likes: 2
From: Sacramento, CA
Originally Posted by jamiestsi
Does anybody know if the ecu is a pull to ground or 12 volt output? I do see it is a PWM output. What I would like to do is switch the programming(9653 rom) to either a 0 or 100 to simulate either on or off. Then use a simple relay to control the fans on my 1G DSM. Or is what I am trying to do not even possible?
Its possible to do but i'm unsure what the switch type is myself if its pull ground or not. I guess the easiest way is simply hook a multimeter to it when the car is idling and see if you got voltage to the solenoid indicating its a pull ground type.

Visa versa you can check conductivity in ohms to the ground to see if its got a good ground or open like pull ground type.
Reply
0
Old Jun 16, 2010 | 05:16 AM
Share
  #72
knochgoon24's Avatar
knochgoon24
Evolving Member
iTrader: (2)

Joined: Feb 2009
Posts: 109
Likes: 0
From: State College, PA
Originally Posted by RoadSpike
Are you looking for the fan duty or the AC fan?

Main Fan:
PHP Code:
      <table name="Thermo Fan Duty 0-12mph" category="Miscellaneous" address="575c" type="3D" level="2" swapxy="true" scaling="Percent (128)">
        <table name="Conditions" type="Static X Axis" elements="3">
            <data>Main Fan 0-12mph</data>
            <data>A/C Fan 0-12mph</data>
            <data>Main+A/C 0-12mph</data>
        </table>
        <table name="Engine Temp" address="6a14" type="Y Axis" elements="12" scaling="Temp"/>
    </table>

    <table name="Thermo Fan Duty >12mph" category="Miscellaneous" address="45ac" type="3D" level="2" swapxy="true" scaling="Percent (128)">
        <table name="Conditions" type="Static X Axis" elements="9">
            <data>Main Fan 12-31mph</data>
            <data>Main Fan 31-50mph</data>
            <data>Main Fan 50->>mph</data>
            <data>A/C Fan 12-31mph</data>
            <data>A/C Fan 31-50mph</data>
            <data>A/C Fan 50->>mph</data>
            <data>Main+A/C 12-31mph</data>
            <data>Main+A/C 31-50mph</data>
            <data>Main+A/C 50->>mph</data>
        </table>
        <table name="Engine Temp" address="6a14" type="Y Axis" elements="12" scaling="Temp"/>
    </table>
A/C stuff. I'm actually the one that took those two tables you have posted and added those imperial unit headers instead of the ones usually listed in kph. I'm glad some people are getting use out of it.

Originally Posted by RoadSpike
Well double checked the code for you guys the AC fan table is EXACTLY the same for the 9563 variant as it is for the 9417. Only difference is the high coolant values.

PHP Code:
<table name="AC Fan Low Duty" category="Fan control" address="2478" type="2D" scaling="Percent (128)">
<table name="Condition" type="Static Y Axis" elements="2">
<data>Off -> Low</data>
<data>Low -> High</data>
</table>
</table>



<table name="AC Fan High Speed" category="Fan control" address="1ad2" type="2D" scaling="VehicleSpeed">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Fan High rpm" category="Fan control" address="1ada" type="2D" scaling="RPMStatLimit">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Fan High coolant" category="Fan control" address="1ade" type="2D" scaling="Temp">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Main Coolant" category="Fan control" address="1ae8" type="2D" scaling="Temp">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>

<table name="AC Main TPS" category="Fan control" address="1ae4" type="2D" scaling="ThrottlePercentage">
<table name="Condition" type="Static Y Axis" elements="2">
<data>On</data>
<data>Off</data>
</table>
</table>
And those high coolant values are the ones I was really looking for. Thanks. I knew 419*F wasn't correct.

Thank you for double checking those addresses.
Reply
0
Old Jun 19, 2010 | 04:33 AM
Share
  #73
knochgoon24's Avatar
knochgoon24
Evolving Member
iTrader: (2)

Joined: Feb 2009
Posts: 109
Likes: 0
From: State College, PA
Wait. I finally got around to actually comparing the what you posted and what I had posted before, and the addresses for the high coolant tables are the same. Is 419*F the value the ROM has stock? I'm going to have to play with that and see.
Reply
0
Old Jun 20, 2010 | 12:47 PM
Share
  #74
RoadSpike's Avatar
RoadSpike
Evolved Member
iTrader: (5)

Joined: Oct 2006
Posts: 3,805
Likes: 2
From: Sacramento, CA
Originally Posted by knochgoon24
Wait. I finally got around to actually comparing the what you posted and what I had posted before, and the addresses for the high coolant tables are the same. Is 419*F the value the ROM has stock? I'm going to have to play with that and see.
Yes that's the stock rom's value.
Reply
0
Old Nov 2, 2010 | 03:37 AM
Share
  #75
DEVOIX's Avatar
DEVOIX
Newbie

Joined: Jun 2006
Posts: 12
Likes: 0
From: Sydney, Australia
Any one found the code to switch pin34(air con- Condensor fan fan low)
Rom 98640014
Reply
0



Advanced Search

All times are GMT -7. The time now is 05:24 AM.
