Jun 17, 2014 | 01:21 PM

#16

jrainwater

Evolved Member

iTrader: (10)

Joined: Mar 2013

Posts: 890

Likes: 0

From: Chicago

Yeah I'm thinking that this issue lays elsewhere then with the injectors although I will say they are the loudest injectors I have ever heard and I used the FIC bypass, not a homemade or eBay bypass. The scaling on 93 is 975 for me and I have the latencies dialed in where my STFT hovers around 1-2 % plus or minus and LTFT is 0.80 so that's pretty darn good I would say.

Dec 27, 2014 | 11:54 AM

#17

jeffbeagley

Evolving Member

Joined: May 2011

Posts: 364

Likes: 3

From: Springfield, MO

Do we have the address for 9653?

Dec 27, 2014 | 12:56 PM

#18

SkyNight

Evolving Member

Joined: May 2008

Posts: 141

Likes: 0

From: Rome

For the 90550001 ROM, replace "31db" with "3977".

EDM - JDM Evo IX 88570008 ROM

Code:

<scaling name="InjLinearizationPWScale" units="PW Adder (ms)" toexpr="x*0.004" frexpr="x/0.004" format="%.3f" min="0" max="0.5" inc="0.004" storagetype="uint8" endian="big"/>
<table name="Injector Flow Linearization PW Adder" category="Fuel" address="2eb3" type="2D" level="1" scaling="InjLinearizationPWScale">
  <table name="Requested FPW (ms)" type="Static Y Axis" elements="66">
    <data>0.016</data>
    <data>0.048</data>
    <data>0.080</data>
    <data>0.112</data>
    <data>0.144</data>
    <data>0.176</data>
    <data>0.208</data>
    <data>0.240</data>
    <data>0.272</data>
    <data>0.304</data>
    <data>0.336</data>
    <data>0.368</data>
    <data>0.400</data>
    <data>0.432</data>
    <data>0.464</data>
    <data>0.496</data>
    <data>0.528</data>
    <data>0.560</data>
    <data>0.592</data>
    <data>0.624</data>
    <data>0.656</data>
    <data>0.688</data>
    <data>0.720</data>
    <data>0.752</data>
    <data>0.784</data>
    <data>0.816</data>
    <data>0.848</data>
    <data>0.880</data>
    <data>0.912</data>
    <data>0.944</data>
    <data>0.976</data>
    <data>1.008</data>
    <data>1.040</data>
    <data>1.072</data>
    <data>1.104</data>
    <data>1.136</data>
    <data>1.168</data>
    <data>1.200</data>
    <data>1.232</data>
    <data>1.264</data>
    <data>1.296</data>
    <data>1.328</data>
    <data>1.360</data>
    <data>1.392</data>
    <data>1.424</data>
    <data>1.456</data>
    <data>1.488</data>
    <data>1.520</data>
    <data>1.552</data>
    <data>1.584</data>
    <data>1.616</data>
    <data>1.648</data>
    <data>1.680</data>
    <data>1.712</data>
    <data>1.744</data>
    <data>1.776</data>
    <data>1.808</data>
    <data>1.840</data>
    <data>1.872</data>
    <data>1.904</data>
    <data>1.936</data>
    <data>1.968</data>
    <data>2.000</data>
    <data>2.032</data>
    <data>2.064</data>
    <data>2.096</data>
  </table>
</table>

Dec 27, 2014 | 05:01 PM

#19

mrfred

Thread Starter

EvoM Guru

iTrader: (50)

Joined: Mar 2006

Posts: 9,675

Likes: 132

From: Tri-Cities, WA // Portland, OR

Updated first post for 96530006 and added SkyNight's 90550001 address.

Dec 28, 2014 | 04:58 AM

#20

Benja

Evolved Member

Joined: Sep 2006

Posts: 800

Likes: 0

From: Newcastle, Australia.

Has anyone contacted Injector Dynamics for the flow rate data breakdown on the popular used sizes of 1000, 1300 and 2000? If not i'll flick them an email.
I'm keen to make up these correction tables for the 1300's particularly as I believe they aren't quite perfect down low now that I have used a few sets.

Cheers.

Dec 28, 2014 | 02:34 PM

#21

jeffbeagley

Evolving Member

Joined: May 2011

Posts: 364

Likes: 3

From: Springfield, MO

Quote:

Originally Posted by mrfred

Updated first post for 96530006 and added SkyNight's 90550001 address.

Boom, thanks!

Quote:

Originally Posted by Benja

I just messaged Paul, hopefully he'll get back to me!

Dec 29, 2014 | 02:04 AM

#22

Benja

Evolved Member

Joined: Sep 2006

Posts: 800

Likes: 0

From: Newcastle, Australia.

Quote:

Originally Posted by jeffbeagley

I just messaged Paul, hopefully he'll get back to me!

Ok cheers Beagley.
Let me know how you go and i'll chase it up if you don't get anywhere.

Dec 29, 2014 | 02:30 AM

#23

merlin.oz

Evolved Member

Joined: Jun 2008

Posts: 824

Likes: 23

From: Sydney

I have done it for the 1300s, will get around to posting soon. on another lappy

Dec 29, 2014 | 03:01 PM

#24

Benja

Evolved Member

Joined: Sep 2006

Posts: 800

Likes: 0

From: Newcastle, Australia.

Ok nice.

Emailed FIC to see if they had this data for 1120 low-z.

Dec 29, 2014 | 08:37 PM

#25

merlin.oz

Evolved Member

Joined: Jun 2008

Posts: 824

Likes: 23

From: Sydney

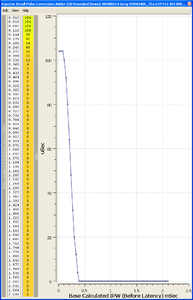

Injector Small Pulse Correction for Injector Dynamics injectors.

Attached Thumbnails

Injector flow rate linearization table-id1300-inj-small-pulse-correction.png

Injector flow rate linearization table-id2000-inj-small-ipw-adder.png

Dec 30, 2014 | 04:51 PM

#26

jeffbeagley

Evolving Member

Joined: May 2011

Posts: 364

Likes: 3

From: Springfield, MO

Quote:

Originally Posted by merlin.oz

Injector Small Pulse Correction for Injector Dynamics injectors.

Thank you Merlin! Will try these out tomorrow morning.

9653 / ID 2000s updated with Merlins Values

<table name="Injector Flow Linearization PW Adder" category="Fuel" address="37c7" type="2D" level="1" scaling="Time_uSec">
<table name="Requested FPW (ms)" type="Static Y Axis" elements="66">
0.000
0.032
0.064
0.096
0.128
0.160
0.192
0.224
0.256
0.288
0.320
0.352
0.384
0.416
0.448
0.480
0.512
0.544
0.576
0.608
0.640
0.672
0.704
0.736
0.768
0.800
0.832
0.864
0.896
0.928
0.960
0.992
1.024
1.056
1.088
1.120
1.152
1.184
1.216
1.248
1.280
1.312
1.344
1.376
1.408
1.440
1.472
1.504
1.536
1.568
1.600
1.632
1.664
1.696
1.728
1.760
1.792
1.824
1.856
1.888
1.920
1.952
1.988
2.016
2.048
2.080
</table>
</table>

Code:

Last edited by Speedlimit; Dec 20, 2015 at 05:17 AM.

Dec 30, 2014 | 07:04 PM

#27

mrfred

Thread Starter

EvoM Guru

iTrader: (50)

Joined: Mar 2006

Posts: 9,675

Likes: 132

From: Tri-Cities, WA // Portland, OR

Quote:

Originally Posted by jeffbeagley

Thank you Merlin! Will try these out tomorrow morning.

9653 / ID 2000s updated with Merlins Values

...

Changing the linearization values will require a substantial change in the latency value. For merlin's values, I suggest starting by lowering all the latency values by 0.05 ms. With no change in latency, the long term fuel trims will go more negative, especially idle.

Dec 30, 2014 | 07:27 PM

#28

merlin.oz

Evolved Member

Joined: Jun 2008

Posts: 824

Likes: 23

From: Sydney

^ true that.

Expect to have to tweak the 14 volt AND 11.7 volt latency a bit.

Jan 2, 2015 | 05:54 AM

#29

jeffbeagley

Evolving Member

Joined: May 2011

Posts: 364

Likes: 3

From: Springfield, MO

Utilizing Merlin's ID2000 values, Idle on built head and GSC S3s. Target Idle RPM is 1100

Believe it still has some room for improvement, but it doesn't swing near as often as it used to. This is also using the Wideband o2 control patch with no narrowband hooked up.
