Help Identify these connectors

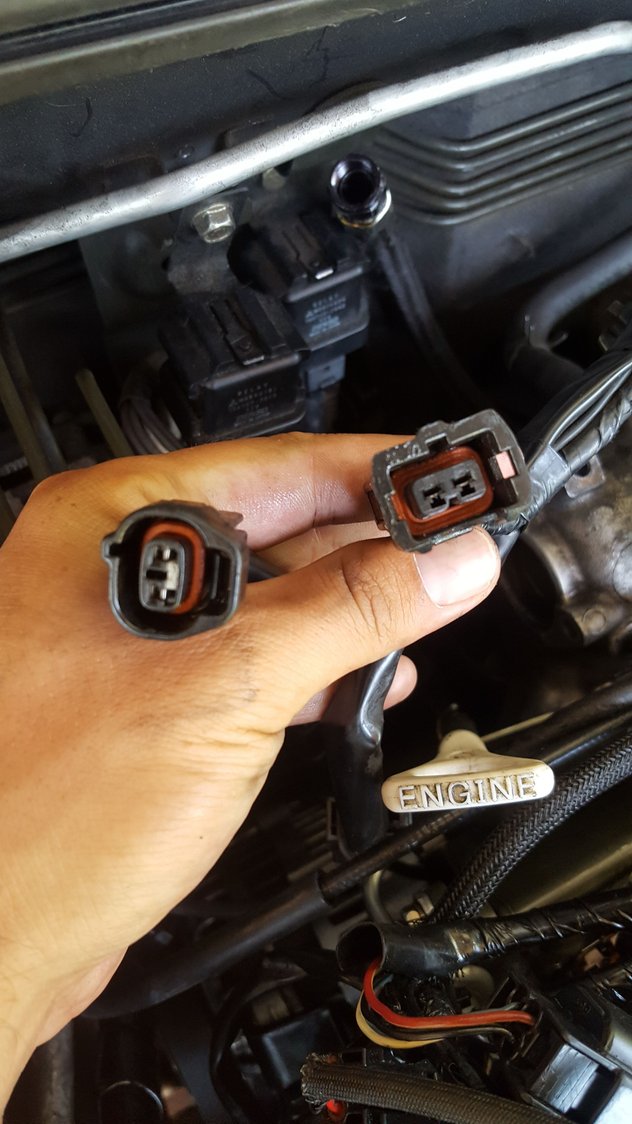

The one of the left is identical to the mivec solenoid connector and the one on the right is identical to an injector connector. There's a 3rd one that's brown color but I'm sure that's the egr solenoid. (Which has been deleted)

Thank you
Reply
Old Apr 3, 2017 | 01:58 PM
  #2
MasterNater's Avatar
Evolved Member
15 Year Member
Photogenic
Liked
Loved
iTrader: (82)

Joined: Aug 2006
Posts: 879
Likes: 27
From: Tupelo, MS
The one on the right is for the OEM fuel pressure regulator solenoid. Not 100% sure about the one on the left, but the only thing I can think of in that area is the OEM evaporative emission purge solenoid. Most people remove these along with all of the EGR, as they are not really needed and sources for potential vacuum leaks.

Last edited by MasterNater; Apr 3, 2017 at 02:14 PM.
Reply
Old Apr 3, 2017 | 03:16 PM
  #3
evo.matt's Avatar
Thread Starter
Evolving Member
iTrader: (3)

Joined: Sep 2013
Posts: 243
Likes: 13
From: CA
Originally Posted by MasterNater
The one on the right is for the OEM fuel pressure regulator solenoid. Not 100% sure about the one on the left, but the only thing I can think of in that area is the OEM evaporative emission purge solenoid. Most people remove these along with all of the EGR, as they are not really needed and sources for potential vacuum leaks.
​​​​​​
that makes sense, thanks MasterNater. My EGR was removed so long ago I didn't remember it having 3 connections.
Reply
Old Apr 3, 2017 | 05:29 PM
  #4
MasterNater's Avatar
Evolved Member
15 Year Member
Photogenic
Liked
Loved
iTrader: (82)

Joined: Aug 2006
Posts: 879
Likes: 27
From: Tupelo, MS
Here's a diagram, for reference:

Reply
Old Apr 3, 2017 | 09:48 PM
  #5
evo.matt's Avatar
Thread Starter
Evolving Member
iTrader: (3)

Joined: Sep 2013
Posts: 243
Likes: 13
From: CA
I just downloaded the evo 9 service manual and am just finding so much information about everything. Even came across this page. Why didn't I DL this sooner!
