Just a few pics to give you a better idea of the fuel system now that I am changing it to walbro in tank with the sx pump and swirl tank + battery in the trunk... Doing it this way eliminates the "fuel transfer pump" and several lines and makes it much cleaner.
Basically, I wanted to streamline the system and make it approvable to the various racing sanctioning bodies. I enclosed the fuel pump in a sealed enclosure, battery same, wiring is done right and adding an external kill switch to the back of the car that kills the ignition, alternator and fuel system. adding a kevlar firewall to the trunk(more durable if I roll as I roadrace) = hopefully no problems and massive fuel. I just fabbed it myself with a tig welder treadplate etc. I cleaned up the electrical and did harnesses and looms for all wiring too.
Basically, I wanted to streamline the system and make it approvable to the various racing sanctioning bodies. I enclosed the fuel pump in a sealed enclosure, battery same, wiring is done right and adding an external kill switch to the back of the car that kills the ignition, alternator and fuel system. adding a kevlar firewall to the trunk(more durable if I roll as I roadrace) = hopefully no problems and massive fuel. I just fabbed it myself with a tig welder treadplate etc. I cleaned up the electrical and did harnesses and looms for all wiring too.
Last edited by gt40; Jul 21, 2004 at 08:01 AM.

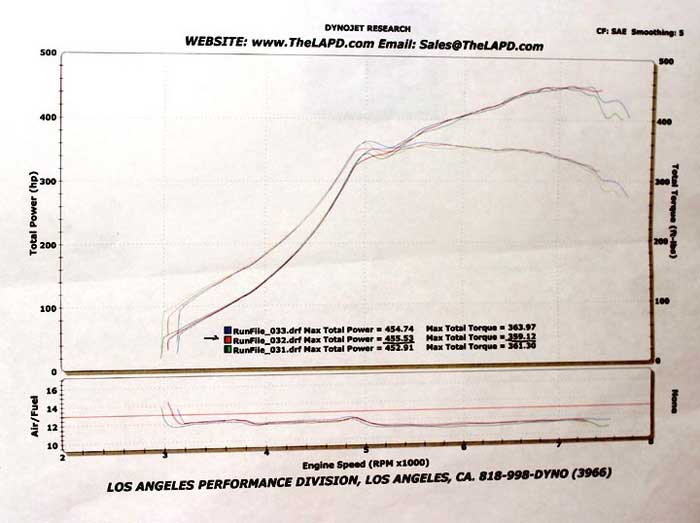

Here is the layout and current track based power levels:
