Looks like part no. MR979892 (diagram no. 62506) (please double check)

Mitsubishiparts.net shows it



Thank you so much MinusPrevious!
The nomenclature sounds promising "PAD, DASH PANEL"
The picture also seems to have all the holes in the right places.
I think this evidence may be worth the $270 gamble. Fingers crossed for 'new car smell'

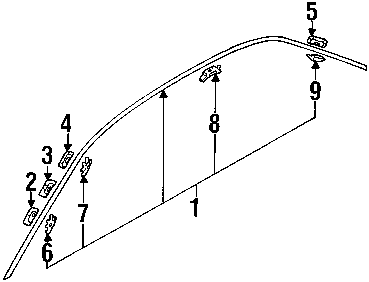

I'm looking for Evo 8/9 moulding drip for the right side. part number is MR520288



Looks like a easy part to source

This place carries it

http://www.mitsubishipartssource.com.../MR520288.html

http://www.awdmotorsports.com/Mitsub...p/mr520288.htm



Hey,

Does anyone here know the part number or any number for the Service Connectors of the Fog Light Switch and Headlight Regulator?

Thanks

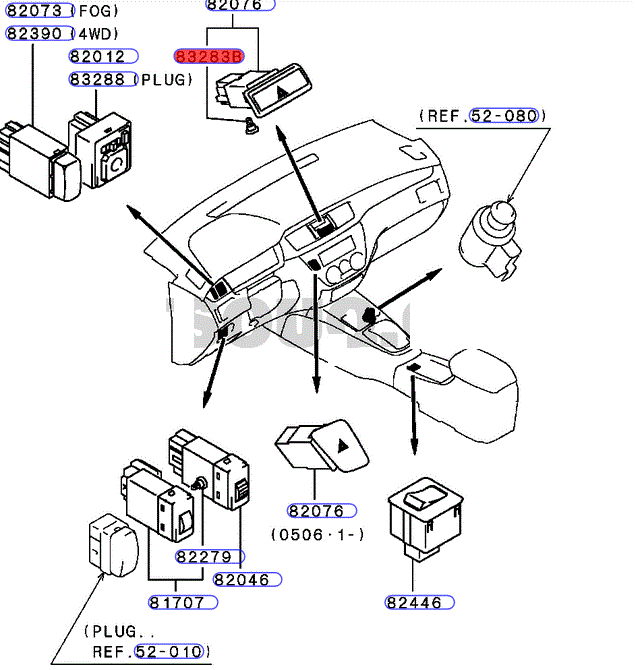

Fog light switch noted as location no. 82073 (part no. MR190951)
Head light leveling switch noted as location 82046) (part no. MR506482)



MinusPrevious thanks for that.

But what i'm after is the plug that connects to those switches.

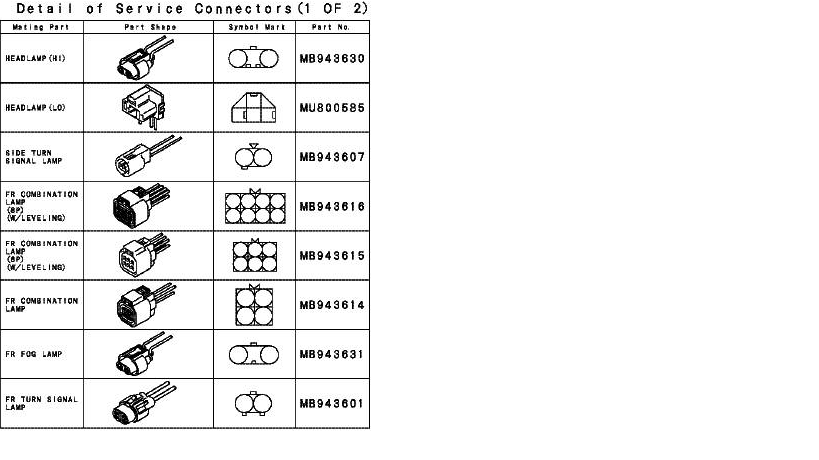

I have these service connectors from Mitsubishi but it doesn't show any of the connectors for those switches.



Hi.

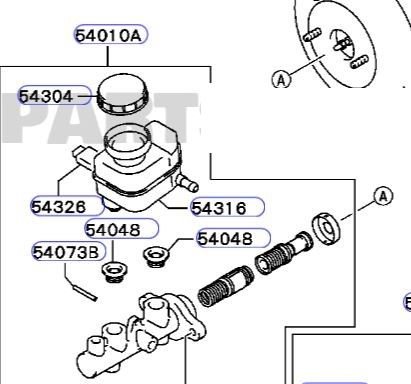

Do anyone have the part number for the fluid level sensor cable on the brake master cylinder?



Hey Chris

I tried and failed. Could only find the sensor itself below. My guess, the harness is part of a larger bundle. Best bet is to perform a section repair of the harness

Sensor no. if needed = MR334064 (item no.54326)



I'm in need of some help, I have a 09 Lancer gts with the 2.4motor in it, I'm in need of the wiring harness part number 8501a246 which is the wiring harness,chassis,fr. Please if anyone one has this for sale or can find this it wld be greatly appreciated, with out it my car is dead in the water. If u cld email me at keithkaczmarski@gmail.com. if anyone knows where I can find one. Thank you



..



I'm looking for the wiring harness chassis fr part number 8501a246



Can you help us w/a bit more info. Which EVO model & a description of the part youre looking for



It's a 09 Lancer gts wit the 2.4 motor in it n the part is called the wiring harness chassis fr part number 8501a246



Sorry, Keith, This thread is EVO only & I dont have those manuals on hand
