Evo 9 turbo rubber water return line



^That might be the return line...either way see here for diagram and part number for both feed and return...

https://stmtuned.com/collections/evo...hose-oem-evo-8

https://stmtuned.com/collections/evo...-oem-evo-7-8-9



mr135982



MD366383 9mm x 200mm long


MD082347 9mm x 125mm long



evo 5-6 fender flare clips for the door and body. I believe there are 3 types that make up the set for each side.

thanks

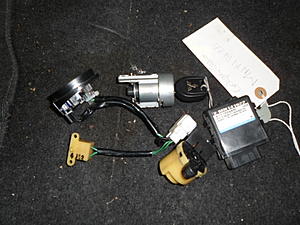

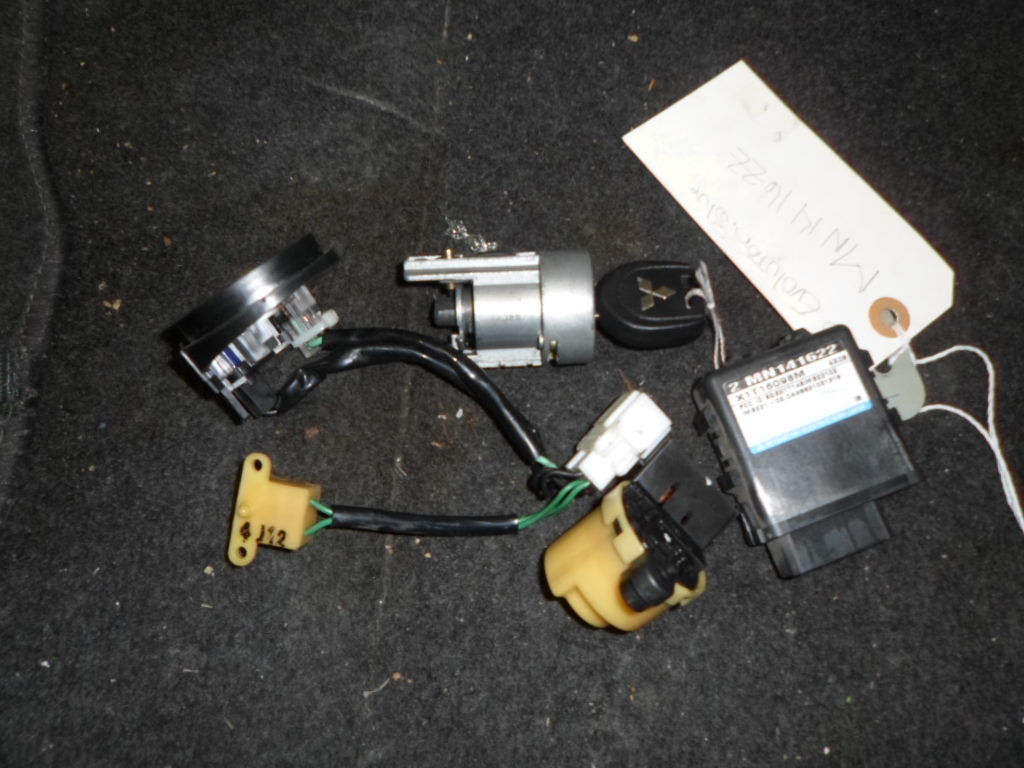

On the side of the key cylinder housing there is a light brown ( electrical switch ?) thats held by two screws and the wires lead to a connector that splits to the electrical key switch and back up to the key ring that lights up. Mine is broke and the alarm chimes like if the key was still in the ignition. Is there a part number for that harness?

It looks like this



can only see two types listed
clip overfender mr412658
clip overfender mb406999



cant find part number for it separate , is there a little button in the middle of it and can you take a pic looking into connector i might have something similar here



Can someone please let me know the part number for the vacuum line "kit" that connects to the wastegate actuator, j pipe, intake inlet tube, and factory boost control solenoid. Thanks in advance.



Looking to replace my serpentine belt. I am seeing some different part numbers...

1st from stm website has part number MIT-MN158794
https://stmtuned.com/collections/evo...7-8-9-with-a-c

2nd from extremepsi with part number MIT-MZ690266
https://www.extremepsi.com/store/pro...roductid=22696

3rd from maperformance same part number as extremepsi MIT MZ690266
https://www.maperformance.com/produc...lution-evo-8-9

So stm has a different part number but a higher price compared to extremepsi/map. Will the extremepsi/map one be fine or is there some benefit/reason to get the one stm has?



I just looked on STM's website and it states that the current part # 794 superseds the old 266. So essentially they'll all work fine



For a 98 CP9A please.
Oil cooler lines - both

thanks



does anyone have the part numbers for the two front bolts that go from the strut body to the steering knuckle? they have a 19mm socket, and the top one is eccentric.



Sam looks like its the the following:

MU000284 - Top eccentric
MU140067 - Bottom bolt



This car was jacked up in the wrong place at some point in its life. I am thinking these rails can be replaced by a pro, right? I believe it's just a cosmetic issue at this point, but it sure is annoying to see. Anyone have OEM part numbers for these, or know where I can find them?
