anyone know the part number and or bolt size/thread pitch of the bolt that holds the top backet of the sub in the SSL to the body?



Part #'s needed for the JDM rear bumper reinforcement and plate pieces to install my plate correctly on my JDM rear. 64001 comes up as the USDM piece and the JDM? I cant figure it out...



trying to find a part number for a evo 9 mr but basically it is part of a L shaped part with like weights on the ends that sits on top of the transmission which i believe is called a shift counter weight idk but it is what the shift cables connect to and its what moves the shifts forks inside the bell housing. i need the part number to that whole assembly. an illustrated parts breakdown would be better too



Looking for part number for "back up lamp switch" (sensor on transmission for reverse lights to engage) on my 1999 Evo 6 GSR 5 speed manual. Anyone who can help just send me an inbox be very much appreciated



Anyone know for sure the part numbers for the plastic undertray for Evo 9, & the passenger side wheel arch fender liner? IIRC, the plastic undertray is actually 3 pieces. Could be wrong. Also would need all the little plastic clips required to install these. Best place to buy them?



Does anyone know the part for the screws and clips that secure the trunk carpet?

Much appreciated!



Need the part number for the round cover on the back of a USDM HID 8/9 headlight. HID bulb is in front of it. Both of mine are missing.

Reference part 80025



Rodent-Part number MN175430, same part number for both sides, and about $10 each




Kyoo-
http://www.mitsubishiparts.net/parts...iagram=6265030


All your parts are there, but you don't need 12 or 13, those actually go beneath the front bumper. At least that is for evo 9, but its real easy to find your parts on there. I use it to look up part numbers and then order through STM for their lower shipping up to me, but since you're in the states you can order from the site.


CJevoix-
http://www.mitsubishiparts.net/parts...iagram=6265325


All your parts should be there, same as above.



Thanks Jason!



Need some more parts I can't seem to find.

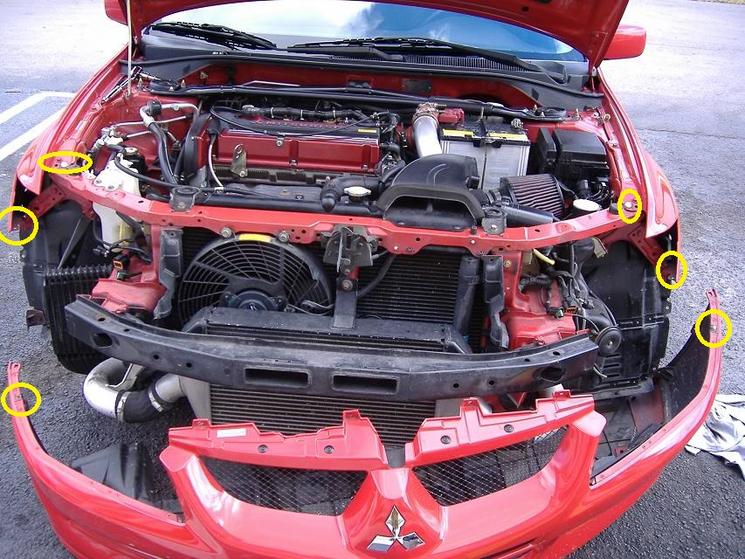

Fender to bumper plastic inserts. One snaps the bumper into place, the other one is for a screw. Someone posted a link here for them but that link is broken.

The other pieces I need are for mounting the headlights. White plastic inserts that go in the radiator support and have a square head on top. The headlight tab goes on the square plastic insert.

Attached pic with yellow circles showing what I need.



http://www.streettunedmotorsports.co...p_mr393386.htm


http://www.streettunedmotorsports.co...w_ms452393.htm


http://www.streettunedmotorsports.co...p_mb814163.htm


http://www.streettunedmotorsports.co...p_mb814162.htm



Need the part number for the OE replacement front KYB struts for an Evo 9. Front and rear. Cant find anything but base lancer numbers. Thanks.

P.S. NOT MR, just regular Evo 9.



What's the Lancer stock number? I could cross reference it to what I have compiled.



Part number for Evo 9 egr solenoid. the one that's located behind intake manifold.



Thanks! I always forget about STM and they did a nice job on those hard to find parts. I will post the part numbers here for future reference.
