Which part are you looking for in this diagram?



68134 L. That's the drivers side right?



I need oem part number forthe jdm side market amber color



I'm looking for 68149L and 68149R if that's the interior door handle bezel screw cover thing and an EVO8/9 diagram



Part #'s for the following: 2006 Evo 9 MR/SE Clutch, Brake and Gas pedal assembly.



Don't have the VIN right now. It's for CT9A



Hy all, lost some plastic piece from the Evo 8 rear bumper yesterday, fixed it with a zip tie in the meanwhile but i want to mount it proberly.

I attached a pic, maybe some now the part number.

Car is a 2003 Evo VIII GSR

Thanks



The part number is MN159624. Should be the driver's side because I am referencing a USDM mitsubishi parts catalog.

68149L - MR573539
68149R - MR573544

Sorry for the late response. I didn't see the updates from this thread until now.



Thanks a lot man, appreciated. I've ordered that same part I thought was correct from an online diagram 3 times over the past few years and it's always been wrong lol



without the vin the catalog is asking if it has abs or not, two diferent part numbers for the brake and clutch.


Albert
Daytona Mitsubishi
Parts Manager



Actually the car is a 2005 so the VIN will be no good. Car does have ABS.
I like those partucular pedals and want to put them in my 2005 SSL. Thanks.



1600A016 - GAS
4620A083- BRAKE
2340A031- CLUTCH


If you need help ordering let me know


Albert

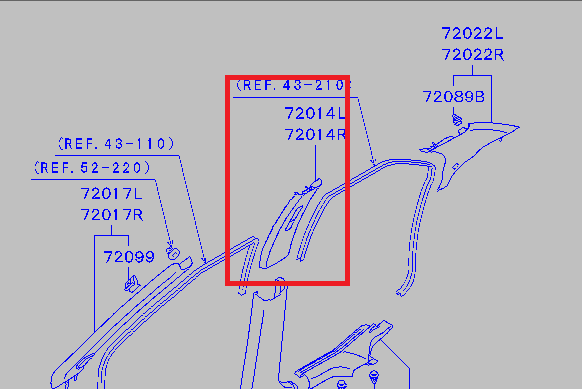

Looking for the CLIP that goes into the body that secures the upper B-Pillar. Is it the same piece as the A-Pillar Retention clip? It's not shown in caps, maybe I'm just looking in the wrong area. The service manual leads me to believe it's the same clip.

CAPS




Service Manual



Could someone find the part number for evo 8 map light without sunglass holder?



I am looking for the part number for the harness/cable that connects the junction box (driver side engine compartment) to the positive battery terminal.

I highlighted in red the beginning and end of the harness.
