Yeah I see that now, ASA doesn't show a good picture of it lol



i have a lancer with the sun and sound package and i recently replaced the head unit and now the 6cd changer thats below the a/c dials isnt useable does anyone know where i can find a tray to replace the 6cd changer



md087060
Is this the correct part number for a 06 mivec IX 4g63 injector o ring on the intake manifold side?
Are the 1g dsm injector o rings interchangable?



Hi everyone, anybody knows the partnumber of Front and Rear brake pads of Evo 4, please post it here, thanks



Im looking for the part number for the white plastic clip that goes in the shifter linkage assembly at the transmission.



Md771824



Thanks!



From a 05-06 Outlander presumably all types: FWD/AWD/5spd/4spd AT

It is the rear transmission mount bracket that bolts to the back of the transmission. I can't for the life of me find an auto recycler who has this piece. I have reached out to about 20 different recyclers in my area and nothing is coming up.

I have Mitsubishi ASA but I cannot isolate this bracket, only the entire transmission assembly.

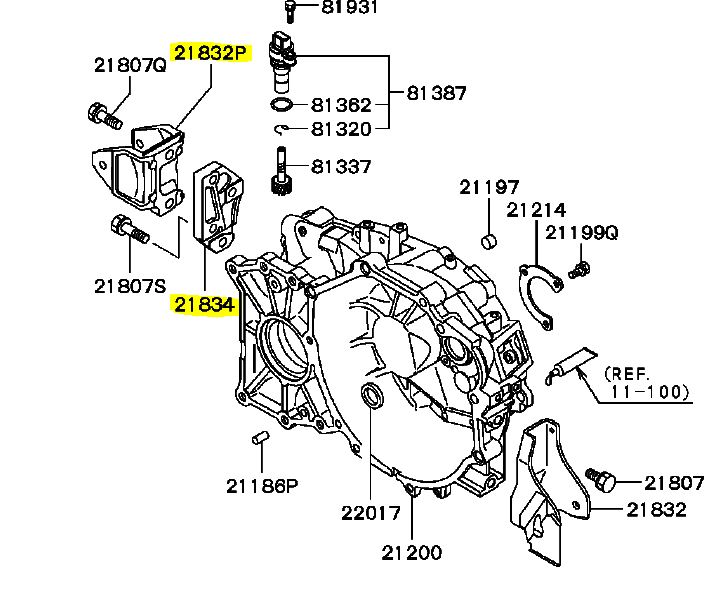

Attachment 331528



Don't know if this diagram helps visualize what it is I need better...

Attachment 331526



whats the outlander chassis code first 5 digits will do hopefully


look in gearbox , section 23-110 , then page 2 , pnc is 21832p



I'm assuming someone did their homework judging by the second picture you put up (at the bottom is specifically states there is no part number?) but i did find this, whether it's right or not I'm not sure but the parts are from late 04 (so 05'?)-06 and this is a M/T case.. problem is I see your picture states it uses all 3 holes the adapter piece looks to only use 2

The adapter piece for the mount (21834) is Part# MN168669
The mount (21832P) is Part# 1092A024



chassic code CU5W - 2400 MIVEC, then one of:

XNMYZL2M (FED)
XNMYZL3M (CAN) <-- mine is probably more specifically this

will see what 21832p yields
thanks



I only think there is no part number because the guy i spoke to at the local Mitsubishi Dealer parts department wasn't able to find it and we just assumed it came with the entire transmission...

This does look promising but it almost looks as though that mount bracket is oriented that wrong way for my mount..

I'll see what I can come up with. Thanks a ton man!



The mount you have in that first picture looks like a 2wd manual tranny mount.. the 4wd looks different according to ASA



Looking for the part number for the metal bracket on the Evo 8 firewall, that has the injector resistor pack, and another resistor box mounted to it. Mine is rusted beyond belief, and when I called STM they weren't sure.
