All Part Number Request Go Here
Jon,
Do a search under my username in the for sale section. I had assembled the parts for that exact swap, but I ended up going with a GT3076R from AMS instead.
You'll see the title as something like "10.5/TME install kit"
Do a search under my username in the for sale section. I had assembled the parts for that exact swap, but I ended up going with a GT3076R from AMS instead.
You'll see the title as something like "10.5/TME install kit"
Originally Posted by electric_evo276
I need the part number for just the headlight housing. You know, the chrome part. I plan smoking out my headlights without having to mess with my original.
Originally Posted by twentyone
is there a part # for a blank uncut key for 02-03 lancer?
Also, this is a no transponder key.
Looks like MB852312 but I would have JustDSM or the dealer verify that.
Originally Posted by timzcat
Do you know the body code? Like the evo is a CT9A
Also, this is a no transponder key.
Looks like MB852312 but I would have JustDSM or the dealer verify that.
Also, this is a no transponder key.
Looks like MB852312 but I would have JustDSM or the dealer verify that.

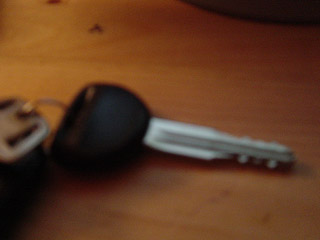

Yes the no transponder key, looks like this:
MB852312 might be correct but I just wanted to double check before I order it and end up getting something different
That is the CS6A key for 01 through 04. I looked it up as the sport line model but I would doubt there would be any difference. There are 3 listed . No protector on the top part. (all metal) the one above and one with a transponder. I'd say I feel 99.9% that is the key.
Originally Posted by JustDSM
The GSR, RS, and MR all share the same cylinder head and camshafts. Part numbers are listed below:
Cyl Head: MN155744
Intake Camshaft: MN143619
Exhaust Camshaft: MN143620
Intake Manifold: MN137746
Exhaust Manifold: MN156302
Down Pipe: MN135583
Mid Pipe: MR968097
Rear Section: MN153192
I've already pointed this out elsewhere on the forums but the MR does in fact use a revised (larger) compressor housing compared to the RS/GSR trims. Everyone is already well aware of the turbine housing.. All models do in fact use the same CHRA however.
CHRA: MD613507
'03-'04 All Trim levels
Compressor Housing: MD613567
Turbine Houshing: MD613521
All '05 Trim levels
Compressor Housing: MD613573
Turbine Housing: MD613524
***Please note that the MR turbine housing uses the same O2 housing as the previous models. You do not need to purchase a "MR" housing.
MR Wheel (17x8JJ +38): MN184113
Cyl Head: MN155744
Intake Camshaft: MN143619
Exhaust Camshaft: MN143620
Intake Manifold: MN137746
Exhaust Manifold: MN156302
Down Pipe: MN135583
Mid Pipe: MR968097
Rear Section: MN153192
I've already pointed this out elsewhere on the forums but the MR does in fact use a revised (larger) compressor housing compared to the RS/GSR trims. Everyone is already well aware of the turbine housing.. All models do in fact use the same CHRA however.
CHRA: MD613507
'03-'04 All Trim levels
Compressor Housing: MD613567
Turbine Houshing: MD613521
All '05 Trim levels
Compressor Housing: MD613573
Turbine Housing: MD613524
***Please note that the MR turbine housing uses the same O2 housing as the previous models. You do not need to purchase a "MR" housing.
MR Wheel (17x8JJ +38): MN184113
It's there. An 03 is considered a GSR model so the above numbers would be all models of Evo. If you actually need stock cams don't buy them from dealer, get them out of an upgraded job. Like mine
There are a couple out on ebay and I think I am going to list mine since they only have 6000 miles.
There are a couple out on ebay and I think I am going to list mine since they only have 6000 miles.
Originally Posted by timzcat
It's there. An 03 is considered a GSR model so the above numbers would be all models of Evo. If you actually need stock cams don't buy them from dealer, get them out of an upgraded job. Like mine
There are a couple out on ebay and I think I am going to list mine since they only have 6000 miles.
There are a couple out on ebay and I think I am going to list mine since they only have 6000 miles.
Originally Posted by timzcat
That is the CS6A key for 01 through 04. I looked it up as the sport line model but I would doubt there would be any difference. There are 3 listed . No protector on the top part. (all metal) the one above and one with a transponder. I'd say I feel 99.9% that is the key.
One more question, I looked over the parts list and saw the part # for a replacement trunk lock mechanism is MR286178. This is probably for the EVO but wouldnt it be pretty much the same thing for a regular lancer? If not, do you have the CS6A trunk lock mechanism part #?
Also, later down the list there is a '05 MR trunk key lock listed as a different part # (6370A205). How is this different from the MR286178 one?
Thanks in advance!
