This post specifies the OEM fluid is
ACD Operating Fluid
- Diamond ATF SP III - ACH1ZC1X05 (1 qt)
- capacity 0.95 qts

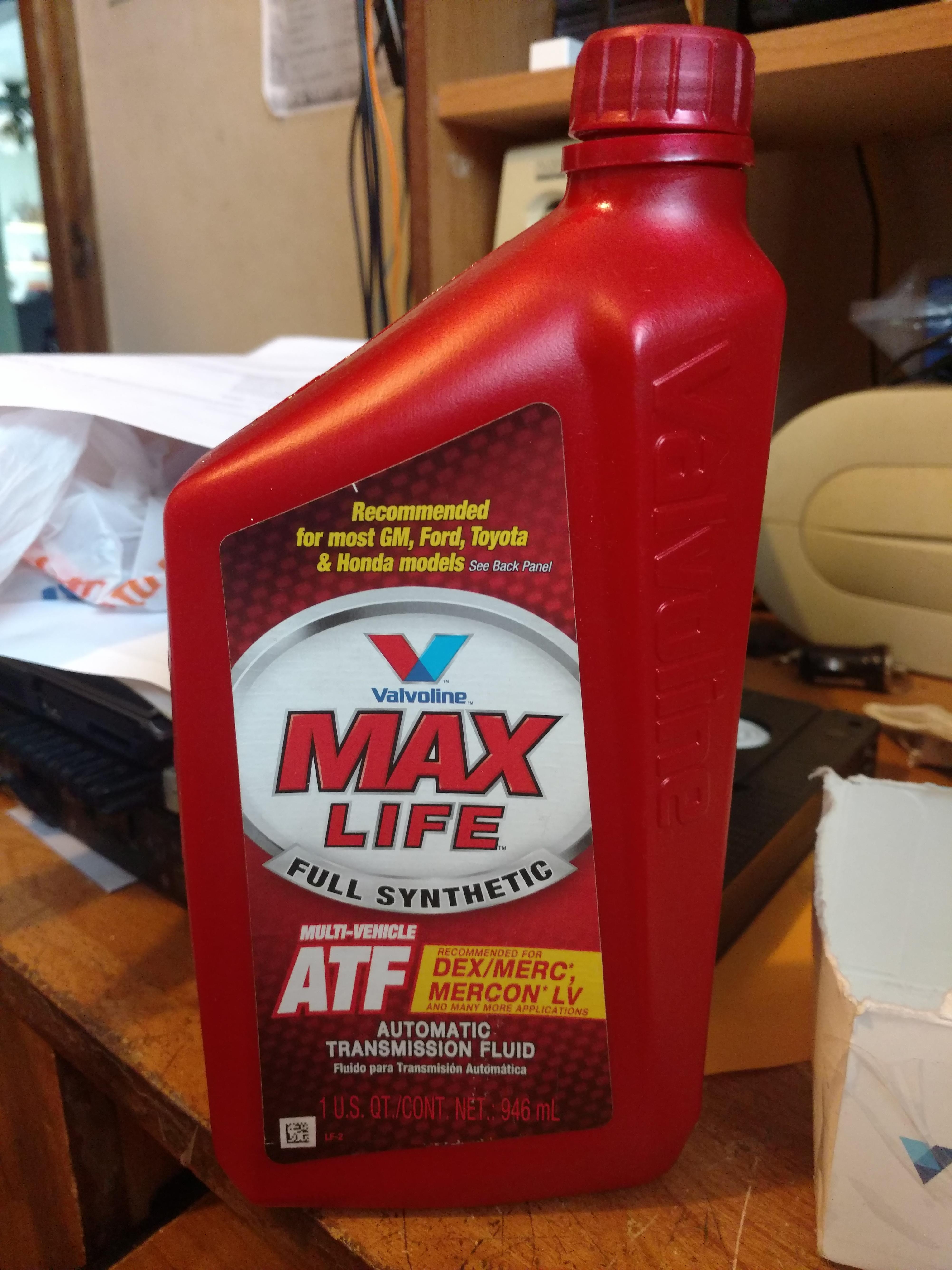

Is Valvoline Maxline ATF an equivalent? The bottle says SP-III
This post specifies the OEM fluid is
ACD Operating Fluid
- Diamond ATF SP III - ACH1ZC1X05 (1 qt)
- capacity 0.95 qts
Is Valvoline Maxline ATF an equivalent? The bottle says SP-III
#154

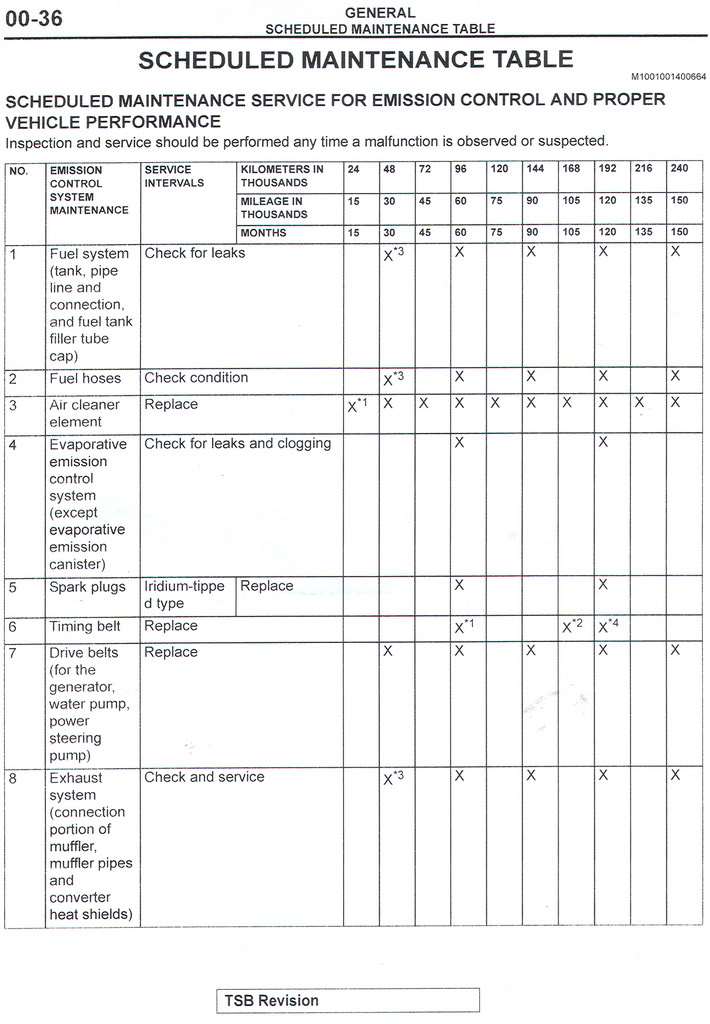

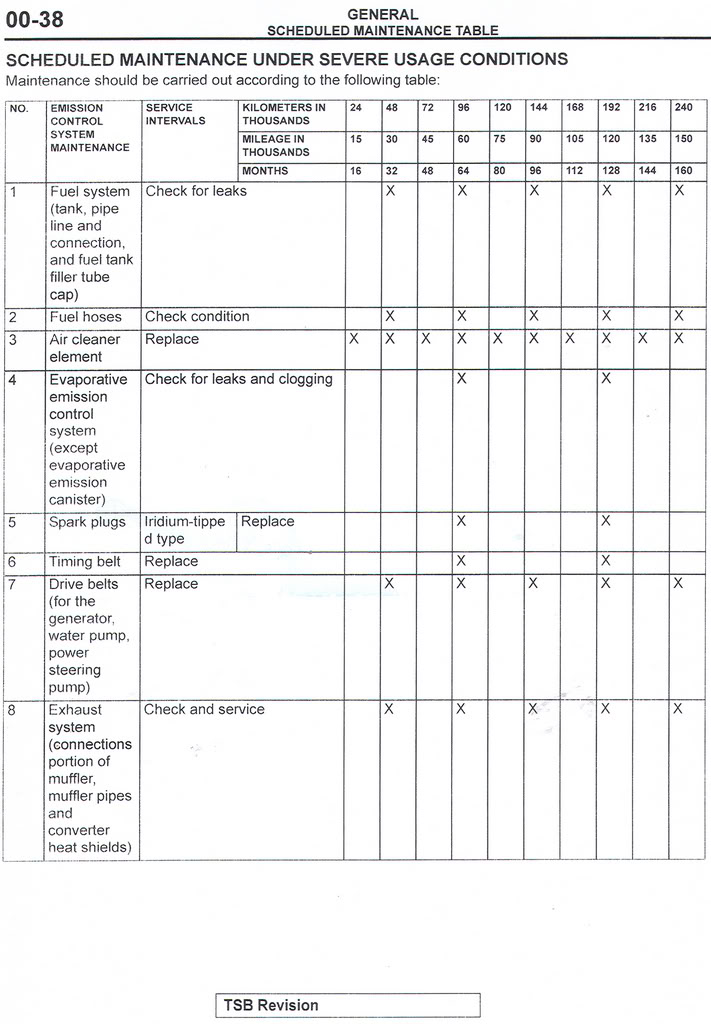

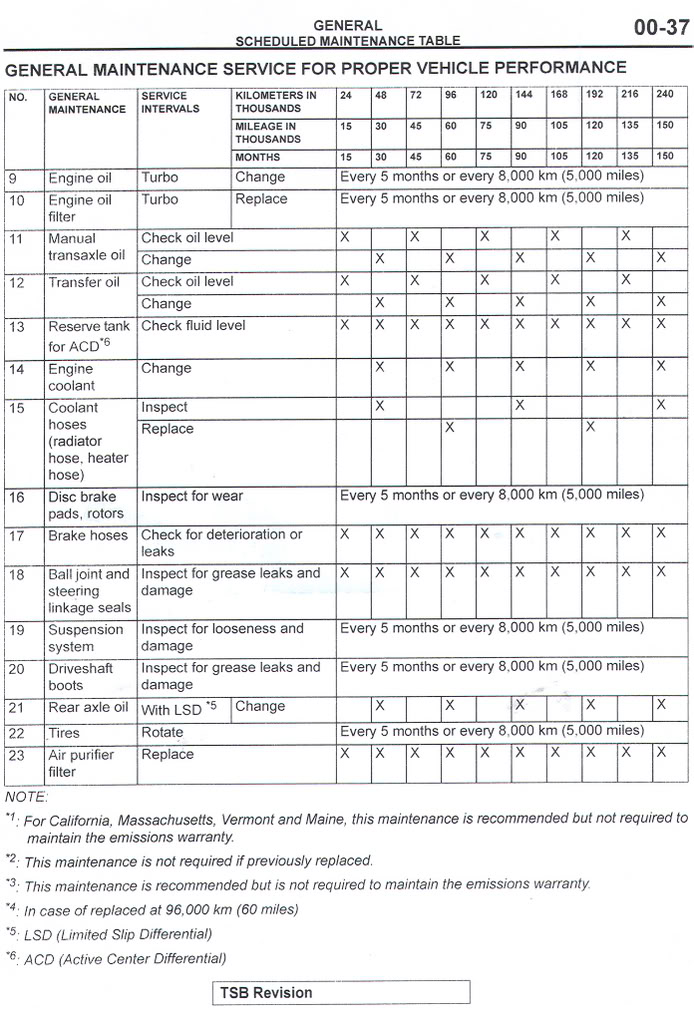

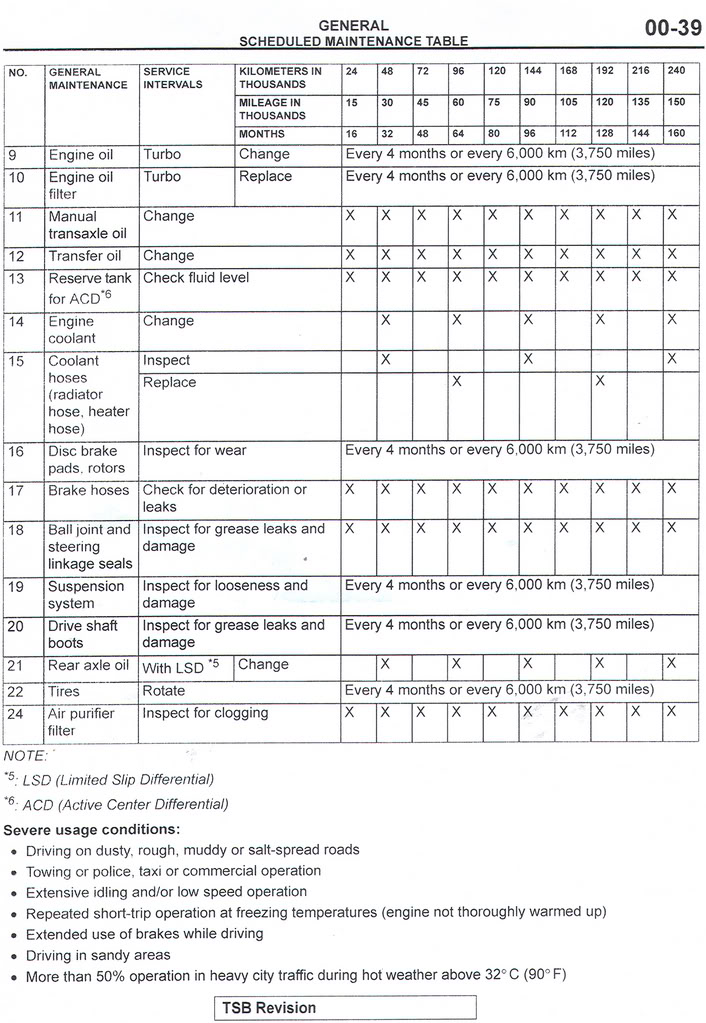

Scheduled Maintenance Tables
Attachment 298866
Attachment 298867
Attachment 298868
Attachment 298869
OEM Fluids
5 SPEED (W5N51)
- Gear Oil API classification GL-4 SEA 75W-85 or 75W-90
- Diaqueen M/T Fluid - MZ313376 (1gal)
- capacity 2.9 qts
Attachment 298870
6 SPEED (W6MAA)
- Diaqueen Super Multi Gear 75W-85 or exact equivalent
- Diaqueen M/T Fluid - MZ313376 (1 gal)
- capacity 2.3 qts
Transfer Case
- Mitsubishi Limited Slip Differential Oil (LSD) or equivalent
- Diaqueen LSD Fluid - 3775610 (1 gal)
- capacity 0.63 qts
Attachment 298871
ACD Operating Fluid
- Diamond ATF SP III - ACH1ZC1X05 (1 qt)
- capacity 0.95 qts
Attachment 298872
Rear Differential
- Mitsubishi Limited Slip Differential Oil (LSD) or equivalent
- Diaqueen LSD Fluid - 3775610 (1 gal)
- capacity 0.58 qts
Attachment 298873
Mitsubishi Coolant
-MZ311986 (1 gal)
Attachment 298874
Mitsubishi Brake Fluid
-DOT 3
-MZ311987 (354 ml)
Attachment 298875
Mitsubishi Power Steering Fluid
-ACH1ZC1X04 (12 oz)
Attachment 298876
Oil Filter
-MZ690116
Attachment 298877
Timing Belt Kits - https://www.evolutionm.net/forums/mi...ce-update.html
Attachment 298866
Attachment 298867
Attachment 298868
Attachment 298869
OEM Fluids
5 SPEED (W5N51)
- Gear Oil API classification GL-4 SEA 75W-85 or 75W-90
- Diaqueen M/T Fluid - MZ313376 (1gal)
- capacity 2.9 qts
Attachment 298870
6 SPEED (W6MAA)
- Diaqueen Super Multi Gear 75W-85 or exact equivalent
- Diaqueen M/T Fluid - MZ313376 (1 gal)
- capacity 2.3 qts
Transfer Case
- Mitsubishi Limited Slip Differential Oil (LSD) or equivalent
- Diaqueen LSD Fluid - 3775610 (1 gal)
- capacity 0.63 qts
Attachment 298871
ACD Operating Fluid
- Diamond ATF SP III - ACH1ZC1X05 (1 qt)
- capacity 0.95 qts
Attachment 298872
Rear Differential
- Mitsubishi Limited Slip Differential Oil (LSD) or equivalent
- Diaqueen LSD Fluid - 3775610 (1 gal)
- capacity 0.58 qts
Attachment 298873
Mitsubishi Coolant
-MZ311986 (1 gal)
Attachment 298874
Mitsubishi Brake Fluid
-DOT 3
-MZ311987 (354 ml)
Attachment 298875
Mitsubishi Power Steering Fluid
-ACH1ZC1X04 (12 oz)
Attachment 298876
Oil Filter
-MZ690116
Attachment 298877
Timing Belt Kits - https://www.evolutionm.net/forums/mi...ce-update.html
#155
Evolving Member
iTrader: (3)
Question, transmission and transfer case aren't the same? The rear diff and front diff require the same capacity on 0.58 QTS? Trying to make a list on my phone to have everything squared away with these fluid changes, this is what I currently have as intervals. Thanks
Transfer case (.63 qt) and differential (.58 qt) are OEM Diaqueen MZ320345 LSD GL-5 SAE90 oil
You have the correct amount and spec for transmission oil, although in mine that is the only place I use a non-spec fluid. Shep rebuilt the transmission and recommends 2.9 QT for 5 speed of Redline MT-90 GL-4. If driven in cold weather frequently use the MT-85. My transmission and entire care are stock, no mods.
Also the ACD fluid is correct, its just a hydraulic fluid that drives the pump and doesn't see the constant wear like a transmission or rear diff. You don't need to change, just top off the 1 qt reservoir under the hood drivers side front of car. If you do change it, be extremely careful to do it properly and bleed it properly, or you will cause more problems than you will fix. I am **** about my maintenance and have never needed to changed mine, and it looks clear and red.
Last edited by tmaddox; Jun 8, 2020 at 06:18 AM.
