Battery relocation

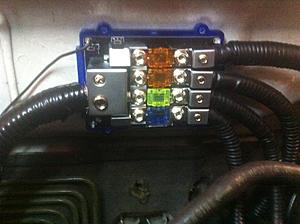

Relocating my battery to the trunk and Ive swapped the stock fuse link for this power distribution block. 0 gauge run from the trunk with an inline 250 anl fuse, stock harness was extended with 4 gauge and home depot butt connectors. Surprisingly the 0 gauge fit right under the kick plates with a little "coaxing"
I think I am going to write up a How to after I finish completely
I think I am going to write up a How to after I finish completely
#4
Evolving Member
Thread Starter
Join Date: Oct 2007
Location: savannah
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
It's a stinger fuse block from some website for 50 bucks shipped. 30 without the digital readout, but I thought it was cool enough to pay extra for.
#6
Evolving Member
Thread Starter
Join Date: Oct 2007
Location: savannah
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
I used a 60, 100, and for the fuseless connections I threw in 150s. There's a 4 gauge port on the 0 gauge side you can use if you don't feel like running a fuse. To be honest I didn't even look up which runs where on the wire diagram.
The 0 gauge will fit inside with 3/8 wire loom. it might be overkill, but I like doing things once.
The 0 gauge will fit inside with 3/8 wire loom. it might be overkill, but I like doing things once.
Trending Topics
#9
Evolving Member
Thread Starter
Join Date: Oct 2007
Location: savannah
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts

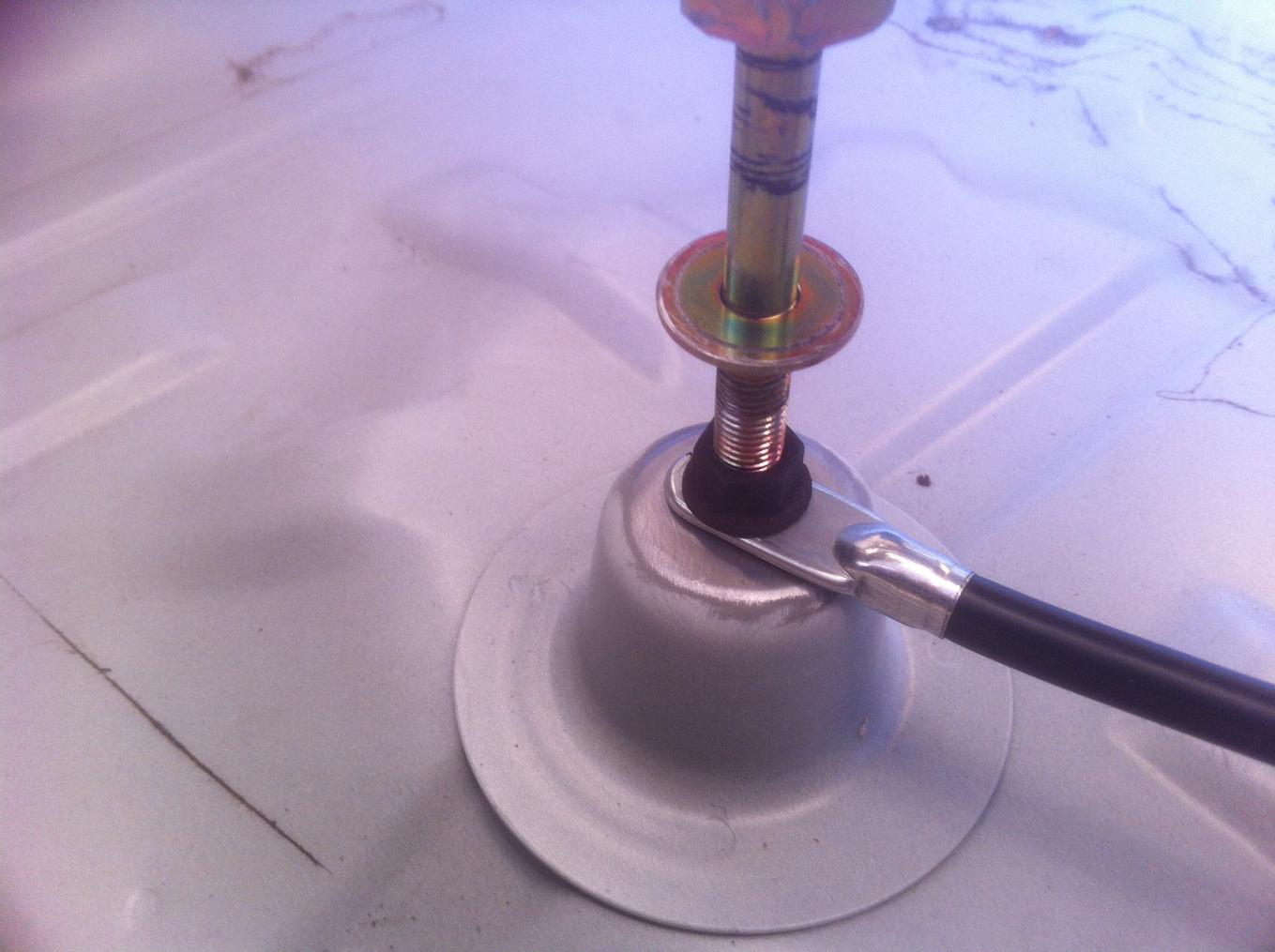

Yeah, spare bolt with a nut on it to ground while retaining the spare tire.

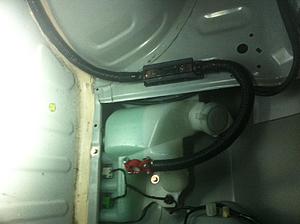

Routed the 0 gauge around the side and mounted the anl fuse to the rear washer bottle and drilled a hole hole for the bottom bolt
Routed the 0 gauge around the side and mounted the anl fuse to the rear washer bottle and drilled a hole hole for the bottom bolt
#11
Evolving Member
Thread Starter
Join Date: Oct 2007
Location: savannah
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts

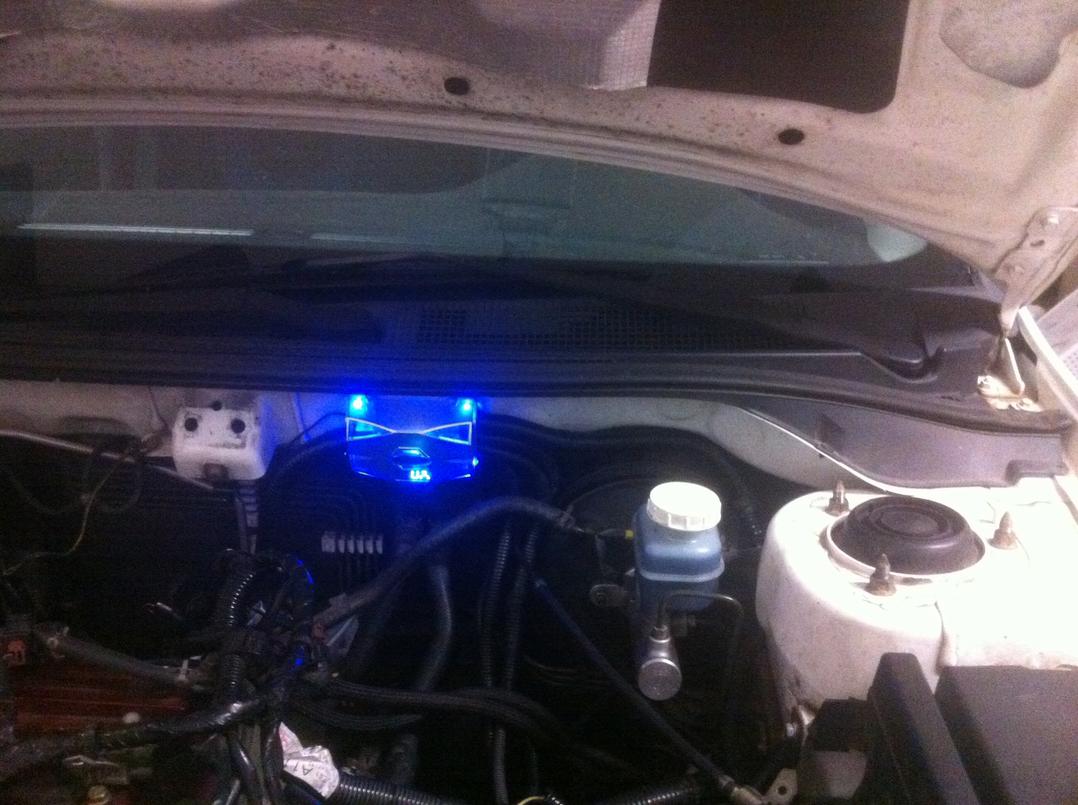

here it is in all its glory. I didnt know it was going to light up so much, Ill prolly snip the 4 corner diodes. its cool because it is connected to the battery but only lights up on ignition and turns off after a minute
