and I think they also try to divert some to the oil cooler to, no? Either way aerodynamics panels are not important, right? Geez.

Why can't any good underbody aerdynamic pieces be found for the Evo that make a difference? It seems makeing your own underbody aero enhancements is the only way to go..



The oil cooler gets its air from the passenger side vent in the bumper. I think the undertray has a hole cut in it to allow that air to escape.

The undertray has guides that try to route air to the brakes, transfer case, and transmission. It also has a slight vertical front lip that attempts to divert air around, rather than under, the car.



I thought the front under panel had something to do with the oil cooler coming through one way or another, heh.



Got your own wind tunnel?

I tried the search function, but nothing came up for aluminum undertray. Works has a Croxx plate, but that's not an undertray.

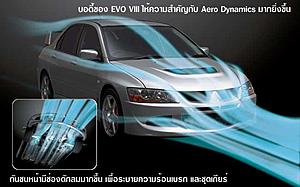

Where did you find the picture? In other words can I download a high resolution version of it....



BadBoyBeltran: Would you like to kindly send about 4 of those clips my way? I need a pair and some back up for the intake scoop..
