How-to Swap S2K Cluster into Evo (Updated)

Reply



Thread Tools Search this Thread
Old Sep 11, 2017, 01:46 AM   #1
Newbie
Thread Starter

Evocc's Avatar

Join Date: May 2017
Location: Hawaii
Posts: 58
Thanks: 0
Thanked 2 Times in 2 Posts

Drives: 05' Evo & 04' Evo

How-to Swap S2K Cluster into Evo (Updated)

Decided to remake this thread so you guys wouldn't have to sift through pages of rambling to get what you needed to know.

You're welcome.

Basics of what you'll need:

-S2K (AP1) cluster
-S2K cluster harness
-Ktuned S2K dash converter
-Wire stripper
-Wire crimps/Crimper tool
-Soldering iron w/flux core
-Heatshrink
-Some way to label your wires, not needed but it helps.
-Any other basic wire working tools you'd usually have.
-Patience. I have very little wiring experience and managed to faniggle this thing into functioning. You can too.








After you've gathered all of this you can get to work with the wiring.

I went through the effort of finding and compiling the pinout info for the S2K cluster here for you guys so you aren't going through the pain and agony of finding it on Google or wherever.








Now here's the pinout for an Evo 8 WITH ACD.
I can't tell you if it's the same for non ACD evos. Be wary.
This is the evo harness with the two plugins connected to the evo cluster.

C-106 (White Connector)

1 BLK...........Ground 3
2 BLK...........Ground 3
3 BLU/GRN.......Left Turn Signal (+)
4 RED/WHT.......High Beam (+)
5 BLK...........High Beam (-)
6
7 RED/BLK.......J/C 1 (+) (10AMP FUSED)
8 YEL...........Door (+)
----------------------------------------
Ignition
9 YEL/RED.......Charge (+)
----------------------------------------
10 GRN/WHT......Tarmac (-)
11 GRN..........ECU/Tach Input
12 WHT/BLK......Speedometer Input
13 GRN/ORG......ABS
14 PNK..........Gravel (-)
15 VLT..........Snow (-)
16
17 WHT/BLU......Check Engine (-)
18 WHT..........Oil (-)
19 RED..........Charge (-)
20 BLU..........Fog (+)
21

C-108 (Blue Connector)

31
32 BRN..........Brake (-)
33 VLT..........Water Spray (-)
34 BLU..........Door (-)
35 RED..........Seat Belt (-)
36 GRN/YEL......Air Bag (-)
37 BLU/GRN......Brake (+)
----------------------------------------
Positive Lead
38 GRY..........General (+)
----------------------------------------
39
----------------------------------------
Negative Lead/Rheostat
40 BLK/YEL......J/C 3 (-)
----------------------------------------
41
42
43
44
45
46
47
48 BLK..........(-)
Fog (-)
Turn Signal (-)
49 PNK..........Right Turn Signal (+)
50 YEL..........Water Temp Input
51 GRN..........Fuel Gauge Input


Fog Light Switch
1
2
3 - Black Yellow - From Rheostat
4 - Green White + From fuse box 7.5a

Hazard Warning Light Switch
1
2
3 - Green White + From fuse box 7.5a
4 - Black Yellow - From Rheostat

Your next step is going to be figuring out that wiring. God be with you because it sucks if you don't know what you're doing lol.

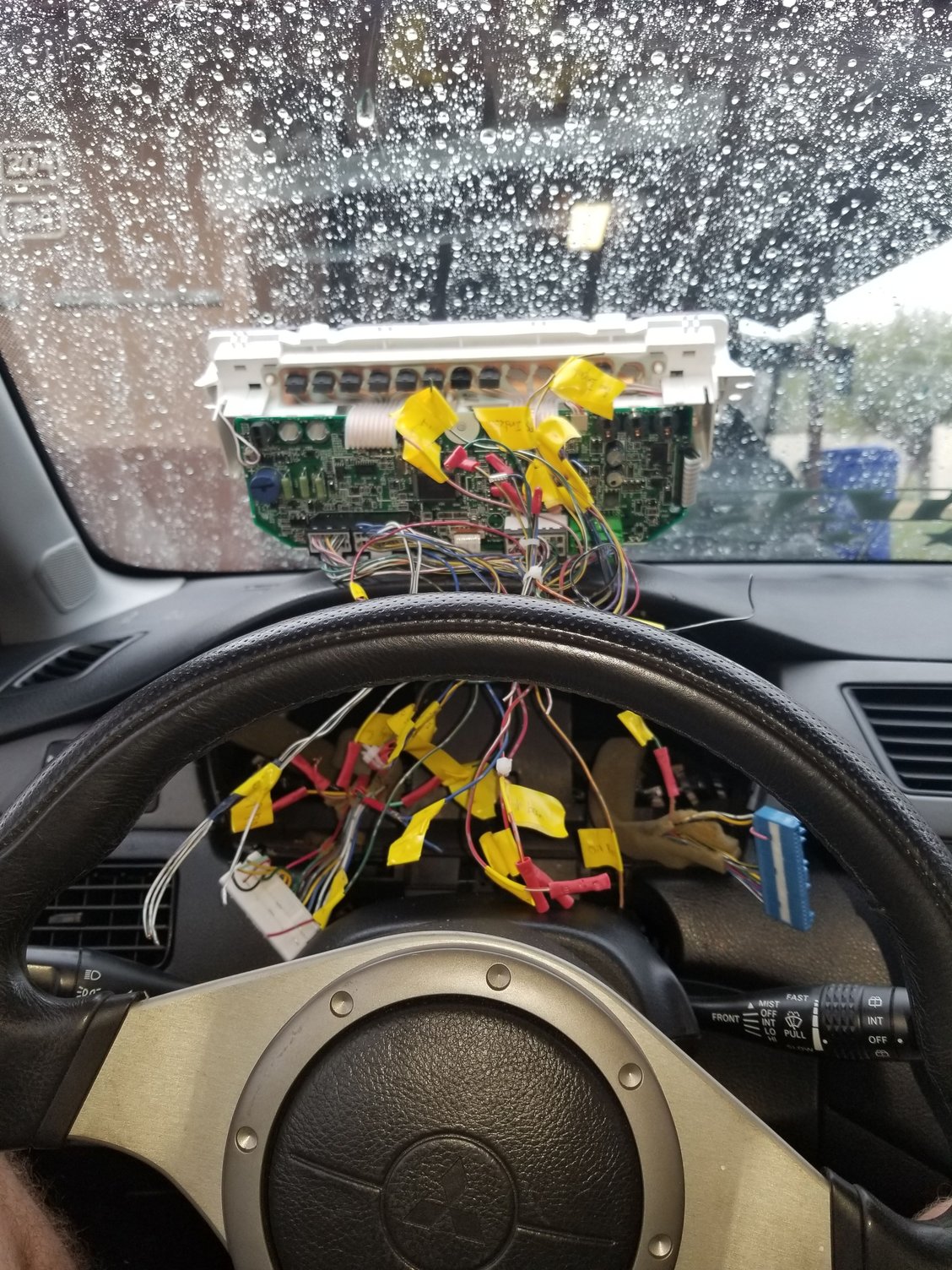

After going through that mini version of hell you should end up with a semi functional cluster.
From what I can tell, RPMs and Fuel level read fairly accurate even without the Ktuned converter applied.
Coolant will most likely read very low, or very high at first. No worries.
And your speedometer most likely won't work at all unless you have the Ktuned converter applied.



After you've tested your connections and have everything that you want done, pop that sucka in there and see how she looks. You do not have to modify your cluster shroud at all, just push your wiring back in gently and place the cluster behind it.

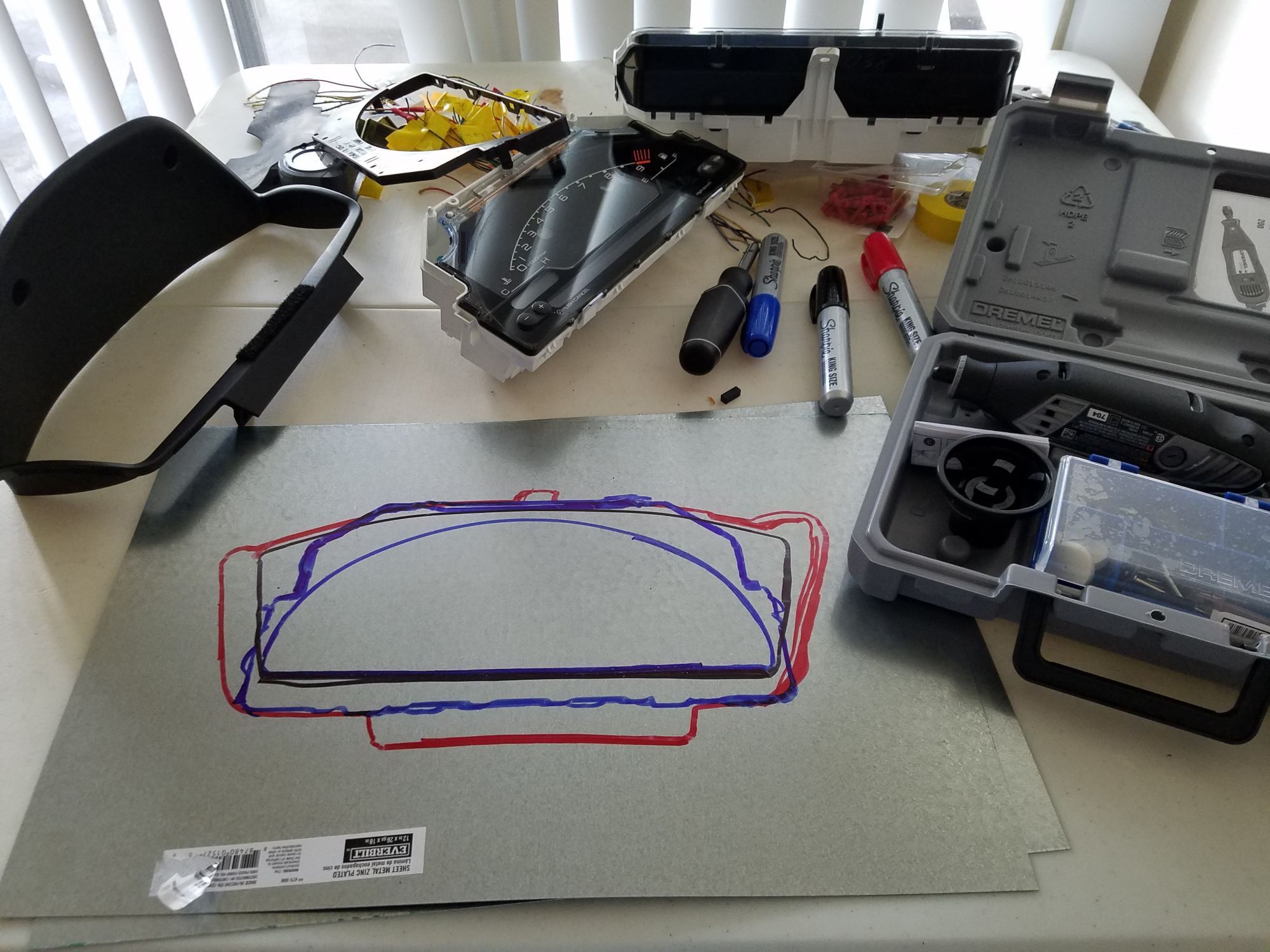

From here you can either make your own template for the cluster, or you can ask a company to cut one for you. (I'm through @JD_customs_usa as they'll be cutting me a carbon plate and shipping it to me.


At the very end of all of this, you should end up with something like this.





Link to my Facebook startup video:
https://m.facebook.com/story.php?sto...00004924896922


I'm nowhere near finished. Since I still plan on doing an LED swap for the cluster along with a different colored template.
I'll update this accordingly as I keep going through this project. I'm going to go back and make a more direct pinout for the wiring soon. I'd like to make it as simple as possible for everyone.

Thanks for the read, hope you guys enjoy it and appreciate the work and research that went into it.

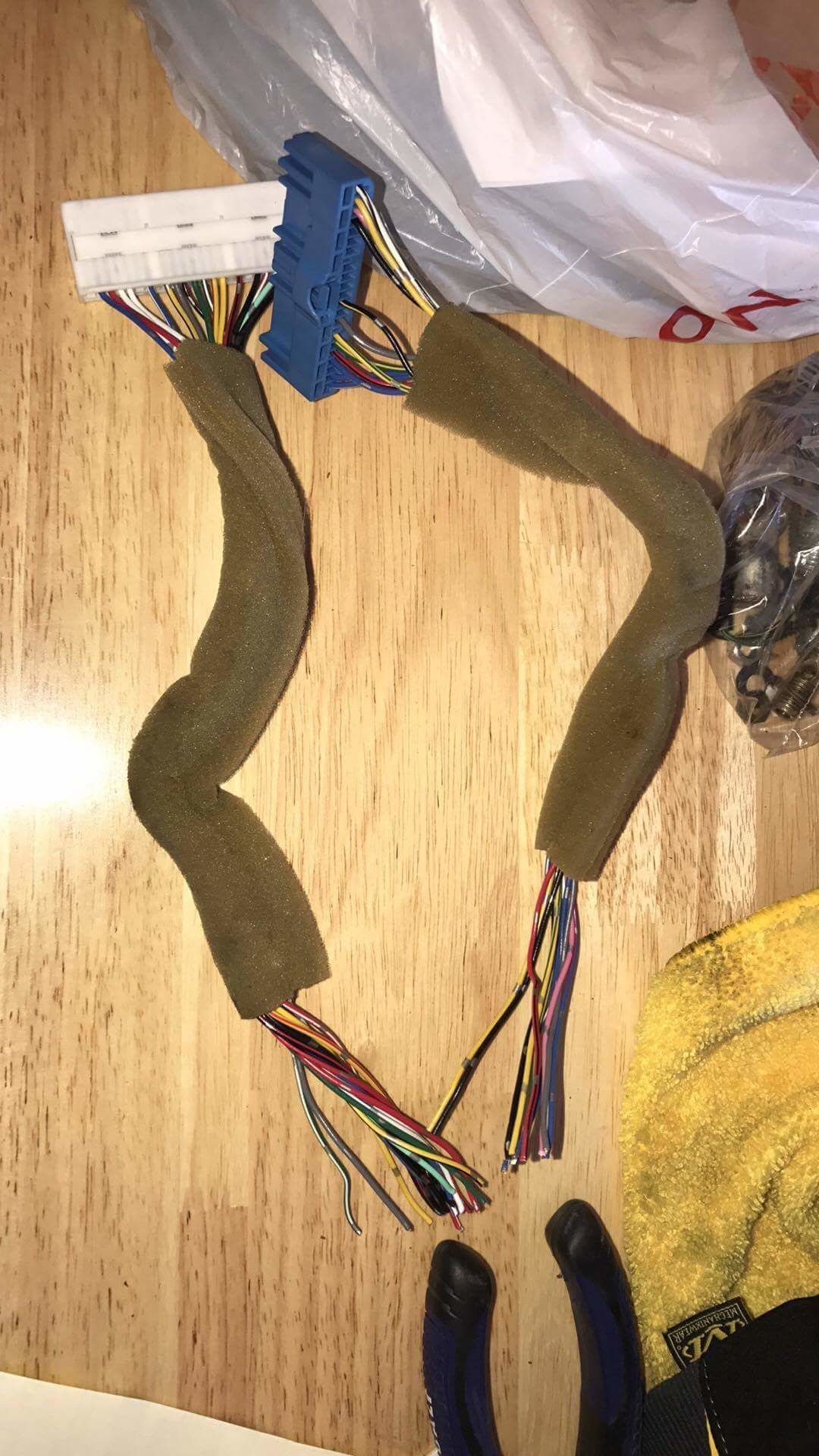

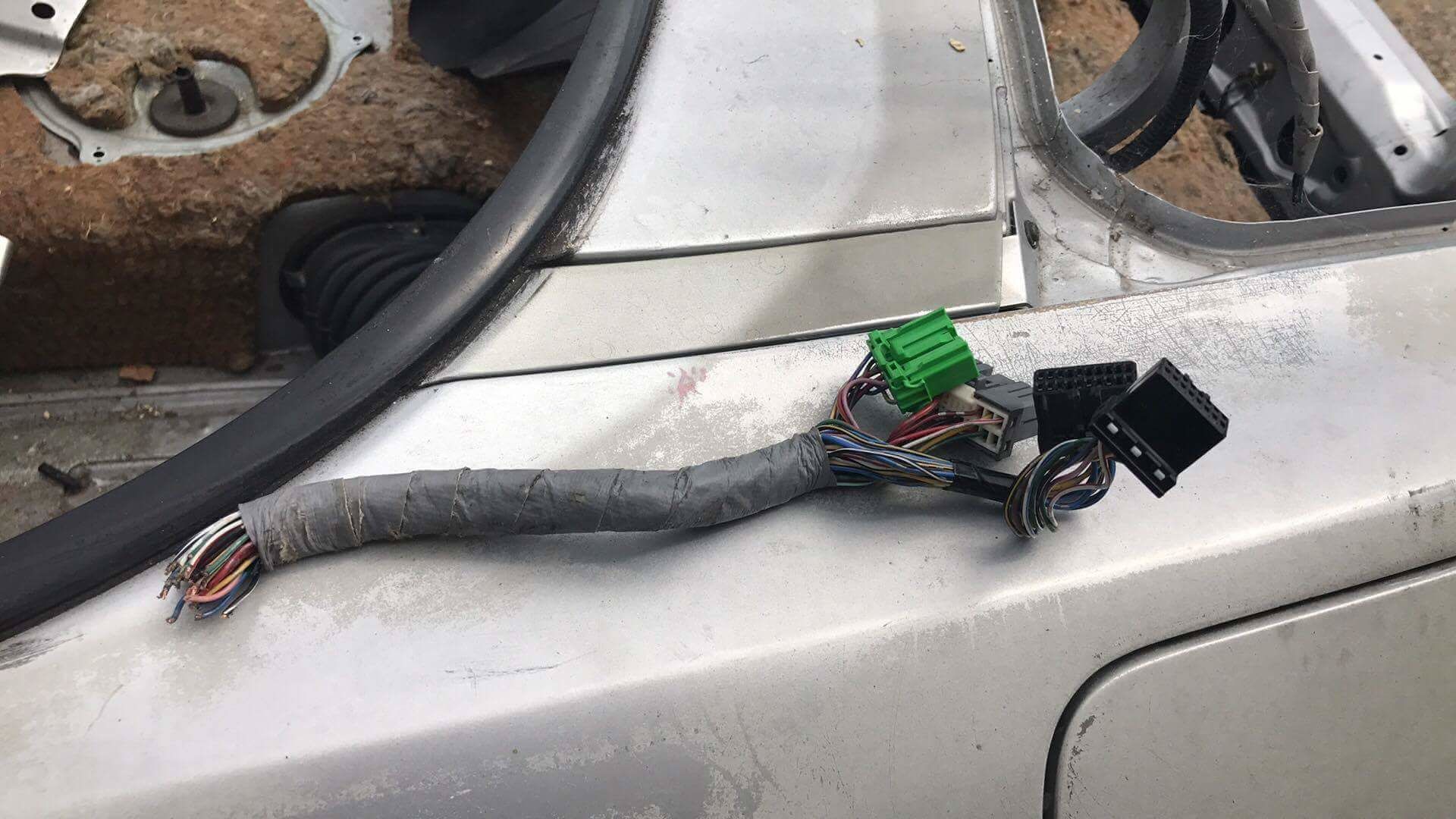

S2K Cluster harness

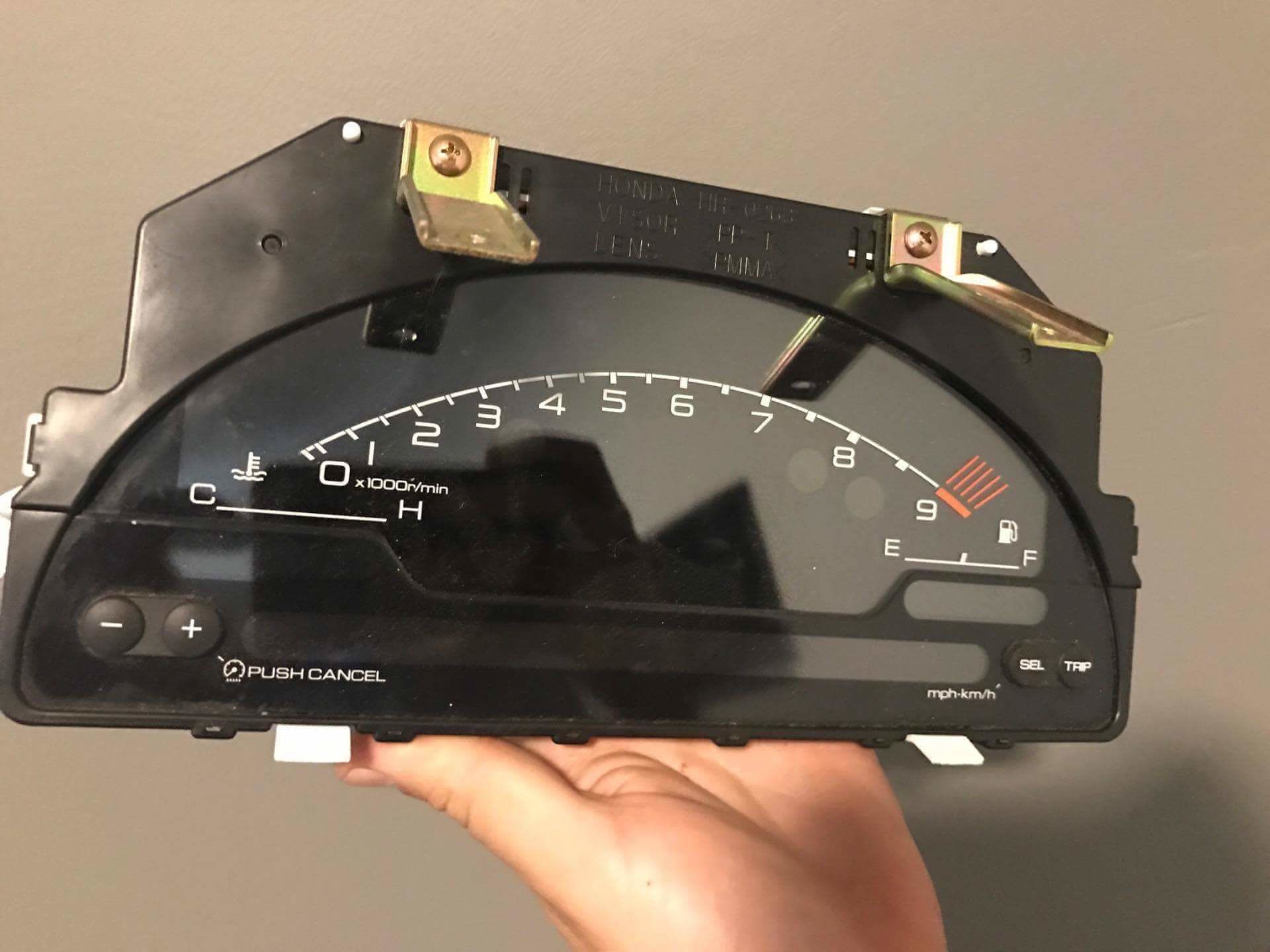

S2K AP1 cluster

Ktuned S2K cluster converter.<br/><br/>This allows you to adjust your speedo, coolant, and fuel level for accuracy.

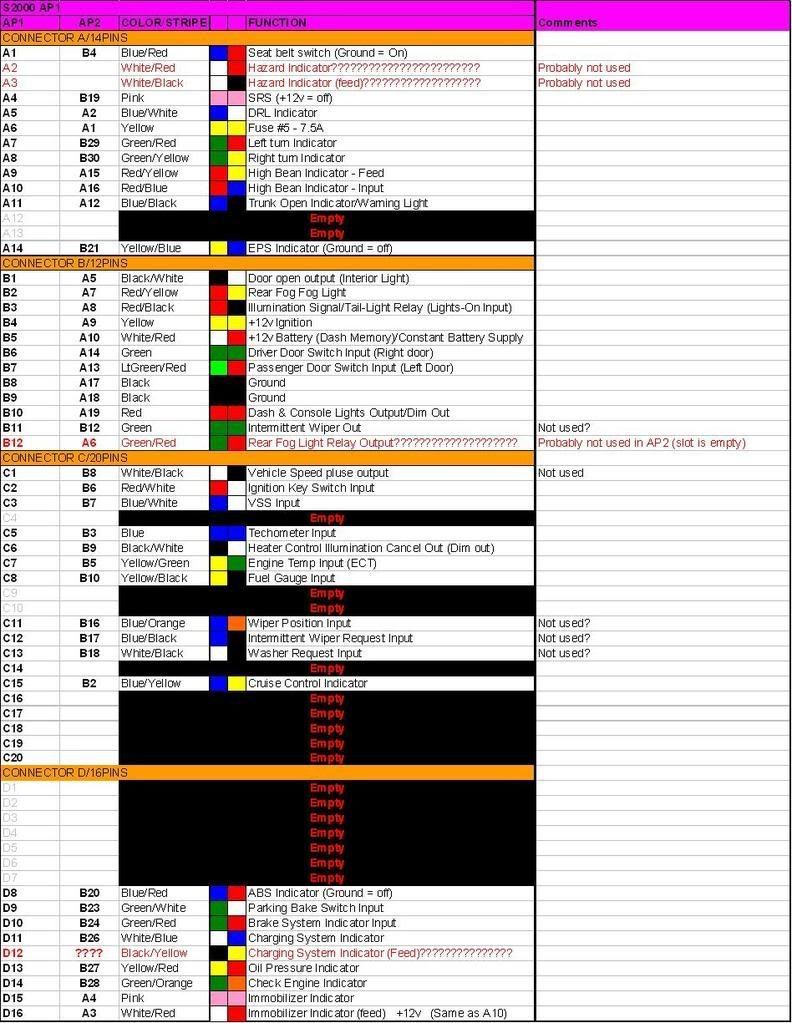

AP1 Pinout. Honestly you won't use much of this.<br/><br/>If the evo doesn't have it, just cap it or cut it off.

AP1 pinout

Evo cluster harness

Last edited by Evocc; Sep 11, 2017 at 11:45 AM.
Offline

Reply With Quote
The Following User Says Thank You to Evocc For This Useful Post:
DontStopMe (Sep 11, 2017)
Old Sep 11, 2017, 06:23 AM   #2
Newbie

Join Date: Nov 2010
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Man , that's is pretty dope man .. great write up . !
Offline

Reply With Quote
Old Sep 11, 2017, 09:48 AM   #3
Newbie
Thread Starter

Evocc's Avatar

Join Date: May 2017
Location: Hawaii
Posts: 58
Thanks: 0
Thanked 2 Times in 2 Posts

Drives: 05' Evo & 04' Evo

Quote:
Originally Posted by coolie0707 View Post
Man , that's is pretty dope man .. great write up . !
Thanks man.

It got better feedback than I expected lol.
Offline

Reply With Quote
Old Sep 11, 2017, 10:56 AM   #4
Evolved Member
iTrader: (16)

bboypuertoroc's Avatar

Join Date: May 2005
Location: Lacey/JBLM, WA
Posts: 1,821
Thanked 9 Times in 9 Posts

Drives: 2006 Evo IX

That ended up coming out REALLY good.
Offline

Reply With Quote
Old Sep 11, 2017, 11:07 AM   #5
EvoM Moderator
iTrader: (19)

Join Date: Jan 2011
Location: Washington
Posts: 3,022
Thanked 55 Times in 46 Posts

Drives: Evo IX SE

looks good! needs an in-action video
Offline

Reply With Quote
Old Sep 11, 2017, 11:46 AM   #6
Newbie
Thread Starter

Evocc's Avatar

Join Date: May 2017
Location: Hawaii
Posts: 58
Thanks: 0
Thanked 2 Times in 2 Posts

Drives: 05' Evo & 04' Evo

Quote:
Originally Posted by llDemonll View Post
looks good! needs an in-action video
Added a link to my Facebook for the startup video.
Offline

Reply With Quote
Old Sep 11, 2017, 01:01 PM   #7
Evolving Member
iTrader: (1)

Project_Broke's Avatar

Join Date: Jul 2014
Location: Indianapolis
Posts: 114
Thanked 1 Time in 1 Post

Drives: EVO IX

Awesome! Thank you!
Offline

Reply With Quote
Old Sep 12, 2017, 05:26 AM   #8
Evolving Member

Eric SlowEvo8's Avatar

Join Date: Dec 2012
Location: Tx
Posts: 127
Thanked 8 Times in 8 Posts

Drives: 03 Evo 8

subd
Online

Reply With Quote
Old Sep 12, 2017, 08:20 AM   #9
Evolved Member
iTrader: (18)

Ev0ikon's Avatar

Join Date: Jan 2004
Location: 3rd Rock {from = sun}
Posts: 3,665
Thanked 7 Times in 7 Posts

Drives: Evo803Yello

This is great... but now you don't know when to shift at Tarmac or Snow RPM!
Offline

Reply With Quote
Old Sep 12, 2017, 02:48 PM   #10
Newbie

S13Koop's Avatar

Join Date: Jun 2017
Location: Houston
Posts: 16
Thanks: 0
Thanked 1 Time in 1 Post

Drives: EvoX Final Edition

Wow, one hell of a job to tackle, props to you
Offline

Reply With Quote
Old Sep 12, 2017, 02:55 PM   #11
Newbie
Thread Starter

Evocc's Avatar

Join Date: May 2017
Location: Hawaii
Posts: 58
Thanks: 0
Thanked 2 Times in 2 Posts

Drives: 05' Evo & 04' Evo

Quote:
Originally Posted by Ev0ikon View Post
This is great... but now you don't know when to shift at Tarmac or Snow RPM!
...Good point lol.

I run a built t-case and have ACD deleted on my car, so there was no reason to incorporate the lights in haha.
Offline

Reply With Quote
Old Sep 12, 2017, 03:01 PM   #12
Newbie
Thread Starter

Evocc's Avatar

Join Date: May 2017
Location: Hawaii
Posts: 58
Thanks: 0
Thanked 2 Times in 2 Posts

Drives: 05' Evo & 04' Evo

I'll be updating and adding more information to this as I finish this project up.

Waiting on my calibrater to come in, also sourcing a company that can reprogram the cluster to my original mileage.

I'll add all of this to the thread once It's 100%

Thanks for all the comments and kind words.
Offline

Reply With Quote
Old Sep 13, 2017, 07:35 PM   #13
Newbie
Thread Starter

Evocc's Avatar

Join Date: May 2017
Location: Hawaii
Posts: 58
Thanks: 0
Thanked 2 Times in 2 Posts

Drives: 05' Evo & 04' Evo

Suuuupp.

Ktuned dash converter came in today.
My car is currently in the shop right now having some stuff installed & being tuned. Hopefully I can jump back on the cluster later this weekend and start adjusting my speedo & coolant.
Dash converter from K-tuned.

ft. DxD tiddies.
NFSWWWWWWW.
Offline

Reply With Quote
Old Sep 17, 2017, 09:52 PM   #14
Newbie

Join Date: Sep 2015
Location: norcal
Posts: 27
Thanks: 0
Thanked 1 Time in 1 Post

Drives: '87 325is,'01 525i, '06 evo9mr

Thanks for the write up! Is the evo 8 pinouts the same as the 9?
Offline

Reply With Quote
Old Sep 18, 2017, 02:32 AM   #15
Newbie
Thread Starter

Evocc's Avatar

Join Date: May 2017
Location: Hawaii
Posts: 58
Thanks: 0
Thanked 2 Times in 2 Posts

Drives: 05' Evo & 04' Evo

Quote:
Originally Posted by e30_pilot View Post
Thanks for the write up! Is the evo 8 pinouts the same as the 9?
The pinout I posted was for an 05' Evo w/ACD.

It SHOULD be pretty similar if not exactly the same for a 9.

But don't hold me to it.
Do some digging and find out for us lol.

Best of luck. 👍
