tried to install last generation mmcs but no luck
#1
Newbie
Thread Starter
Join Date: Jul 2016
Location: saudi arabia
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
tried to install last generation mmcs but no luck
hello everyone and good day i wish for all of you
lets get stright to my problem here
As you can see in the picture this unit need 7 connectors, GPS, radio, 20 pin connector, 18 pin connector, 16 pin connector, 8 pin connector and 3 pin connector, my car has all of them but the problem I couldn't find the connector that I can connect 16 pin connector with it, also 8 pin connector I couldn't find it.. so I ignored the both of them and tried to operate that unit but the unit refused to operate so what's the problem
lets get stright to my problem here
As you can see in the picture this unit need 7 connectors, GPS, radio, 20 pin connector, 18 pin connector, 16 pin connector, 8 pin connector and 3 pin connector, my car has all of them but the problem I couldn't find the connector that I can connect 16 pin connector with it, also 8 pin connector I couldn't find it.. so I ignored the both of them and tried to operate that unit but the unit refused to operate so what's the problem
#3
Newbie
Thread Starter
Join Date: Jul 2016
Location: saudi arabia
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
my car is 2009 model .... you can call it, semi ralliart ....that unit as i said its the last genetation of mmcs 2015-2016 .... thanks for your help
Last edited by sameeeer45; Jul 26, 2016 at 07:00 AM.
#5
Evolved Member
iTrader: (2)
I think you're trying to say that you are missing the 8-pin and 16-pin harness in your vehicle.
If so, the 8-pin should be for the back-up camera. The 16-pin harness should be taped up to the main harness as pictured in your instructions. You need the connector harness described in the instructions you posted to connect it.
Also, the US, European, and Japanese market nav systems are different which might be why you're not getting a ton of responses.
Are you using the OEM Navigation Wiring harness from the install kit as well?
https://www.evolutionm.net/forums/ev...-evo-10-a.html
If so, the 8-pin should be for the back-up camera. The 16-pin harness should be taped up to the main harness as pictured in your instructions. You need the connector harness described in the instructions you posted to connect it.
Also, the US, European, and Japanese market nav systems are different which might be why you're not getting a ton of responses.
Are you using the OEM Navigation Wiring harness from the install kit as well?
https://www.evolutionm.net/forums/ev...-evo-10-a.html
Last edited by splattj; Jul 29, 2016 at 06:27 AM.
#6
Newbie
Thread Starter
Join Date: Jul 2016
Location: saudi arabia
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
all what i have is this unit
according what i understand from your image ... that my car lacking the navi power connector and aux connector .... in this case i dont care about aux connector my whole point how to power this unit if my car has no power connector
according what i understand from your image ... that my car lacking the navi power connector and aux connector .... in this case i dont care about aux connector my whole point how to power this unit if my car has no power connector
Last edited by sameeeer45; Jul 29, 2016 at 08:16 AM.
#7
Your best bet would be to look up the tech specs on the harness for your car look at what each pin is, then looking at your MMCS pins and checking if they still match up or if they changed with the new nav.
My bet is that they changed. If they didn't I don't see any reason why it wouldn't be a direct swap for at least base functionality.
My bet is that they changed. If they didn't I don't see any reason why it wouldn't be a direct swap for at least base functionality.
Trending Topics
#8
Evolved Member
iTrader: (2)
That pic helps. If you can get a pic of your wiring harness and any adapter harness you're using we can probably help you figure out the rest of your puzzle.
I'm still convinced that the 8-pin is the camera and that the Japanese photo I posted is incorrect. Or it could be you're out of luck:
https://www.evolutionm.net/forums/ev...an-stereo.html
I'm still convinced that the 8-pin is the camera and that the Japanese photo I posted is incorrect. Or it could be you're out of luck:
https://www.evolutionm.net/forums/ev...an-stereo.html
Last edited by splattj; Jul 29, 2016 at 10:02 AM.
#10
Evolved Member
iTrader: (2)
Gotcha. Did you buy the correct installation kit? It looks like you got the parts that come with the MMCS for newer cars but therefore does not have the adapter harness you need to install it in the earlier cars. There's a different harness to install MMCS into a non-nav 08-13 Lancer. There are two kits, depending on which MMCS version you have. Hopefully you didn't fry the unit by plugging your harness in directly.
#11
Newbie
Thread Starter
Join Date: Jul 2016
Location: saudi arabia
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
this is my unit part number
mz360408ex or you can find it with the other number 8750a373 ..... N11
so i orderd its installatin kit also i orderd this
8755a111
i dont know why its seperated from installation kit
mz360408ex or you can find it with the other number 8750a373 ..... N11
so i orderd its installatin kit also i orderd this
8755a111
i dont know why its seperated from installation kit
Last edited by sameeeer45; Jul 29, 2016 at 11:17 AM.
#12
Evolved Member
iTrader: (2)
Ok. Can you take a picture of the harness that came with your installation kit? It should break out the two white connectors into multiple gray connectors. If you didn't get the installation kit, only the GPS antenna and the unit, you're going to need to source the harness. The correct kit for installing a 2014-15 MMCS is mz360438ex
#13
Newbie
Thread Starter
Join Date: Jul 2016
Location: saudi arabia
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
i already got that kit and already mention it in the first post
and you will get in it
1 - converting wire from 14 pin connector (( main wire from vehicle )) to 16 pin connector
2 - gps unit with its wire
3 - microphone
4 - screw
5 - the manuals
and you will get in it
1 - converting wire from 14 pin connector (( main wire from vehicle )) to 16 pin connector
2 - gps unit with its wire
3 - microphone
4 - screw
5 - the manuals
Last edited by sameeeer45; Jul 29, 2016 at 12:43 PM.
#14
Evolved Member
iTrader: (2)
Those pictures are not very helpful. Could you back out about a meter and take another? The kits I've seen go from the white factory connectors to grey Navi connectors. The kit I mentioned is specific to the later nav harness and would have come with a CAN-bus box (that you don't use in the Lancer). Also, have you looked in the dash for a harness taped up to the main loom? They used blue tape in the US. If you're missing that harness, you're not going to be able to install the OEM nav in your car.
#15
Newbie
Thread Starter
Join Date: Jul 2016
Location: saudi arabia
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts

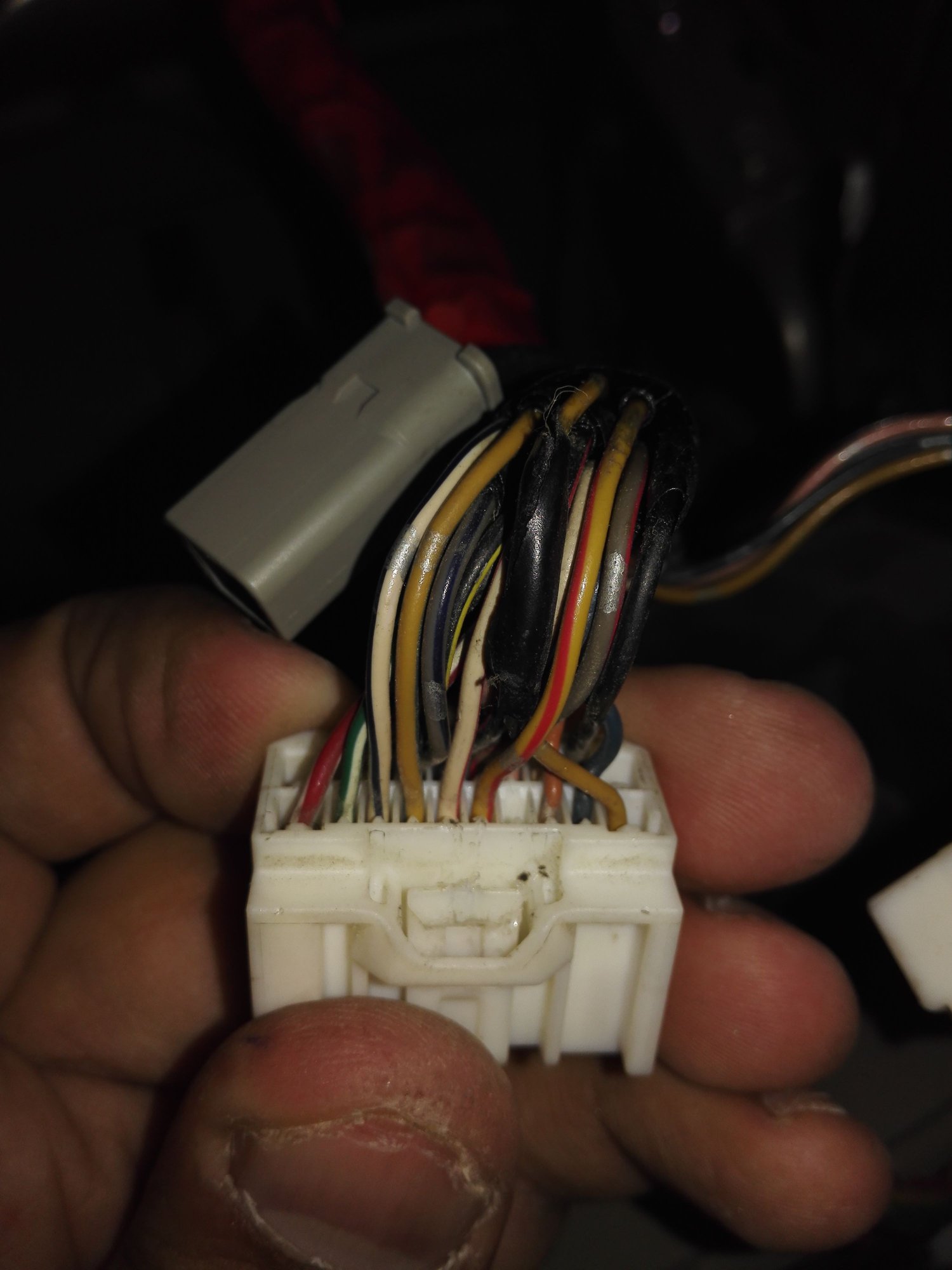

I already inform you that my car is lacking that power harness to operate this unit... also didn't you see the installation kit manual in the first post it said there is no need for that can box... and about your picture then take a look here
Also thanks for your assistant
Also thanks for your assistant
